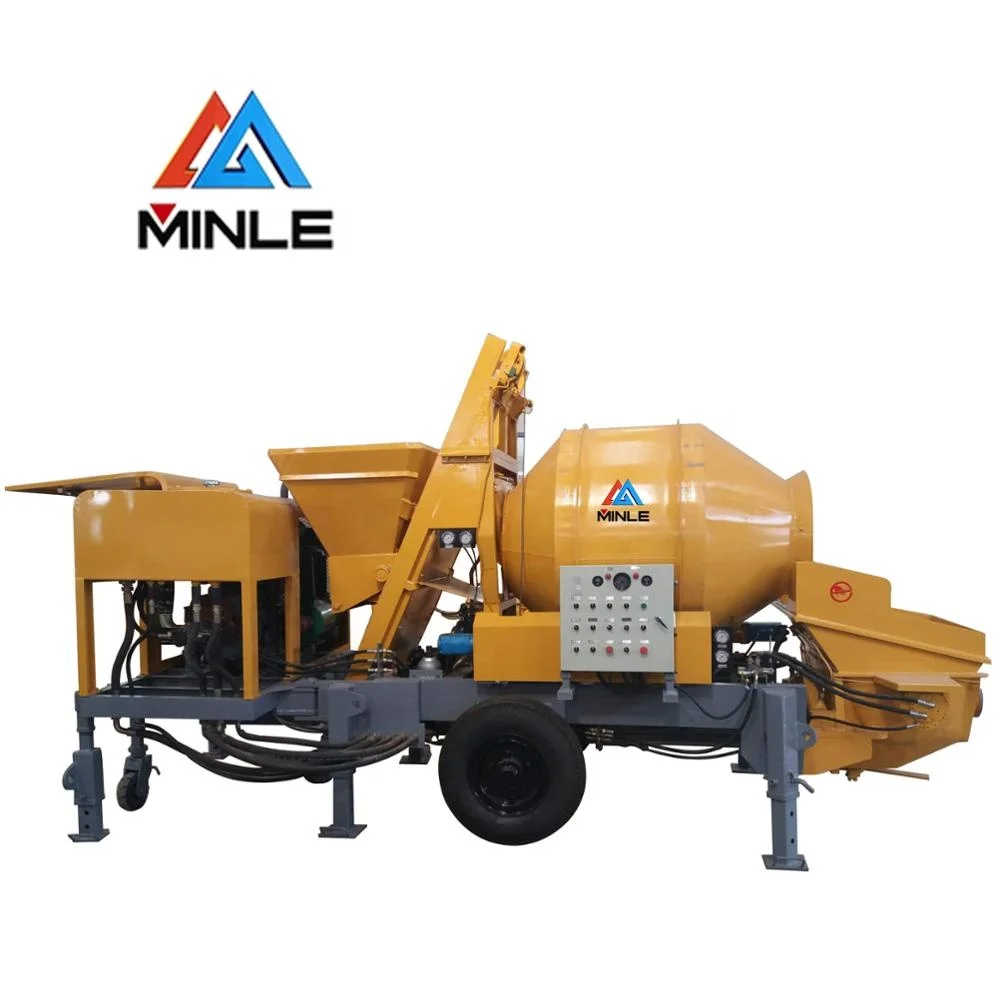

 MINLE Brand C3 mini portable concrete mixer with pump machine diesel engine

mobile/wechat/whatspp 86-15866001919

Choose MINLE as partner,let us make every effort to support your custruction works!











mini portable concrete mixer with pump is the newest products patented by our company, it is combined by thetraditional concrete pump and the mixer together, it is the most suitable for usein four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.



mini portable concrete mixer with pump into one, simple to operate, easy to move, flexible, and stable performance. The pump construction operation system used in all automated, all material mixing, high pressure pumping as one; Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions.



Technical parameters of mini portable concrete mixer with pump :



Item	HBTS30-10-78R
Theoretical concrete output M3/h	30
Theoretical maximum pumping pressure Mpa	10
The form of distribution valve	The S tube placed valve
Duct diameter mm	125
Theoretical maximum transmission distance horizontal / vertical	500/150
Concrete Bore × stroke mm	180/1000
Feeding height m3/h	1250
Maximum aggregate size mm	30
The concrete slump degrees range mm	120-230
diesel power kw	78
Cleaning method	High pressure water washing
Dimensions (L × W × H) mm	5800*2150*2600
Weight kg	5000

  More pics



1.Power system mini portable concrete mixer with pump

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.Diesel power: Germany Deutz, Weichai, Yuchai, Cummins .etc

2.Electronic control mini portable concrete mixer with pump

Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.

Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.

3.Hydraulic system mini portable concrete mixer with pump

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

4.Pumping system C3 diesel concrete mixer with pump

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.

5.Lubrication SystemC3 diesel concrete mixer with pump

The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.

6.Cooling System mini portable concrete mixer with pump

Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
we can load two sets in one 40HQ container,to save cost for you.

 WELCOME ENQUIRY

contact: sara mobile/wechat/whatsapp:86-15866001919





Customer visit





FAQ

Q1: Are you trading company or manufacturer?

A: We are factory. We can design and manufacture products with our patent.

Q2: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.

Q4: How many types of C3 diesel concrete mixer with pump  you have?

A: The motor ,diesel or electric.

Q5: What is the capacity of your concrete mixer pump?

A: We have 30m-40m3/h.

Q6: How long and high you want to pump?

A:Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.

Q7: The aggregate size that you usually use?

A: Pebble 40mm, crushed stone 30mm.



Contact us for more details!
