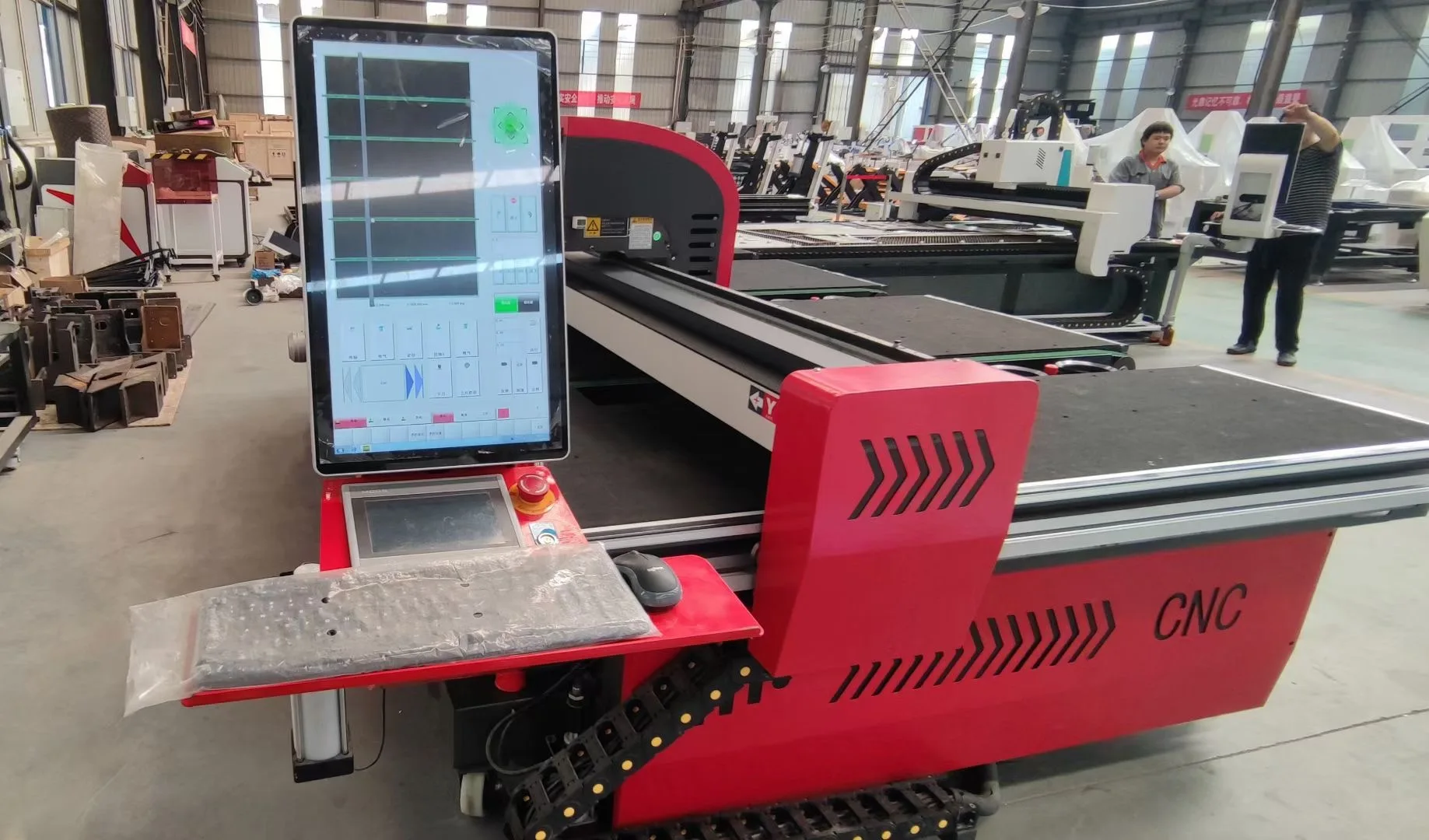

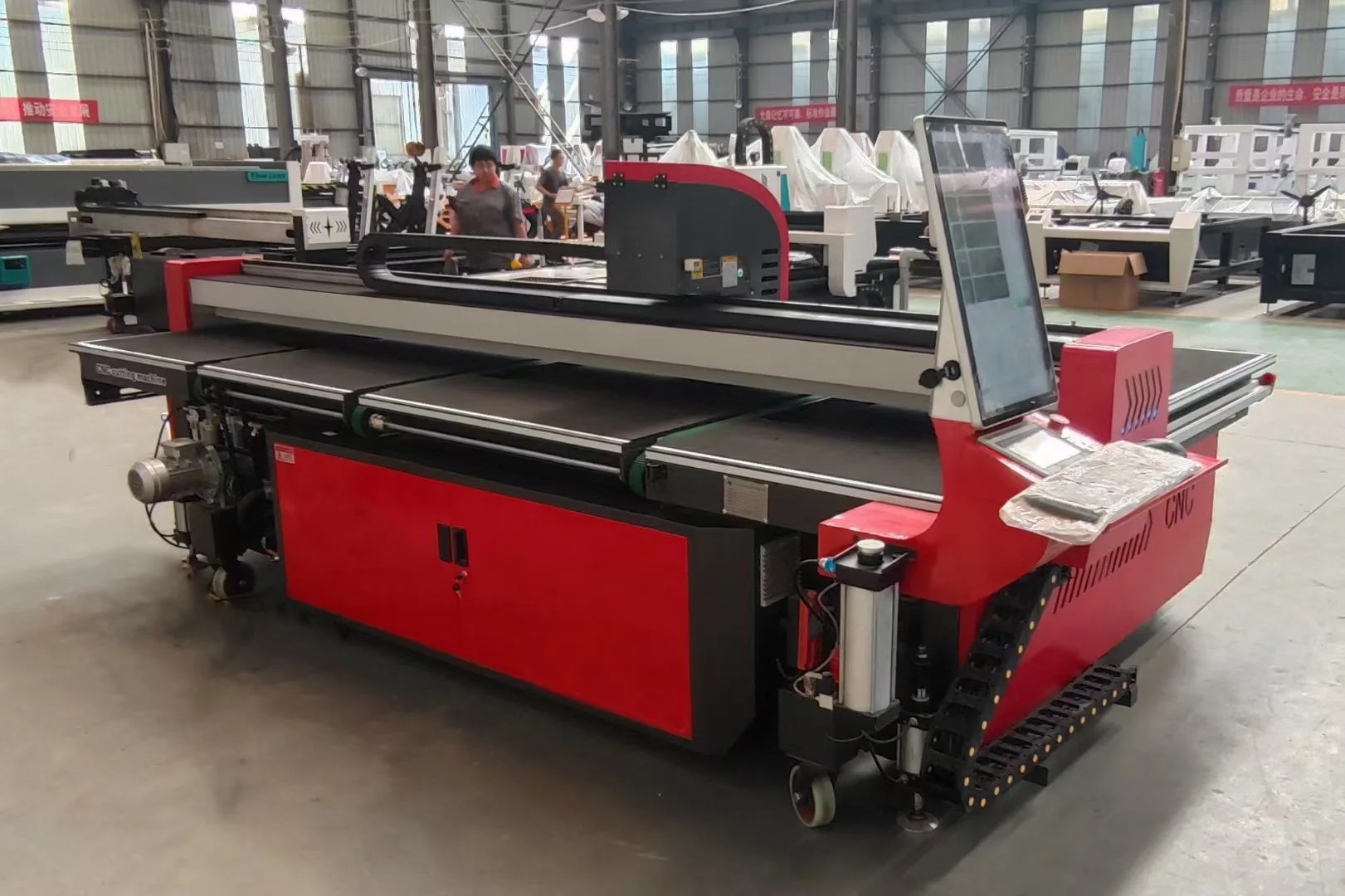

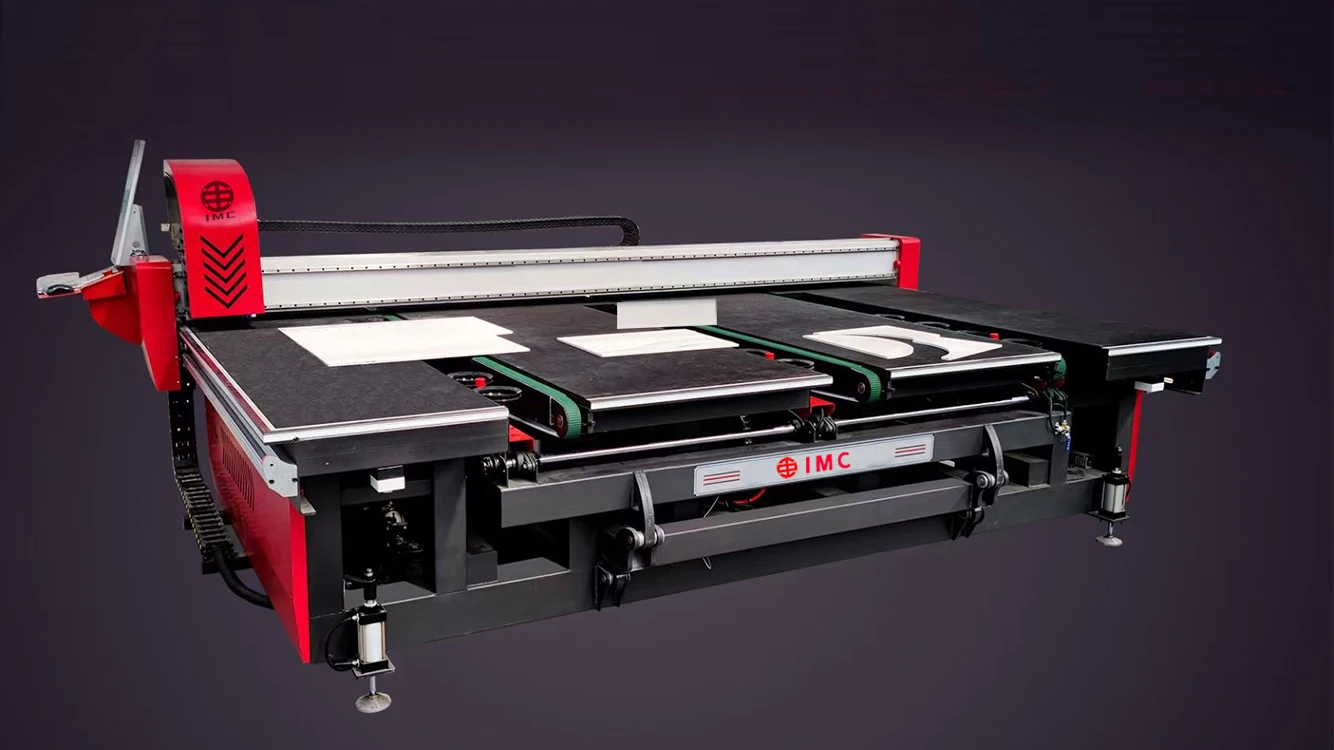

Многофункциональная машина для резки стекла с ЧПУ 3 в 1

Dimensions L*W*H:

5700mm*5000mm*800mm

Worktable height

800±30mm (foot adjustable)

Power requirements

380V, 50Hz

Installed power

10kW

Compressed air

0.6Mpa

Cutting glass size

MAX.3660*2440mm

Cutting glass thickness

2~19mm

Head beam speed X axis

0~200m/min (can be adjusted)

Head speed Y axis

0~200m/min (can be adjusted)

Cutting acceleration

≥6m/s²

The cutter

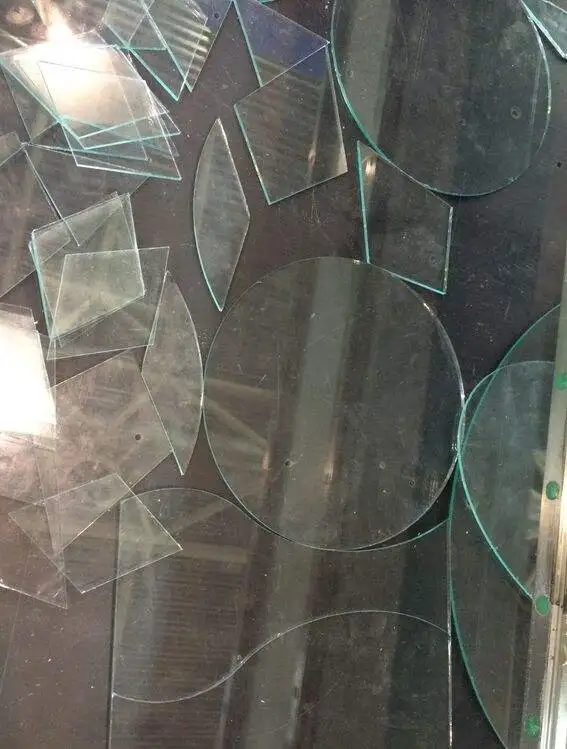

Cutting head can be rotated 360 degrees (accurately cutting straight lines and special shapes)

Cutting accuracy

≤±0.3mm/m (subject to the size of the cutting line before breaking)

Loading cycle

15-40s

Suction piece depth

750mm

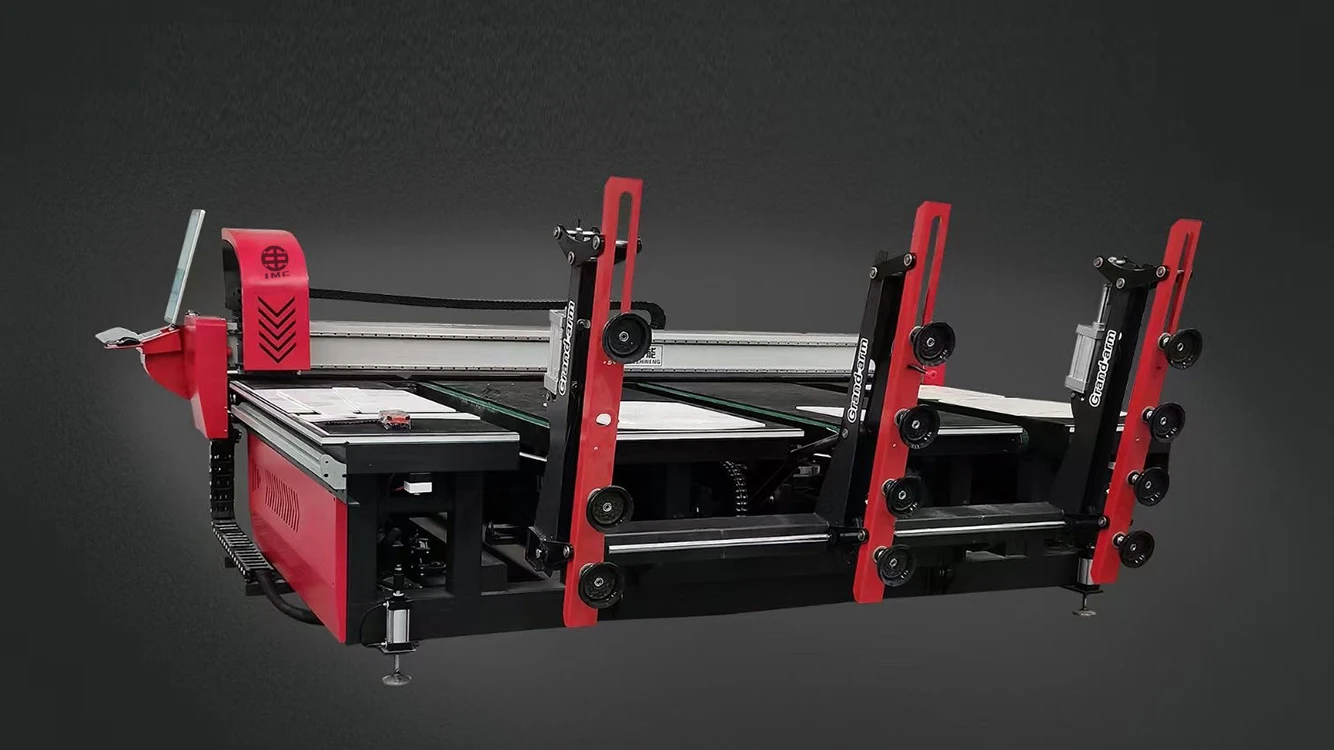

The number of upper arms

3

single-arm suction cups

4
