Мини-машина для сбора хлопка
US $470.00-$498.00
Легкое управление машина для сбора и уборки горных полей зерен лаванды розмарина комбайн из
- Категории: Harvesters >>>
- Поставщик: Henan,Kellen,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Instructions

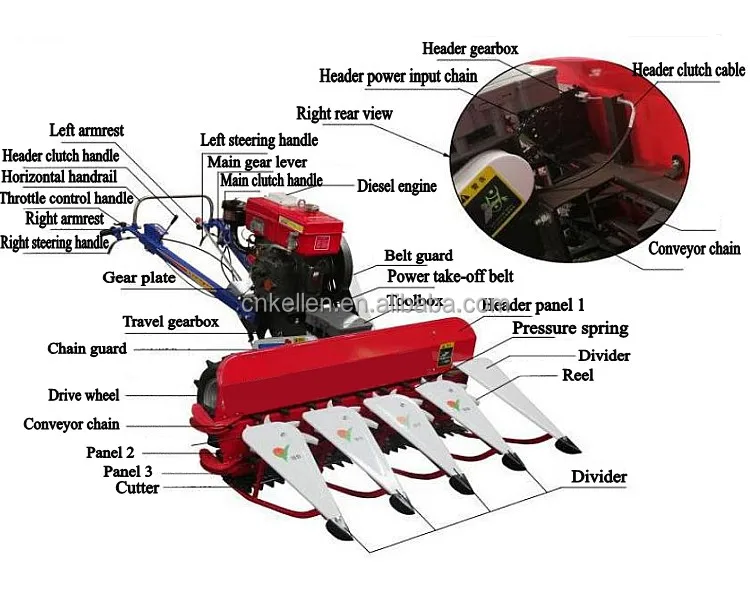

The hand-push binder reaper is composed of five parts: header, power, frame, driving wheel and handrail frame. It is used to harvest crops with a height of 0.4-1.2meters. The width of the harvester is 0.8/1/1.2 meters. It is suitable for rice and wheat, corn, pasture, rice, pepper, oat grass, alfalfa grass, mint, Mexican grass and soybean, reed harvesting. Compact structure, convenient and flexible use, easy to operate and maintain.
Technology parameter

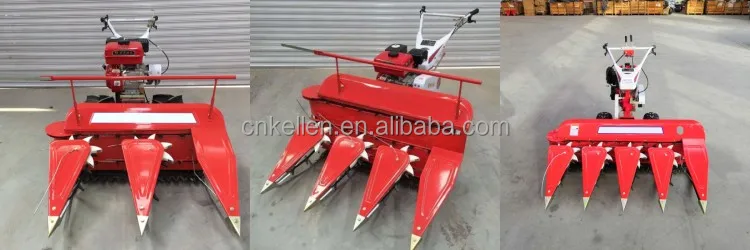

2 Divider
Width: 0.8m
3 Divider
Width: 1m
4 Divider
Width: 1.2m
Model | KL-80 | KL-100 | KL-120 |
Power | 5.5HP | 5.5HP | 8-10HP |
Rotating Speed | 1800/2600r/min | 1800/2600r/min | 1800/2600r/min |
Stubble Height | <50mm | <50mm | <50mm |
Driving Method | Chain Drive | Chain Drive | Chain Drive |
Operating Speed | ≥0.5m/s | ≥0.5m/s | ≥0.5m/s |
No. Of Divider | 2 piece | 3 pieces | 4 pieces |
Chain | 2 rows | 2 rows | 2 rows |
Width of Reaper | 800mm | 1000mm | 1200mm |
Capacity | 1500-2000m2/h | 1680-2660m2/h | 2000-3500m2/h |
Cutting Type | Vertical | Vertical | Vertical |
Placing Type | Side Wise | Side Wise | Side Wise |
Placing Angle | 90°±20° | 90°±20° | 90°±20° |
Weight | 138kg | 148kg | 158kg |
Size | 2100*1100*1000mm | 2100*1300*1000mm | 2100*1500*1000mm |
Product Application
Applicable crops like rice, wheat, barley, grain, paddy, soya bean, corn, stevia, pasture, nepier, reed, osier, forage grass, sesame, weed, oats, rape, chili, pepper, mint, willow, salix integra, silage, selfheal, alfalfa, leek, barbed skullcap, and some other stem plants.
If you don't know whether our reaper is suitable for you, feel free to contact Sunny.

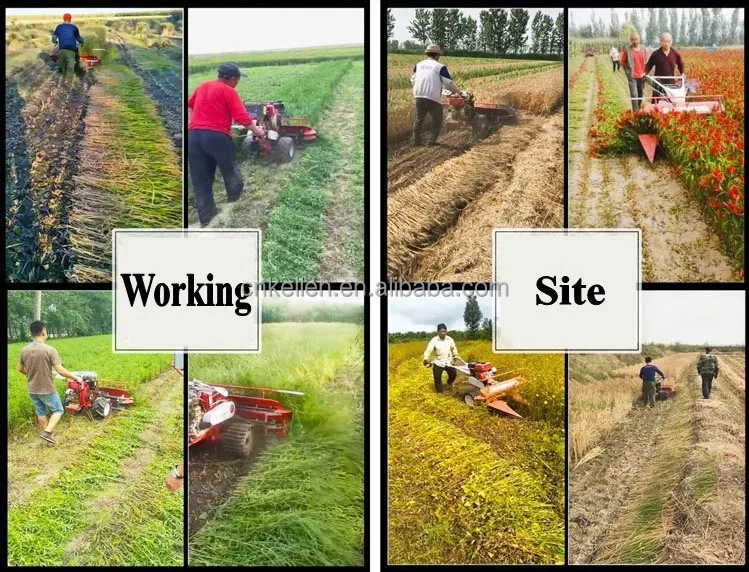

Applicable places: plaint, hills, sloping fields, narrow and small farming land，arid field, paddy field and terraces.

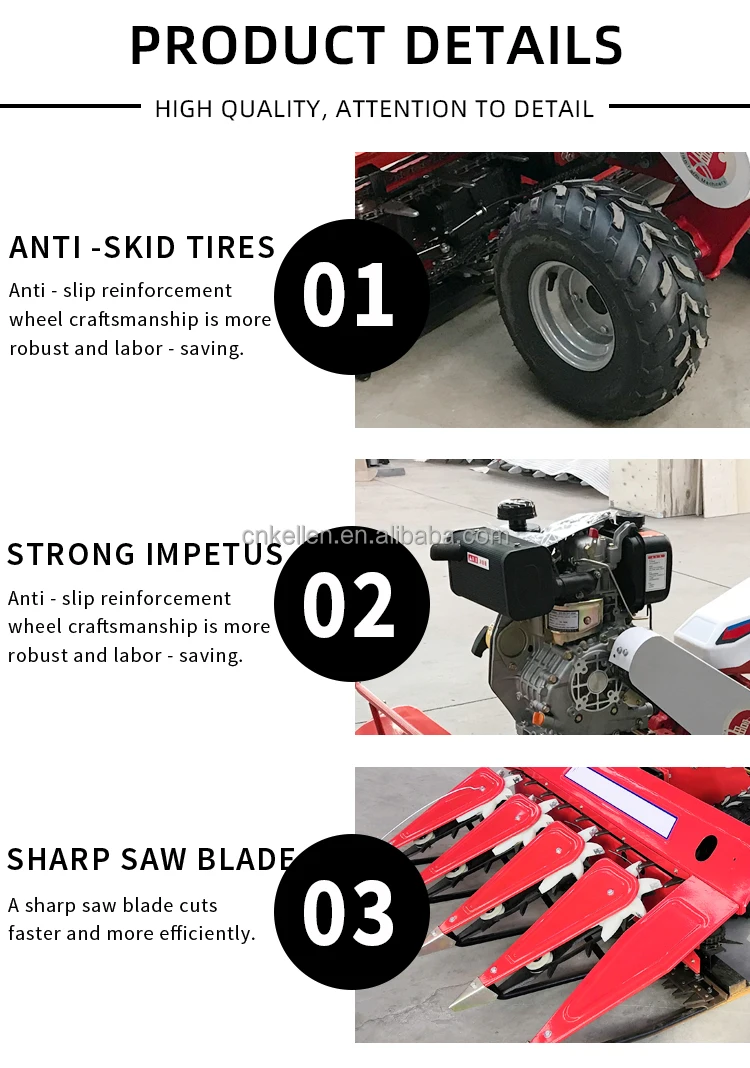

Product Details

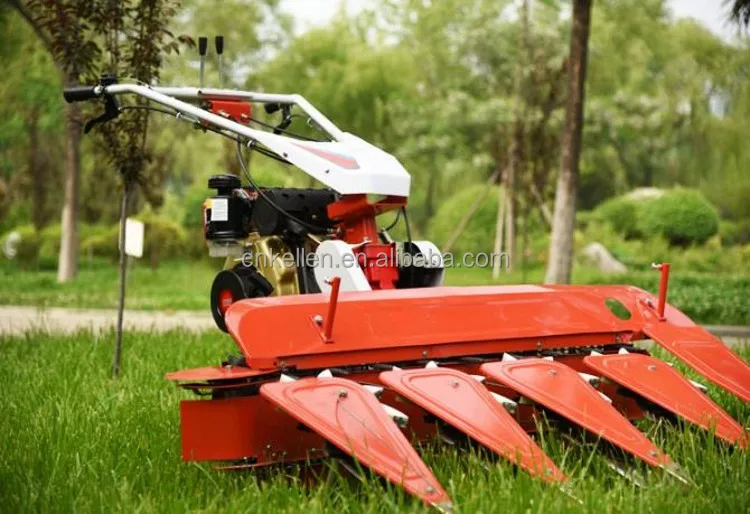

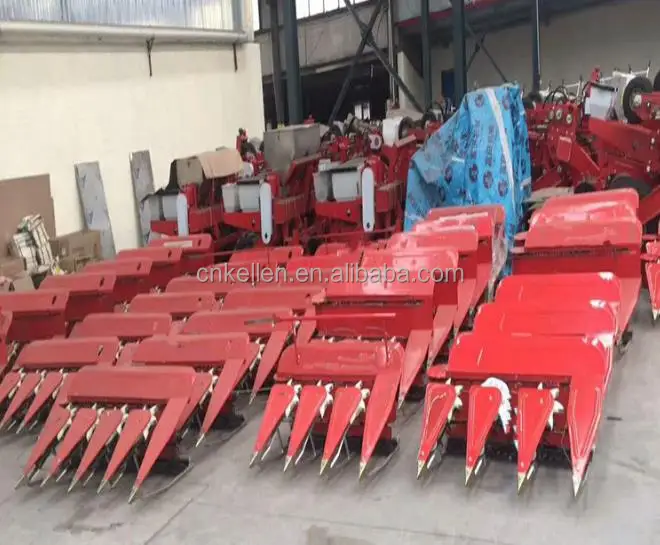

Real Shot

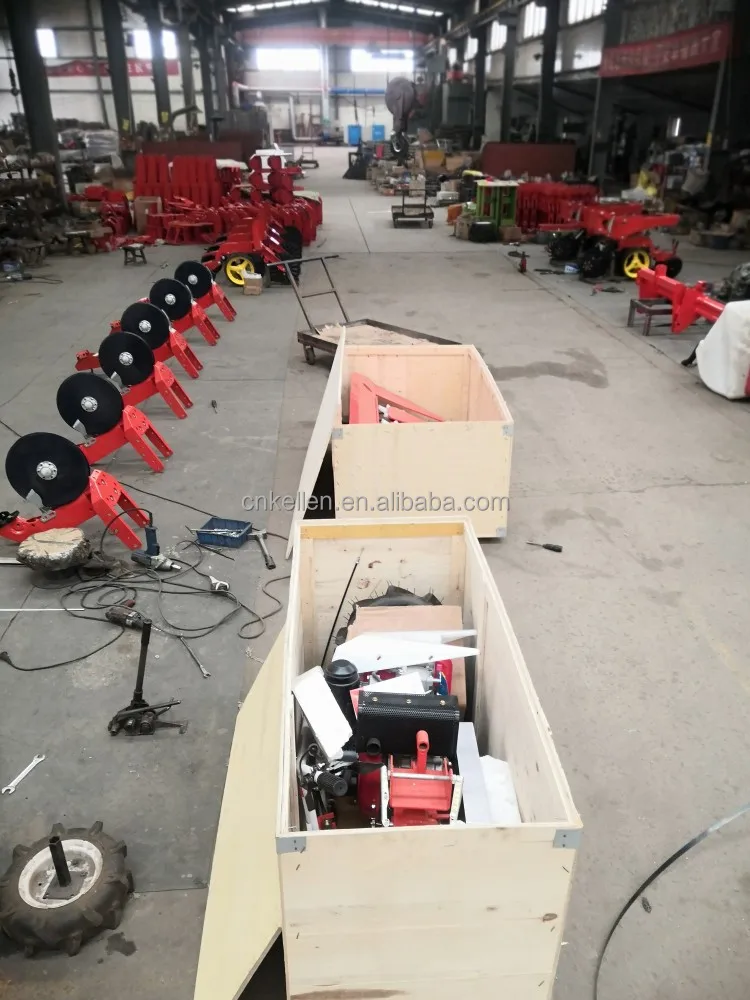

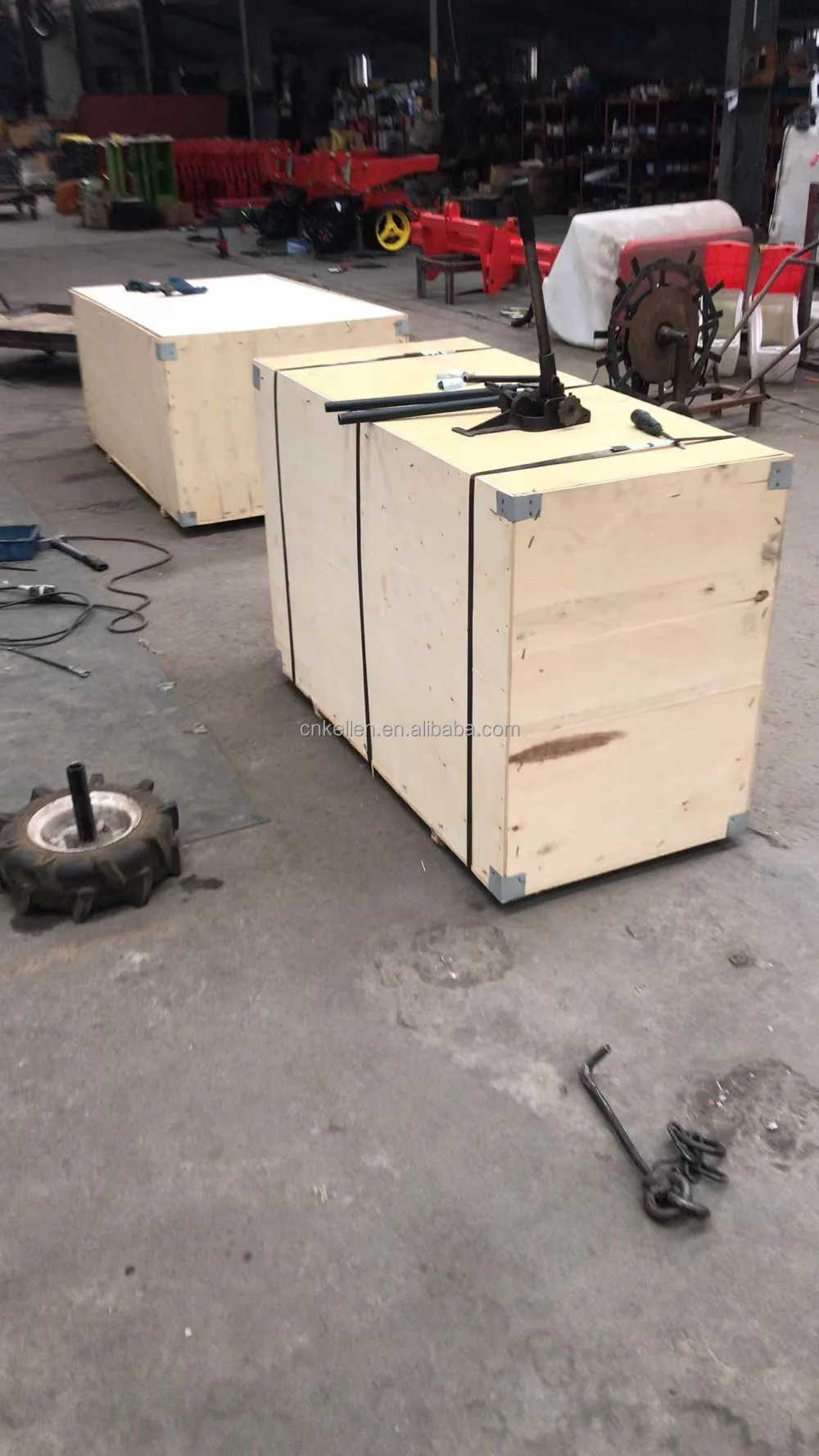

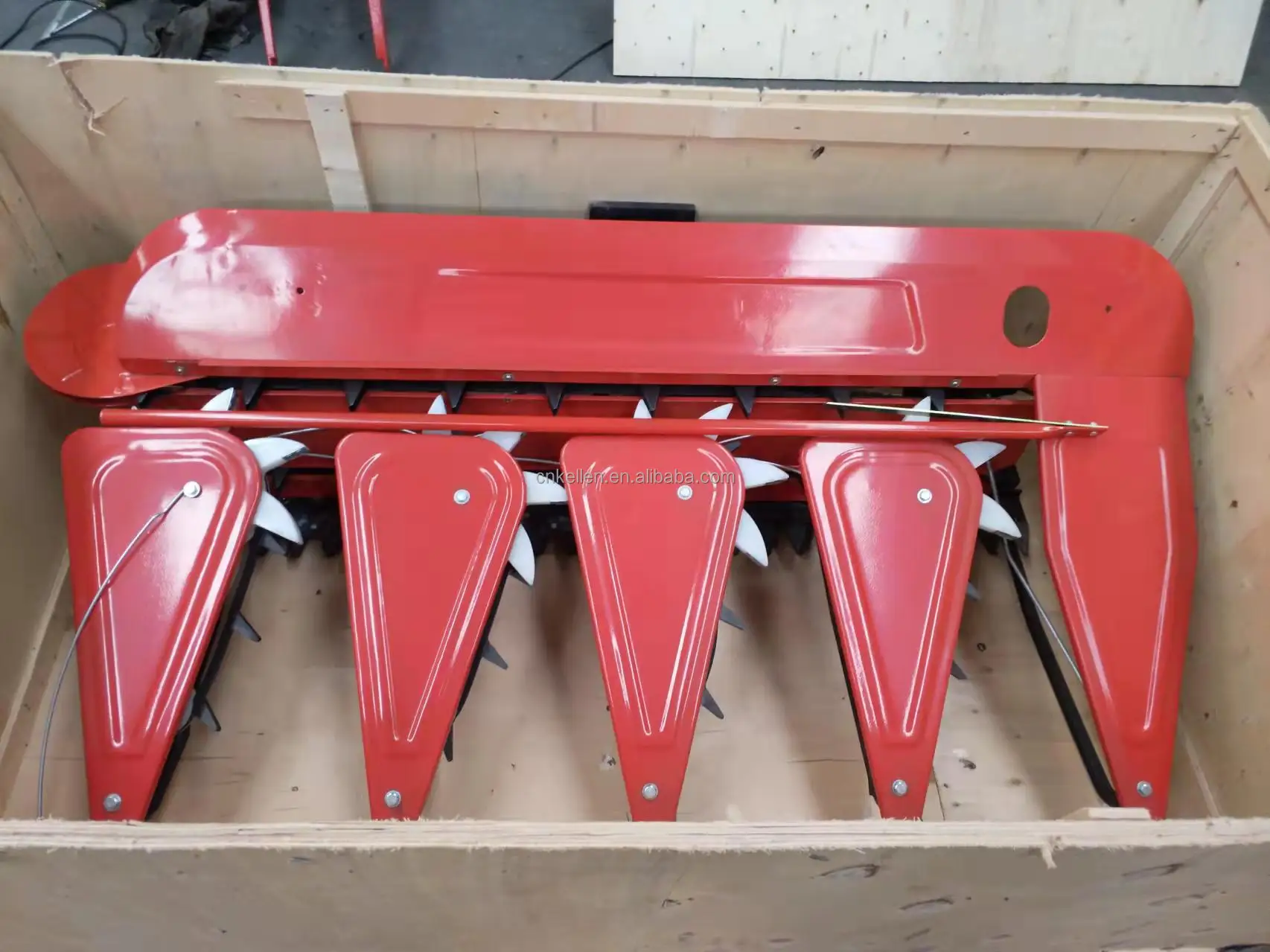

Packing and Delivery

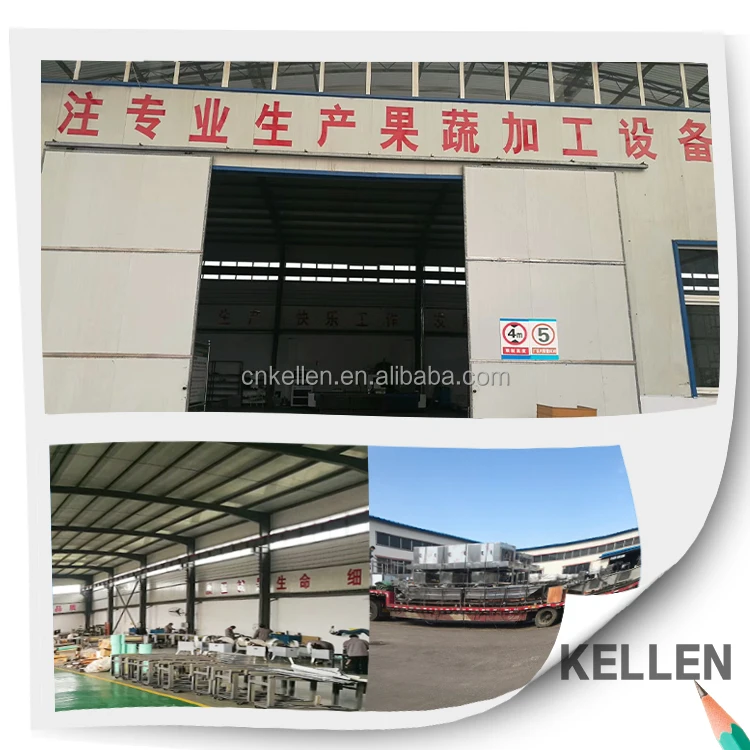

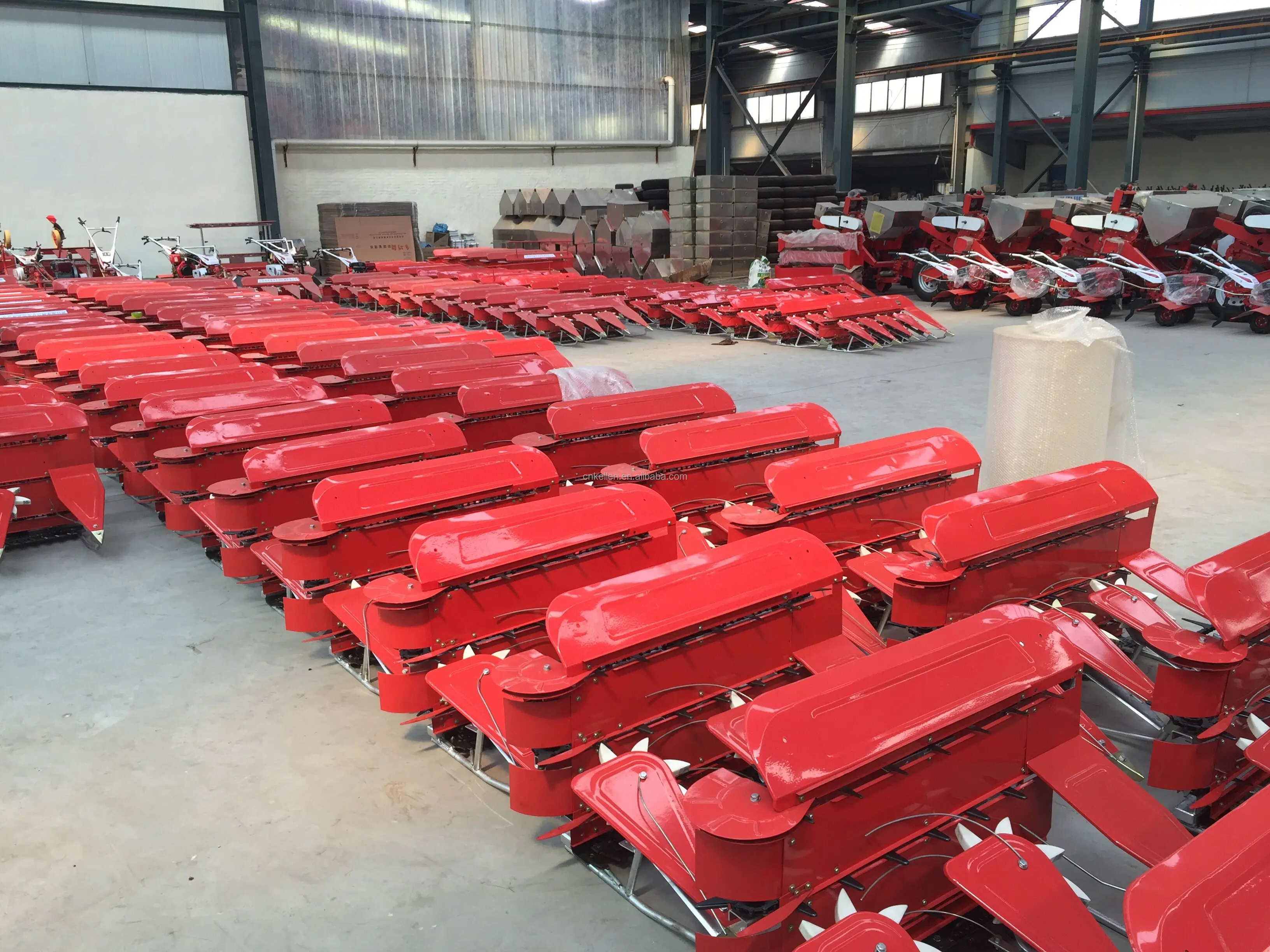

Company Profile
Why Choose us？
♦ Project Design
Assist you to choose equipment, design production process flow According to the customer actual production environment and production requirements.
♦ Installation Training
Provide telephone guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
Provide free relevant training as customer required.
Long-term technical support.
♦ After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be paid by buyer.
♦ Oversea service
Engineers available to service machinery overseas.
♦ Response with 24hour
We value every inquiry sent to us, ensure quick competitive offer within 24 hour.
♦ Full document
All necessary document will be provide .
♦ Payment way
We accept multiple terms of payment, such as L/C, T/T, western Union, Money Gram, Alibaba Trade Assurance.
