Automatic cement qt4 15 block making machine



1. Main advantage of QT4-15 block making machine:

1) Fully automatic ,very easy operated by workers, greatly reduce the labor-cost.

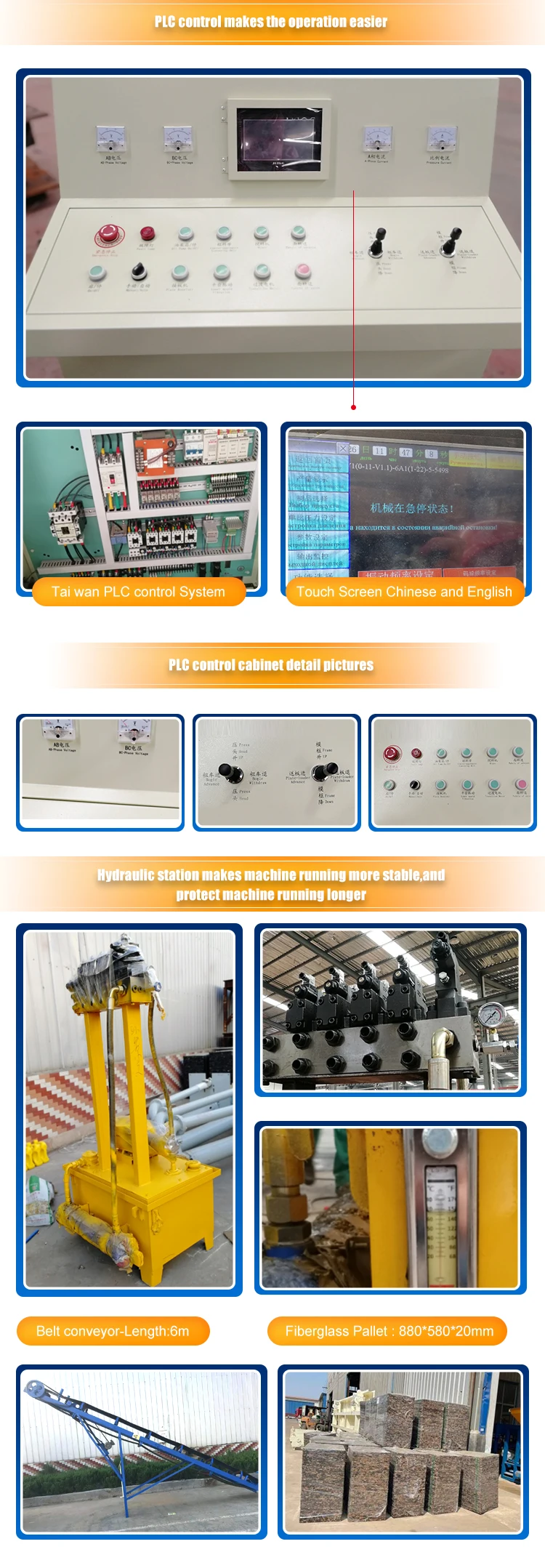

2) Japan Mitsubishi PLC control system, ensure the machine runs extremely smoothly, long serving life. Faults-displaying and the troubles-shooting on the cabinet.
3) Hydraulic system, three-stage pressure control valve are adopted. so the pressure for all actions of the machine can be adjusted automatic.
4) Mould vibration and head pressure together, make the brick high strength and density.

5) burn-free block making machine. It is usually used to produce different size concrete bricks, don’t need to be burned,They can be put into use only after a short period of drying.

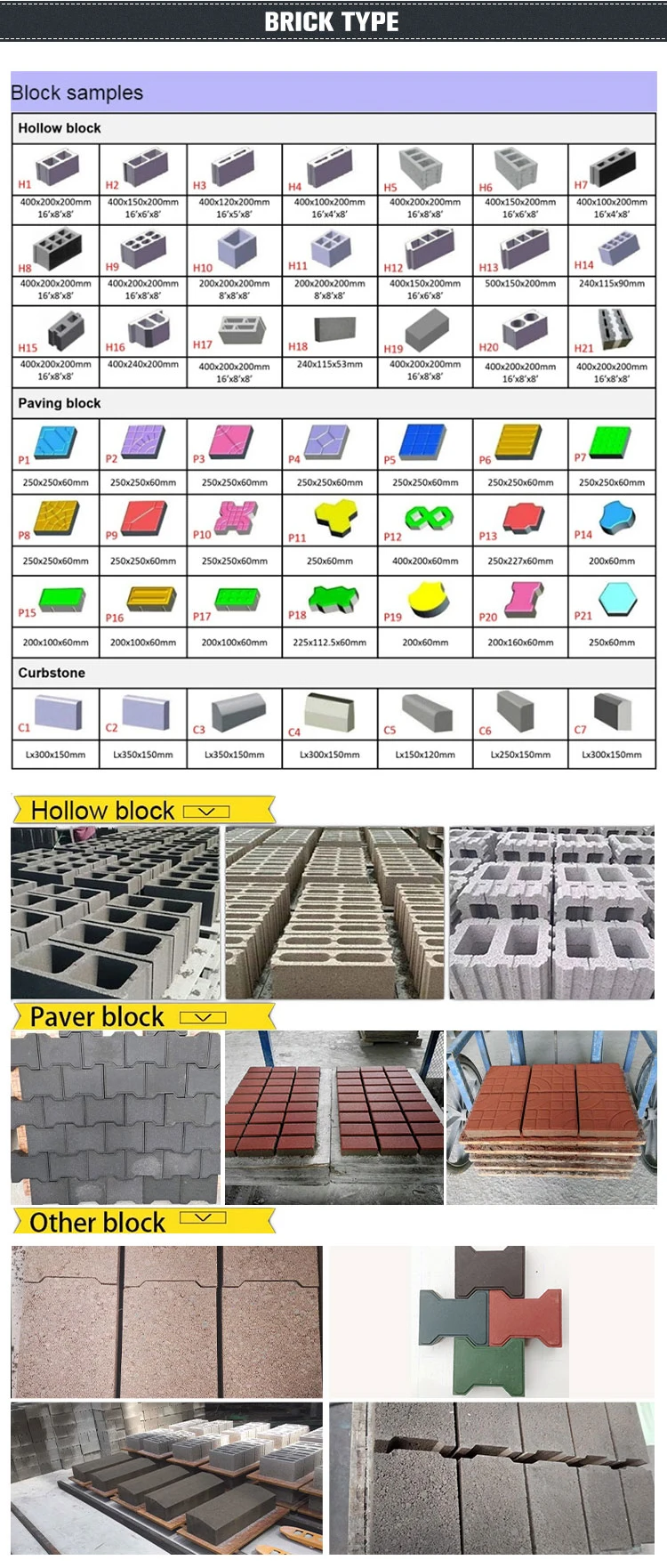

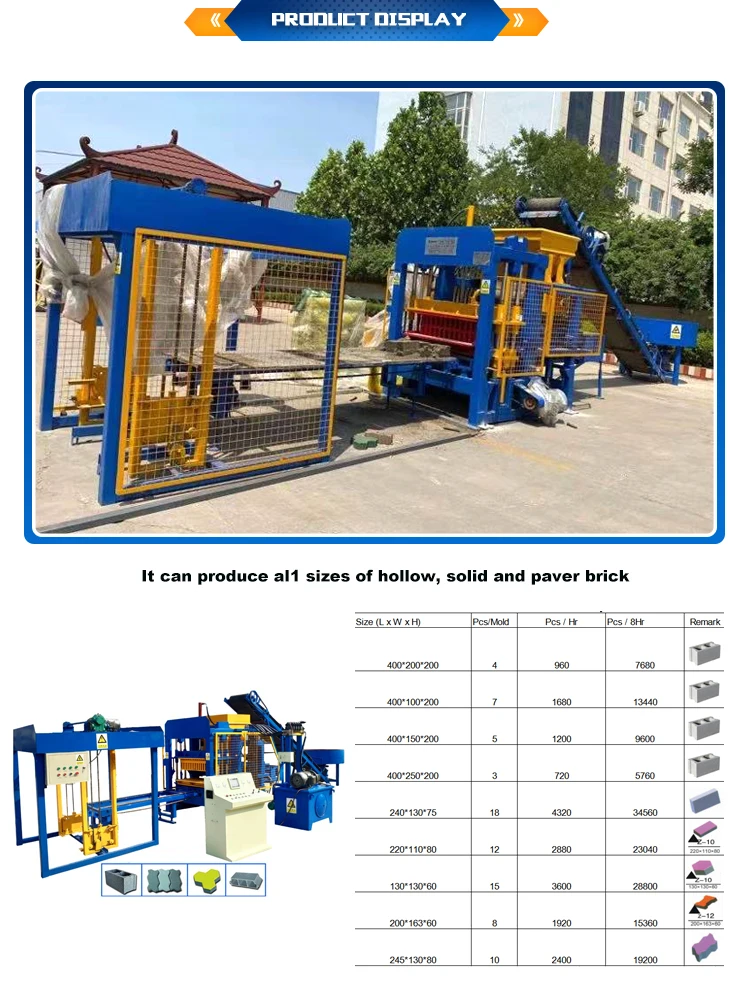

6) Multi-funcction, could produce different sizes hollow block, solid brick, inerlocking, paver brick., curbston etc.

2.QT4-15 block making machine Main parameters

Machine dimension	2700*1600*2500mm
Total weight	3500KGS
Main Vibration	platform vibration
Vibration frequency	4200r/min
Pallet size	880*580mm
Overall power	24.95KW
Molds	customized
Forming cycle	15-20s
Rated pressure	16MPA hydraulic pressure

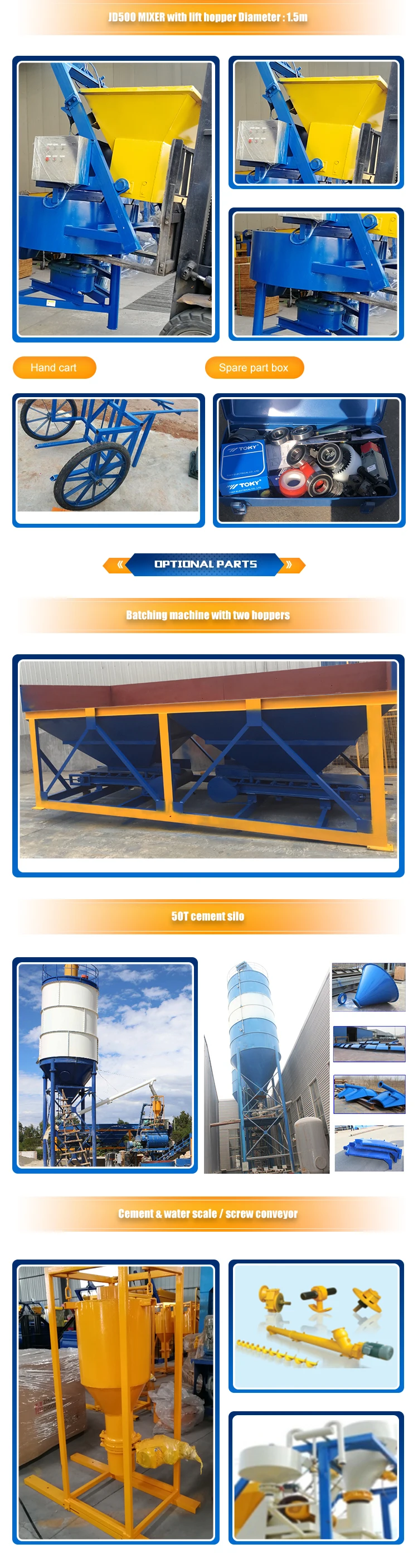

Mixer	JD500 mixer with lifting hopper
Machine Workplace	200-300m2
Voltage	220V/380V/415V as customer local voltage needs
