OEM длина волны 365nm-1550nm B270 материал оптические фильтры

Описание и отзывы

Характеристики



Customized 4260nm infrared filter bandpass optical filter for laser night-vision opticalfilters

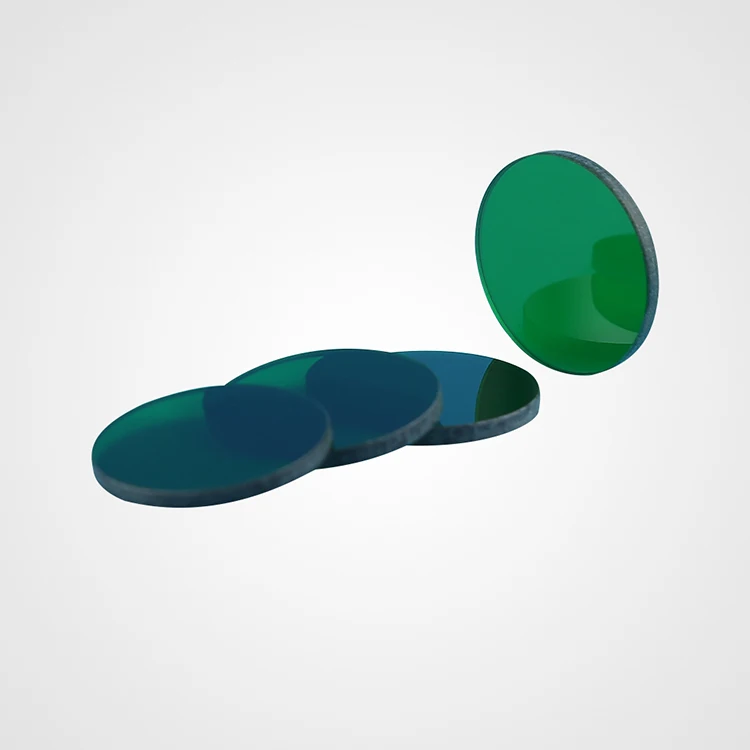

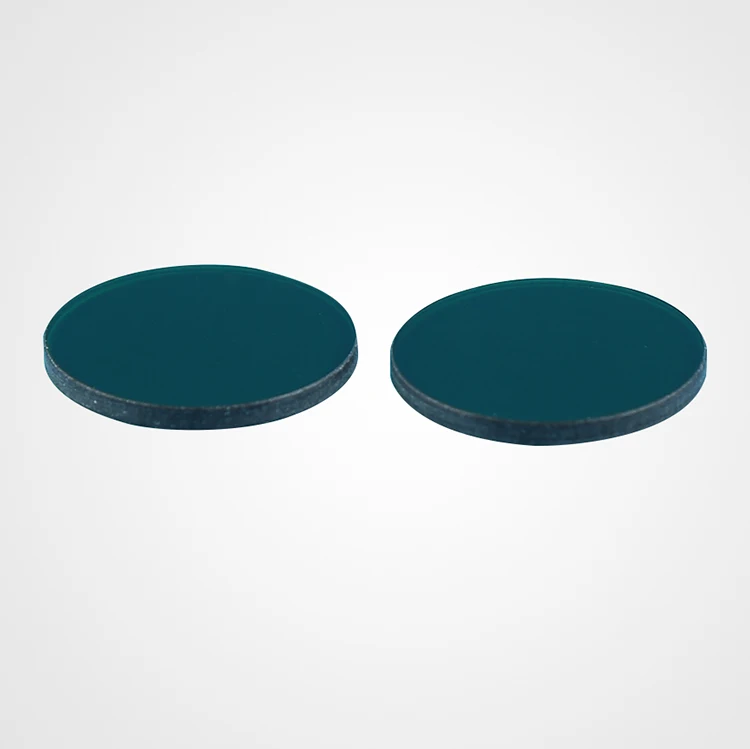

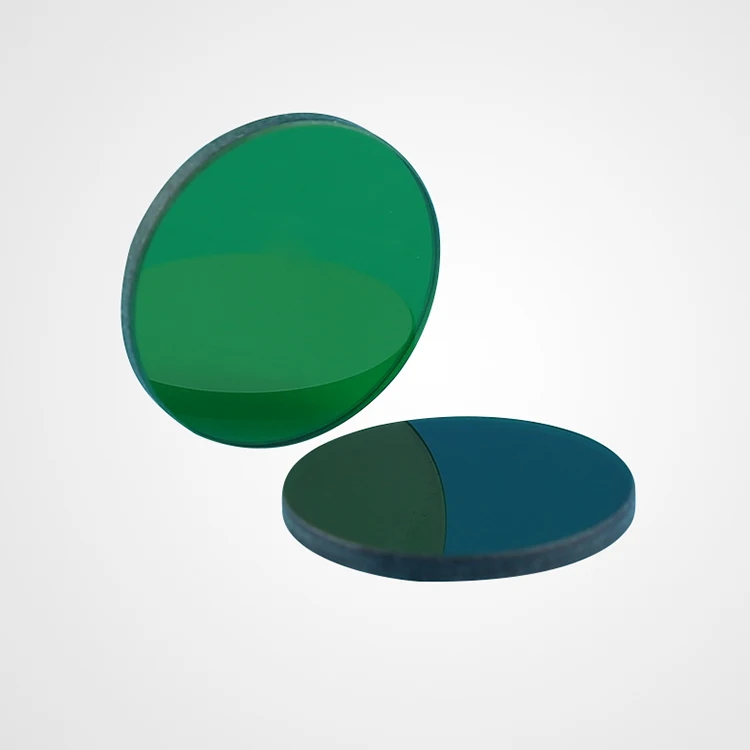

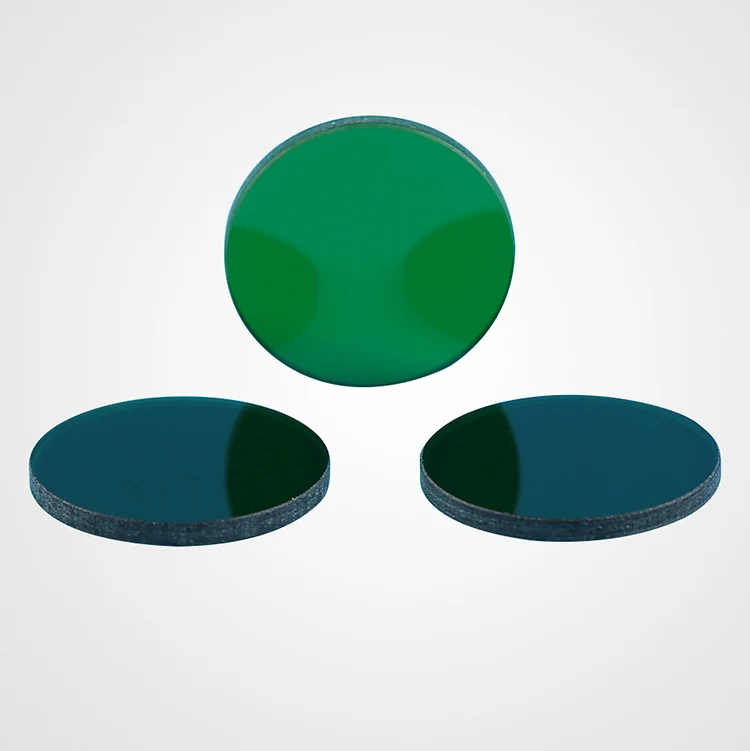

Product name	Narrowband filter
Material	Optical ultra white glass (BK7 high aluminum), quartz, etc
wavelength	365nm, 380nm, 394nm, 405nm, 420nm, 430nm, 440nm, 450nm, 465nm, 470nm, 490nm, 520nm, 532nm, 546nm, 550nm, 560nm, 570nm, 580nm, 590nm, 600nm, 620nm, 635nm, 648nm, 654nm, 660nm, 670nm, 690nm, 720nm, 740nm, 460nm, 780nm, 808nm, 810nm, 830nm, 845nm, 850nm, 860nm, 870nm, 880nm, 905nm, 940nm, 980nm, 1000nm, 1050nm, 1064nm, 1080nm, 1200nm, 1550nm
Product size	customized
Shape tolerance	±0.1mm
Thickness tolerance	±0.1mm
Parallelism	<3'
Smoothness	60-40,40-20

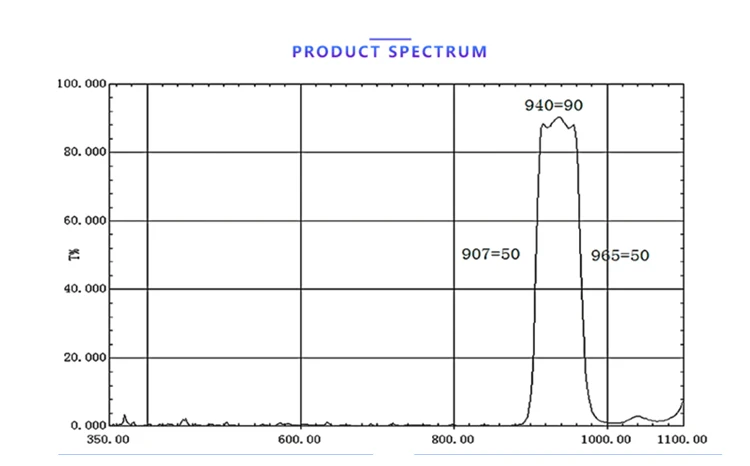

Center wavelength	940
Cut off depth	OD2-OD4
Transmittance	Above 90%





Principle:

The narrow-band filter allows the optical signal to pass through a specific band, and the optical signals on both sides that deviate from this band are blocked. The passband of the narrow-band filter is relatively narrow, generally less than 5% of the central wavelength value.



Function:

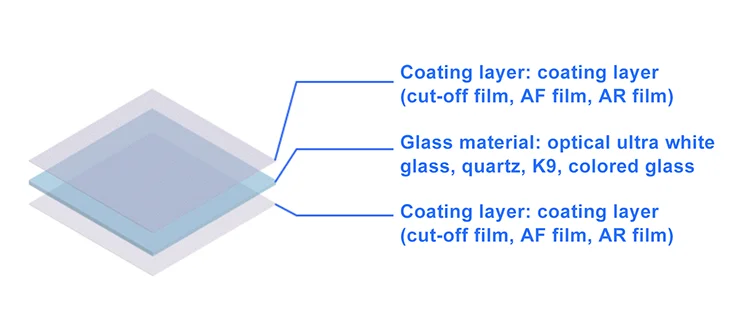

The main function of the narrow-band filter is to pass light of a specific wavelength and to reflect (or attenuate) light of other wavelengths. The half-wave width is usually controlled at 20nm or less, and can be used in ultraviolet, visible, near-infrared, and far-infrared wavelengths. Our company’s narrow-band filter is made of multilayer hard film by ion-assisted deposition of nanomaterials and high vacuum evaporation. The film layer Good compactness, high imaging clarity.



Advantages:

1.Single-piece type does not use gluing

2. Hard coating, long service life

3. Accurate wavelength positioning

4. Ion evaporation, small temperature drift

5.High penetration rate

6.High cut-off depth



Specification:

365nm, 380nm, 394nm, 405nm, 420nm, 430nm, 440nm, 450nm, 465nm, 470nm, 490nm, 520nm, 532nm, 546nm, 550nm, 560nm, 570nm, 580nm, 590nm, 600nm, 620nm, 635nm, 648nm, 654nm, 660nm, 670nm, 690nm, 720nm, 740nm, 460nm, 780nm, 808nm, 810nm, 830nm, 845nm, 850nm, 860nm, 870nm, 880nm, 905nm, 940nm, 980nm, 1000nm, 1050nm, 1064nm, 1080nm, 1200nm, 1550nm.



Application:

It is widely used in machine vision, biochemical analysis, optical instruments, spectrum measurement and other fields.
