Product Description
Please carefully read the attribute table of the electric hoist below and
select the right model and weight you need
to avoid the problem that the electric hoist of your required specification is too heavy to install after unpacking without looking at the package like a few customers. If the goods are not returned or replaced due to quality problems, the round-trip freight shall be borne by the buyer. If you need help, please contact us
Feature
- Control Method: Remote control or Remote Control
- Working Duty: A5-A6
- Two speed: 8m / MIM, 0.8m/min, two speed: 7m / min, 0.7m/min, double speed: 3.5m/min, 0.35m/min
Ambient temperature: - 20 ℃~ + 40 ℃
Working system: intermediate jc25%
Heavy grade: jc40%
Each model has high configuration version and high-quality version. Please choose the version you need | |||||||||||
| high configuration | high quality | ||||||||||
 |  | ||||||||||
| model | 0.5ton/6m | 0.5ton/9m | 1ton/6m | 1ton/9m | 2ton/6m | 2ton/9m | 3ton/6m | 3ton/9m | 5ton/6m | 5ton/9m | 10ton/9m |
| Lifting speed(m/min) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 7(0.7/7) |
| Travelling speed(m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed matching I-beam model | 14-28b | 14-28b | 14-28b | 14-28b | 16-32b | 16-32c | 16-32c | 16-32c | 25-63c | 25-63c | 28-63c |
| Motor material | Copper core | Copper core | Copper core | Copper core | Copper core | Copper core | Copper core | Copper core | Copper core | Copper core | Copper core |
| Lifting motor power | 0.8 (KW) | 0.8 (KW) | 1.5 (KW) | 1.5 (KW) | 3 (KW) | 3 (KW) | 4.5 (KW) | 4.5 (KW) | 7.5 (KW) | 7.5 (KW) | 13 (KW) |
| Power of traveling motor | 0.2(KW) | 0.2(KW) | 0.2(KW) | 0.2(KW) | 0.4(KW) | 0.4(KW) | 0.4(KW) | 0.4(KW) | 0.8(KW) | 0.8(KW) | 0.8(KW) |
| Voltage | 380(V) | 380(V) | 380(V) | 380(V) | 380(V) | 380(V) | 380(V) | 380(V) | 380(V) | 380(V) | 380(V) |
| Motor frequency | 50 (HZ) | 50 (HZ) | 50 (HZ) | 50 (HZ) | 50 (HZ) | 50 (HZ) | 50 (HZ) | 50 (HZ) | 50 (HZ) | 50 (HZ) | 50 (HZ) |
| Dead weight of complete machine | ±95 (KG) | ±100 (KG) | ±120 (KG) | ±125 (KG) | ±195 (KG) | ±210 (KG) | ±240 (KG) | ±250 (KG) | ±380 (KG) | ±400(KG) | ±750(KG) |

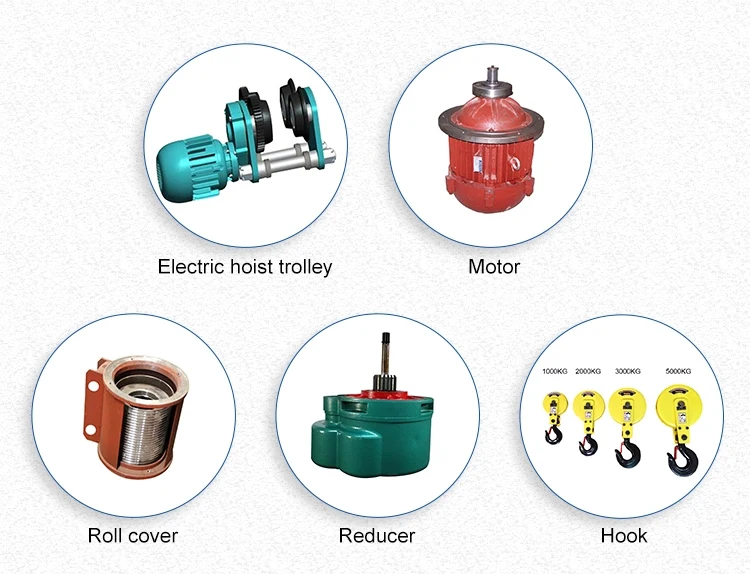

Accessories:

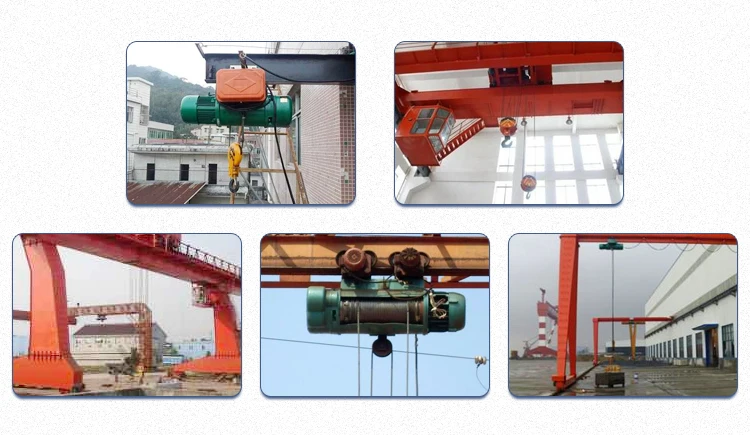

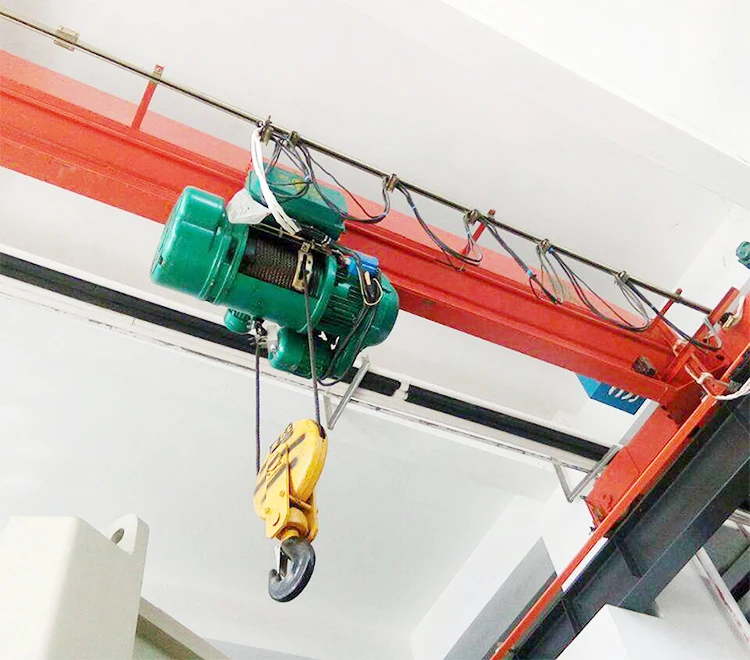

Application:
- machine shop and repair shop to install equipment and lift heavy objects.
- material warehouse and freight yard to lift, stack and stack materials.
- lifting prefabricated components and cement pipes in construction industry and pipeline operation.
- lifting heavy objects in warehouse, hospital, shop and food factory.
- lifting heavy objects in river wharf.
Related Products
Packaging & Shipping
Main Products
Company Information
With more than 30 years of experience in the crane industry, our company started its activities in 2009 with the power and confidence of our valued customers is one of the leading companies in the sector is moving forward with confident steps.
Tianqiao Heavy Machinery is ISO 9001:2015 certified, and committed to a rigorous, ongoing process of quality control for all our processes. Our 36,000 square meter state-of-the-art manufacturing facility allows us to manufacture our products in the most efficient and cost-effective manner possible.
Customer Feedback
FAQ
Q. Are you manufacturer?
A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
Q: How can you ensure the quality?
A: Before delivery, every product will be made test. You are also warmly welcomed to come to our factory to make inspection.
Q: How about the delivery time?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q: What is the MOQ?/What is your MOQ?
A: 1 Set. We can accept sample orders for trial order.
Q: Can I get your crane products with customized personalized service?
A: Yes, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Q: How about the warranty?
A: All Tianqiao’s products enjoy 2 years’ warranty, and we provide after sales service and technical support, when find any questions in installing, feel free to contact us.
Q: The space of my workshop is limited, can the crane ok for me?
A: For low headroom workshop, we have special products. The details demension our engineer will be design for you.
Q: What’s the Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
