Цена:529,00 $ - 587,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Company Profile






Jiangsu Polygee Environmental Technology Co., Ltd. is the first listed enterprise in the domestic oil and smoke purification industry (stock code:832802). Since its establishment in 2004, it has been committed to developing manufacture and saling industrial fume purification equipment, commercial fume purification equipment, commercial air purification equipment. After nearly 20 years of development, the products have been sold in 34 provinces and municipalities in the country and exported to Singapore, Malaysia, India, Turkey, Iran, the United Arab Emirates, Qatar, the United States, Canada, Australia, Asia, Israel, Spain, Thailand, Sri Lanka, South Africa, Brazil etc, more than 20 ports and countries.
We have a number of independent intellectual property rights, 85 of which are authorized, of which 21 are national invention patents and 40 are utility model patents, 24 appearance patents, 14 software copyrights, and 2 products are included in the national torch program projects. Products has passed China Environmental protection product certification, European Union CE certification. Through the test international competitor 1.79 ％ which marks that Polygee technique has stood at the forefront of the world.


Our Factory

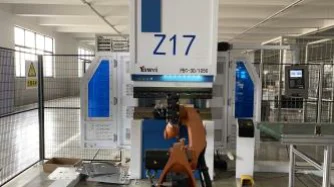

Our company has got professional equipment on producing lines, assembly lines and testing lines. For example, we use bending robots and punching machines etc.And we can produce 50000 sets a year.


Product Description








Specification




Model
LK30E1
LK40E1
LK50E1
LK60E1
Input power
220V/50Hz
220V/50Hz
220V/50Hz
220V/50Hz
Airflow(m³/h)
3000
4000
5000
6000
Efficiency
95%
95%
95%
95%
Pressure drop(pa)
23
23
23
23

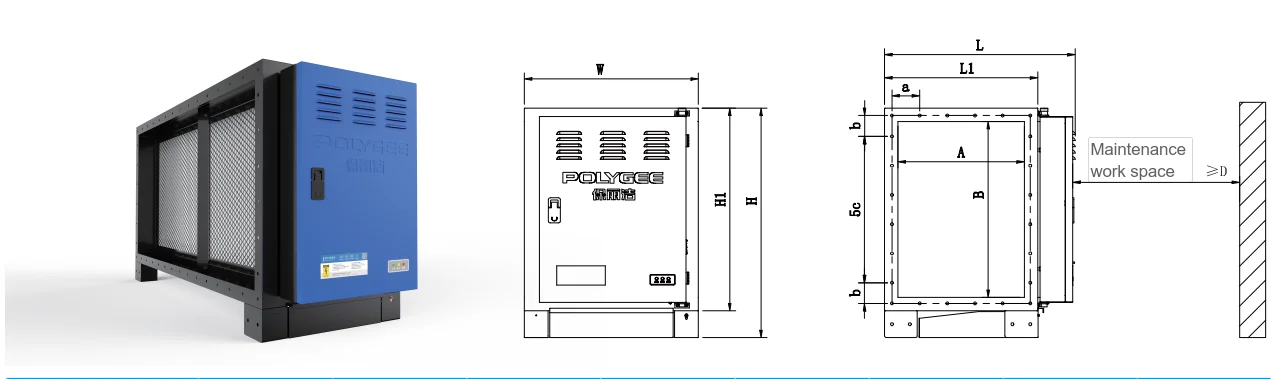

Dimension(L×W×H, mm)
678*560*833
846*560*833
898*560*833
1188*560*833
Flange dimension(A×B, mm )
431*614
599*614
651*614
941*614
Other dimension (A1×B1 mm)
470*653
638*653
690*653
980*653
Rated power
56
77
91
112

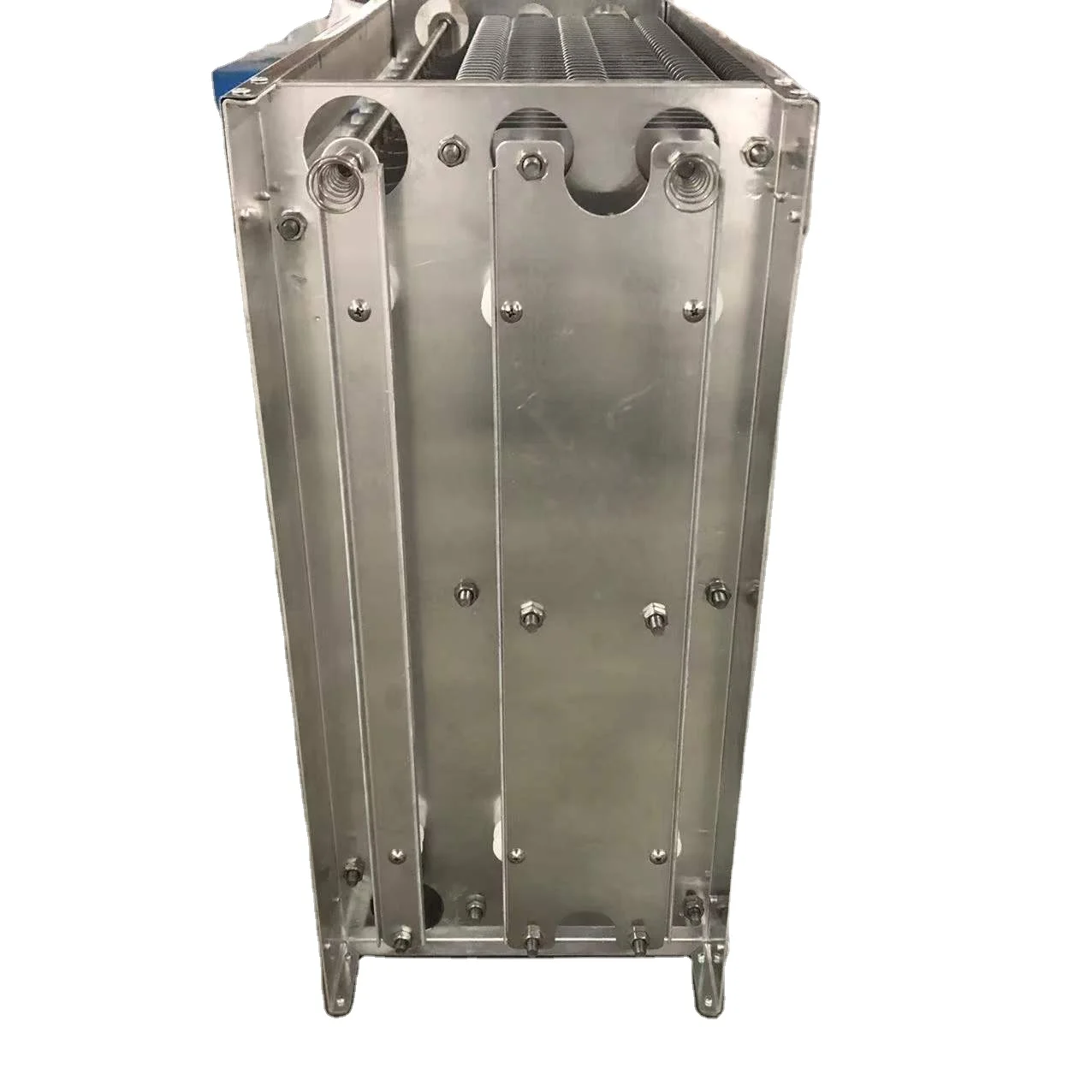

ESP cell(pcs)
1
1
1
2
Quantity of voltage(pcs)
1
1
1
1
Weight(kg)
61
71
76
95


Model
LK80E1
LK100E1
LK120E1
LK150E1
Input power
220V/50Hz
220V/50Hz
220V/50Hz
220V/50Hz
Airflow(m³/h)
8000
10000
12000
15000
Efficiency
95%
95%
95%
95%
Pressure drop(pa)
23
23
23
23
Dimension(L×W×H, mm)
1524*560*833
1628*560*833
2202*560*833
2358*560*833
Flange dimension(A×B, mm )
1277*614
1381*614
1955*614
2111*614
Other dimension (A1×B1 mm)
1316*653
1420*653
1994*653
2150*653
Rated power
154
182
231
273
ESP cell(pcs)
2
2
3
3
Quantity of voltage(pcs)
1
1
1
1
Weight(kg)
116
125
168
182


Model
LK160E1
LK200E1
LK240E1
Input power
220V/50Hz
220V/50Hz
220V/50Hz
Airflow(m³/h)
16000
20000
24000
Efficiency
95%
95%
95%
Pressure drop(pa)
23
23
23
Dimension(L×W×H, mm)
1524*560*1536
1628*560*1536
2202*560*1536
Flange dimension(A×B, mm )
1277*1317
1381*1317
1955*1317
Other dimension (A1×B1 mm)
1316*1356
1420*1356
1994*1356
Rated power
308
364
462
ESP cell(pcs)
4
4
6
Quantity of voltage(pcs)
2
2
2
Weight(kg)
224
242
326


* Maintenance work space D≥750mm



Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Certifications






Exhibition








FAQ


1. Q:Are you a factory or trading company?
A: We are the professional manufacturer,our team has committed to the electrostatic precipitator business for more than 20 years. We sincerely welcome you visit our factory at any time.
We located in Suzhou,Jiangsu Province,China.
2.Q: How does your factory do regarding quality control?
A:We value quality as highly as you do. We have CE certification and Rohs certification which is the most authoritative certificate of quality inspection.
3.Q:What's the material of your equipment?
A:Electric field cover: stainless steel.
Ionize part: Straightened white tungsten wire .
Oil Collecting area: Aviation aluminum plate.
ESP Cabinet: 16 gauge SPCC steel.
4. Q:What is your minimum order quantity?
A:We welcome one-unit trial.
We believe that trying a small order then making a big decision is a necessary step before we build up a long term cooperation.
5. Do you have products in stock and what is the delivery time ?
We have products in stock.
For RTS and samples,deliver within 3 days.
For customized products,deliver within a month.
6. What is your terms of payment？
For RTS,100% T/T in advance.
For customized products,30% T/T in advance,70% T/T before shipment.
