Product Description

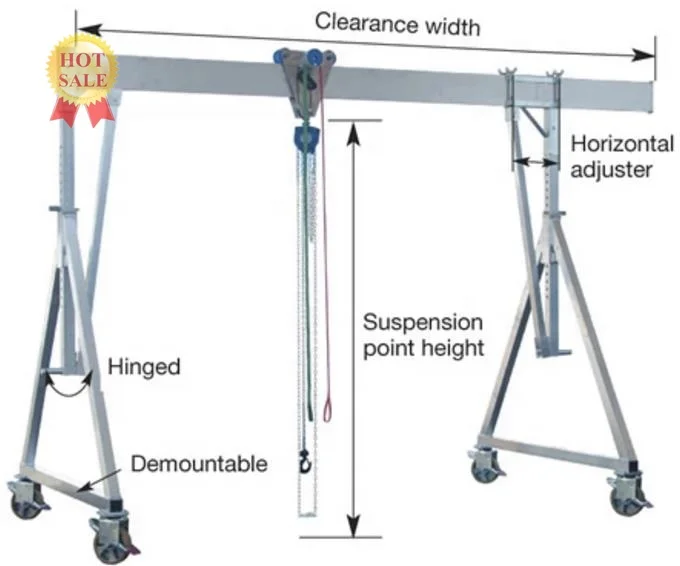

This crane is a device prepared for lifting a load and transporting it without effort to its destination, thanks to the action of the motors at both sides of the Safe Driving 1 Tons Jetty Mini Crane and under the control of a single operator. It consists of a free-movement gantry over the ground (no rails) generally equipped with a hoist.
It also allows configuring the manual push (PLE). It presents great flexibility in its movements since it can move in any direction thanks to its steerable wheels. However, it requires two operators to move it.
The biggest advantages of simple gantry mini directional mobile, small footprint, the rational design of steel structure, able to withstand the weight up to 5 ton.The mobile gantry chain hoist or electric hoist can choose practical products according to your require.
It also allows configuring the manual push (PLE). It presents great flexibility in its movements since it can move in any direction thanks to its steerable wheels. However, it requires two operators to move it.
The biggest advantages of simple gantry mini directional mobile, small footprint, the rational design of steel structure, able to withstand the weight up to 5 ton.The mobile gantry chain hoist or electric hoist can choose practical products according to your require.

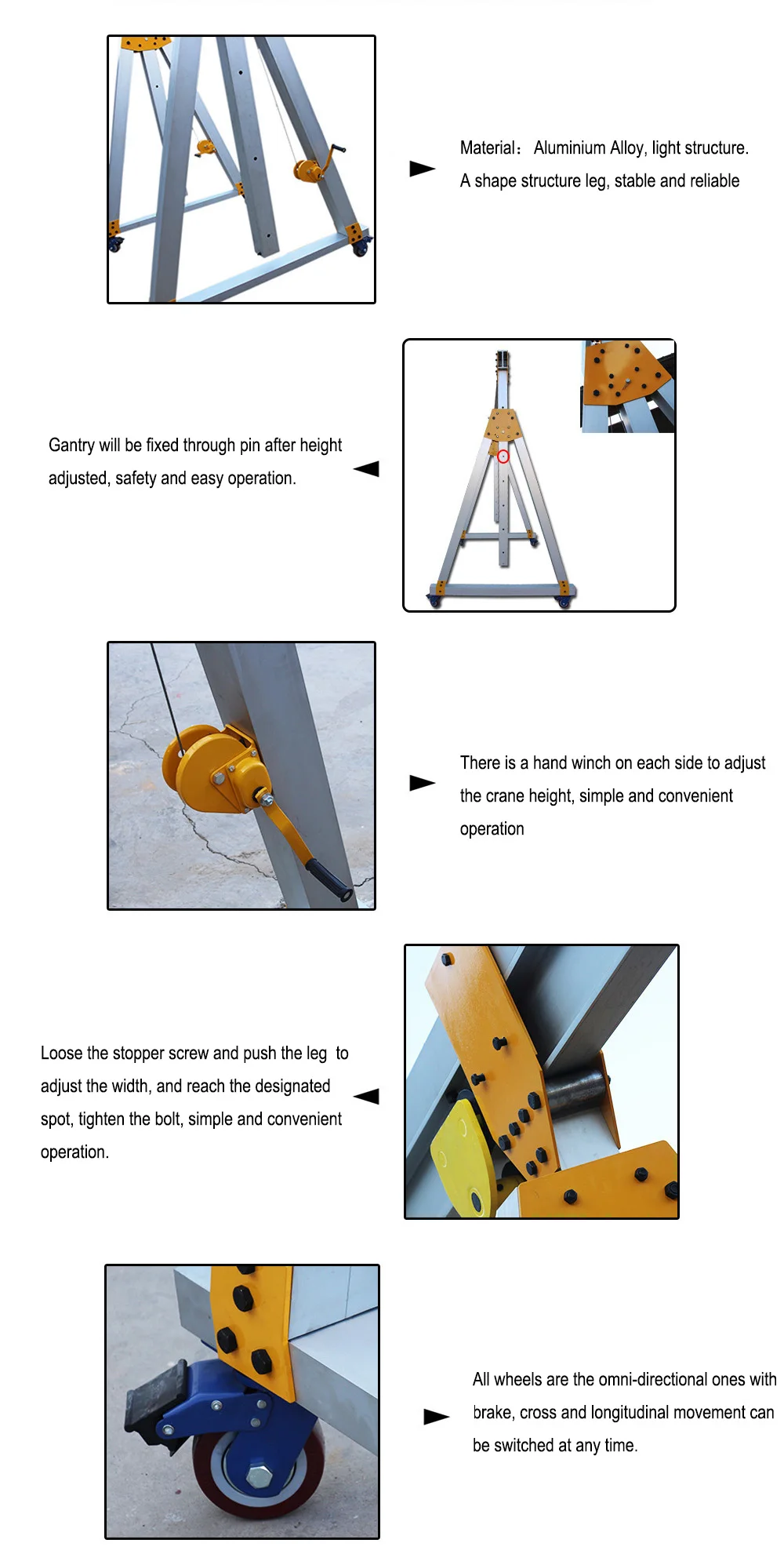

Product Details
1. Adjustable height and installation. Easy to disassemble.
2. Hand-push walking, with universal casters with braking device.
3. The precision parts and welding components are aligned and installed, which is convenient for operation, stable performance and long service life.
4. Using national standard I-beam, the product quality is guaranteed. All bolts are made of 8.8 grade
high-strength steel, galvanized and corrosion resistant, which enhances the service life of the product.
high-strength steel, galvanized and corrosion resistant, which enhances the service life of the product.
5. All gantry cranes adopt heavy-duty casters, which have a long service life and provide smooth rolling performance, which does not affect the use even on rough floors.
6. Outdoor use can add rain cover and change the design of surface paint and stainless steel motor.

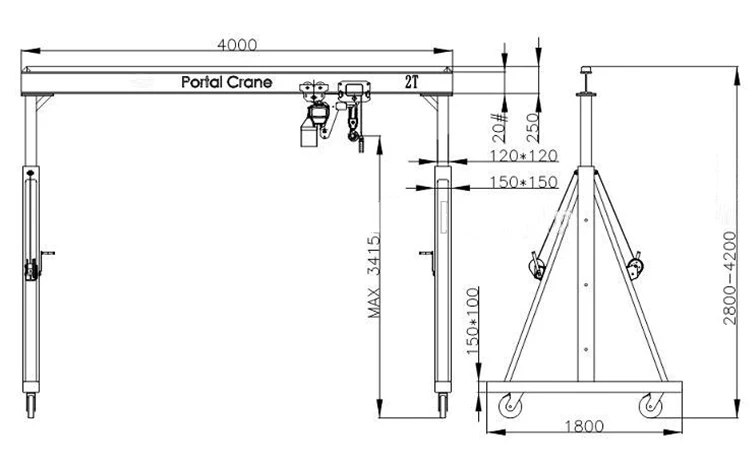

Specification
Type | Load (t) | Height (m) | Span (m) | Beam Height (mm) | Motion Type | Height Range Instruction |
PT2-1-0.5 | 0.5 | 2.6-3.8 | 3-9 | 140 | Hand push type and electric controlled universal castor with brake device | According to the actual use requirements to increase the lifting height and height of the body |
PT2-1-1 | 1 | 2.6-3.8 | 3-9 | 160 | ||
PT2-1-2 | 2 | 2.6-3.8 | 3-9 | 160 | ||
PT2-1-3 | 3 | 2.6-3.8 | 3-9 | 200 | ||
PT2-1-5 | 5 | 2.6-3.8 | 3-9 | 250 |
