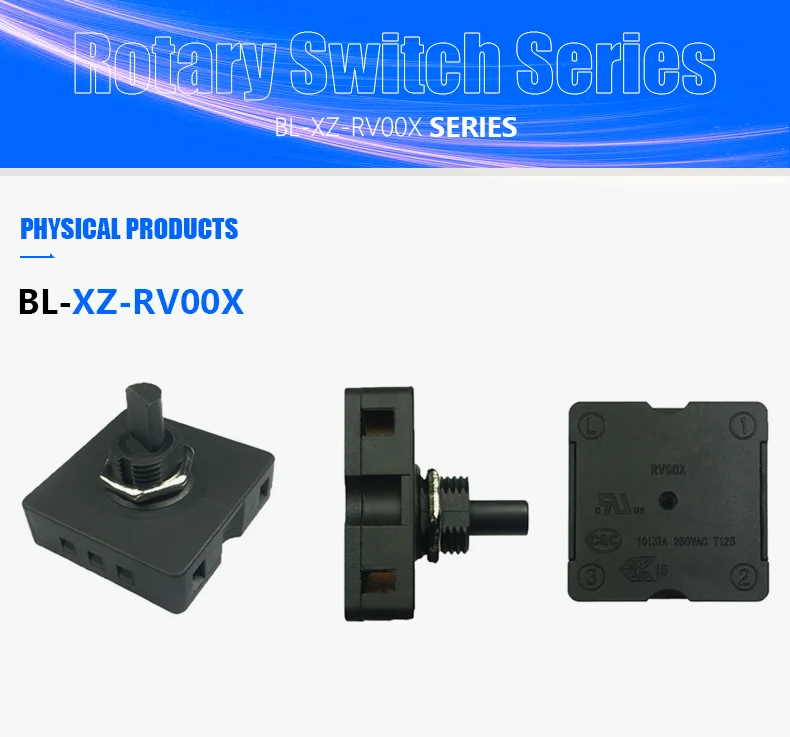

Поворотный переключатель BL-XZ-RV00X серии для высокой мощности бытовой

Описание и отзывы

Характеристики

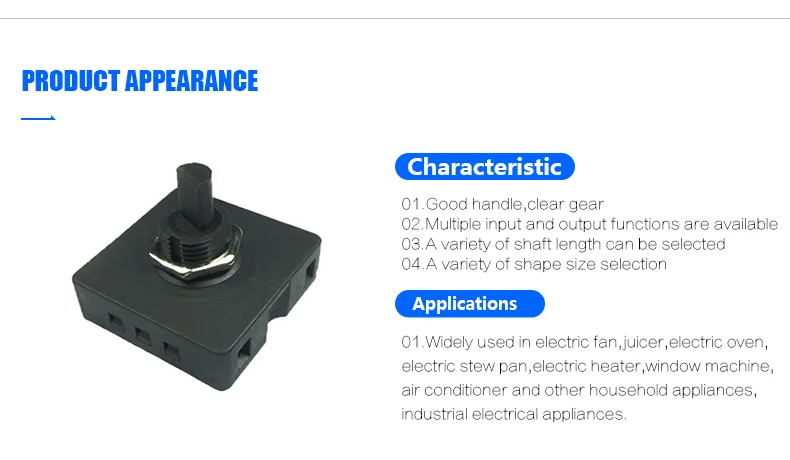

Rotary switch is a kind of switch that controls the on-off of the main contact point by rotating the handle.

01.Rotary switch is a kind of switch that controls the on-off of the main contact point by rotating the handle.

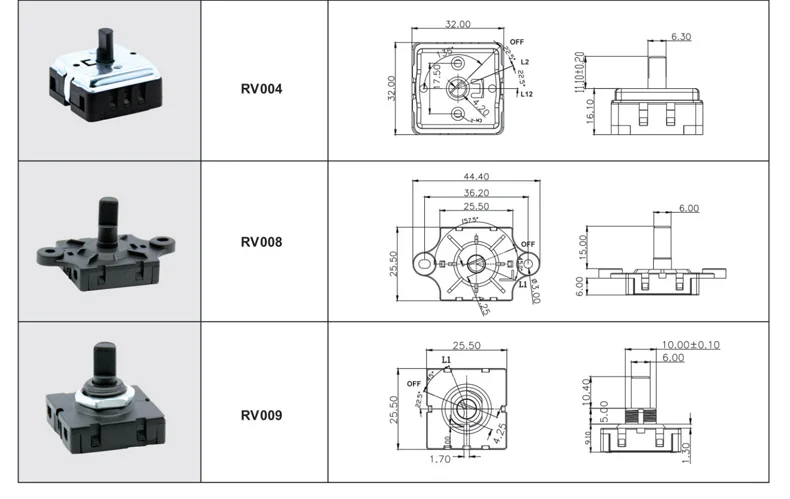

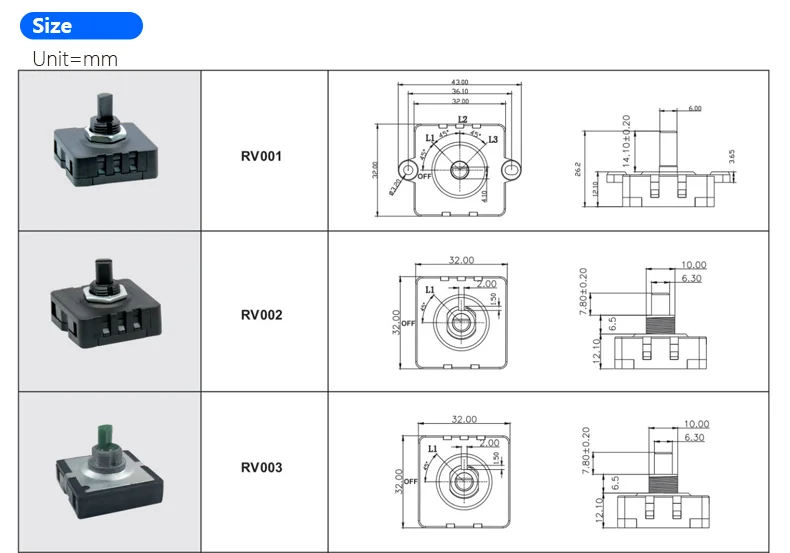

02.A variety of shaft length can be selected, a variety of shape size selection.
03.It is widely used in household appliances,industrial electrical appliances.

Electrical life	10000cycles
Mechanical life	50000cycles
Contact resistance	≤50mΩ
Insulation resistance	>100MΩ
Material of housing	PA66
Material of terminals	copper alloy
Material of contacts	Ag alloy
Safety approvas	UL CUL ENEC CQC CB

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
