Свинцово-кислотная солнечная батарея Techfine 12 в 7 Ач 9 17 без обслуживания низкий саморазряд высокая
- Категории: Batteries >>>
- Поставщик: Guangdong,Techfine,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Details
Multiple times of cycle · 10 Years design life
Advanced pole-group · welding & casting technology
Product Parameter
Nominal Voltage | 12V | ||
Nominal Capacity(10HR) | 250AH | ||
Dimension | Length | 522 ±3mm (20.55 inches) | |
Width | 268 ±2mm (10.55 inches) | ||
Container Height | 220 ±2mm (8.66inches) | ||
Total Height (withTerminal) | 225 ±2mm (8.86 inches) | ||
Approx Weight | Approx 63.8 kg (140.65lbs) | ||
Terminal | T11 | ||
Container Material | ABS | ||

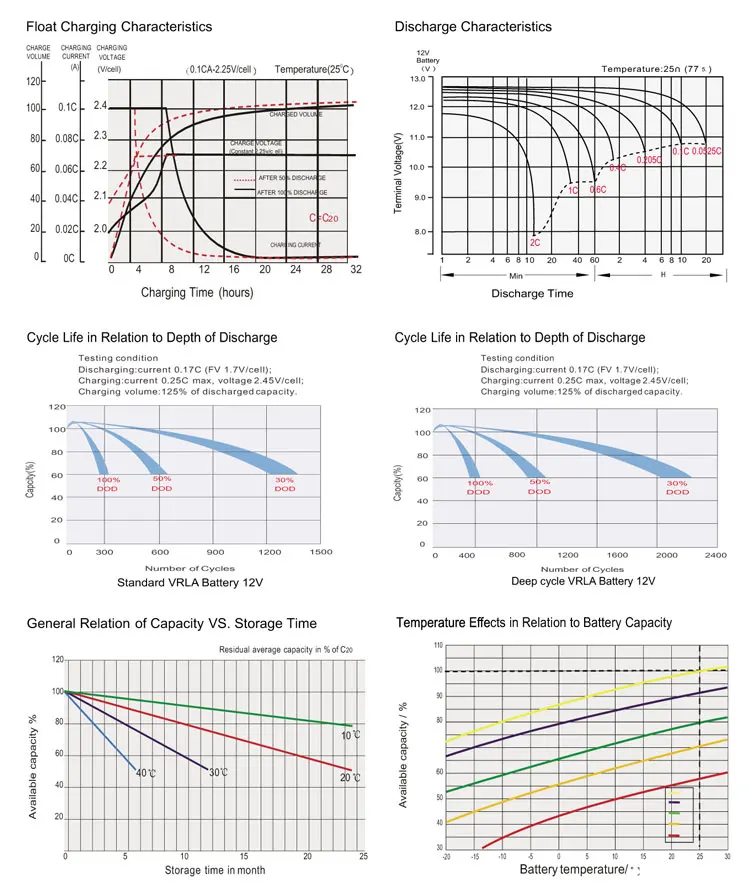

Rated Capacity | 260.0 AH/13.0A | (20hr ,1.80V/cell,25℃/77℉) | |
250.0 AH/25.0A | (10hr,1.80V/cell,25℃/77℉) | ||
215.4 AH/43.0A | (5hr,1.75V/cell,25℃/77℉) | ||
195.2 AH/65.05A | (3hr,1.75V/cell,25℃/77℉) | ||
152.5 AH/152.5A | (1hr,1.60V/cell,25℃/77℉) | ||
Max. Discharge Current | 2500A (5s) | ||
Internal Resistance | Approx 2.7mΩ | ||
Operating Temp.Range | Discharge : -15~50℃ (5~122℉) | ||
Charge : 0~40℃ (32~104℉) | |||
Aircraft signal Storage : -15~40℃ (5~104℉) | |||
Nominal Operating Temp. Range | 25 ±3℃ (77 ±5℉ ) | ||
Cycle Use | Initial Charging Current less than 60.0A.Voltage Communication power supply 14.4V~15.0V at 25℃(77℉)Temp. Coefficient -30mV/℃ | ||
Standby Use | No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃ | ||
Capacity affectedby Temperature | 40℃ (104 ℉)103% | ||
25℃ ( 77 ℉ )100% | |||
0℃ ( 32℉ ) 86% | |||
Self Discharge | Techfine batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher | ||
temperatures the time interval will be shorter. | |||
Why choose Techfine

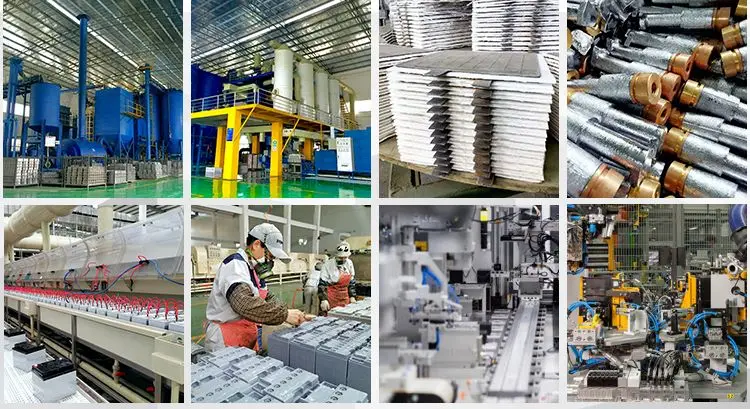

20 years industrial experience with [three production base] China & Malaysia Own advanced equipment and instruments and builds Automatic production line
Strictly comply with [ISO] quality management system,products have passed [UL,CE,IEC,ROHS,SONCAP,SASO,PVOC,] and other certifications.We aim to provide the [green,energy-saving and safe electrical energy safety emergency products] for global users.
Qualified and trustworthy Won the title of [National Solar Recommended Products]
We provide [OEM ODM] and advanced customization servies to [over 60 countries],[30.000 customers 4300 long term parners and 2000 golden distributors] .A profession marketing and technical team with [more than 100 employess proloyess provides you thoughful serices.]
Qualified and trustworthy Won the title of [National Solar Recommended Products]
We provide [OEM ODM] and advanced customization servies to [over 60 countries],[30.000 customers 4300 long term parners and 2000 golden distributors] .A profession marketing and technical team with [more than 100 employess proloyess provides you thoughful serices.]

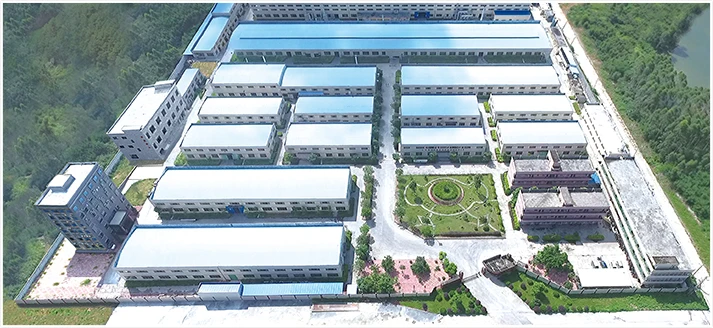

Guangdong Techfine Electronics Co., Ltd. , founded in Foshan, China in 1994, is a high-tech enterprise group focusing on electrical energy safety and emergency.Has owns three independent production bases, which are located in Malaysia, Shaoguan city and Foshan city in China and covers a total area of 270,000 square meters.
OEM/ODM Service
(Free publicity posters for you)
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
