Product Description
Specification
item | value |
Grade | Industrial |
Warranty | 12 months |
Thickness | Not Rated |
Jaw Capacity | 1 1/2IN |
Max Torque Capacity | 150lb-ft |
Customized support | OEM |
Brand Name | NANYU |
Model Number | NY-20KG04 |
Material | CR-V |
Size | 1/2 INCH Drive |
Usage Range | 28-210Nm |
Length | 470 |
Package | Blow mold case |
Place of Origin | Guangdong, China |
Packing & Delivery
Selling Units: Single item
Single package size: 64X8X7 cm
Single gross weight: 2.200 kg
Package Type: blow mold case
Features
1.Tested to be shockproof
2.Stable, sturdy and great value ,this is the best replacement for the traditional torque wrench.particularly good for production
line
3.Tolerance of torque ± 3%
2.Stable, sturdy and great value ,this is the best replacement for the traditional torque wrench.particularly good for production
line
3.Tolerance of torque ± 3%
Micrometer Adjustable Torque Wrench Operating Instuction
WARNING
Please read this instruction manual carefully before starting to operate the troque wrech.Please contact the manufacturer for any
doubts.so as to avoid safety
1.Selection Guide
Select the appropriate type of torque wrench and socket according to the torque value required for the bolt or nut being tighted
2.How to use
A.Balancing wrench in hand with graduation visible with the marked arrow.Elementary scale up,then unlock knurled handied by
turning lock nut counter clockwise.

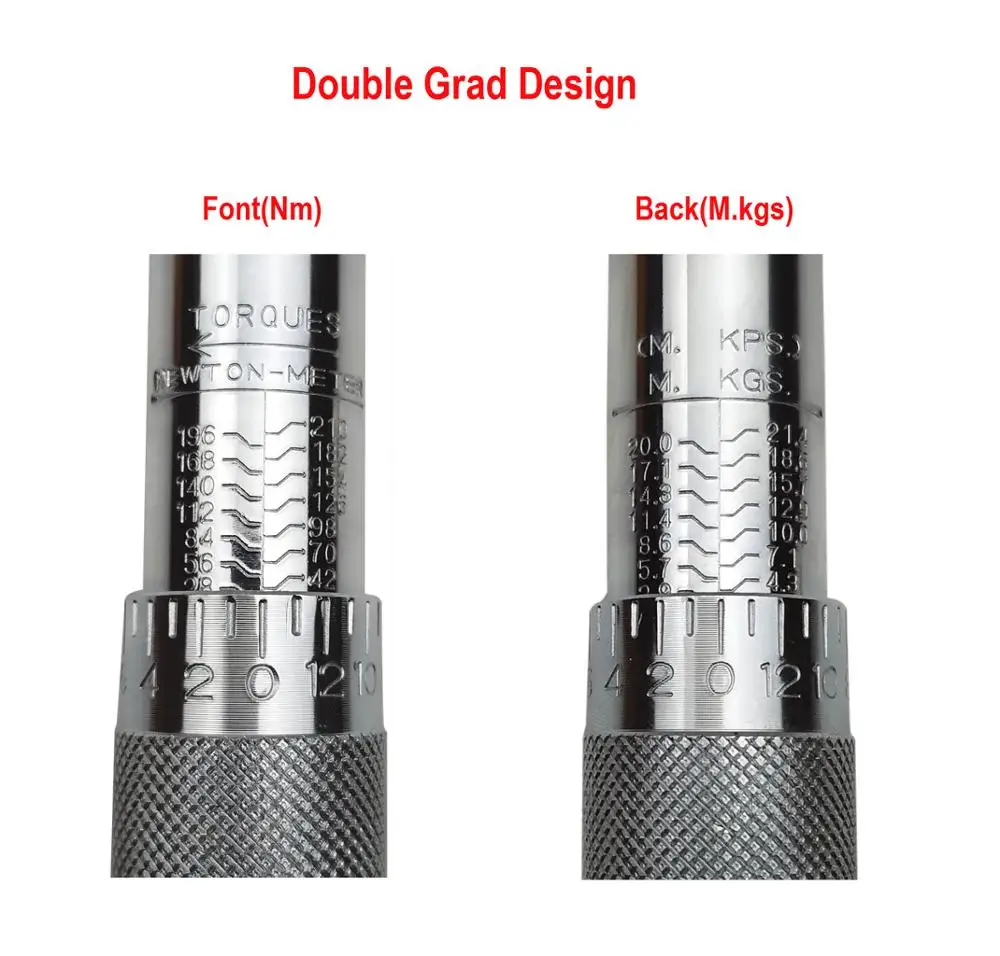

B.Set amount of torque required by turning knuried handle to read exact amount on case graduations.
Example :56ft.Lbs
1.Turn Knurled handle until the zero graduation on the bevel edge of the knurled handle is lined up with the vertical mark on the case and is even with the 50ft.Lbs graduation.
2.Turn Knurled handle clockwise until 6ft.lbs graduation on the bevel edge of the handle is in line with the vertical line on the ncase
3.Lock handle securely by turning lock nut clockwise, and now wrench is set at 56ft.lbs wich is ready to us see Figure 1and 2
C.Install the proper socket or attachehmant to the square drive and apply to nut or bolt and pull handle until you feel and/or hear wrench click,Release pull and wrench automatically resets for nxet operation.
DO NOT CONTINUE TO PULL AFTER WRENCH RELEASES.USE SPECIAL CARE AT LOW TORQUE SETTINGS THAT WILL PULL STOPS WHEN WRENCH CLICKS
WARNING
Please read this instruction manual carefully before starting to operate the troque wrech.Please contact the manufacturer for any
doubts.so as to avoid safety
1.Selection Guide
Select the appropriate type of torque wrench and socket according to the torque value required for the bolt or nut being tighted
2.How to use
A.Balancing wrench in hand with graduation visible with the marked arrow.Elementary scale up,then unlock knurled handied by
turning lock nut counter clockwise.
B.Set amount of torque required by turning knuried handle to read exact amount on case graduations.
Example :56ft.Lbs
1.Turn Knurled handle until the zero graduation on the bevel edge of the knurled handle is lined up with the vertical mark on the case and is even with the 50ft.Lbs graduation.
2.Turn Knurled handle clockwise until 6ft.lbs graduation on the bevel edge of the handle is in line with the vertical line on the ncase
3.Lock handle securely by turning lock nut clockwise, and now wrench is set at 56ft.lbs wich is ready to us see Figure 1and 2
C.Install the proper socket or attachehmant to the square drive and apply to nut or bolt and pull handle until you feel and/or hear wrench click,Release pull and wrench automatically resets for nxet operation.
DO NOT CONTINUE TO PULL AFTER WRENCH RELEASES.USE SPECIAL CARE AT LOW TORQUE SETTINGS THAT WILL PULL STOPS WHEN WRENCH CLICKS

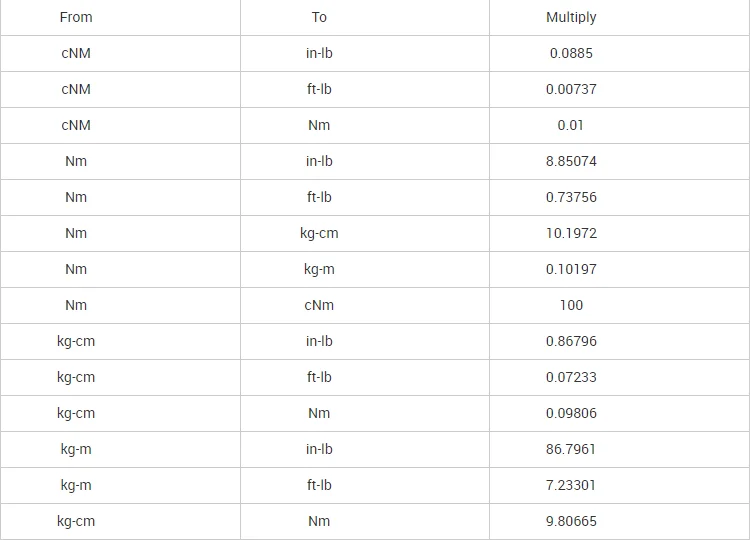

4.Torque Wrench Conversion Table
