Кабель питания промышленной камеры Basler, PoCL, SDR/MDR, P, 10 м, 3 м, 5 м
US $100.00-$340.00
4c 300 мм кабель с изоляцией из сшитого полиэтилена swa/ПВХ 500 240 3-х
- Категории: Other Wires, Cables & Cable Assemblies >>>
- Поставщик: Guangxi,Sushang,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
APPLICATION:
Low voltage PVC insulated power cables are used for power distribution system with rated voltage of 0.6/1kV and 1.8/3kV. Suitable for fixed installations, indoor and outdoor, in free air, for direct burial, shaft, cable trays and ladders, etc..
STANDARD:
GB/T 12706.1, IEC60502-1, BS6346, AS/NZS5000.1, or other standards upon request.

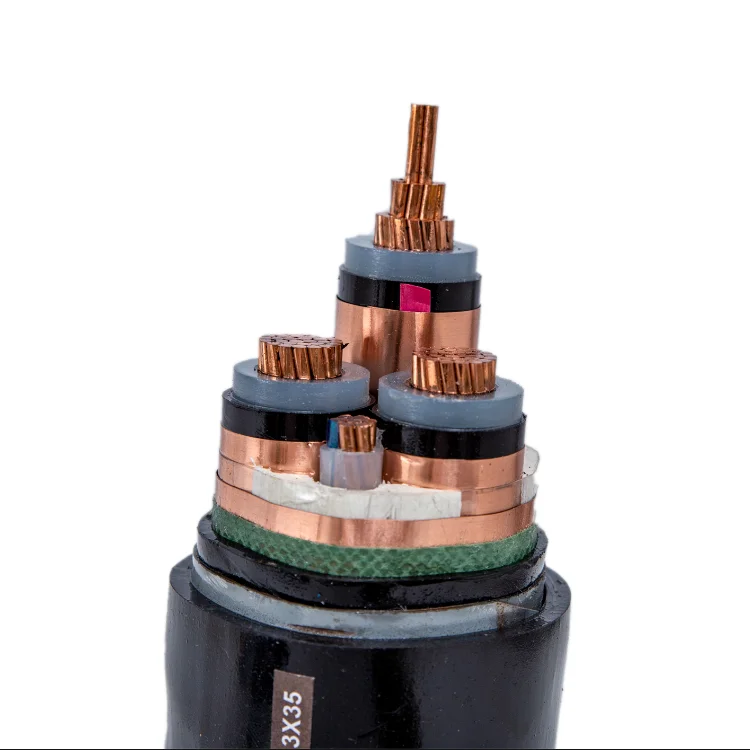

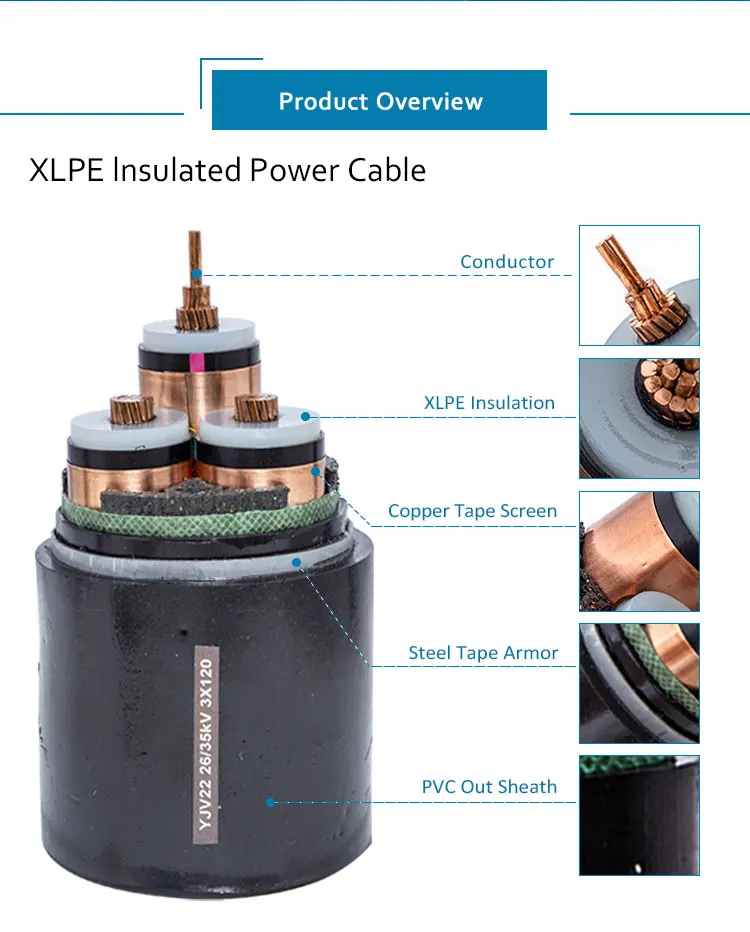

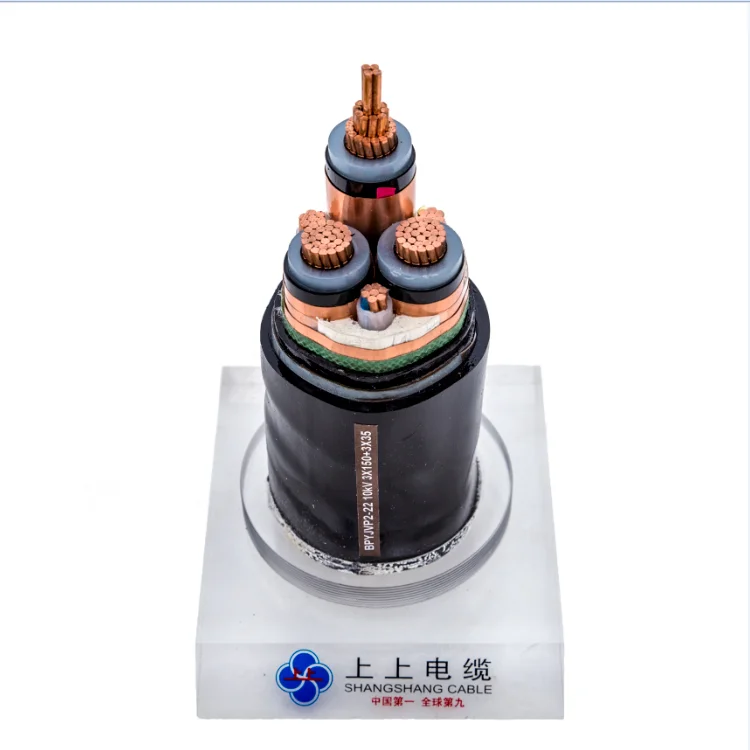

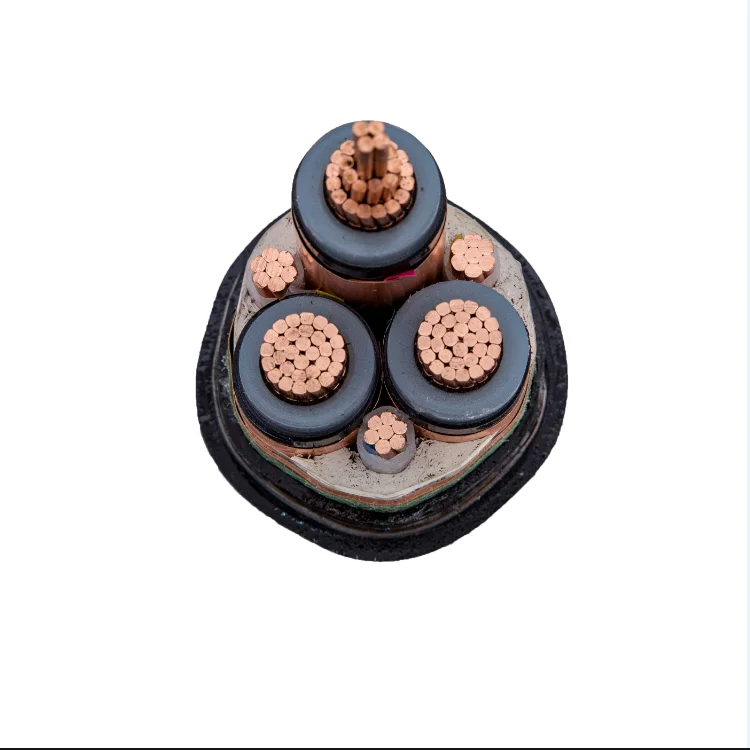

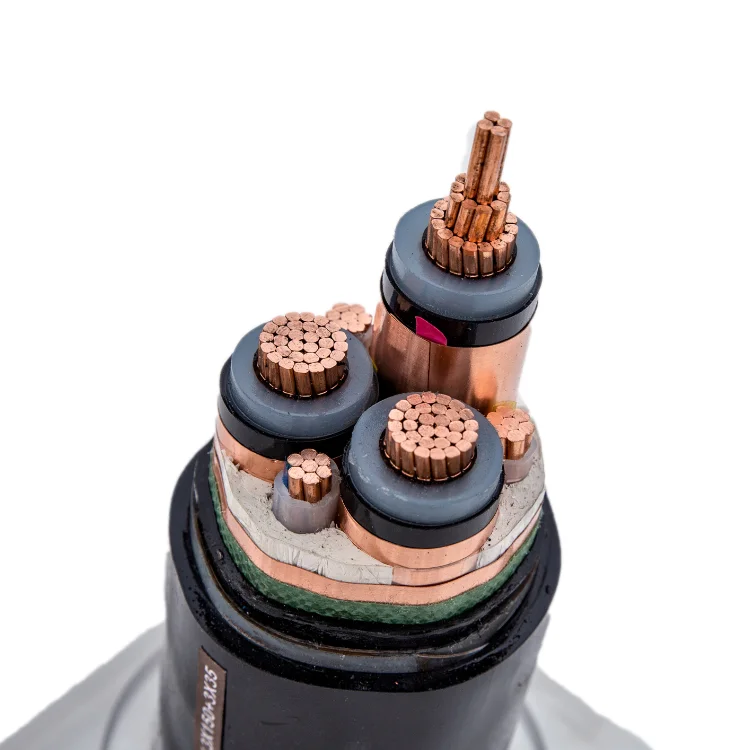

CONSTRUCTION:
Conductor: | -Copper, Class 1, Class 2 and Class 5 as per IEC60228 |
Insulation: | Polyvinyl chloride (PVC) |
Filler: | Non-hygroscopic polypropylene(PP) yarn |
Binder tape: | Non-woven fabric tape, or other similar tape |
Overall screen | Copper tape, or concentric copper wire |
Inner covering/ bedding (optional): | -Lapped tape inner covering, or extruded PVC or PE |
Armour (optional): | -Single core: non-magnetic stainless steel tape(SUSTA), or non-magnetic aluminium tape (ATA), or non-magnetic stainless round steel wire(SUSWA), or non-magnetic round aluminum wire(AWA) |
Outer sheath: | -Polyvinyl chloride (PVC) |
RANGE OF CABLE:
Number of Cores | Cross-sectional area |
1-Core | 1.5mm2~1000mm2 |
2-Core | 1.5mm2~500mm2 |
3-Core | 1.5mm2~500mm2 |
4-Core | 1.5mm2~500mm2 |
3-Core+1 Reduced Earth | 1.5mm2~500mm2 |
5-Core | 1.5mm2~500mm2 |
4-Core + 1 Reduced Earth | 1.5mm2~500mm2 |
3-Core + 1 Reduced Neutral + 1 Reduced Earth | 1.5mm2~500mm2 |
CORE IDENTIFICATION:
1-Core: Brown, or Natural, or Black
2-Core: Brown, Blue
3-Core: Brown, Black, Grey; or Brown, Blue, Green/Yellow
2-Core + 1 Reduced Earth: Brown, Blue, Green/Yellow
4-Core: Brown, Black, Grey, Blue; or Brown, Black, Grey, Green/Yellow
3-Core +1 reduced earth: Brown, Black, Grey, Green/Yellow
5-Core: Brown, Black, Grey, Blue, Green/Yellow
4-Core+ 1 earth: Brown, Black, Grey, Blue, Green/Yellow
3-Core + 1 reduced neutral + 1 reduced earth: Brown, Black, Grey, Blue, Green/Yellow
Other color code can be available on request.
SHEATH COLOR:
black, or as per order.
USAGE CHARACTERISTICS:
|
|
|
|
|
Max. conductor temp. in service | Max. short circuit temp. (5s) | Min. installation | Flame-retardant | Min. bending radius when laying |
SPECIAL FEATURES ON REQUEST:
|
|
|
|
|
|
Flame retardant | Fire resistant | Anti-termite | Anti-rodent | UV resistant | Oil resistance |
