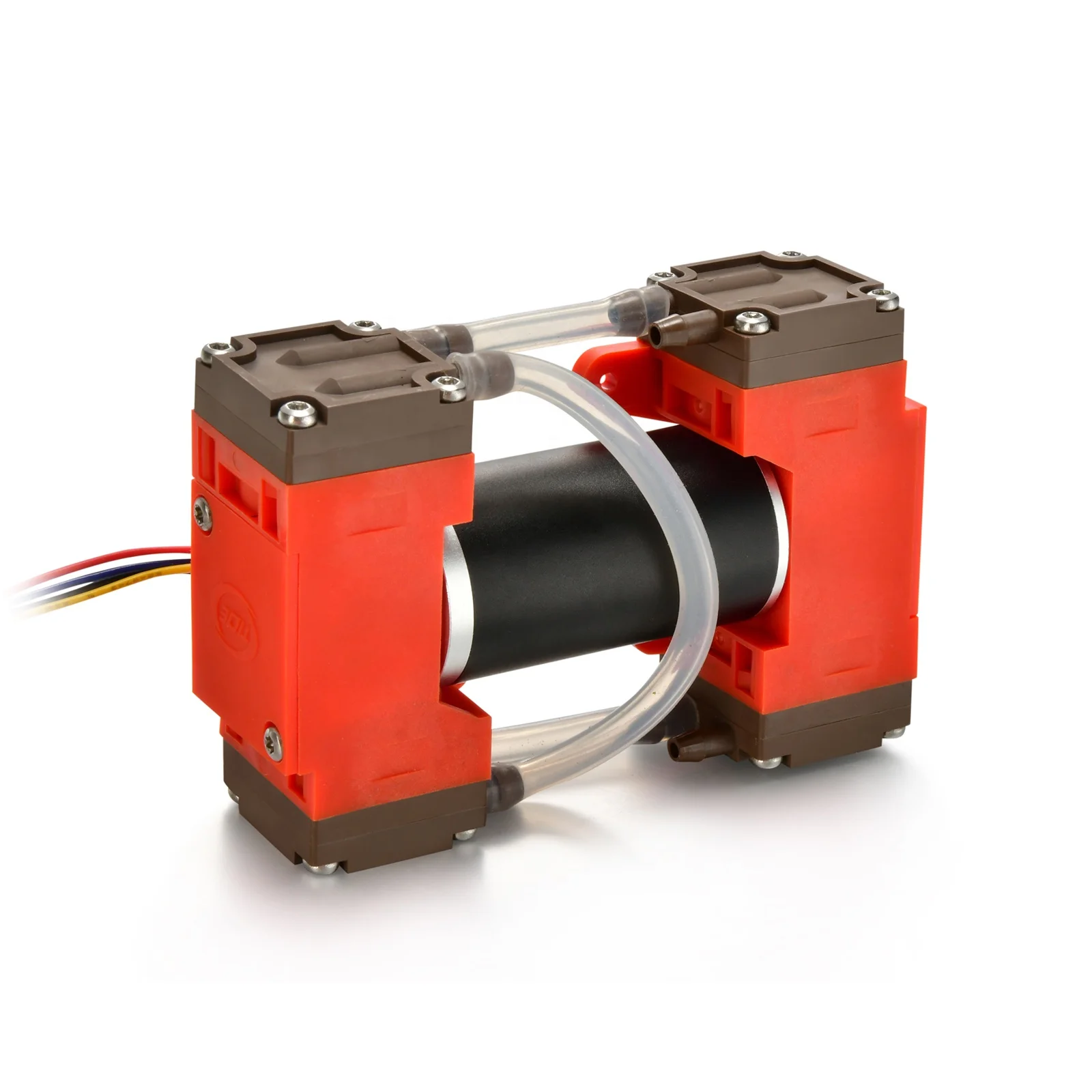

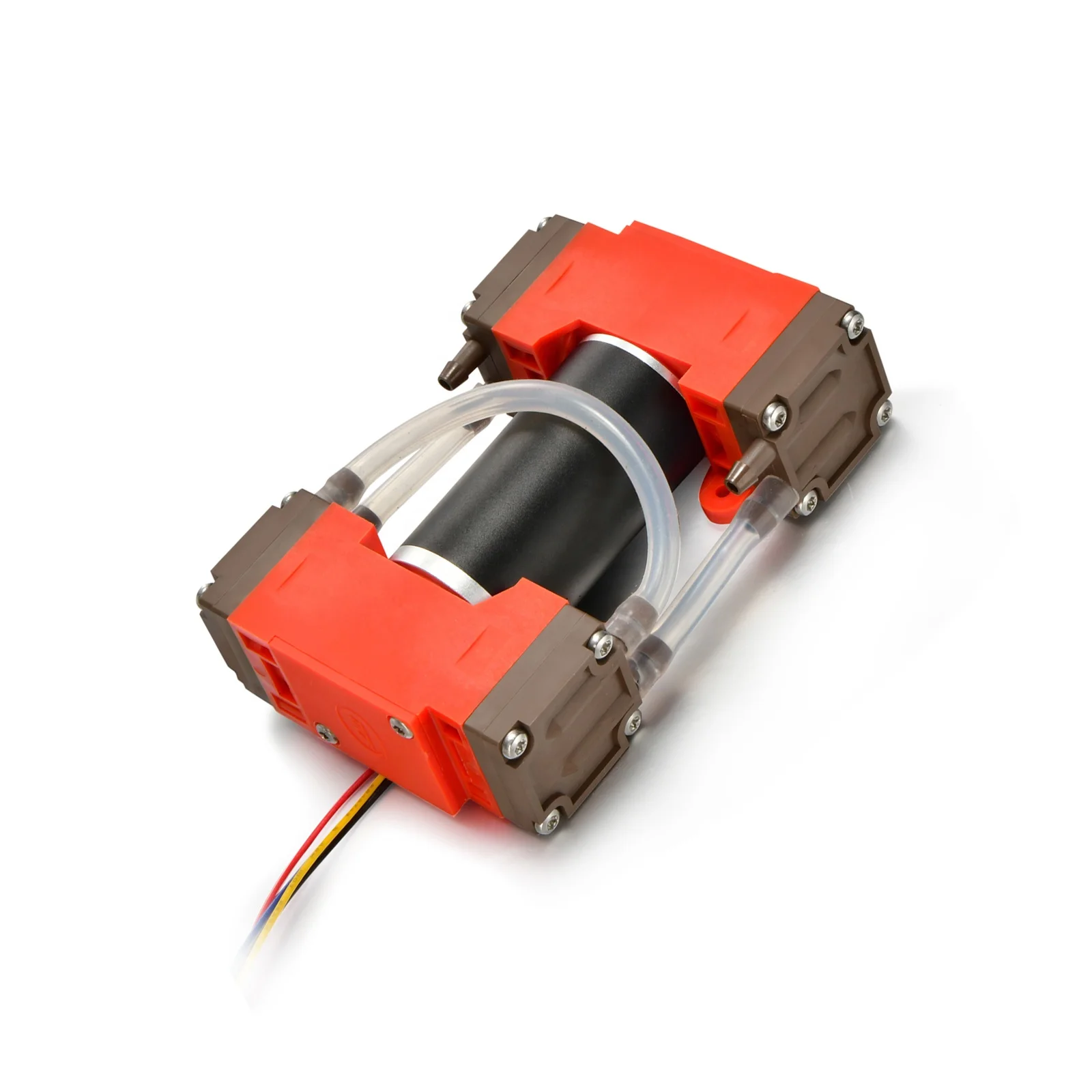

Микро-мембранный насос Fluidsmart AD5KEEDB12SSD 12 В винтовой вакуумный с четырьмя головками EPDM
- Категории: >>>
- Поставщик: Tide,Smart,Technology,(Shanghai),Co.,LtdTide,Ltd
Поделиться:
Описание и отзывы
Характеристики
Micro diaphragm pump
Features
Optimized pump body to ensure small volume, provide large
flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* High performance dc brushless motor >8000hours lifetime
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported EPDM and FKM
rubber materials, withstand a variety of gas corrosion
Features
Optimized pump body to ensure small volume, provide large
flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* High performance dc brushless motor >8000hours lifetime
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported EPDM and FKM
rubber materials, withstand a variety of gas corrosion
AD5KEEDB12SSD 12V DC IP40 diaphragm pump
Wiring instructions
Red wire: Positive of power supply
Black wire: Negative of power supply
Blue wire: (PWM connect Positive of PS to support full speed) 0-5V,15K~25K
Green wire: FG, 1Pulse/Cycle 0-5V, TTL Pulse
Red wire: Positive of power supply
Black wire: Negative of power supply
Blue wire: (PWM connect Positive of PS to support full speed) 0-5V,15K~25K
Green wire: FG, 1Pulse/Cycle 0-5V, TTL Pulse
Model: | AD5KEEDB12SSD | AD5KEEDB24SSD |
Voltage range: | 12Vdc | 24Vdc |
Maximum flow(in series): | 5.2L/min | 5.2L/min |
Maximum flow(in parallel): | 12.8L/min(TSI) | 12.8L/min(TSI) |
Max. Negative Pressure in series: | -99KPa | -99KPa |
Motor type: | Dc brushless motor | Dc brushless motor |
Max. power: | 11w | 11w |
Waterproof grade: | IP40 | IP40 |
Storage environment temp.: | -40℃~60℃ | -40℃~60℃ |
Working environment temp.: | -20℃~50℃ | -20℃~50℃ |
Pump head material: | Imported Polyamides | Imported Polyamides |
Pump diaphragm/valve material: | EPDM or customized FKM | EPDM or customized FKM |
Pump Body material: | Imported Polyamides | Imported Polyamides |
Red wire connection: | positive pole | positive pole |
Black wire connection: | negative pole | negative pole |
Dimensions(mm): | 113*32*75.8mm | 113*32*75.8mm |
