Product Description

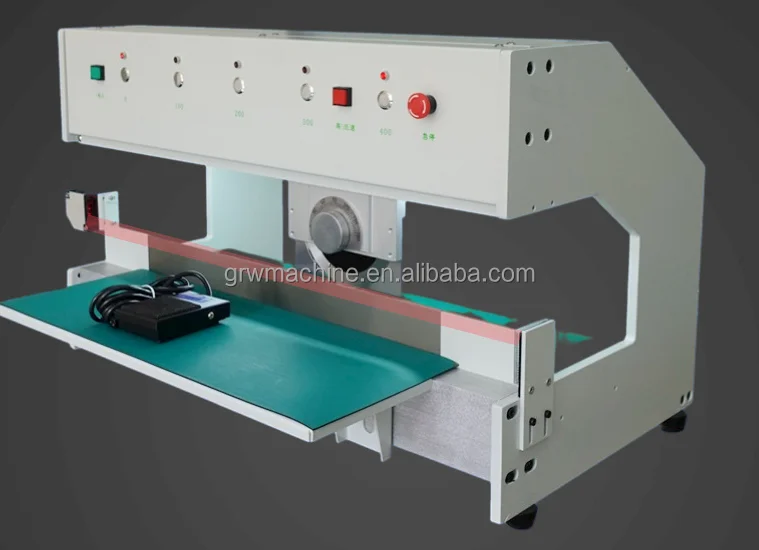

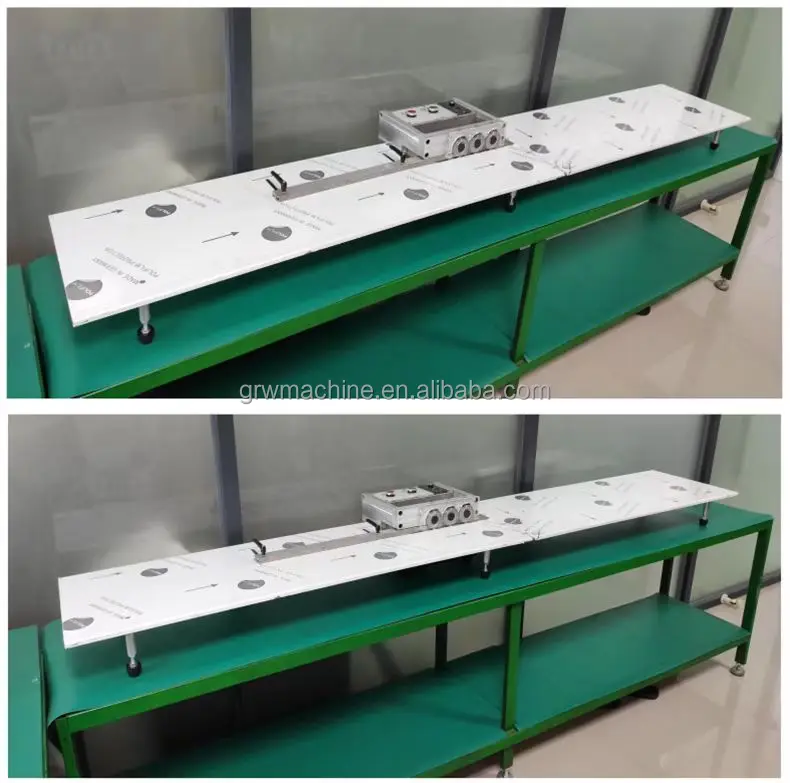

Aluminum substrate copper substrate cutter tool pcb board cut machine
Features:
1.the circuit board cutting from six pieces of the blade,the upper and lower two for a group. constitute a cutting unit.Are A.BC,three groups. The cuting process is divided into three stages, group a blade to cut 40% of the circuit board,then B blade again from a blade cut groove Nian,again completed 40% of cutting quantity. Finally,by group C blade cutting last 20% and finishing, because every time the cutting amount is very small,so cut in the process of generating should force than the traditional a cut can reduce more than 80%,divide the smooth edge of the circuit board,plate surface is very smooth, do not twist does not become warped.
2,because of the many cutting,cutting process very smooth,can greatly improve the localization ability of the V-CUT slot, even cut the V-CUT slot is very shallow in the circuit board,also won't appear v-CUT slot from the guide blade jumped out to avoid adverse.
3,because the blade cutting force is small,and the use of Sweden imported high-speed steel material,blade durability greatly improved,segmentation aluminum substrate blade life can reach more than one year, reduce the use of cost.
4.All cutting blades are calibrated by laser interferometer with dual frequency laser, so as to ensure that the cutter can continue to cut in the groove that the front knife cut off.The beat is not greater than 0.02mm. To ensure the perfect quality of cutting.
Specifications:
| Model | GRW-AC2 Aluminum substrate copper substrate cutter tool pcb board cutting machine |
| Suitable pcb board thickness | 0.3 to 5mm |
| Suitable PCB Materials | Aluminum substrate, copper substrate,FR1~4,Glass fiber boards. |
| Cutting length | Unlimited |
| Application | Suitable for cutting v-cut pcb board,circuit board,led strip etc |
| Weight | 40KG |
| Dimension | 2600*380*240mm |

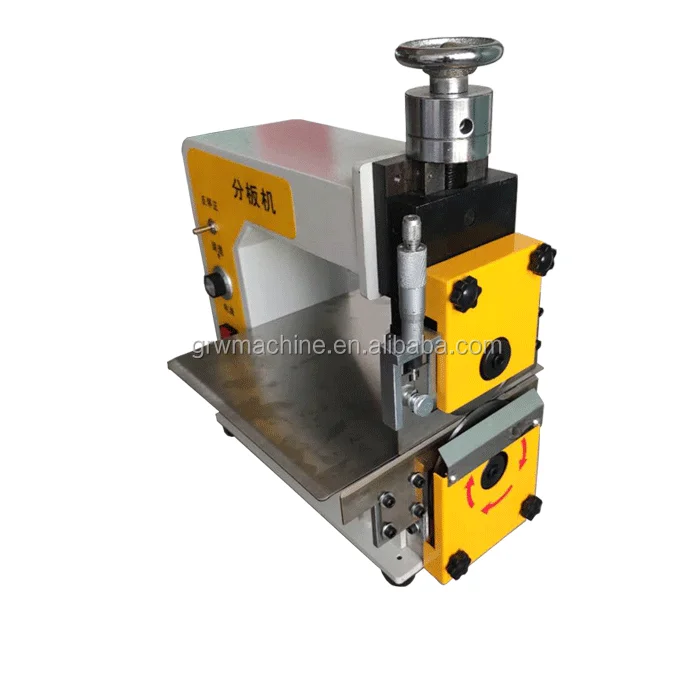

Attach Other pcb board cutting machine for you reference;

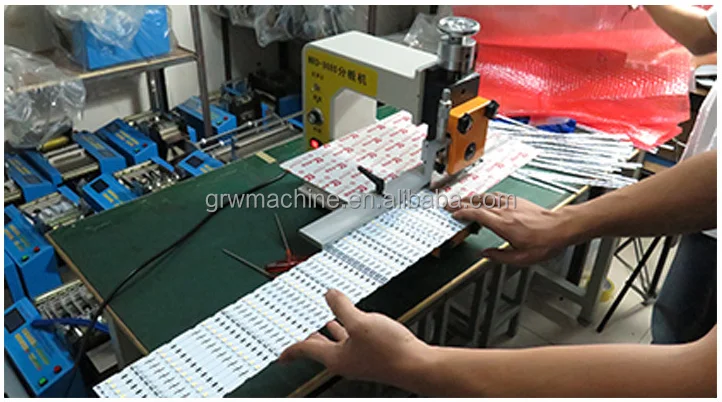

Available to be cut pcb board pictures:
Company Information
X ehn co., ltd is a manufacturer, located in Chang’an town, Dongguan city, two plants for two parts – wire processing machine since 2007 and wire terminal series since 2006, which with UL Listed and approved ISO9001 quality management.
E xcept for providing the regular processing machine & wire terminal, we also support customers by opening mold with custom-made service.
H ere comes to 2017, our company began development and production of cord end terminal series in chain,which to be the first supplier in china market. New challenge, but new hope would be.
N ow after more than 10 years, GRW is still developing and making innovative products designed to give the world better ways to process wire and test wiring assemblies.
Contact information
If you are interested in Aluminum substrate copper substrate cutter tool pcb board cutting machine , please contact me to get a good discount;
Dongguan Xiehui Electronic Equipment Co., Ltd
Contact person: Tina
Email: sales06(at)xehn.net.cn
Whatsapp/Skype:008618024781671
Wechat: Shine_tianT
FAQ
---Is GRW only a trading company ?
No, we are professional manufacturer since 2007.
---Can GRW do OEM service ?
Yes, we can provide OEM service to expand our market.
---How about the warranty ?
GRW machines has 1 year waranty except wearing parts like balde without warranty, other parts are free to change if there is worn-out within 1 year. Technical support is available during your daily maintainance.
---About distributor or wholesale annual sales rebate?
GRW provides a very competitive rebate policy for our distributors. For more info , please contact us.
---Quality certificates ,market entrance ticket ?
GRW machine got ISO approval and will apply for more certificates in future market demands.
Our Services
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
---After Sale Service
Don’t worry, we are here to help.GRW provides full life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. GRW engineers are here for your assistan
---OEM
GRW provides OEM services to our customers
PCB Cutter Machine PCB Board Cutting Machine
Related Machine

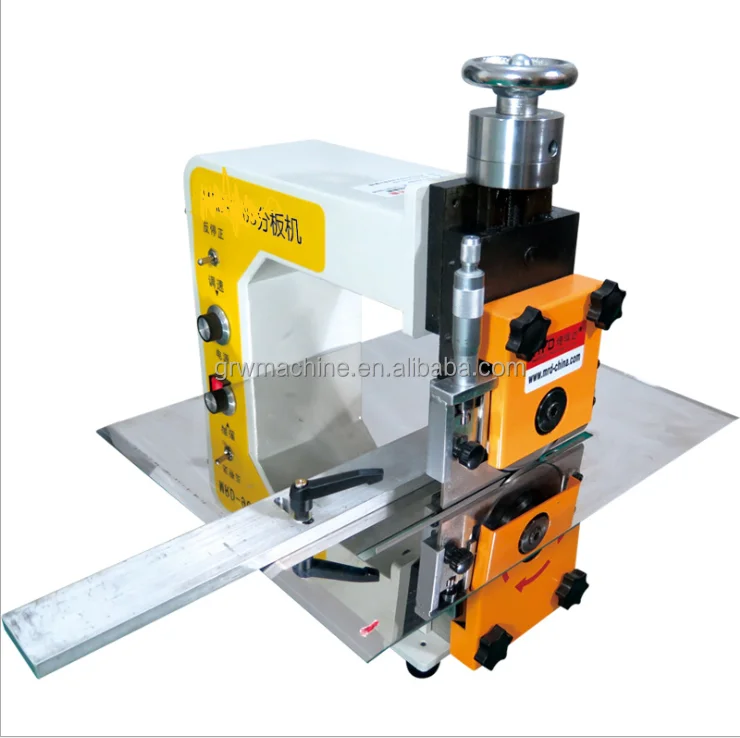

Circuit Board Separator |

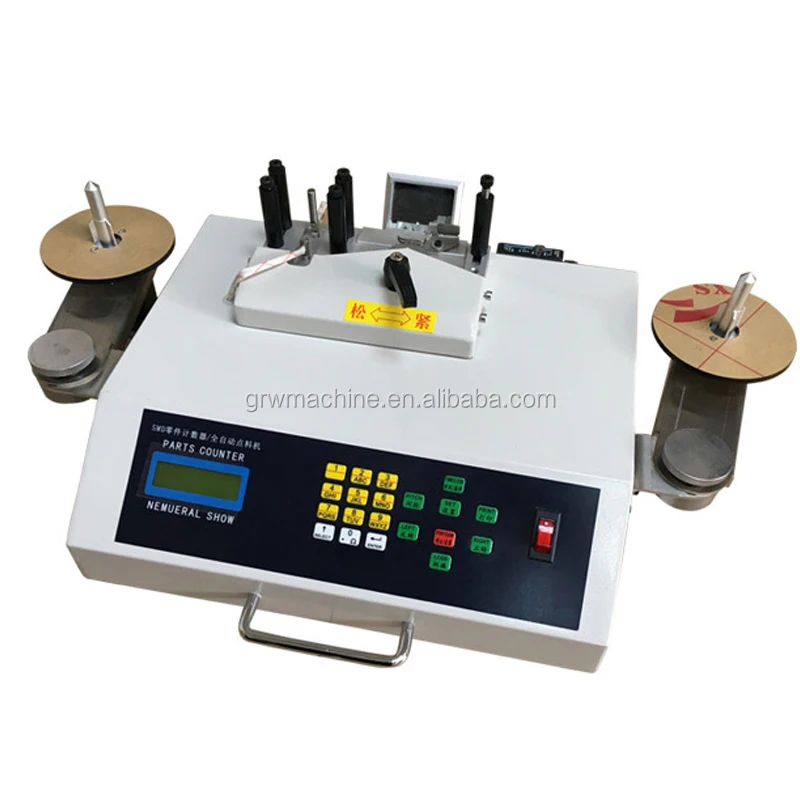

Smart SMD Componenting Counter Machine
|

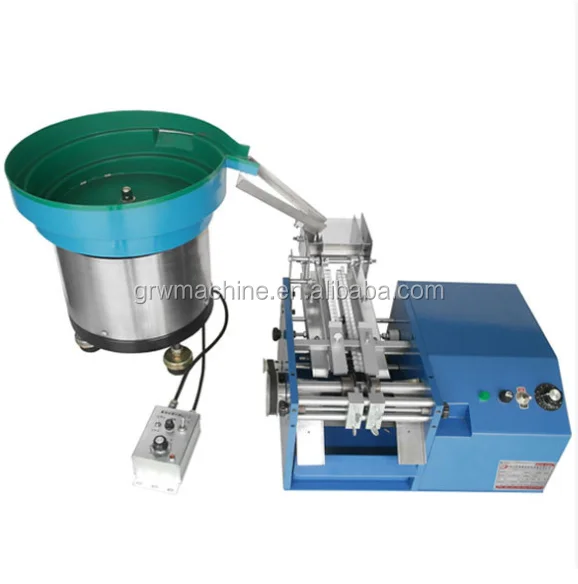

Tape resistance Forming Machine is used to forming of tapes/bulk resistors |

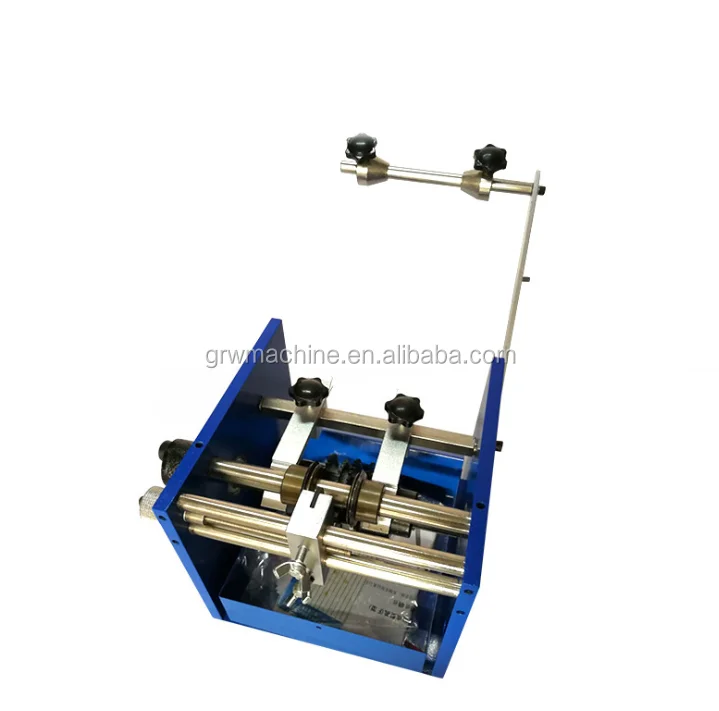

Hand operated resistance forming machine tape resistance molding machine
|

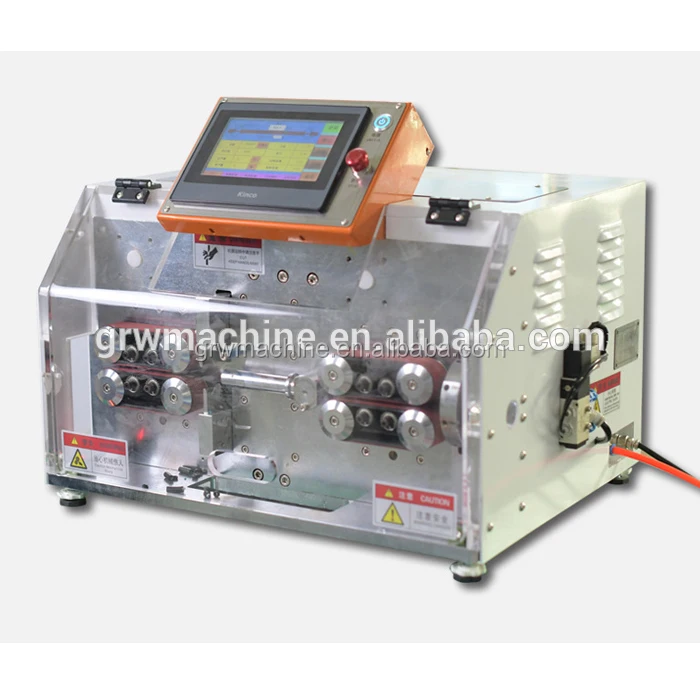

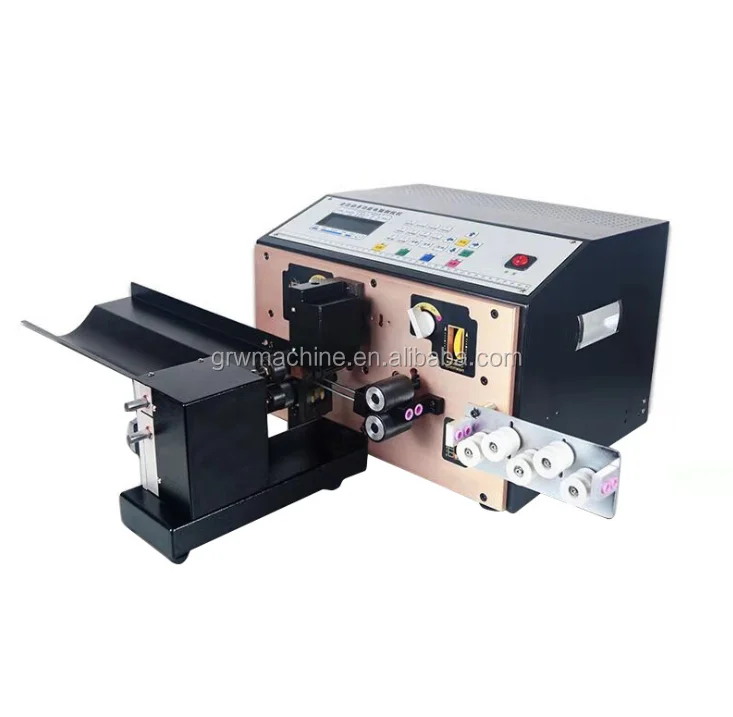

Fast speed flat jacket cable cutting and stripping machine
|

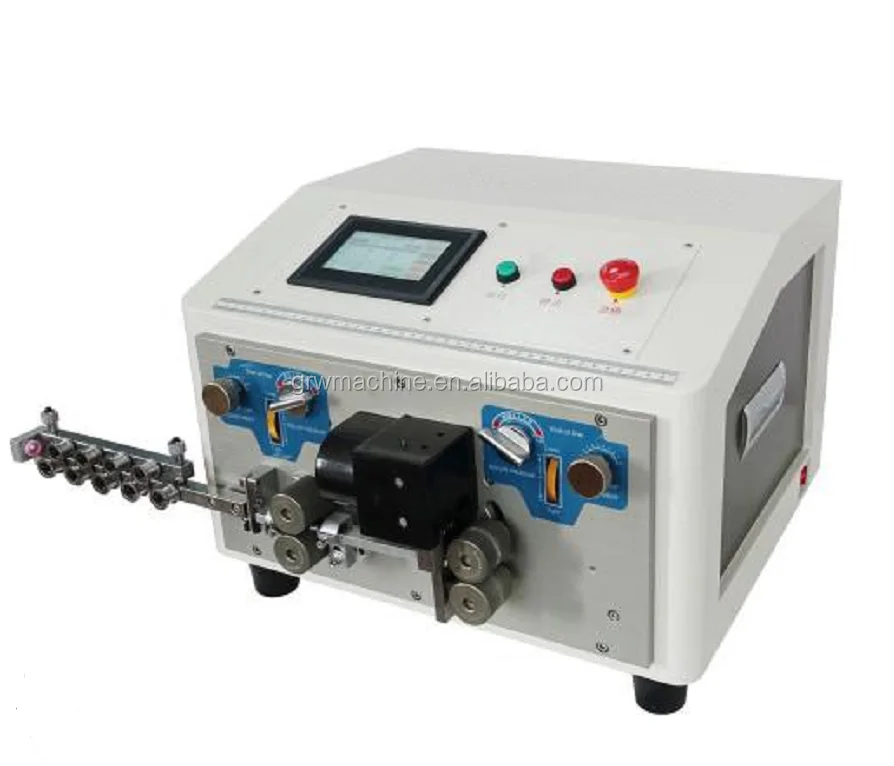

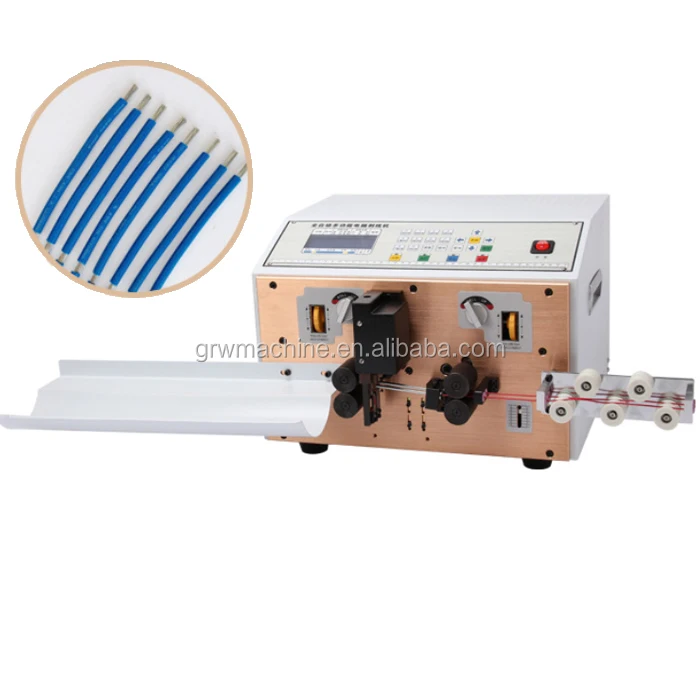

| Automatic Wire Stripping Stripper Machine with cutting
| Automatic double wires cutting stripping and twisting machine
|
