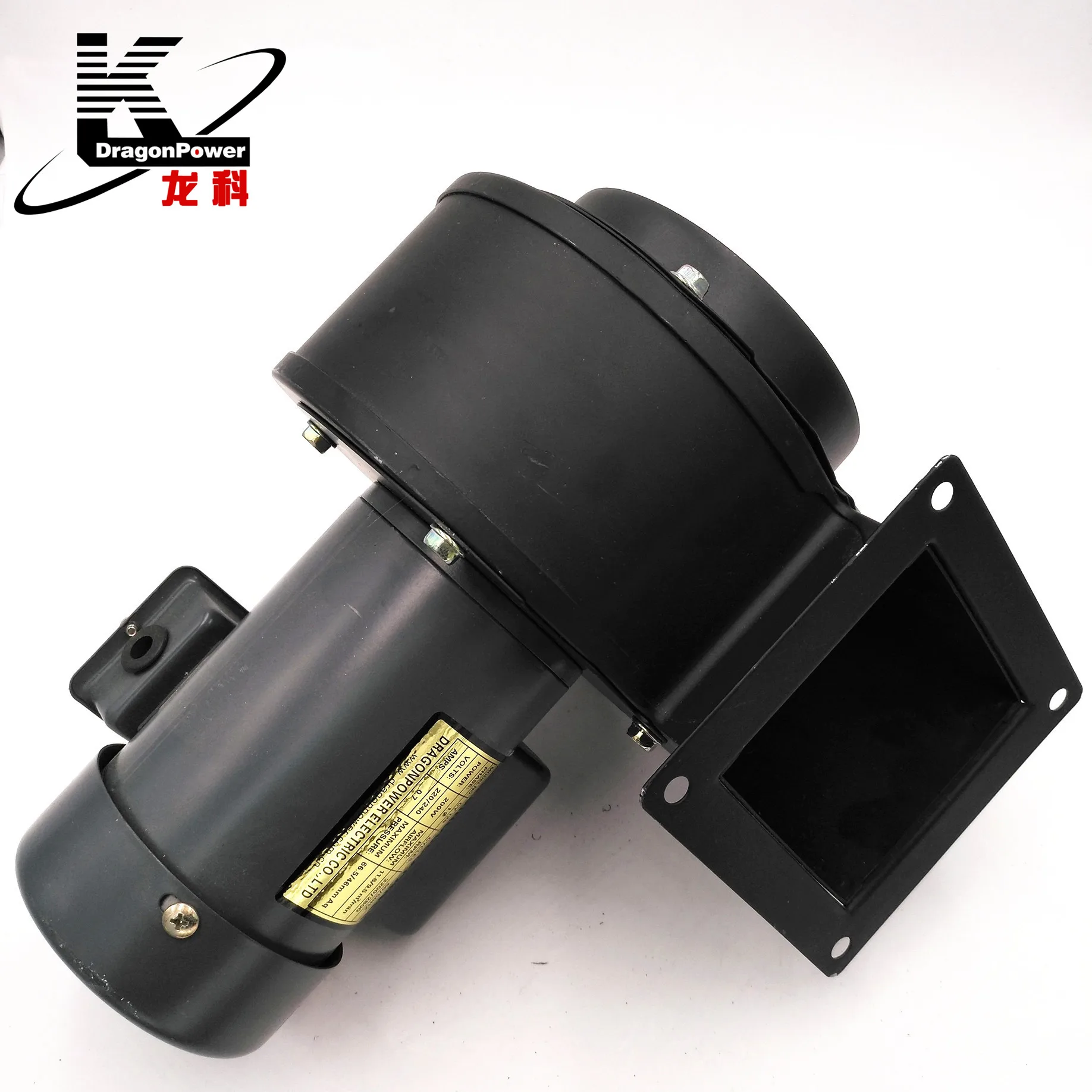

   Air Heater Blower

Different plastic particles have different features, e.g. some are more sensitive to temperature which requires better controls on temperature while heating. Thus,aircooling heaters are designed for this type of plastic particles. The air blower connected with the heater can help cooling the heated object while it is being heated.When the temperature exceeds a certain degree,the air blower starts to work. In this way, the temperature of plastic particles can always be controlled within acertain range. Otherwise, the plastic products made are likely to have defectsor even cannot be formed.



Technical datas as follow:





Rated Voltage(V)	Frequency (HZ)	Phase	Current (A)	Output Power (W)	Pressure (mmAq/RPM)	Air Flow (CMM/RPM)	Net Weight (KG)	Volume (m3)	Apply heater surface area (cm2)
110	60	1	3.0	200	66.6/3563	11.6/3272	6	0.02	1000~1700
220	60	1	1.5	200	66.6/3563	11.6/3272
220	50	1	1.4	200	46/2970	9.5/2800
220	60	3	0.85	180	66.6/3560	11.6/3272
380	50	3	0.4	180	46/2970	9.5/2800





Air Heater Blower  For Ceramic Heater in plywood case.



Shipment:1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight.



Other services we are committed to offer include:

1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.

DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services.
