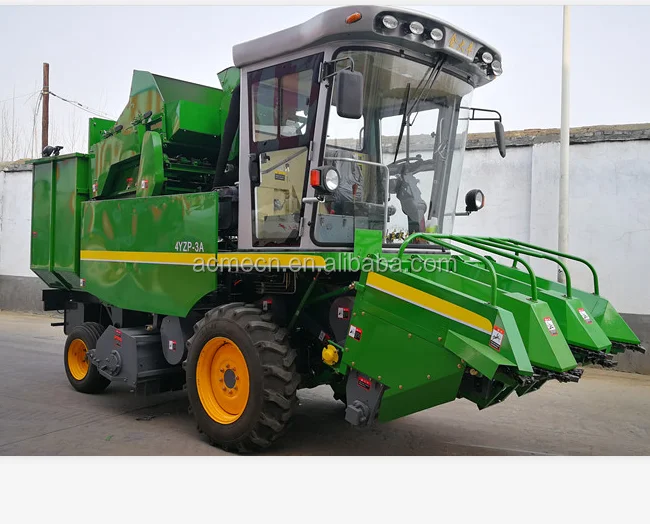

3 row Corn maize Cob Combine Harvester





1.  Well-adapted:

u 3 rows cutter header not subject to planting space and operation of incorrect line;

u Hydraulic lift cutting platform can adjustment at any time according to the height of the ear, to achieve the best effect;

2.  Good performance:

u 16 rollers peeling machine, peeling performance is good and grain loss less;

u  large diameter of returning machine knife shaft , straw chopped effect is good;

u The newly optimized bracts conveying device and the bract pulverizer to make the returning operation more complete.

3.  High efficiency:

u 6.25 meters short body design, small turning radius;

u Big hydraulic design granary, fewer unloading and increase effictive work time

4.  High reliability:

u Big gearbox + reduction of the loop box, carrying capacity is strong;

u The main clutch adopts double lining , long service life; grain elevator adopt 38 pitch chain, strong transmission capability and high reliability;

u The machine design reasonable in science, good in coordination, small in fuel consumption, small in noise and easy to repair.

5.  Operation comfortable:

u Configuration luxury circular cab, vision is more open;

u Configure reverse image system easy to control the vehicle situation

we have 2row, 3 row and 4 row for option



Technical specification sheet
Overall	Modle	4YZP-3A
	Type	Wheel self-propelled
	Rows of cutter	3
	Width of Cutting	2000 mm
	Application row width	450-750 mm
	Cutting center Distance	550 mm
	Productivity	0.3-0.55 hectare/hour
	Total Weight	5500Kg
	Working Dimensions(L×W×H)	6250×2000×3000 mm
Engine	The model of engine	WP4.1G140E301
	Engine	Diesel engine
	Power	140HP/(103KW)
	Rated speed	2300 r/min
	Oil consumption	≤40kg/ hectare
	Oil tank	235L
Chassis	Gear-box	Mechanical (3+1)*2
	Steering	Hydraulic
	Minimum ground clearance	300mm
	Minimum turning radius(L-R)	5200-5400mm
	Tire Size Front/Rear	13.6-24 / 10-15
	Wheel track Front/Rear	1620-1450mm
	wheel base	2647mm
	Working Speed	2~6Km/H
	Cabin	General
Grain Tank	Volume	2000L
	Unloading grain height	2070mm
	Unloading type	Hydraulic
Peeler Machine	Stripping Type	Rubber Roller
	Stripping Size	Φ72*830
	Quantity of Stripping Roller	16
Straw returning machine	Model	1JH-180
	Working width	1800mm
	Type	Free swinging knife type
FAQ	Warranty	1 Year
	Parts Delivery	7 days
	Technical support	Engineers available Services overseas
	Qty’ of Loading	1 set / 40HC
