Product Description
High eficiency 1100 1200 1400 1600 diesel engine gold mining copper ore zinc lead two wheel roller wet pan mill machine price
Gold mill is also called wet mill, wheel mill.It is mainly used for crushing equipment after the material is broken.
Gold milling machine is widely used in the grinding operations of vein gold ore, rock gold ore, sand gold ore and associated gold ore, as well as cement, silicate products, new building materials, refractory materials, chemical fertilizer, black nonferrous metal dressing and glass ceramics and other production industries, for the dry or wet grinding of ores and other grindable materials.
Product Application
This machine is used for the grinding of various ferrous metals,non-ferrous metals,and scrap metal minerals, as well as the grinding, sorting and processing of rare precious metals such as gold and silver.
Model | 1200 | 1100 | 1000 | 900 | 850 | ||||
Diameter of grinding roller(mm) | 1200±30 | 1100±30 | 1000±10 | 900±10 | 850±10 | ||||
Grinding base diameter(mm) | 1780±30 | 1780±30 | 1680±30 | 1680±20 | 1680±20 | ||||
Grinding base thickness(mm) | 100-80 | 100-80 | 100-80 | 60-45 | 60-45 | ||||
Grinding groove width(mm) | 240-260 | 220-240 | 175-220 | ||||||
Speed of grinding roller (rpm) | For gold 13-18, others 18-22 | ||||||||
Motor power (kw) | 7.5 | 5.5 | 4.5 | 3 | 3 | ||||
Drive speed (rpm) | 1450 | ||||||||
Feeding size (mm) | <25mm | ||||||||
Daily capacity(T) | 8 (for gold) | 5 (for gold) | 4 (for gold) | 3 (for gold) | 2 (for gold) | ||||
Detailed Images

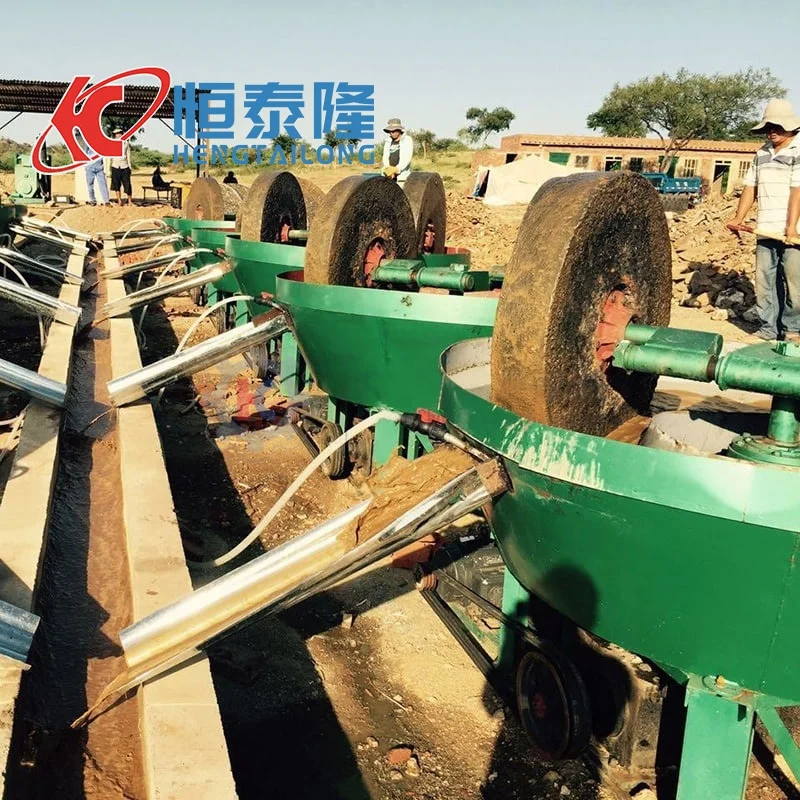

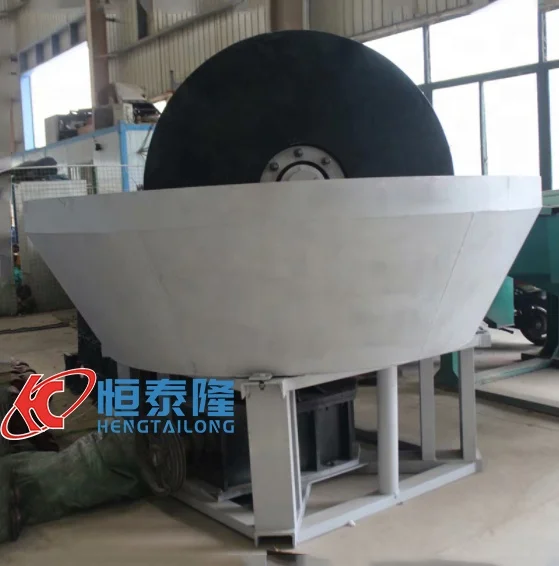

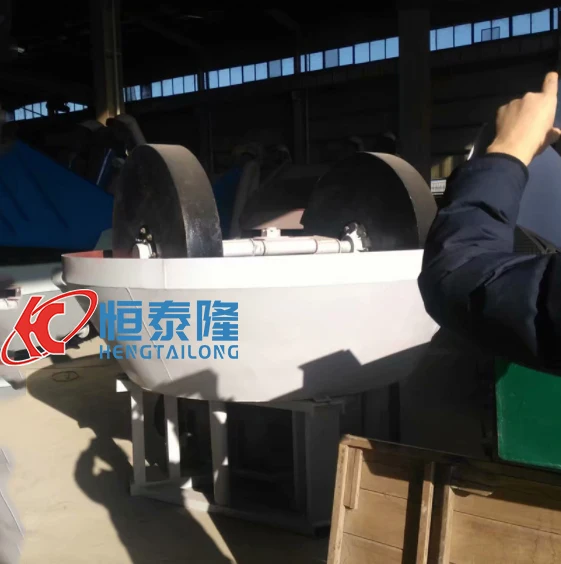

Wet Pan Milling For Gold

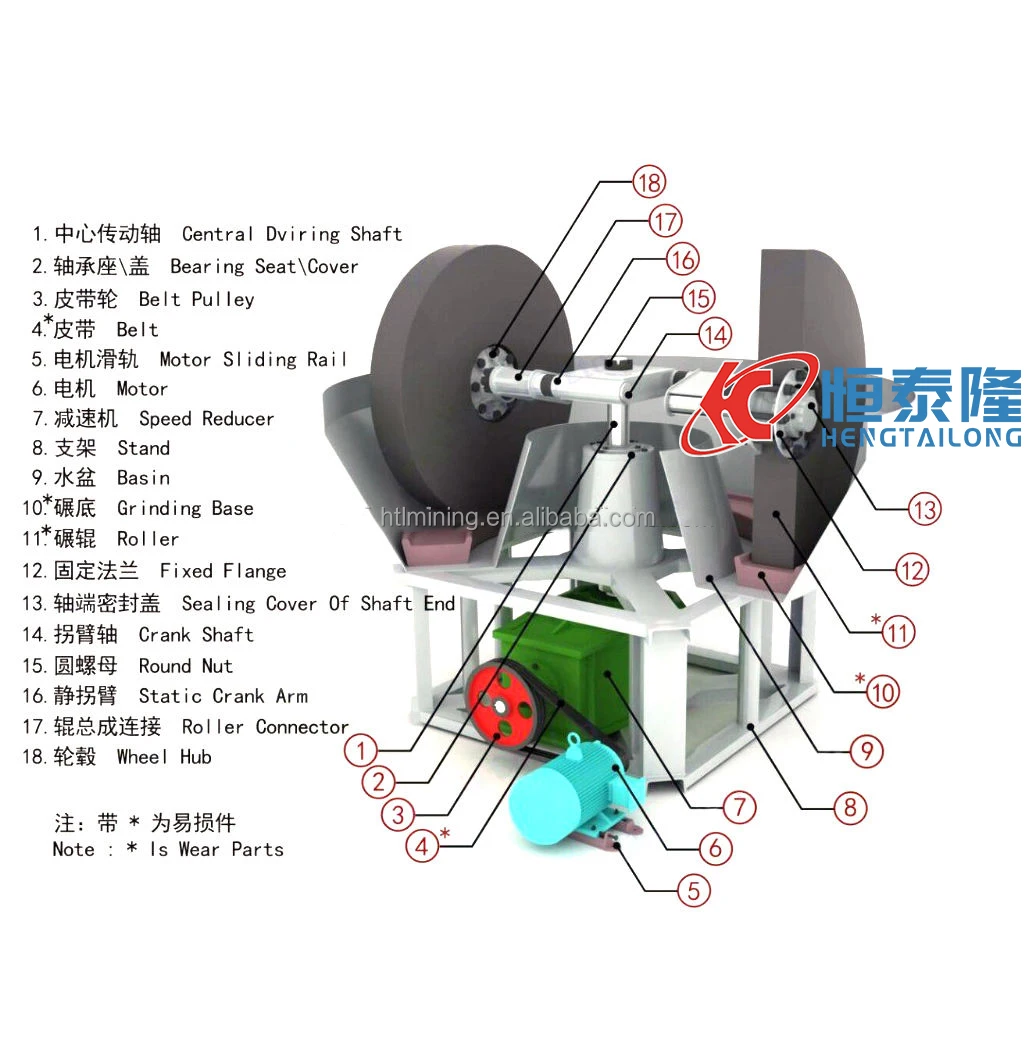

The grinding pan mill is consist of roller and pan as the main working parts of a broken material crushing or mixing equipment.
Grinding machine is mainly used for gold, silver, lead, zinc, iron, molybdenum, copper, antimony and other minerals, mines which
ball grinding mill can choose, wet grinding machine can be used.We do our best to meet your need..
Wet Pan Milling For Gold
1.The machine must be on normal working ,before start feeding.
2.If it interrupt at boot time ,please first clean up the residual ore in the middle of the milled slot and then start.
3. It should be uniform feeding,it is better to use feeder.
4.Often check whether the machine screws loose.
5.If the bearing is damaged ,replaced it immediately, in case of damage other parts.

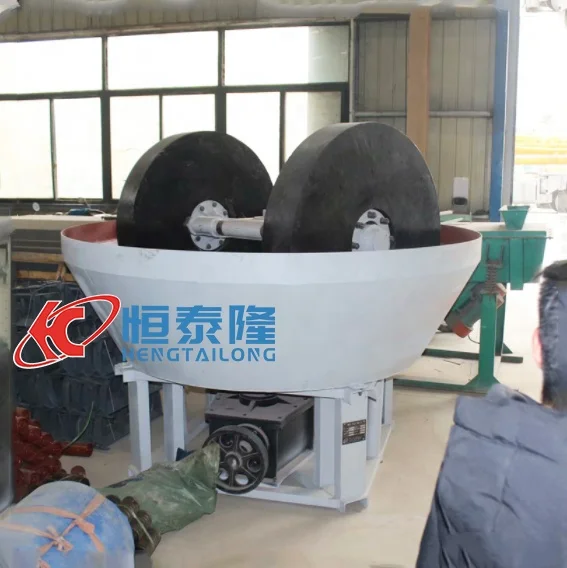

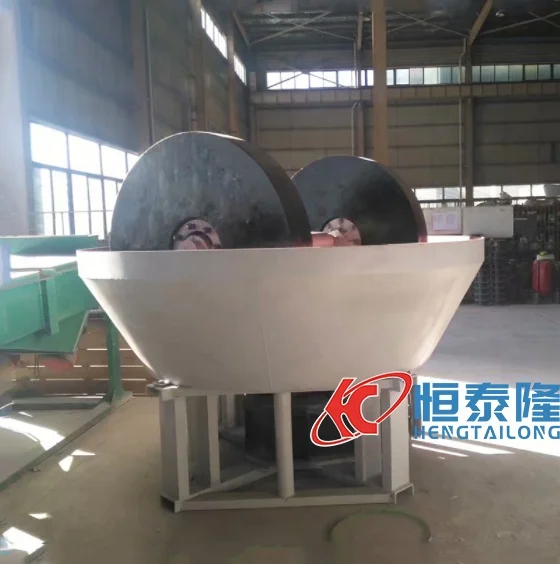

1600model | Diamter of wheel :1600mm thickness of wheel:400mm |
1500model | Diamater of wheel:1500mmthickness of wheel:400mm |
1400model | Diameter of wheel:1300mmthickness of wheel:250mm |
1200model | Diameter of wheel:1200mmthickness of wheel:200mm |
1100model | Diameter of wheel:1100mmthickness of wheel:200mm |
1000model | Diameter of wheel:1000mmthickness of wheel:200mm |

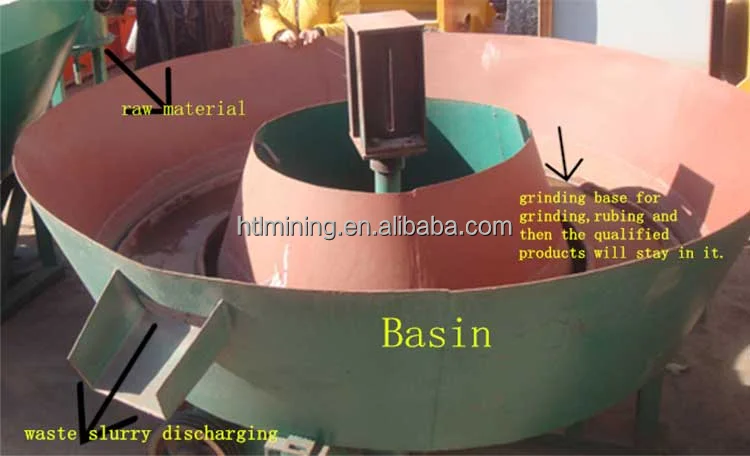

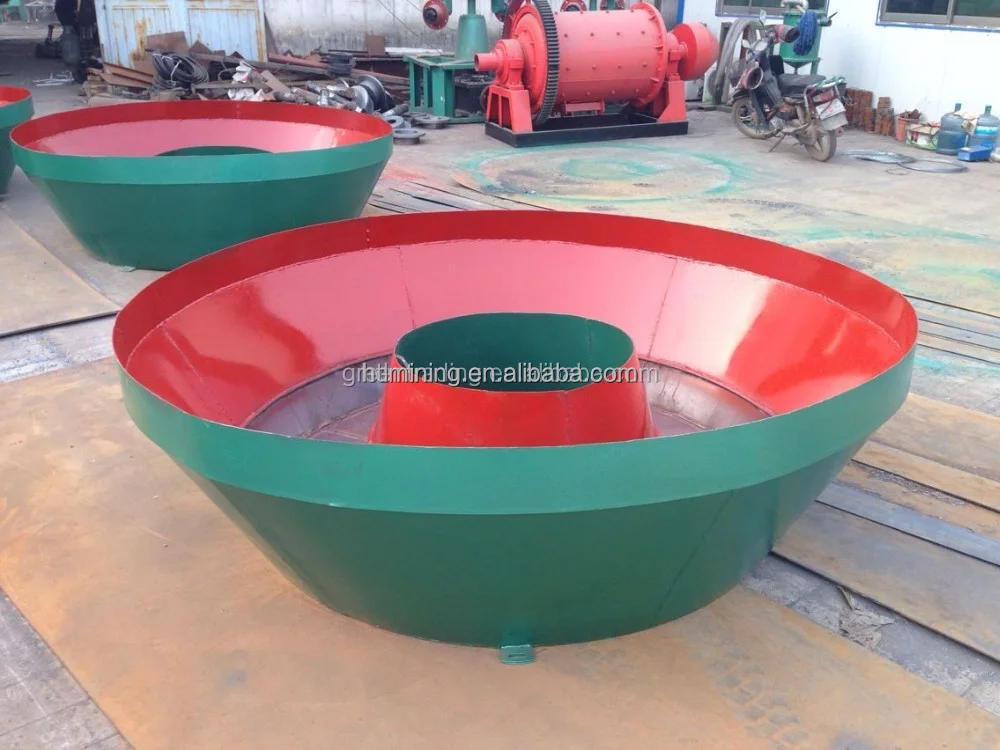

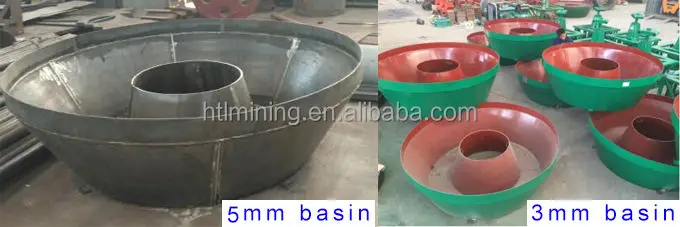

Water Pan
1.Thickness :3-5mm
2.Diameter:2.3m for 1200model
3.With edge protecting
1.Thickness :3-5mm
2.Diameter:2.3m for 1200model
3.With edge protecting

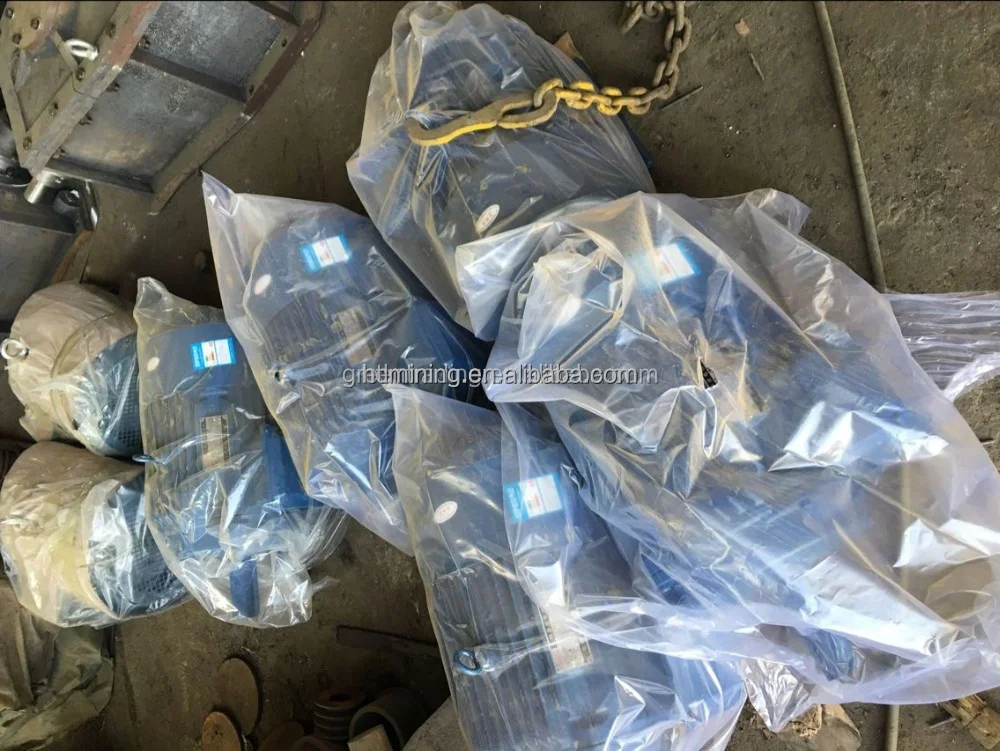

Electric Motor
1.Brand:Hengchang
2.Power is 7.5kw for 1200 model
1.Brand:Hengchang
2.Power is 7.5kw for 1200 model

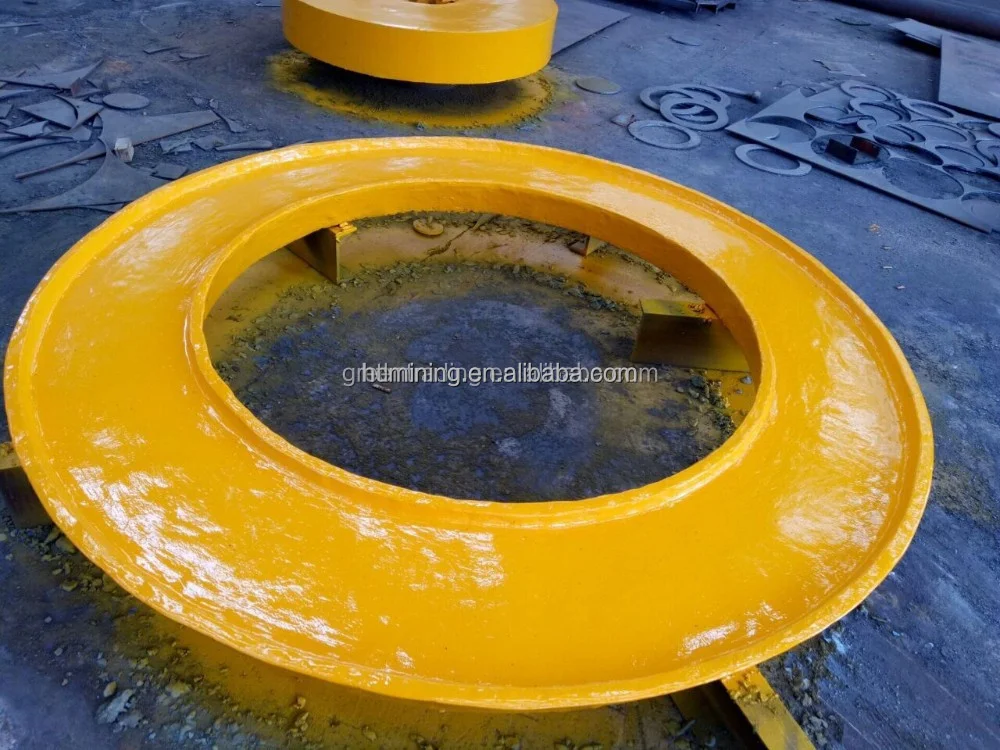

Grinding base
1.Diameter:2.3m
2.Thickness:120mm.
1.Diameter:2.3m
2.Thickness:120mm.

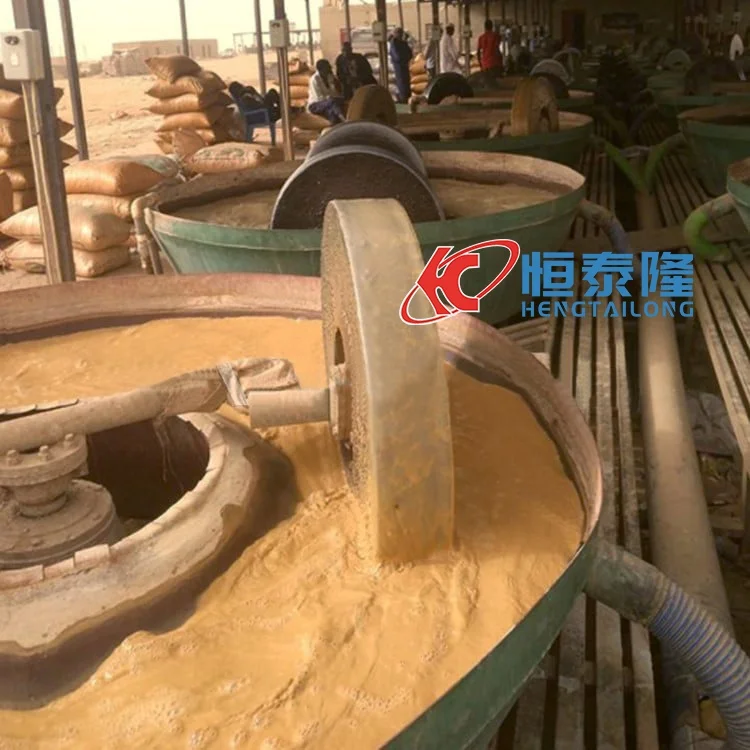

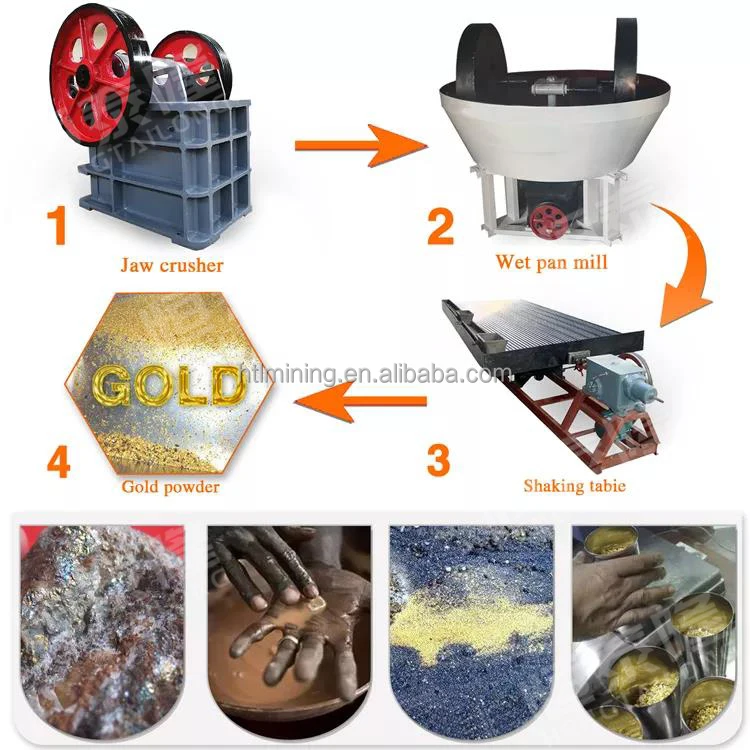

Working Principle
The Wet pan mill repeatedly squeeze and mill gold ore through the weight of the wheels until the gold ore has been crushed completely. And then add 1 kg mercury into the water . Meantime, every 5-10 minutes, add gold ore to the machine.
After 24 hours, recycle mercury. Then pack mercury with big density of cloth. Twist the cloth and let the mercury come out. The gold will be left in the cloth..
After 24 hours, recycle mercury. Then pack mercury with big density of cloth. Twist the cloth and let the mercury come out. The gold will be left in the cloth..
Our Services
Before-sale services:We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
About Hengtailong
Hengtailong is a company integrating industry and trade. Its main business is the sale of jaw crushers, drying equipment, and mineral processing equipment. We have our own factory, professional production team, quality control team, 10 years of export experience and many loyal customers. We have experience in exporting products to Southeast Asia, Australia, Europe, South America and Africa, and have gained a good reputation. At the same time, our excellent product quality and best service have won the trust of customers all over the world. Many of our products have obtained CE certification, and most of our partner factories have ISO9001 and IEC certifications. Some have also obtained certification. We believe that our company is your good choice, because we respond quickly to your enquiry, and we will reply you within 4 hours. Our experienced English-speaking trading staff will listen to your requirements and choose the right products for your market according to your requirements.

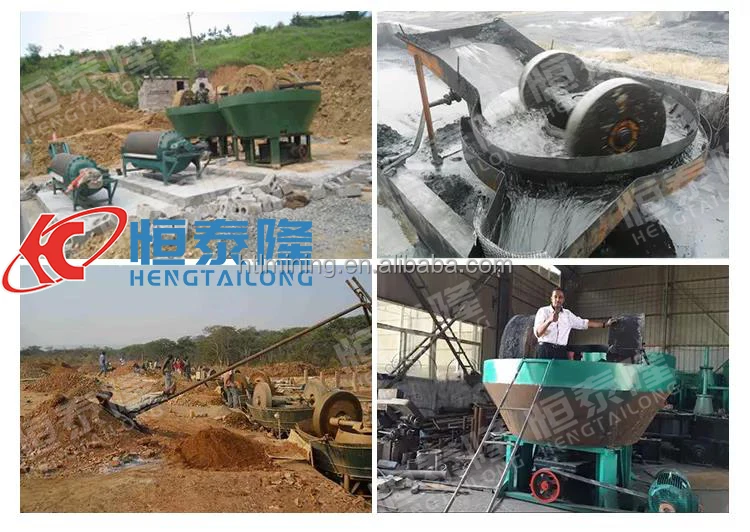

Customer Projects
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry!

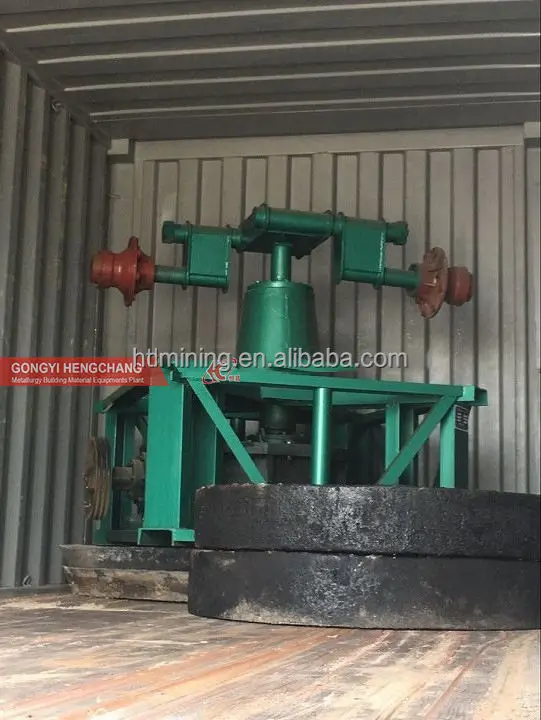

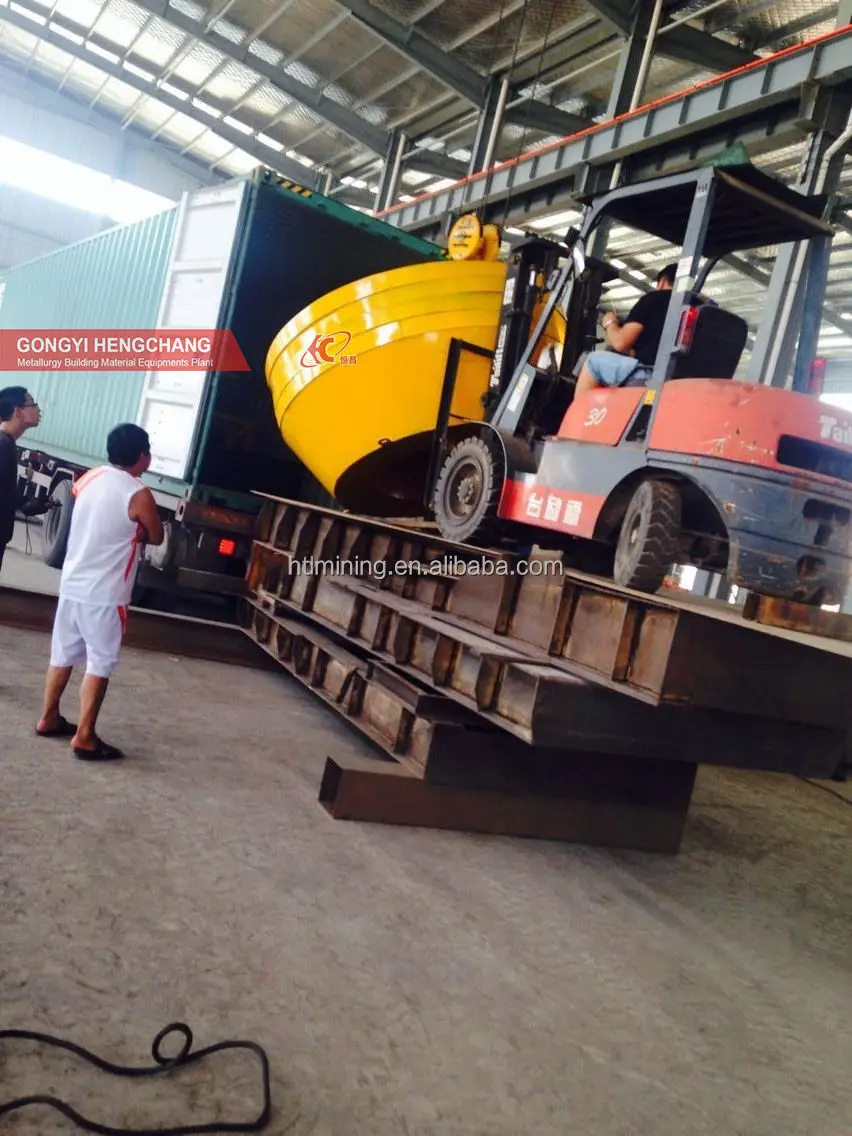

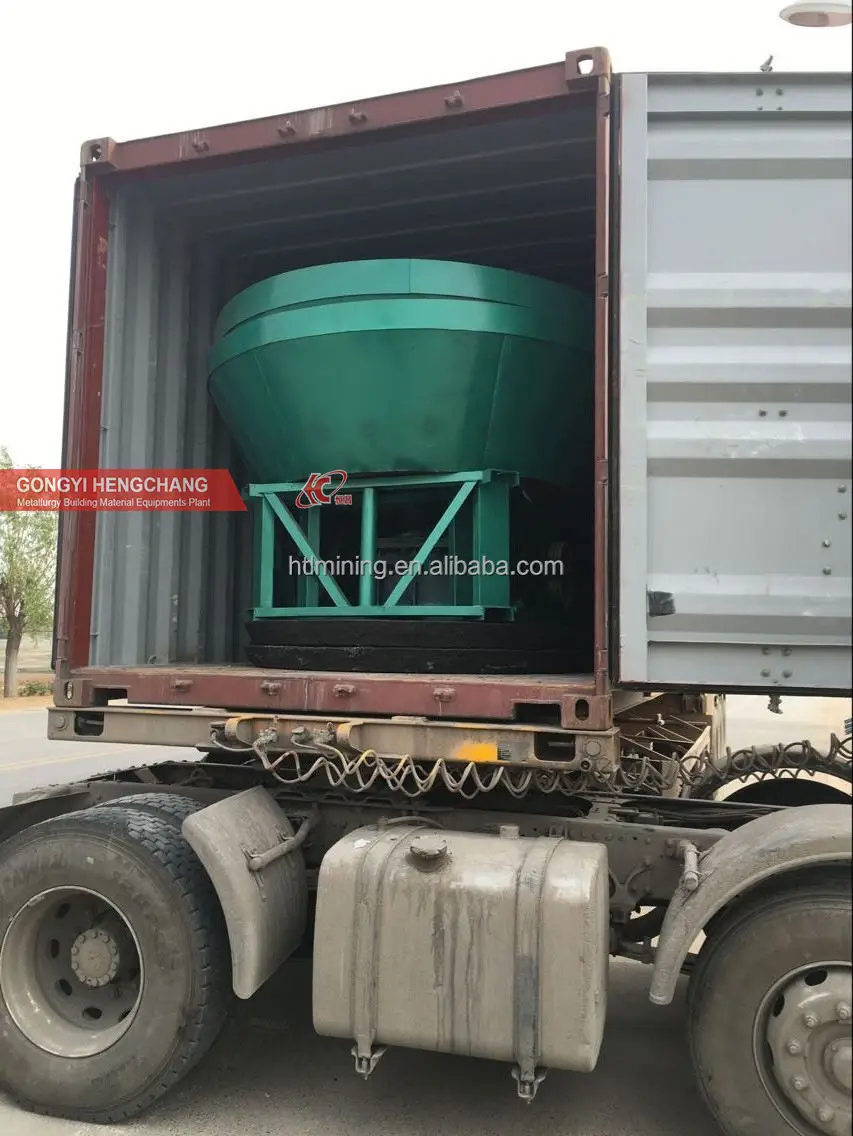

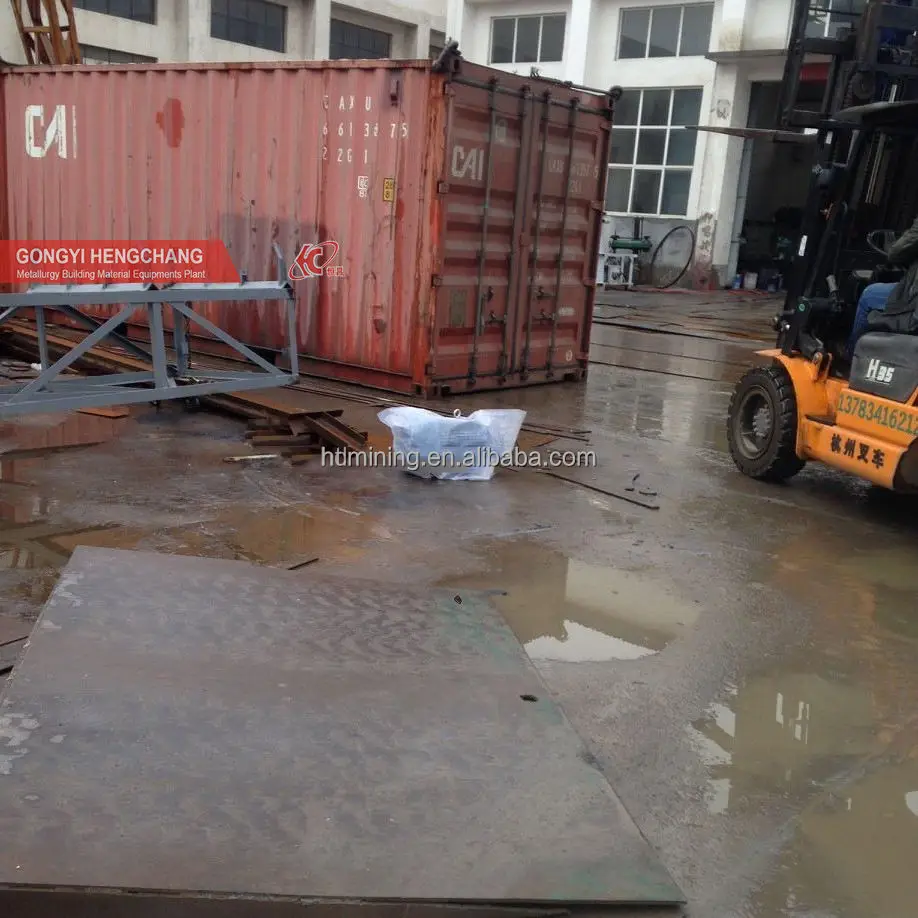

Product Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
RFQ
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
