Cumark ES350PV серия MPPT 4 кВт инверторный солнечный насос привод для 5hp сети переменного тока/солнечной
- Категории: Solar Applications >>>
- Поставщик: Shenzhen,Cumark,Sci.,&,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

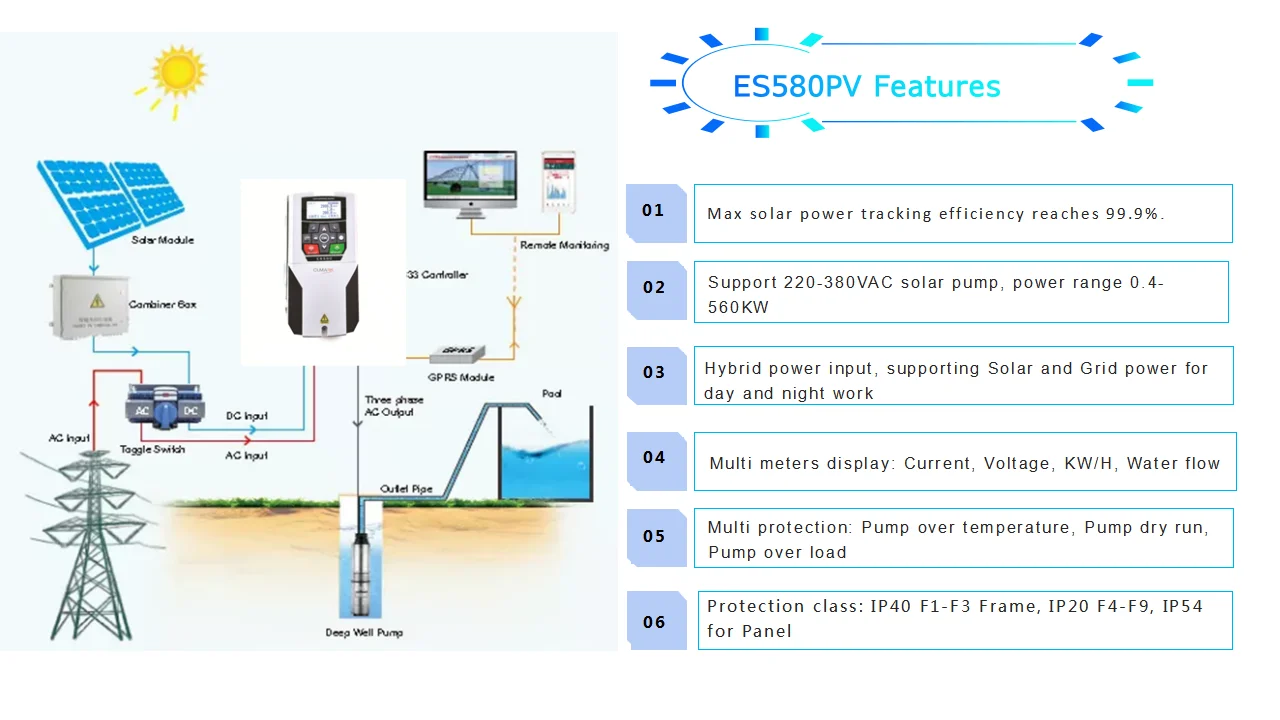

Solar Pump Inveter Features

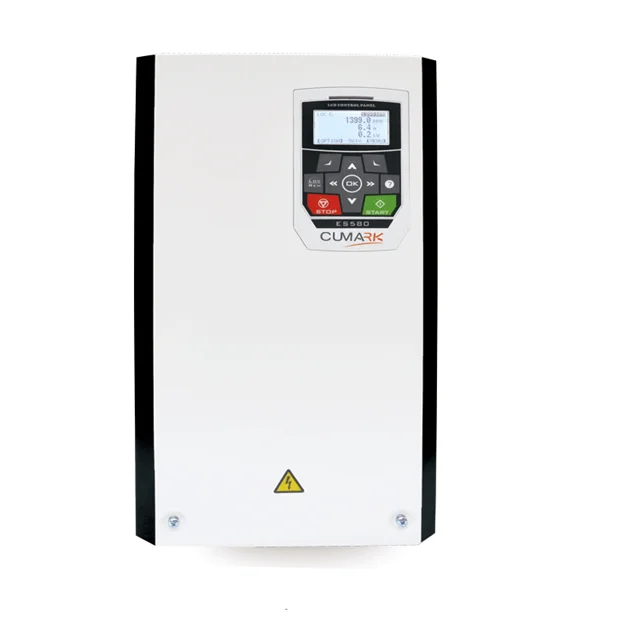

Details Images
Specification
Model | -1 | -2 | -3 | ||
AC input voltage(V) | 208(15%)~240(+10%)(1PH) | 208(15%)~240(+10%)(1PH) | 380(-15%)~460 (+10%)(3PH) | ||
MAX.DC input voltage(V) | 400 | 400 | 750 | ||
Start-up voltage (V) | 200 | 200 | 300 | ||
Lowest working voltage(V) | 150 | 150 | 250 | ||
Recommend DC input voltage range(V) | 200~400 | 200~400 | 300~750 | ||
Recommend MPP voltage(V) | 330 | 330 | 550 | ||
Rated output voltage(V) | 220 (3PH) | 220 (3PH) | 380 (3PH) | ||
Output frequency range(Hz) | 0~1000hz | ||||
MPPT | 99.99% | ||||
Fault protection | More than 30 protection functions, such as： PV overvoltage,PV undervoltage, Lower sunshine, Dry running protection, Water level protection, overcurrent, Over temperature, phase loss, and overloa detc. | ||||
Installation manner | all mounting/ Flange mounting | ||||
Altitude | Below 1000m, If above 1000m, derate 1% for every additional 100m. | ||||
Cooling manner | Fan cooling | ||||
Protection level | IP20; IP54 (Cabinet) | ||||
Company Profile
The company was founded in 2001,the R&D headquarters located in National Science Center pilot zone, Guangmin district, Shenzhen. As a national hi tech enterprise and Guangdong special VFD engineering technology research and development Center, concentrating in power electronic drive and automation product development, manufacture and sales, grow to the leader in the field.

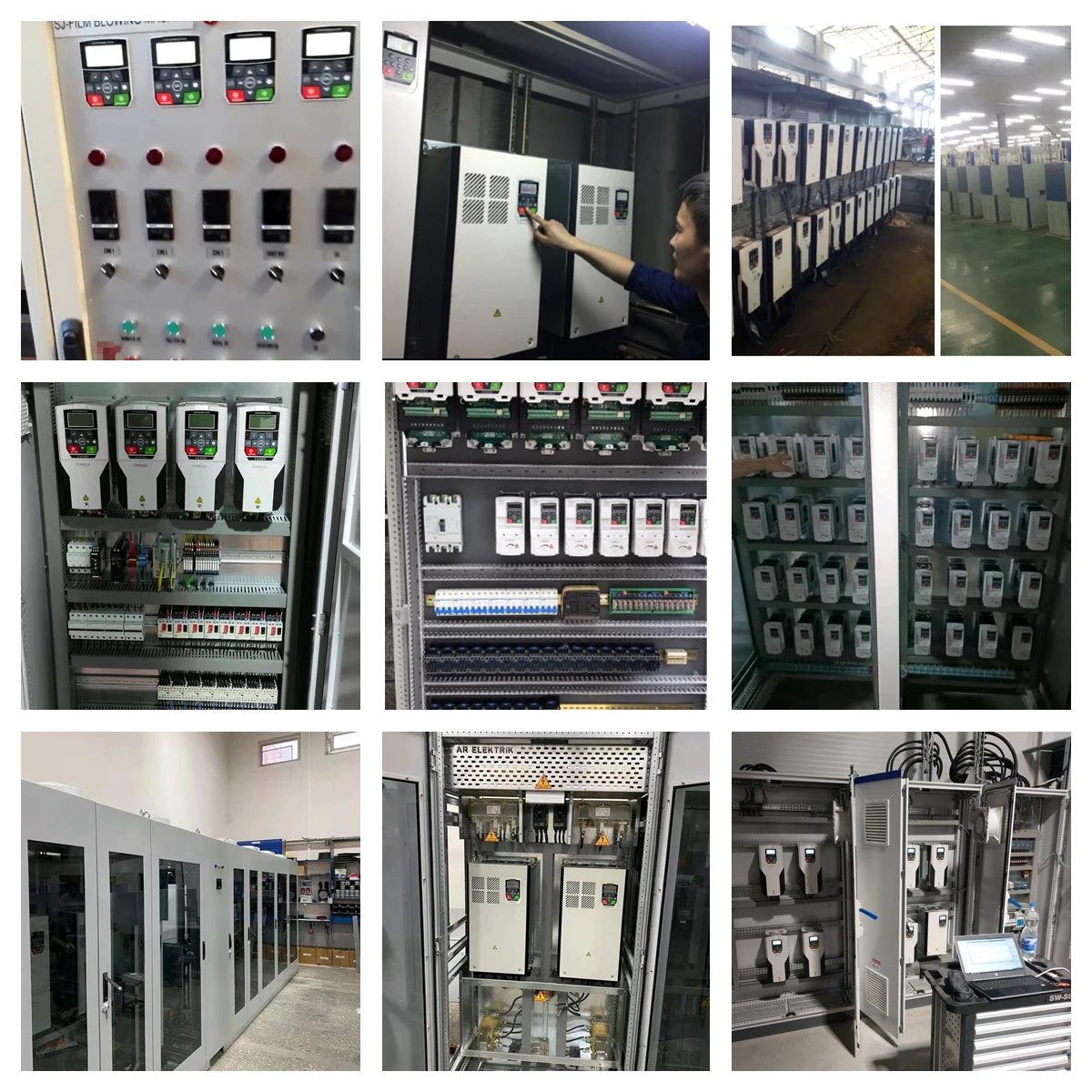

Industrial Application
FAQ
1.Are you a factory or trade company?
We are factory with more than 10 years manfucturing experience.
2.What voltage range can you support?
Single-phase 220v input, three-phase 220v output;
Three-phase 220v input, three-phase 220v output;
Also have three phase output 440v,525V,660v,690v optional.
3.Do you support urgent orders?
Yes, We have an ERP management system.
Once there is an inventory warning, we will prepare materials in advance to meet the urgent needs.
4.Do you supply OEM service?
Yes, we can accept the OEM and ODM service.
We are factory with more than 10 years manfucturing experience.
2.What voltage range can you support?
Single-phase 220v input, three-phase 220v output;
Three-phase 220v input, three-phase 220v output;
Also have three phase output 440v,525V,660v,690v optional.
3.Do you support urgent orders?
Yes, We have an ERP management system.
Once there is an inventory warning, we will prepare materials in advance to meet the urgent needs.
4.Do you supply OEM service?
Yes, we can accept the OEM and ODM service.
