ZEMIC Car Chassis Dynamometer Equipment Measure Vehicle Performance Equipment



Products Description

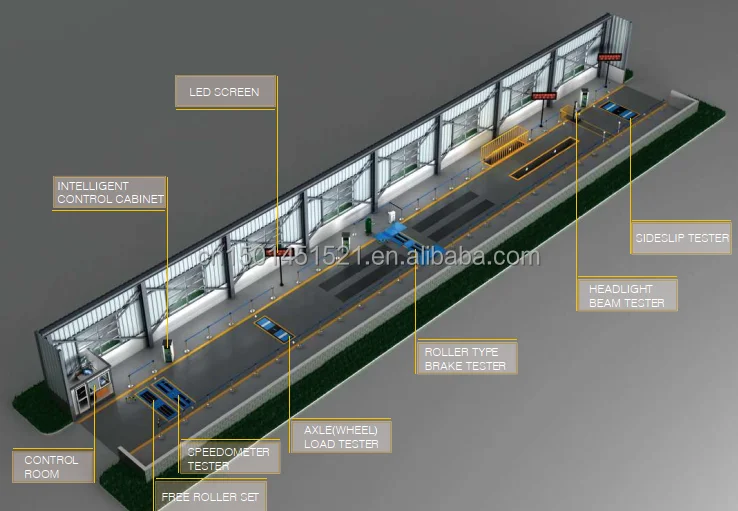

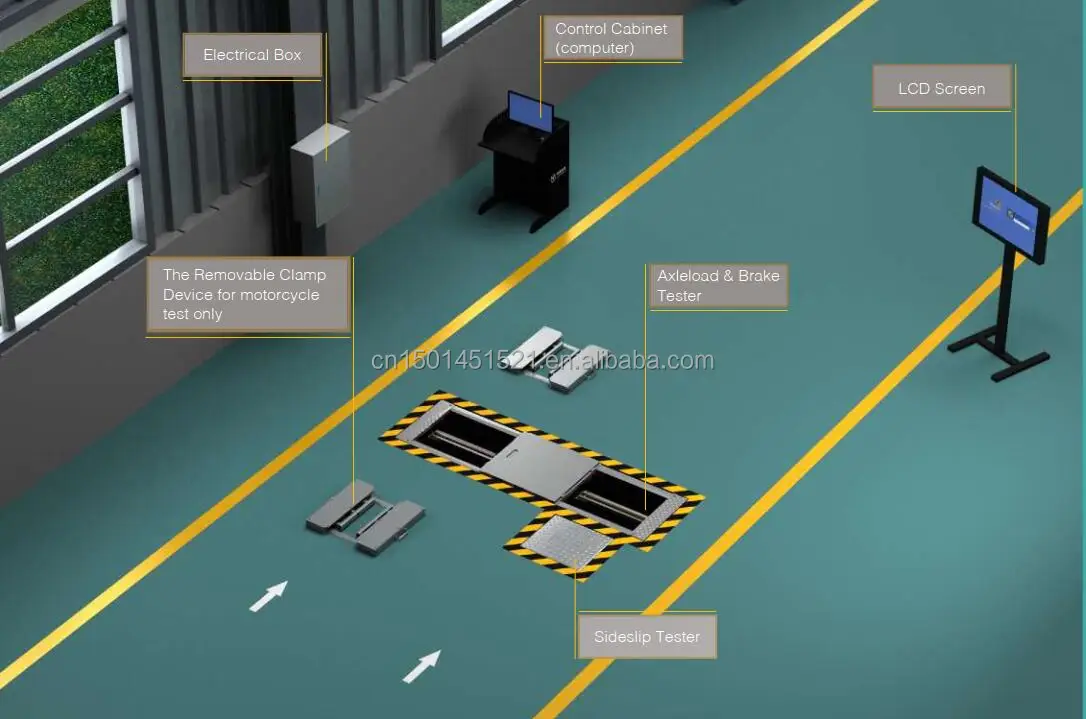

ZEMIC MOTOR VEHICLE INSPECTION SYSTEM, which is widely used in detection  of overall performance of motor vehicle. It can provide customers with a series of testing solutions for various motor vehicle, inluding: vehicle identification, oline vehicle info. verification, vehicle apperance inspection, vehicle online test....



We can provide you with solution for vehicle and Motorcycle...

Chassis Dynamometer

Speed meter Tester

Sideslip tester

Roller Type Brake Tester

Axle Load tester

Suspension Tester

Play detector

Motorcycle Brake Tester

.......

Details Specification

Item	Technical Parameter

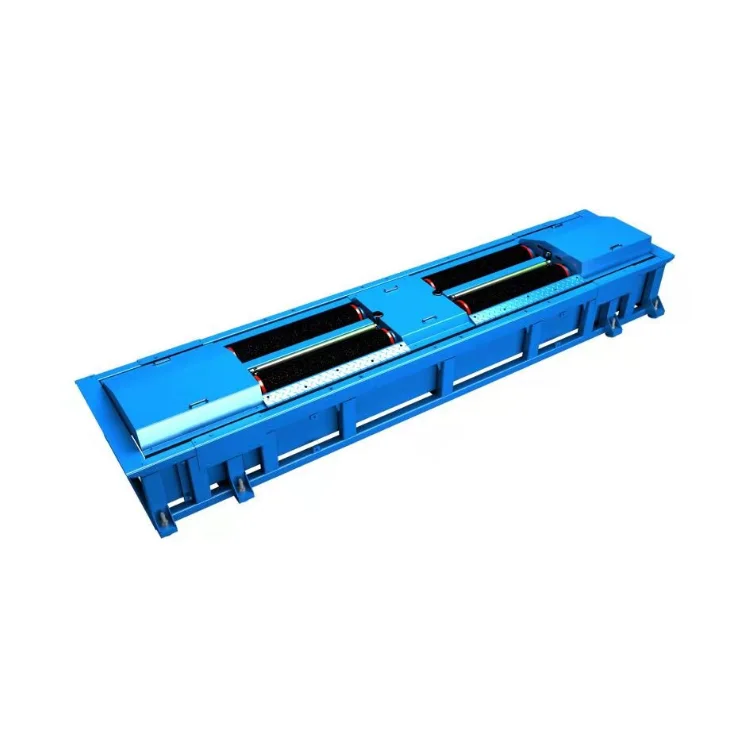

Model	HYCG-030G Chassis Dynamometer
Max. Axle Weight,T	3T (drive on 10t)
Eddy Current Retarder Rated Power, kW	160/250
Max. Test Indication Error, km/h	130
Speed Test Indication Error, km/h	±0.2
Driving Force Test Range, N	0~9800
Power Test Indication Error,%	±1
Roller Diameter,mm	217
Roller	4 Rollers
Roller Surface Treatment	nicklcoat or zinc coat(optional)
Wheel Track,mm	750~2900
Working Voltage, V	AC 220±10%, AC380±10%
Weight, t	2.3
Dimension (LxWxH),mm	4625x990x670



Cases and Applications

Our Vehicle inspection system apply to Normal car, and New energy vehicle, Heavy Duty vehicle, Forklift, Excavator.....

Company Profile

ZEMIC, Zhonghang Electronic Measuring Instruments Co., Ltd. is a holding company of Aviation Industry Corporation of China(AVIC), focusing on the field of "intelligent measurement and control".Based on the core technology of sensing force and weight, ZEMIC has established four business segments: Aviation and products, Sensor Control, Intelligent Transportation and Industrial Software. Nowadays, ZEMIC is a domestic backbone enterprise that provides intelligent measure-ment and control products and system solutions for both and civilian use. On August 27th,2010, ZEMIC succeeded in achieving its IPO and was listed on Shenzhen Stock Exchange(Stock Code:300114). By the end of 2020, ZEMIC total assets reached 2.933 billion RMB.











Our R&D

By the end of December 2020, the company has obtained more than 340 patents and software copyrights authorizedby the State Intellectual Property Office, including 55 invention patents, more than 200 utility model patents anddesign patents, and 90 authorized software copyrights. Intellectual property system layout has been set up based oncore products.





Q1: What is your lead time?
A: Stock:5-15 days in general. No stock:15-60 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.
Q2: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) All raw material we used are environmental-friendly, comply with Rohs, CE etc.
2) Automation are applied in 50% process and skilful workers pay great attention to each details in handling the producing and packing processes;
3) We have a professional QA/QC team with good experience in 8D and PFEMA, which help to ensure the quality.
4) All test data of product is traciable due we store them in our facility or server for at least 3years.
Q3: Do you accept OEM or ODM order?
A: Yes, we accept both OEM and ODM for customers.
Q4: What are your terms of delivery?
A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.
Q5: What is the payment way?
A: TT, Pay Later, West Union, Online Bank Payment.

Q6: What is the complete description for Zemic product for export purposes(tarif code, description, country of origin)?
A: Zemic force sensors: Product: Sensor Straingage Measuring HS code:90318080
Origin: China Zemic mounting assembly: Product: Accessories Measuring Instruments HS code:90319000
Origin: China Zemic straingages: Product: Straingage Resistor HS code:85339000
Origin: China



Should you have other questions, please let us know. We' ll add answers here for your further references. Thank you.
