По индивидуальному заказу 18 5 дюймов емкостный сенсорный экран J1900 Win10 система Linux встроенный панель ПК

По индивидуальному заказу 18 5 дюймов емкостный сенсорный экран J1900 Win10 система Linux встроенный панель ПК

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Products Description

Specification

Display
Screen	18.5″ TFT-LCD
Resolution	1366*768
Brightness	250 cd/m2
Touchscreen	Multi-touch projected capacitive
Performance
CPU	Intel® Bay Trail J1900 Quad-Core-Quad-Thread-Processor ( optional Core™ I3/I5/I7/Android ) Optional WiFi+ 5G
RAM	4G DDR3L, Up to 8GB/16GB
Storage	128GB,up to 1TB
Watchdog Timer	Support hardware reset function (256 levels, 0~255 seconds)
OS
OS	Windows 7、Windows 10、 Linux
I/O port
USB	5USB2.0 +1USB3.0
LAN	1~2* GbE Lan
Serial port	2RS232, 1RS485 Optional
Audio	1Line-out, 1Mic-in
Video	1HD, 1VGA
GPIO	1*GPIO(4In/4Out Optional)
Expansion Slot	1*Mini PCIe(WiFi/BT/3G/4G/5G Optional)
SIM Card	1*Built-in SIM card holder
Extended Functions
NFC	Support
Facial Recognition	Optional binocular facial recognition function
Environmental
Operating Temp.	0℃～50℃
Storage Temp.	-20℃～70℃
Humidity	95% @40℃, non-condensing
IP Rating	Front panel IP65
Shock Protection	10G/11ms
Vibration Protection	5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Mechanical
Dimensions	473.1mm295.3mm56.2mm
Mounting size	VESA mounting: 100100mm Panel mounting: 456.4280.7mm
Weight	6.25kg/7.45kg
Color	Silver/Black

Applications

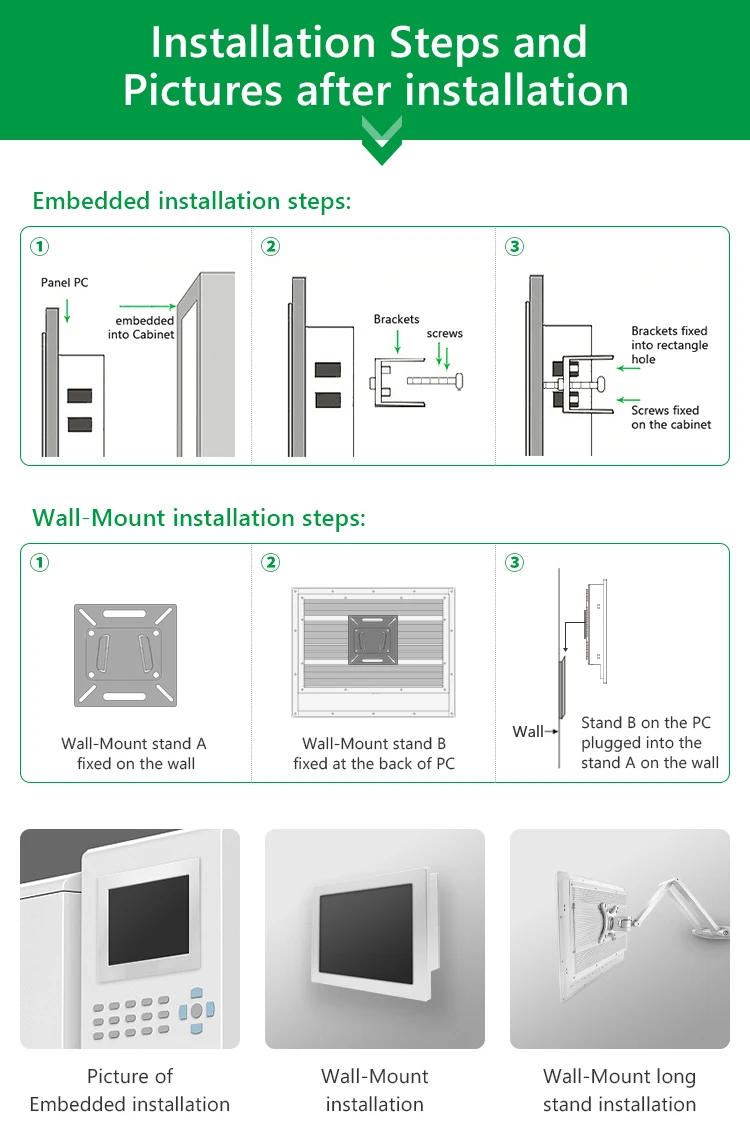

Installation Instructions

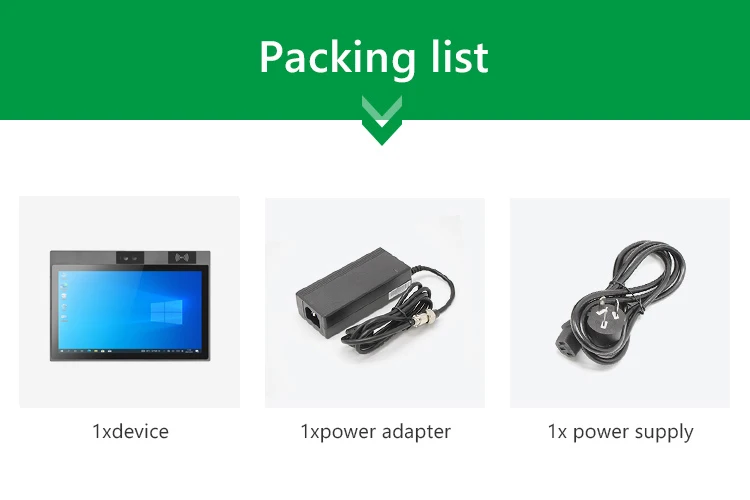

Product packaging
