Product Overview

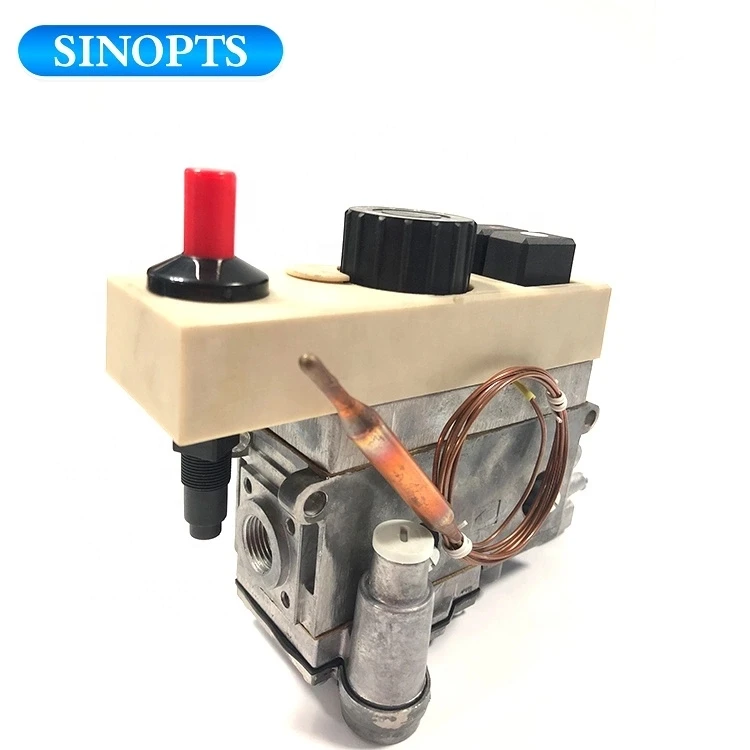

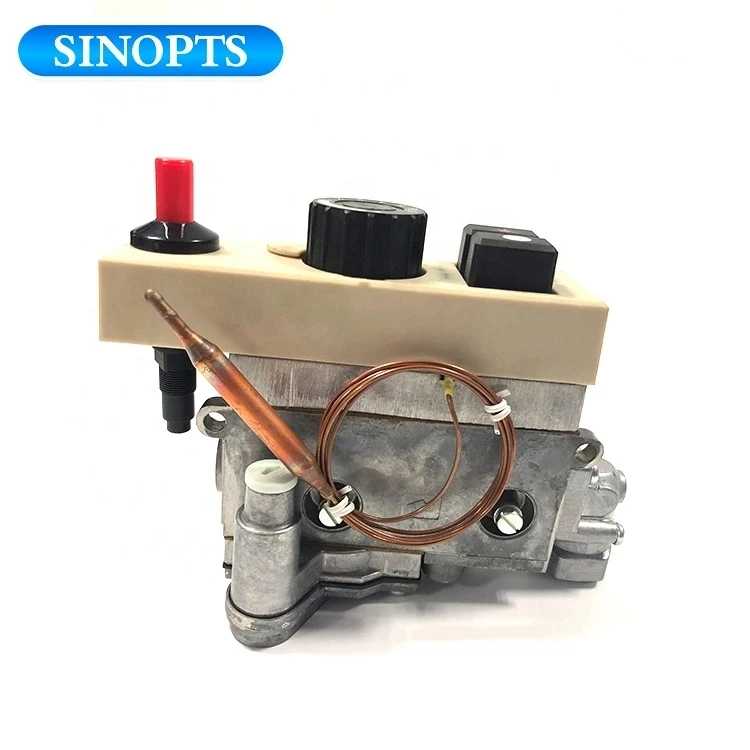

Sinopts Gas wall heater safety temperature controller thermostat
The gas valve is used on various commercial fryers, pasta boilers and other appliances. The valve is rated at 40 to 90 degrees, inlet 1/2" BSP, outlet 3/8" BSP, thermocouple connection M10X1, wire length can be customized. The valves combine a thermostat and flame failure device in one unit. They are supplied with the plastic body and control knob.
With pressure regulator. Max capacity can be 50 mbar
SINOPTS THERMOSTAT TECHNICAL DATA | ||||
Operating temperature | 13℃—38℃ | Customed for per request | ||
Ambient Temp | 0℃—80℃ | |||
Intake way | 1/2---14NPT . Quick connector | Customed for per request | ||
Outlet way | M16×1.5 , 3/8—19NPT | Customed for per request | ||
Material | Aluminum alloy | |||
Maximum intake pressure | 50mbar | |||
Exhaust pressure | 3—18mbar | |||
Voltage regulator | Without | |||
Sealed way | Rubber seal | |||
Thermocouple interface | M10×1.0 | Customed for per request | ||
Drive mode | Thermal expansion | |||
Suitable gas | Liquefied petroleum gas, natural gas | |||
Solenoid valve drop-away current and absorption current | 80—200mA | Customed for per request | ||
