Высоковольтный 0 95 uf-1 05 uf конденсатор для микроволновой печи 2100VAC-2300VAC поверхностное крепление полипропиленовая пленка силового


Поделиться:

Цена:231,15 ₽ - 275,17 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

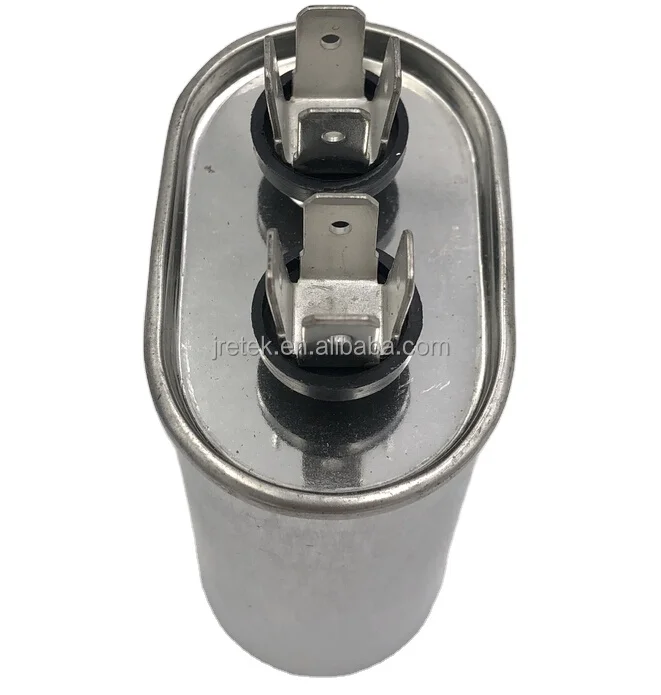

Microwave Oven 0.95uf-1.05uf 2100v 2500V High Voltage Capacitor






Product Description












Microwave Oven 0.95uf-1.05uf 2100v 2500V High Voltage Capacitor





The capacitor is applied in industry and Microwave Ovens etc. The construction is composite dielectric. The capacitor has advantage of good heat dissipation,high pressure value,small dimension,small dielectric loss,high capacity precision.And it can be work stably with high voltage for long time, it is safe and reliable.





1. sealed in metal case


2 .high insulation resistance
3. excellent natural repair and good stability, suitable for alternating current circuit
4 .long working life, with inner anti-explosive device and safety reliability.

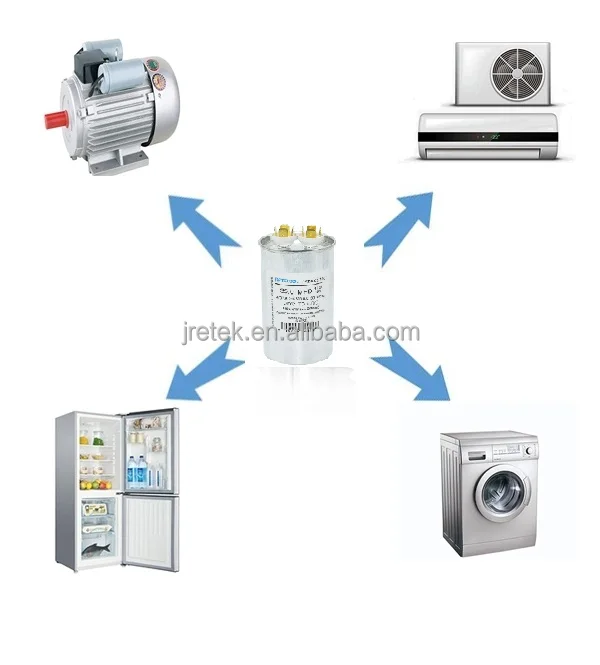

5. suit for the frequency of 50hz – 60hz, voltage from 250v – 500v single phase ac motors, refrigerator, air conditioner, house hold appliances, power supply etc. for starting and running.
































Ambient Temp




Rated Voltage

(AVC)




Range of Capacitance

(μf)




Testing Voltage

(VAC)




Dissipation Factor




Operating Frequency




-40-85ºC




150-500




2-100




T-T:2Un/2S

T-C:≥2200VAC/2S




tanδ≤0.002(100Hz)




50/60Hz






 cbb65 sh capacitor.jpgCBB60 ac motor capacitorcapacitor




















































































Model Number:

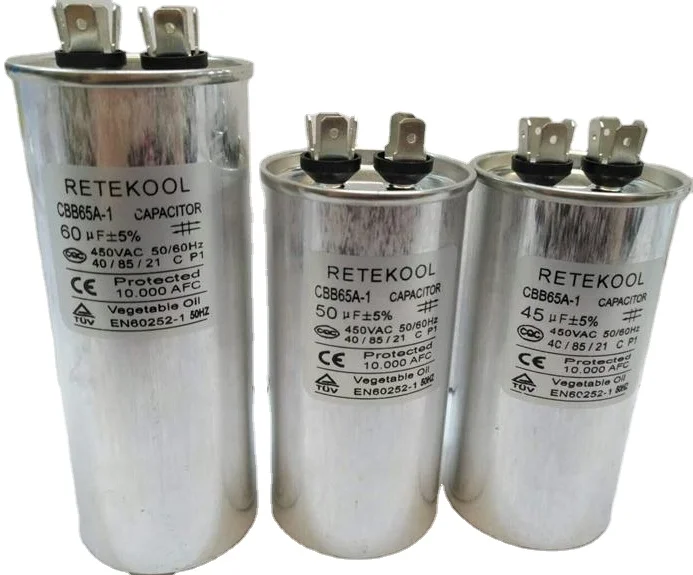

CBB65 air conditioner capacitor


Type


Polypropylene film capacitor


Safety approvals:


CQC/VDE/TUV/CL


Approval standard


GB/T3667,EN60252


Climatic category


25/70/21,25/85/21,40/70/21,40/85/21


Rated voltage


150VAC~600VAC(50-60Hz)


Capacitance range


3uf~100uf


Capacitance tolerance


+_5%(J),+_10%(K),+10%(U),-5%(U)


Testing voltage


Between terminals


2*Un(VAC)/5s


Between terminals and case


2*Un+1000(VAC)/5s(>=2000VAC)


Insulation Resistance(20℃)


Between terminals


>=2000MΩ,UF(500VDC,5s)


Tangent of loss angle(20℃)


<=0.002(100Hz)


Class of safety protection


S0/S3


Fault Currency


10,000AFC(UL810)


Place of Origin


CHINA


Packing


More pieces in one inner box or polybag as customer request.


Color


accept customization


Supplier type


OEM factory






Packaging & Shipping





CBB61/65:50/100 pcs in polybag/inner,more pieces in one carton
CBB60/65:one piece in one box,more pieces in one carton
CD60:one piece in one box,more pieces in one carton
Core:500-1000 pieces packing one vacuum-bag,more pieces in one carton
Film:with vacuum-bag packing,more in one cartons













packing capacitorinsert packingpacking






Our Services


 24 Hours Online Service


Accepted Delivery Terms: FOB, EXW, CFR, CIF


Accepted Payment Type: L/C, T/T.


Language Spoken: English,Spanish,Russian














FAQ





Q: How to confirm the quality with us before starting to produce?


1) We can provide samples for your checking,  and then we make the quality according to that.


2) Send us your samples, and we will make the goods according to your sample quality.





Q: How to solve the quality problems after sales?


A: Take photos of the problems and send to us After we comfirm the problems,


later we will make a satisfied solution for you.





Q: What is the lead time?


A: 30-35days after sample confirmation





Q: Can you print our brand on the product?


A: Yes, Of course. We can print customer’s brand logo.
