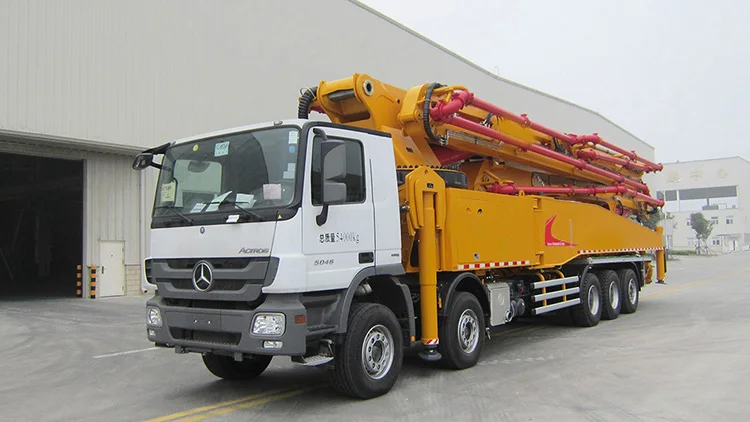

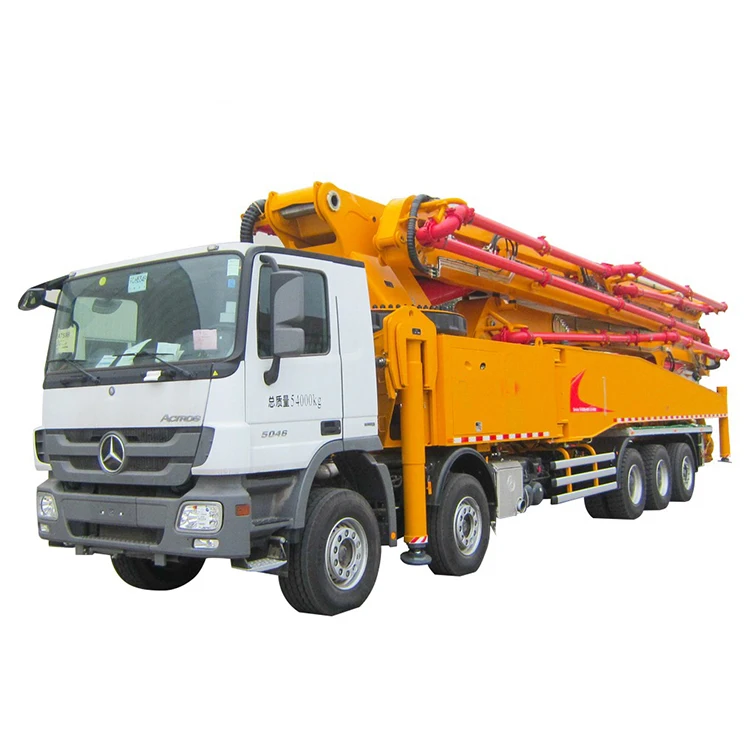

Китайский бетононасос HB67K 54 тонны новый дизельный размер M с грузовиком макс. 67

Китайский бетононасос HB67K 54 тонны новый дизельный размер M с грузовиком макс. 67

Цена:9 800,00 $ - 499 800,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

Description	Unit			Parameter value
Outline dimension	mm			15780×2500×4000
Overall weight	kg			54000
Chassis	Max. speed	km/h	85
		Max. grade-ability	%	51.4
		Wheelbase	mm	2020 + 5180 + 1350 + 1450
Engine	Model		OM501LA·V6
		Max. power	kW	335
		Max. torque	N·m/(r/min)	2200/1080
		Displacement	L	11.946
		Emission standard		Eruo V
Pumping system	Theoretical output	m³/h	170
		Concrete pumping pressure	MPa	8
		Theoretical pumping times	Time/min	21~23
		Delivery cylinder diameter ×stroke	mm	φ260×2200
		Max. diameter of pumping concrete	mm	≤40
		Filling height	mm	1570
		Concrete slump range	cm	8~23
Placing boom	Reach height	m	66.1
		Reach depth	m	48.6
		Slewingradius	m	60.9
		Slewing angle	°	±270
		Unfolding angle of the 1st section	°	90
		Unfolding angle of the 2nd section	°	180
		Unfolding angle of the 3rd section	°	180
		Unfolding angle of the 4th section	°	230
		Unfolding angle of the 5th section	°	210
		Unfolding angle of the 6th section	°	90
		Unfolding angle of the 7th section	°	180
Stabilizer span	Longitudinal span of stabilizer	mm	13700
		Transverse span of front stabilizer	mm	13000
		Transverse span of rear stabilizer	mm	15300
Others	Lubrication method		Automatic lubrication
		Control method		Manual/remote control
		Volume of water box	L	1000

Recommend Products

Company Profile

FAQ

1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time? A: 7-20 days after receiving the deposit.
4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity? A: The MOQ is 1 pcs
