Китайский бренд 45 км/ч литиевая батарея пассажирский Пикап 4 места мини электрический пикап двухрядные грузовые
- Категории: Cargo Trucks >>>
- Поставщик: Hubei,Haojing,International,Trade,Co.,Ltd.Hubei,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

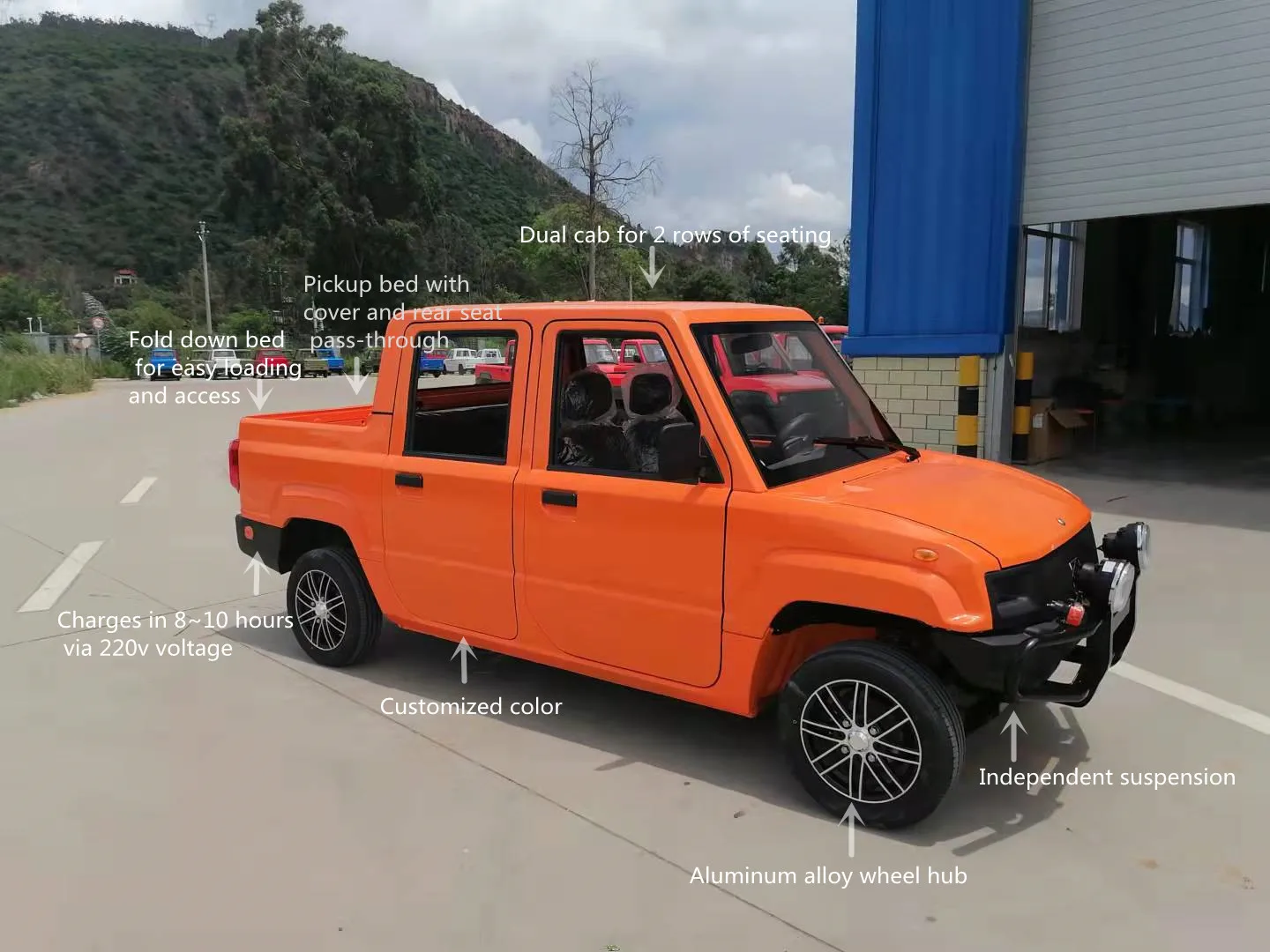

Chinese brand 45km/h lithium battery passenger pickup 4 seats electric pickup truck
| Basic parameters | |
| Length × Width ×Height (mm) | 3655X1340X1560 |
| Cargo box size(mm) | 900X1315X400 |
| Curb weight (kg) | 835 kg |
| wheel base (mm) | 2495 |
| Thread Front(mm) | 1195 |
| Thread Rear(mm) | 1185 |
| Payload weight(kg) | 150 |

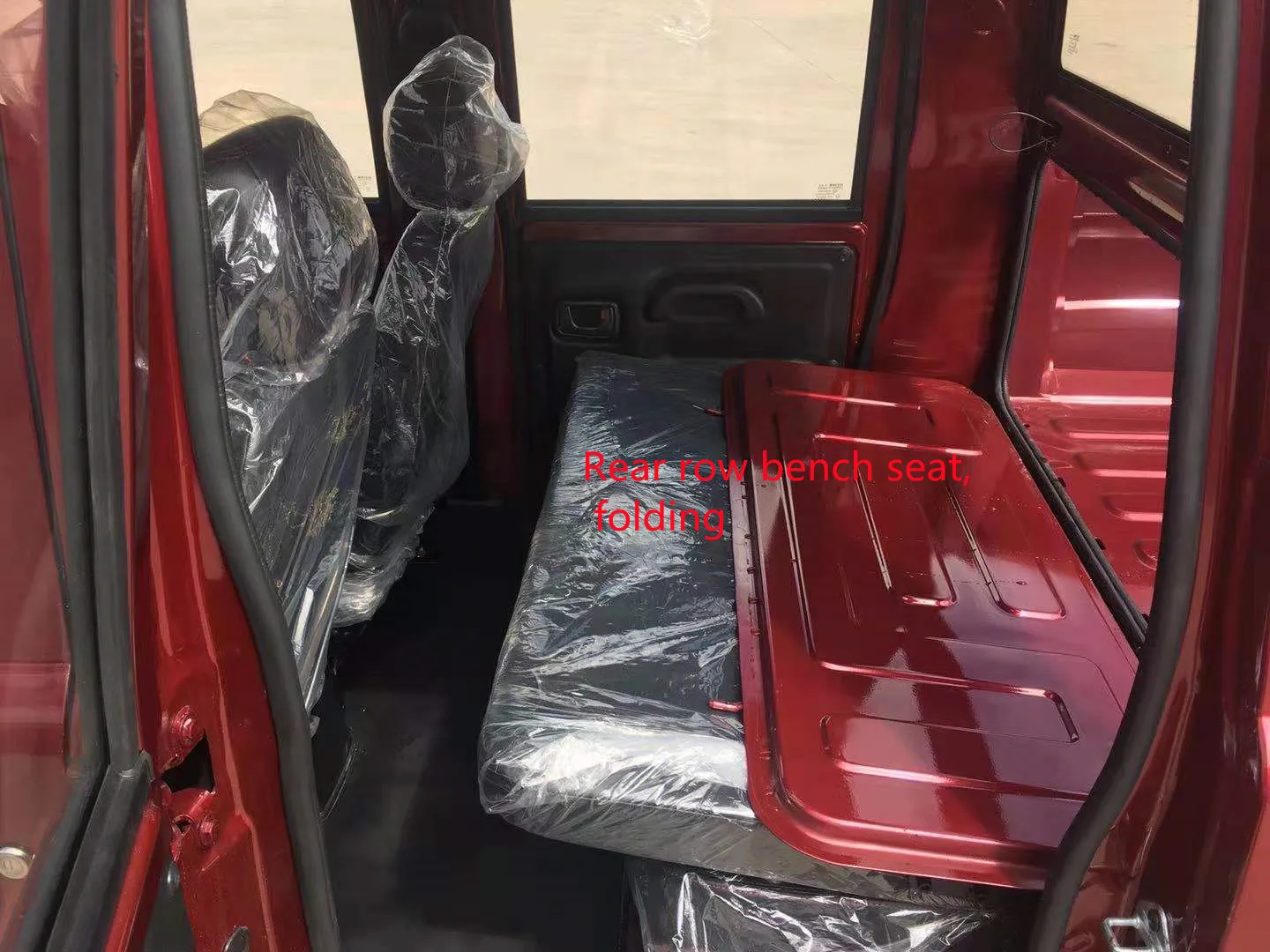

| Passenger | 4 |
| Performance parameters | |
| Max Speed(km/h) | 50 (Metro55) |
| Acceleration time( S 0-40km) | 20 |
| Maximum gradeability | 20% |
| Min turning diameter(m) | <9 |
| Maximum turning angle | 36.3(outer wheel)/42(inner wheel) |
| Departure angle(°) | >38 |
| Approach angle(°) | >35 |
| Ground clearance(mm) | >150 |

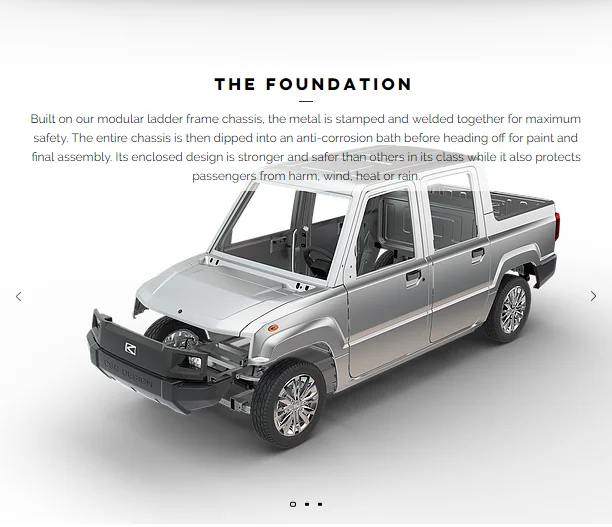

| Body Structure | |
| Body of Cabin | sheet metal |
| Cargo box | Triple door bed |
| Battery / Motor | |

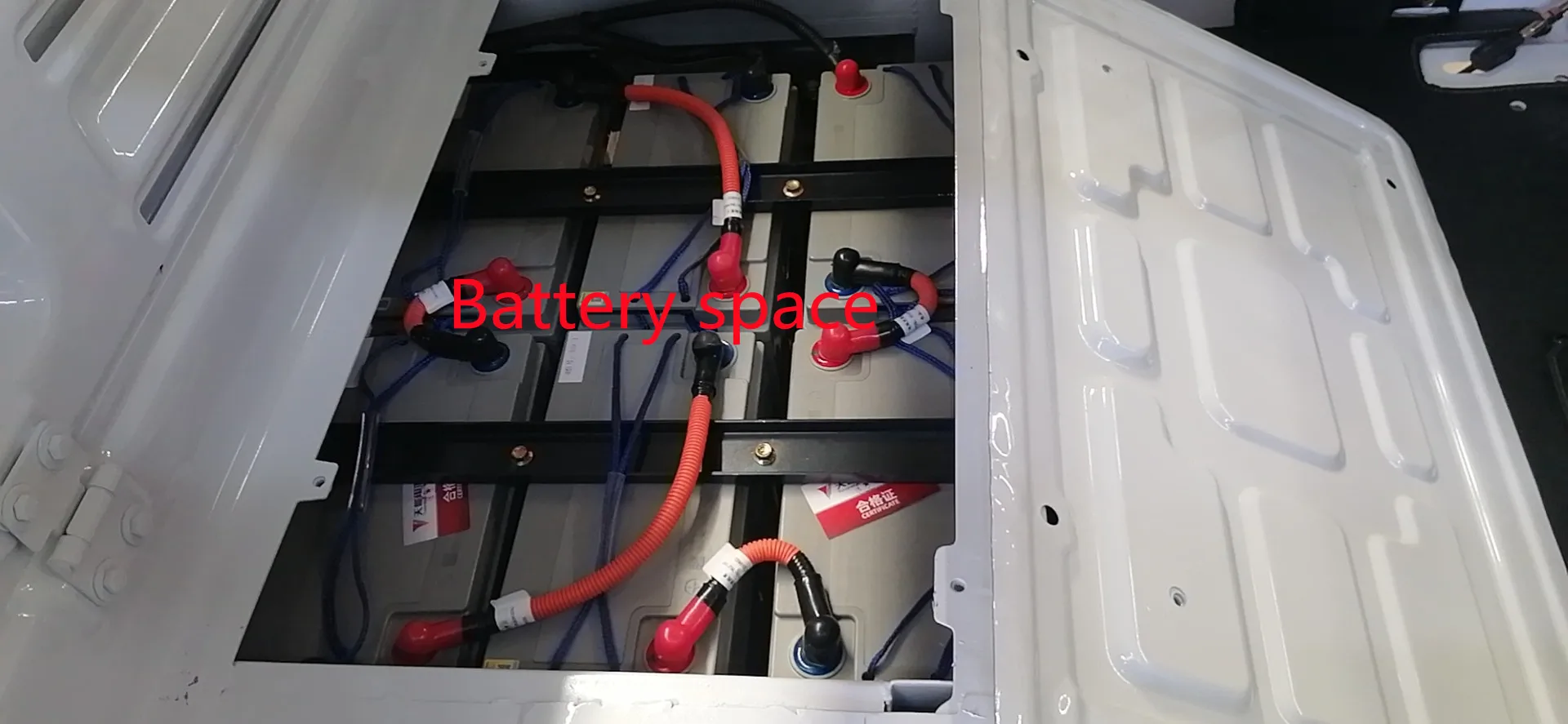

| Battery capacity (V/Ah) | 72V , 100Ah |
| Max. Range(empty,25℃,35km/h) | 120 |
| Battery Type | VRLA maintenance free power battery |
| Charger | portable |
| Charging time(h) | 8~10 |
| Motor type | AC asynchronous motor |
| Rated Power(KW) | 4KW |
| Chassis/wheel brakes | |
| Drive type | RWD |
| Front Suspension | double wishbone coil spring independent suspension |
| Rear suspension | parallel leaf spring type(5pcs) |
| Drive axle speed Ratio | Unitary 10.401 |
| Brake front | Disc |
| Brake rear | Drum |
| Wheel | 12X4B(steel wheel 4X114.3) |
| Tire | 145 R12LT |
| Steering type | gears chains |
| Brake assist | Yes |
| Configuration | |
| windshield wiper | AC asynchronous motor |
| windshield washer | 4 kW |
| Hood | Intelligent electronic controller |
| Door Lock | VRLA maintenance-free power battery |
| windows | 72V / 100Ah |

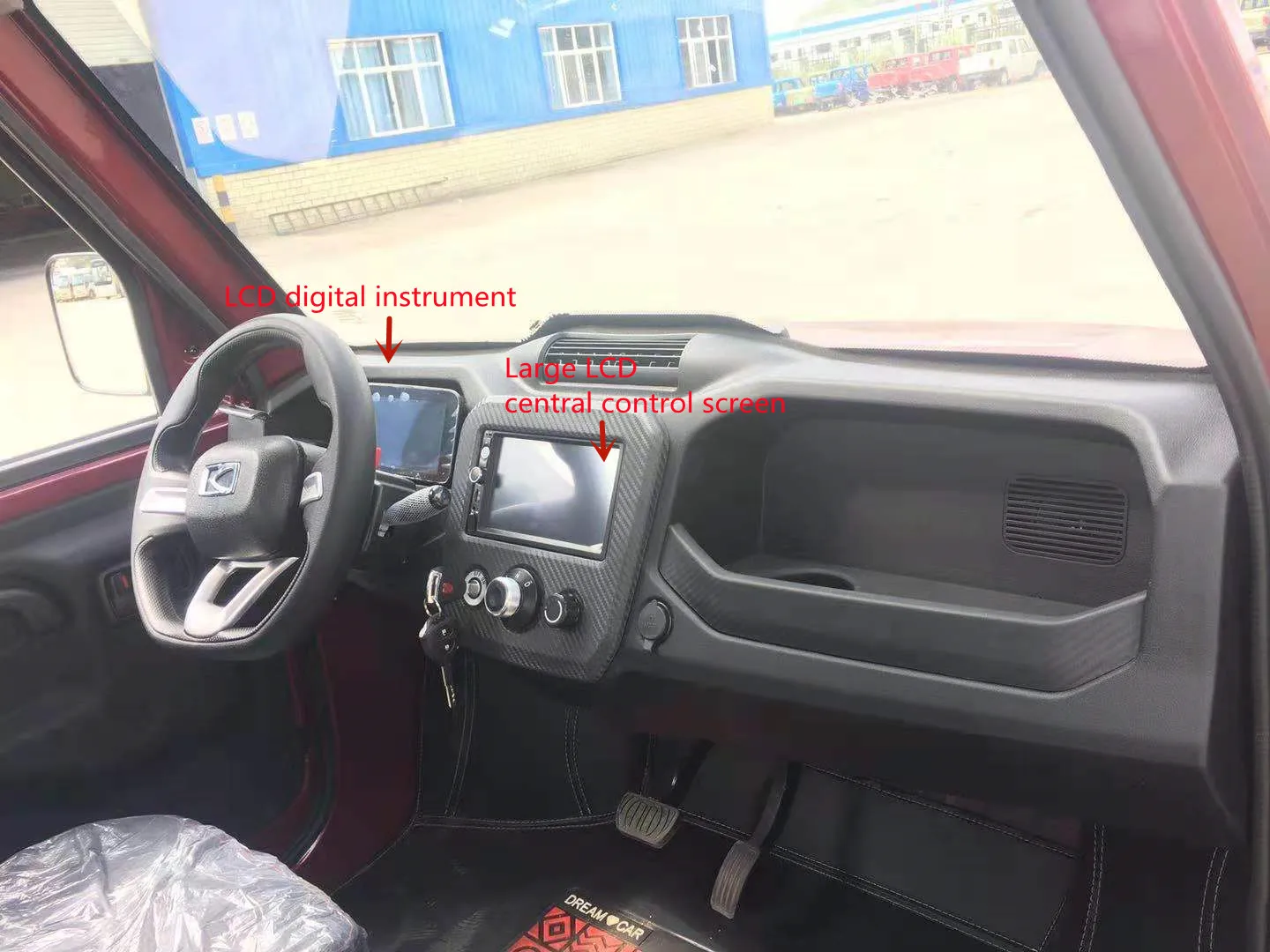

| display screen | 8 – 10 h |
Company Information
Our company specializes in manufacturing buses for 25 years. We product buses from 6 meters to 18 meters. Our products have exported to Europe, Africa, South America, Southeast Asia and all round the world, it wins wide acclaim.
Packaging & Shipping
FAQ
1. How long the lead time for your products?
It is about 45-50 days after deposit received.
2. How long is your warranty period?
Electric vehicle: it is 36months or 300000km for whole vehicle, and 60months or 300000km for Electric romotor, electric machine controller and battery, whichever occurs first.
3.What is your package for products?
We take marine anticorrosive packaging for every shipment.
4. Does your product can be customized?

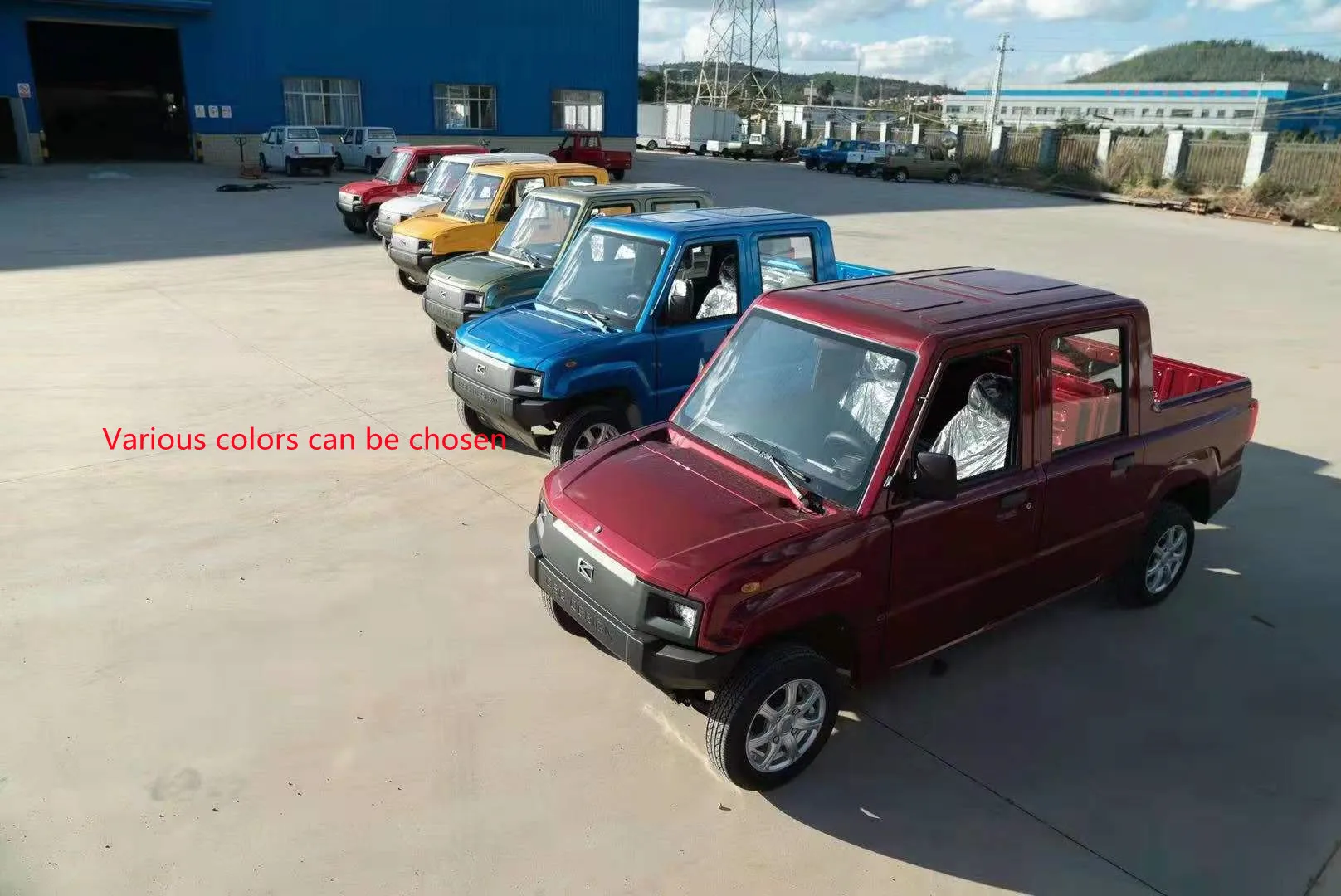

Yes, the colour and specification can be customized as required.
