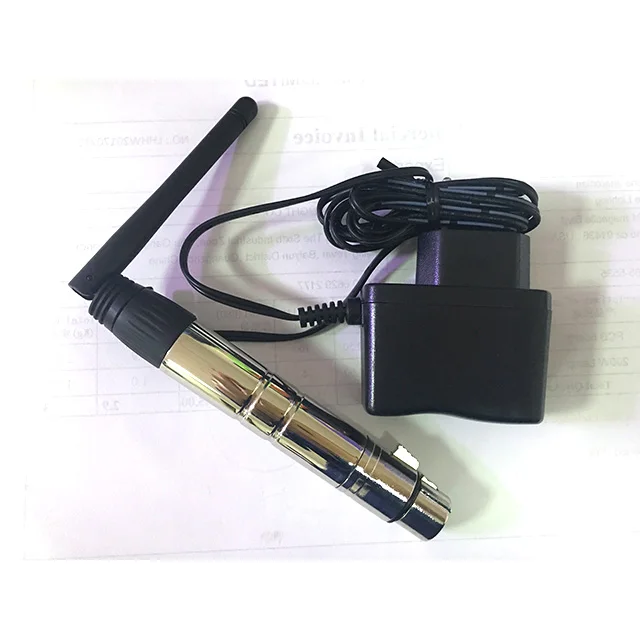

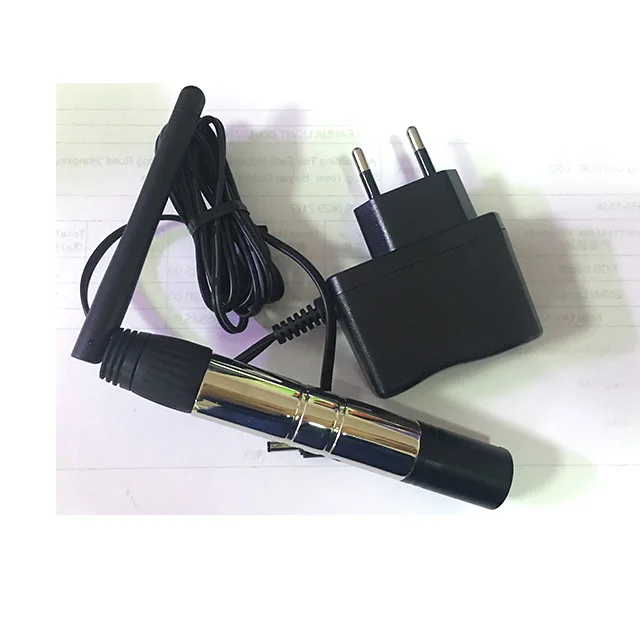

2 4G беспроводной DMX512 3pin XLR сценическое освещение DMX передатчик

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console )by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on,  It get rid of connecting cable limited completely

And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.

    This product adopt 2.4G ISM frequency section( global opening section) without permission limited

High effective GFSK modulate,communication design ; 126 channels jumping frenquecy automaticly,high anti-jamming ability.

Application:

 Stage lighting,Disco hall,Large literature performance,Gymnasium lighting,Temporary stage performance ,City lighting system ,TV station ,Conference center ,professional showplace,Topic park ,Bar lighting and so on.

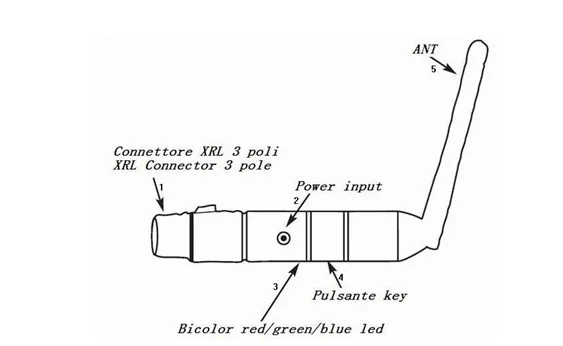

Product Outline:

1:XLR3 plug  2:Input voltage  3:ID indicator  4:ID button  5:RF antenna

Product Feature:

1.      Product  name: 2.4G wireless DMX512 R/T

2.      Tricolor LED displaying

3.      126 channels jumping frenquecy automaticly,high anti-jamming ability. to ensure works reliability

4.      7 groups ID code settable,User can use 7 groups individual wireless net without any interfere each other in the same place...

5.      Input voltage:5VDC 500mA  MIN

6.        Communication distance:400M(visible distance , it has some different base on environment)

7.      Work frequency section:2.4G  ISM,126 channels.frequency section

8.      Max transmitting power rate:20dBm

9.      Receiver sensitive:-94dBm

10.   Signal port:3pin female plug

Operating manual:

1.      ID code and LED color corresponding relateship:

l  1:RED

l  2:GREEN

l  3:RED+GREED

l  4:BLUE

l  5:RED+BLUE

l  6:GREEN+BLUE

l  7:RED+GREED+BLUE

2.      Press key 1 time to indicate ID setting,,Press again to set IC,then ID value adding 1 each time.by press

3.      Working condition:

l  LED constant lit up:no DMX or wireless singal.

l  Red LED flash:transmitting.

l  Green LED flash:receiveing

4.      RF frequency- - - - - - - - - - - - 2. 400-2. 525 G,total 126 channels,it’s searching automaticly,

5.      ID Code- - - -“1-7” groups ID code,press ”KEY” for setting,it only can works under same ID code.of transmitter and receiver.

Establishing Communication:

1.      Power on DMX512 wireless received board and transmitted board.

2.      Press “Key” button to set same ID value of transmitted board and received board., please use different ID value if you need use more than 1 group wireless net at same time in same place.

3.      The red LED flashs when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section.  Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.

4.       Communication was established correctly then

Cauction:

²   Indoor use only.

²   1 year warranty, repairment, free replacement except damaged artificially

²   The manufacturer willn’t offer free service in warranty period if any repaired or uncapped had happened

²   It’s better to return to manufacturer if repairment is must, Don’t do any repairment unless qualified electrician.

²   The working condition should be under temperature -20°C~+45°C,10%~90%RH,no congelation,so as to ensure it’s lifetime.

²   It cann’t be covered by any superstratum, it should be swept periodly to prevent dust
