Распылитель shacman 300hp H3000 для продажи
US $35000-$79000

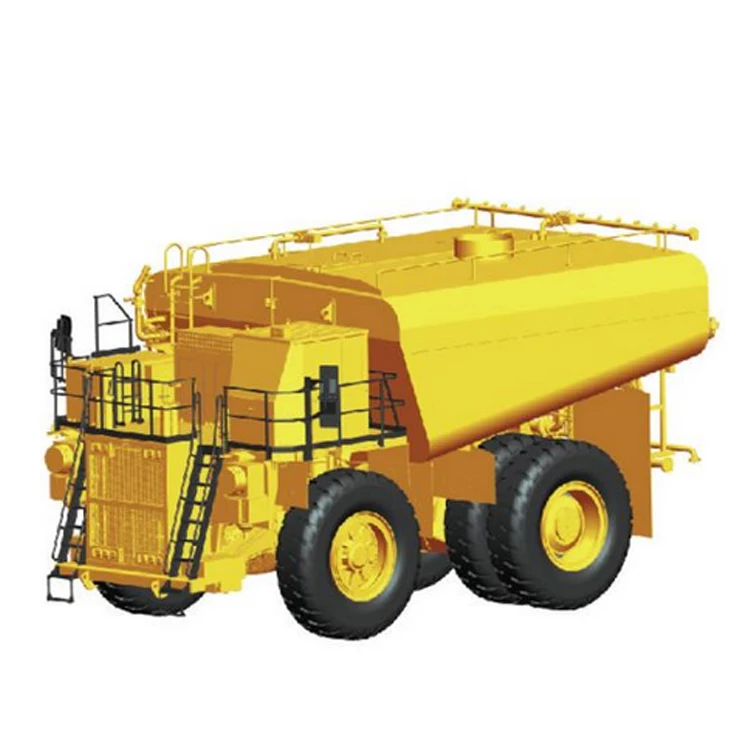

Китайский бренд тяжелая 89 тонная электрическая муниципальная поливочная тележка XDE100S распродажа
- Категории: Watering Cart >>>
- Поставщик: Hegong,Heavy,Industry(hefei),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
| Item | | | Unit | Parameter | ||
| Dimension | Overall Truck Length | | mm | 11480 | ||
| | Overall Truck Width | | mm | 6200 | ||
| | Front Canopy Height | | mm | 6170 | ||
| | Wheel base | | mm | 4900 | ||
| | Tire center distance | Front | mm | 4745 | ||
| | | Rear | mm | 3770 | ||
| Weight | Gross Vehicle Weight (GVW) | | kg | 189000 | ||
| | Payload | | kg | 100000 | ||
| | Empty vehicle weight | | kg | 89000 | ||
| Weight Distribution | Unload | Front axle | kg | 44500 (50%) | ||
| | | Rear axle | kg | 44500 (50%) | ||
| | Loaded | Front axle | kg | 62370 (33%) | ||
| | | Rear axle | kg | 126630 (67%) | ||
| Power Train | Engine | | / | MTU16V2000C22 Tierll | ||
| | Optional | | / | Cummins QSK38 Tierll | ||
| | Rated power | | kW/rpm | 899/1800 | ||
| | Max. torque | | N.m/rpm | 5295/1500 | ||
| | Drive | | / | 4x2 | ||
| | Tire | | / | 30.00R51 | ||
| Electric Drive System | Transmission Mode | | / | XCMG AC electric drive | ||
| | Alternator | | / | XCMG-A865 | ||
| | Wheel Motor | | / | XCMG-M345 | ||
| | Reduction Ratio | | | 33.67:1 | ||
| Driving Performance | Max. vehicle speed | | km/h | 50 | ||
| | Min. turning diameter | | m | 22 | ||
| | Max.gradeability | | % | 20 | ||
| | Min. ground clearance | | mm | 570 | ||
| Working Parameter | prinkling vehicle speed | | Km/h | 5~20 | ||
| | Centrifugal pump head | | m | 90 | ||
| | Water sprinkling volume | | L/m2 | 0.4-1.0 | ||
| | Sprinkling width | | m | 15-30 | ||
| | Maximum range of water monitor | | m | 60 | ||
Recommend Products
Company Profile
FAQ
| 1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted | | | | | ||||
| 2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC, | | | | | ||||
| 3: What about the delivery time? A: 7-20 days after receiving the deposit. | | | | | ||||
| 4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first. | | | | | ||||
| 5. What about the Minimum Order Quantity? A: The MOQ is 1 pcs | | | | | ||||
