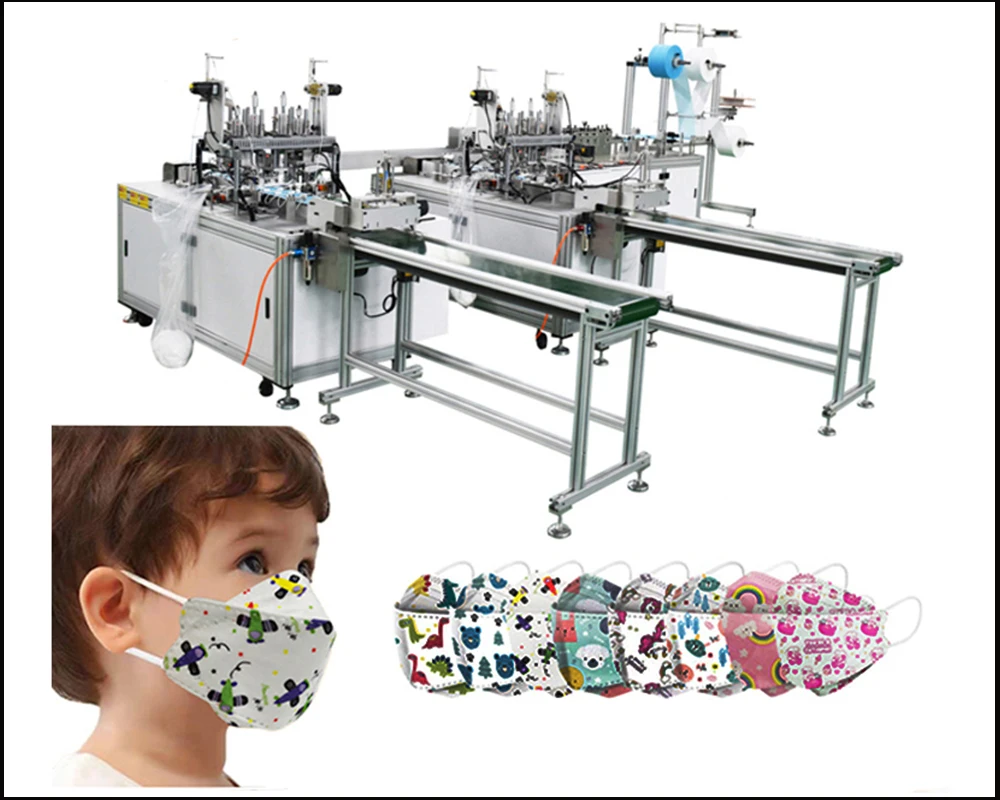

Прямая Заводская поставка высокопроизводительная автоматическая машина KF94 для производства маски
- Категории: Textile Machinery >>>
- Поставщик: Shenzhen,Shi,Dai,Pu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product model | STEP-YX800 |
Product size | commercial large folding masks, children's masks, according to the design drawings of the knife mold design changes; |
Language support | Chinese, English, Korean, Japanese |
Raw material specifications | 240mm-260mm |
Production capacity | 100-130Pcs/min (depending on the quality of raw materials) |
Qualified rate | 98% |
Power specification | 220VAC, 50Hz / 60Hz, 34A, two-phase power |
Air specification | 0.50.7Mpa (recommended compressor standard 20P / 15KW) |
power | 20kw |
Equipment size | 10000mm(L)*2500mm(W)*2000mm(H) |
Equipment weight | ≤2500kg |
Equipment characteristics
This equipment is composed of material rack part, nose bridge part, external shaping, shape welding part, folding molding, external cutting part, back folding part, partition part, ear wire welding part, collecting part, and adopting auxiliary motor and ultrasonic welding technology.
1. Material rack: to ensure the tension of the raw materials, so that the raw materials will not wrinkle during use
2. Nose line part: cylinder and ultrasonic welding, fixed on the nose line fabric according to the required length
3. Appearance type parts: mold ultrasonic, basic pattern welding
4. Folding forming: fabric folding
5. External cutting part: cutting, embossing forming, the initial shape of the mask is completed
6. Rotating parts: turn the mask over and prepare the ear straps
7. Separate part: increase output by rationalizing materials
8. Ear wire welding: Use ultrasonic to fix the mask on the semi-finished mask to complete the production of the mask
9. Collection: Collect finished products (this product does not include packaging process)
1. Material rack: to ensure the tension of the raw materials, so that the raw materials will not wrinkle during use
2. Nose line part: cylinder and ultrasonic welding, fixed on the nose line fabric according to the required length
3. Appearance type parts: mold ultrasonic, basic pattern welding
4. Folding forming: fabric folding
5. External cutting part: cutting, embossing forming, the initial shape of the mask is completed
6. Rotating parts: turn the mask over and prepare the ear straps
7. Separate part: increase output by rationalizing materials
8. Ear wire welding: Use ultrasonic to fix the mask on the semi-finished mask to complete the production of the mask
9. Collection: Collect finished products (this product does not include packaging process)
Part | ||||
Part Name | Description | Quantity | ||
control box | Imported parts | 1 | ||
PLC | 1 | |||
Ultrasonic | 20k2600W | 2 | ||
20k2600W | 2 | |||
servo moto | 750W | 2 | ||
400W | 5 | |||
sensor | 7 | |||
touch screen | 7TG765 | 2 | ||
The electromagnetic valve | 4V210-08 | 9 | ||
switch | 220V24V | 2 | ||
Cylinder | 21 | |||
Panel switch | 1 | |||
Relay | 24V | 10 | ||
Knife mold | Knives1 | 1 | ||
Knives2 | 1 | |||
Pneumatic scissors | XG-23A | 2 | ||
Speed motor | 60W | 2 | ||
Constant speed motor | 3 | |||
reducer | NMRV050 | 1 | ||
Bottom plate | oxidation | 1 | ||
frame | profile | 1 | ||
Raw material recommendations
The existing KF94 mask product consists of 4 layers in total, the middle 2 layers are MB non-woven filter effect. The recommended width of the device is 240mm, and it can also provide a width of 260mm. Please refer to the raw material recommendation table below;
From outside to inside (240 or 260 width) | KG/capacity | ||||
level one | SS grade 70g non-woven fabric | outward | 480 pcs | ||
Second floor | 99 grade 25g MB non-woven fabric | 960 pcs | |||
the third floor | 99 grade 25g MB non-woven fabric | 960 pcs | |||
Fourth floor | SS grade 25g non-woven fabric | Innermost | 960 pcs | ||
Ear line | 3.00MM ear cord, nylon, round shape, single wire is recommended | 2200 pcs | |||
Bridge of nose | 0.45mm * 3.0mm * 1.0mm, wire + PE material / PP material | 1250 pcs | |||
You Might Like

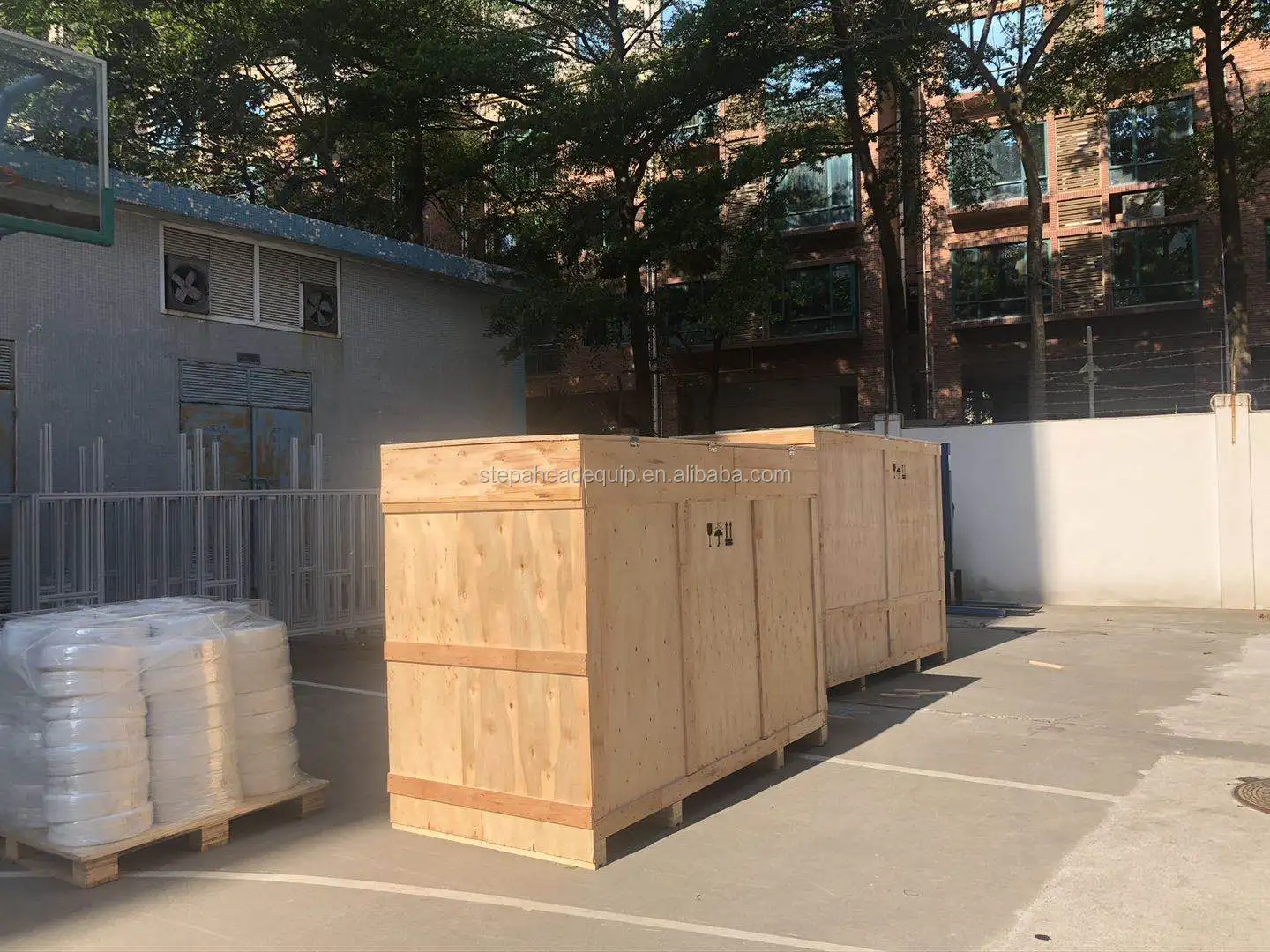

Product packaging
Company Profile
About Us
Founded in 2009, Shenzhen StepAhead (Shi Dai Pu) Technology Co., Ltd. is a high-tech enterprise specialist in Mask making machine, High speed flying probe tester, Dedicated bare board tester, Automatic tester and AOI. StepAhead (Shi Dai Pu)have our own professional research and development team with technical background rich experiencein the circuit board test equipment industry.
We are an experience supplier working on related equipment for over a decade. Currenly, we have supplied over 60 mask making machines in different models to clients from US, Europe, Australia and Latin America each month. Besides regular medical or surgical mask making machines StepAhead also working on other mask and mask making machines like KN95, N95 and related products(non-woven farbic, nose wire, earl loop and etc.)
If you would like to know more information, please feel free to contact us.
Certifications
FAQ
Q:Installation service
A:Due to the pandemic and the travel restriction of a different country, the filed installation service is not avail-able now, but we will provide video and online install support.
Q: The warranty time
A: A one-year warranty will be provided.
Q: After-service within warranty
A:For after-sales service, we will be provided: Video installation support, commissioning and training, free spare parts, and online support, video technical support
Q: After-service the one-year warranty
A: After the warranty expired, we will still provide video and online technical support to assist customers, but the spare parts will . We can also provide field service for you, but the salary need to pay for our technicians for each person.
Q: The parts have broken within warranty
A:Expect for consumables like ultrasound, blades, and scissors. We would provide the free spare parts within the warranty.
Q:Machine operation problem
A:If you have any problems during the operation, you can contact our customer service at any time. Our engineers will provide the solution and online support according to your description.
Q:Logistic service
A:Logistic service is available in railway, sea cargo and air freight, to deliver the product to your destination in time and security. We have cooperated with many reliable third-party logistic service companies. We can provide customized logistic service, according to your equipment.
Q:Machine larbour require
A:1. For the auto mask machine, general needs at least one worker for one set of machine. The worker's job is to refill in the raw materials, monitor the machine operate situation and pick up the final product.
A:Due to the pandemic and the travel restriction of a different country, the filed installation service is not avail-able now, but we will provide video and online install support.
Q: The warranty time
A: A one-year warranty will be provided.
Q: After-service within warranty
A:For after-sales service, we will be provided: Video installation support, commissioning and training, free spare parts, and online support, video technical support
Q: After-service the one-year warranty
A: After the warranty expired, we will still provide video and online technical support to assist customers, but the spare parts will . We can also provide field service for you, but the salary need to pay for our technicians for each person.
Q: The parts have broken within warranty
A:Expect for consumables like ultrasound, blades, and scissors. We would provide the free spare parts within the warranty.
Q:Machine operation problem
A:If you have any problems during the operation, you can contact our customer service at any time. Our engineers will provide the solution and online support according to your description.
Q:Logistic service
A:Logistic service is available in railway, sea cargo and air freight, to deliver the product to your destination in time and security. We have cooperated with many reliable third-party logistic service companies. We can provide customized logistic service, according to your equipment.
Q:Machine larbour require
A:1. For the auto mask machine, general needs at least one worker for one set of machine. The worker's job is to refill in the raw materials, monitor the machine operate situation and pick up the final product.
A:2. For the semi-auto mask machine, general needs one to two workers for one set of machine.The worker's job is to refill in the raw materials, check the machine operate situation and pick up the final products.
A:3. For the manual mask machine, general needs one worker for one machine and the worker number will based on the machine you have. The worker's job is to refill in the raw materials, operate the machine situation and pick up the final product. understand more
A:3. For the manual mask machine, general needs one worker for one machine and the worker number will based on the machine you have. The worker's job is to refill in the raw materials, operate the machine situation and pick up the final product. understand more
