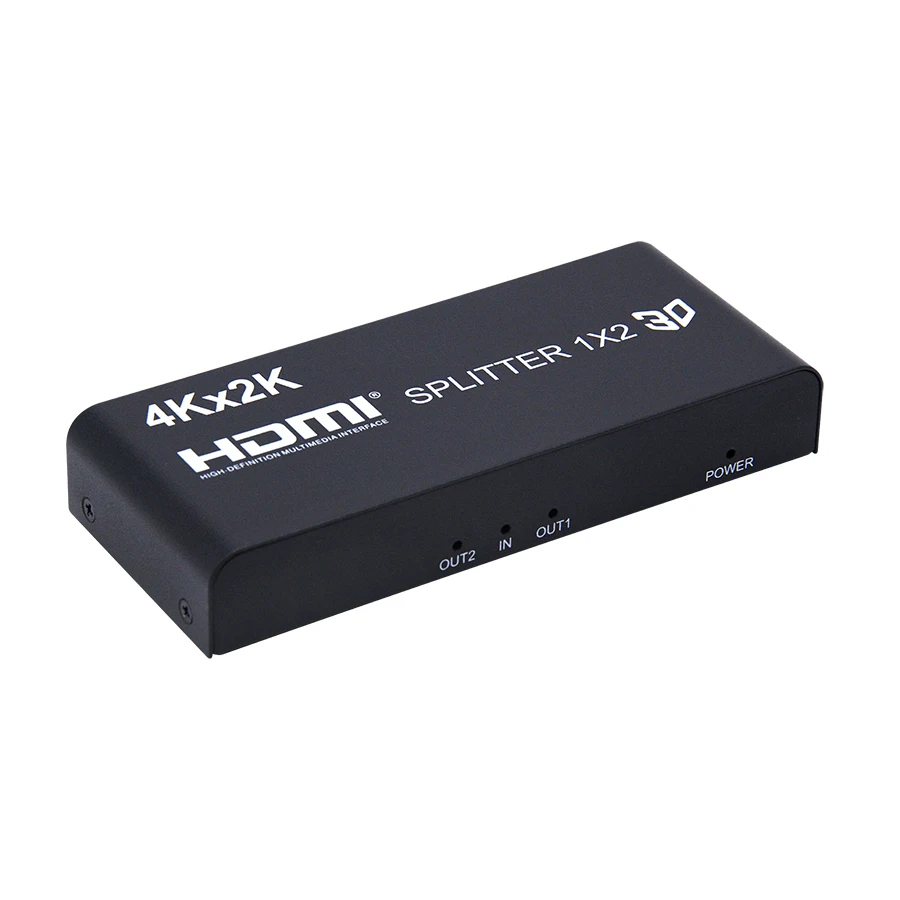

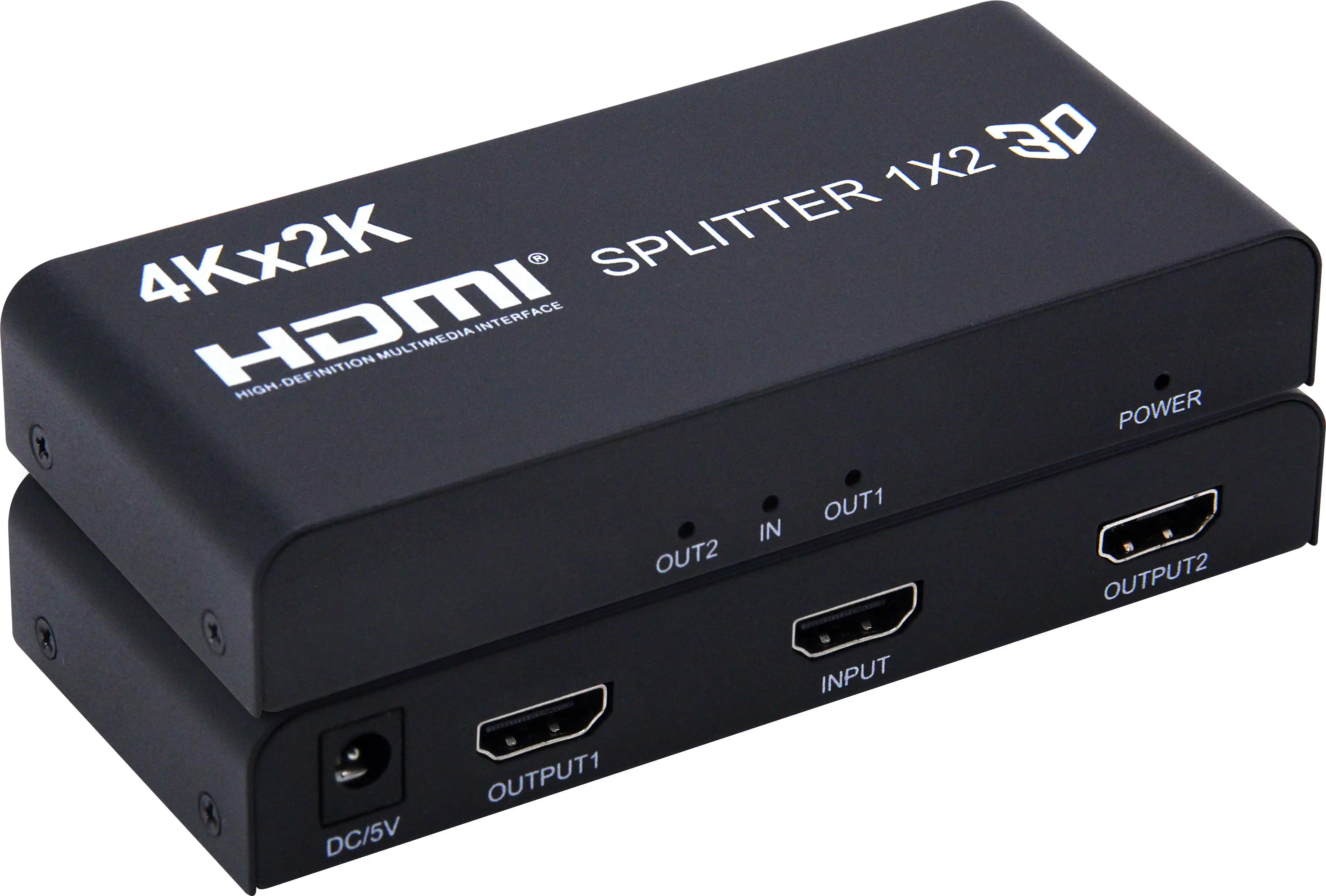

4K HDTV splitter 1x2





The 2port HDTV Splitter use a single HDTV source,accessing to multiple HDTV sinks.The Splitter allows one HDTV devices to be split easily to two HDTV compatible monitors or projectors. The Splitter can also be placed at the end of a long HDTV cable to regenerate the HDTV signal.

HDTV resolution	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format	24bit/deep color 30bit,36bit
Support audio format	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth	225MHz
Max baudrate	6.75Gbps
Input/Output TMDS signal	0.5~1.5Volts p-p(TTL)
Input/Output DDC signal	5Volts p-p (TTL)
Input cable distance	≤15m AWG26 HDTV standard cable
Output cable distance	≤25m AWG26 HDTV standard cable
Max working current	500mA
Power adapter format Input	AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
Operating Temperature range	(-15 to +55°C)
Operating Humidity range	5 to 90 % RH (No Condensation)
Dimension (L x W x H)	105X50X20mm
Weight	130g





FEATURES :

----One HDMI input signal split to two HDMI sink devices

----Support 3D

----Support CEC

----Support deep color 30bit, 36bit

----Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

----Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

----Support signal retiming

----Support input up to 15metres AWG26 HDMI standard cable length,

----output up to 25metres AWG26 cable length

----No loss of quality

----Installs in minutes

----Need DC5V/1A power supply

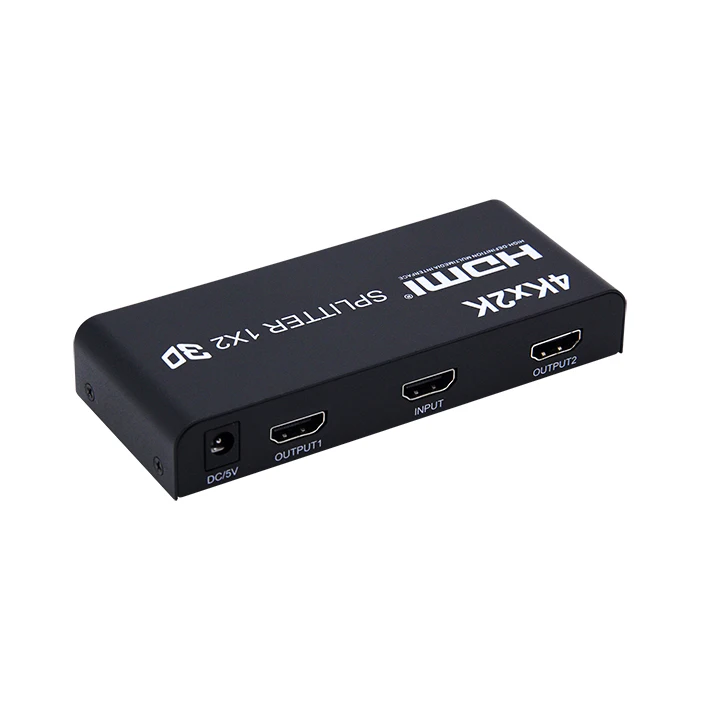

Operating and Connecting:

1.Connect one cable from HDMI source devices into HDMI Splitter input.

2.Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.

3.Connect 5V power supply to the HDMI 1x2 Splitter.



SPECIFICATIONS:

HDTV resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………..225MHz

Max baud rate……………….…….………………….…………………………………..6.75Gbps

Input/Output TMDS signal ………….…………………………..……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….………………….≤15m AWG26 HD MI standard cable

Output cable distance……………………………….…...≤25m AWG26 HD MI standard cable

Max working current……………………………………………………………………….....500mA

Power adapter format..Input: ……………....AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55°C)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H)     ……………………………….……………….…………86*46*25mm

Weight…..………………………………………………………..…….…..……………………125g
