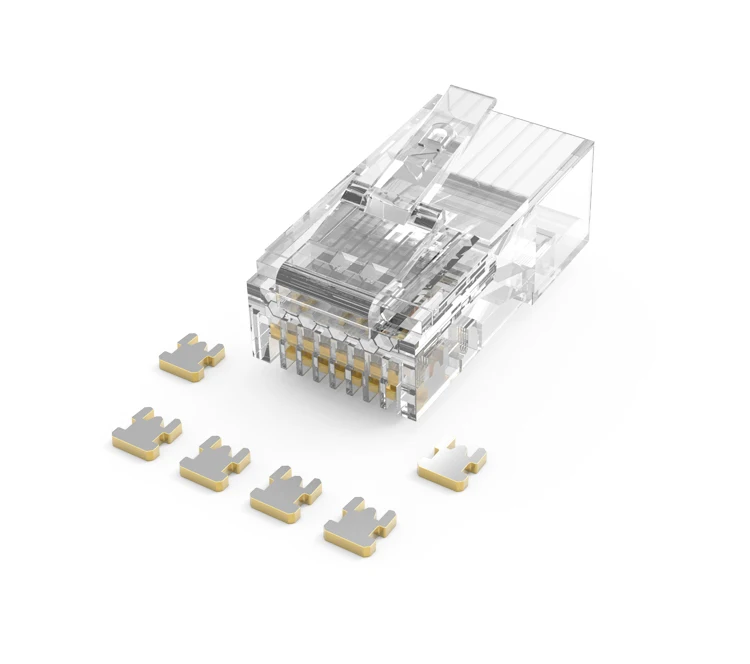

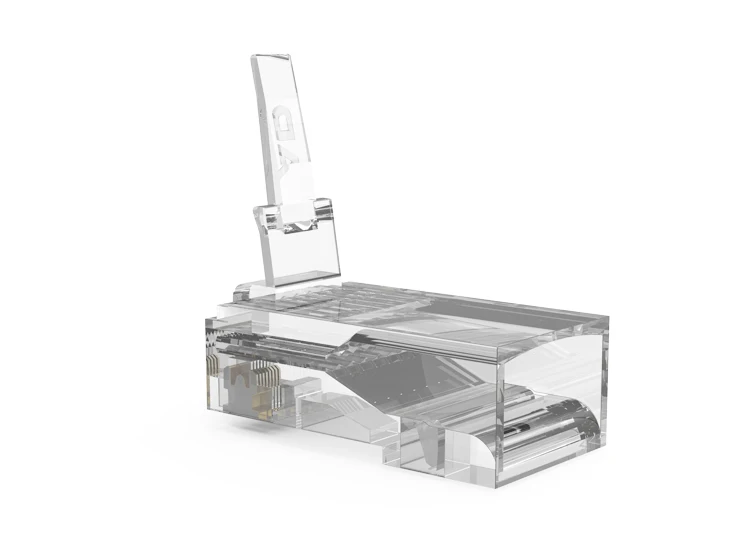

Model | Unshielded RJ45 Modular Plug/ RJ45 Connector | ||||||
Type | 8P8C UTP Unshielded, Cat5e / Cat6 | ||||||
Gender | Male | ||||||
Shell Material | Polycarbonate(PC) 94V-2 OR 94V-0 | ||||||

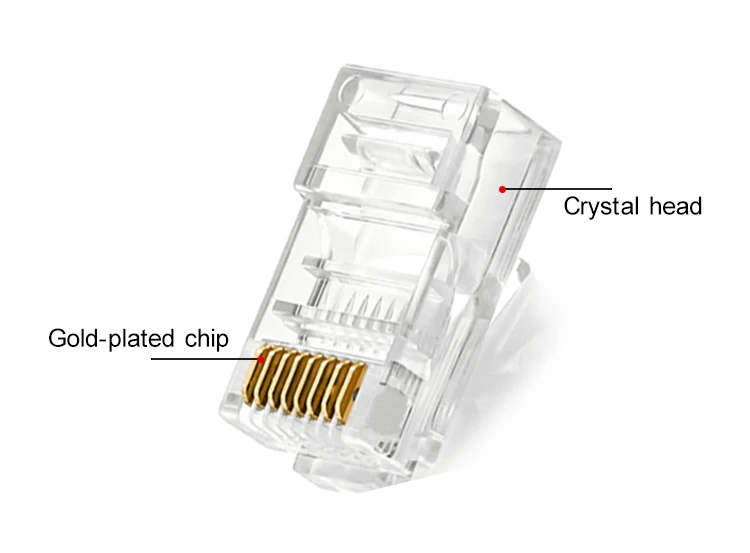

Pin Material | Golden-plated | ||||||
Gold plating thickness | 3U” 6U” 15U” 30U” 50U” | ||||||
Operating temperature | -40~70℃ | ||||||
Dielectric Withstanding Voltage | AC1000V max at 2AMPS | ||||||
Use Voltage | 250V AC | ||||||
Rated current | ≤1.5A | ||||||
Termination Resistance | Resistance 20mΩ max after environmental testing | ||||||
Contact | Brass Alloy Gold Plated over nickelΩ | ||||||
Contact resistance | ≤20mΩ | ||||||
Matching core diameter | 23~26AWG | ||||||
Service life | ≤750 times plug/unplug | ||||||
Standard | IEC standard | ||||||
Durability | over 1000 mating cycles | ||||||
Color | Transparent, or Customized | ||||||

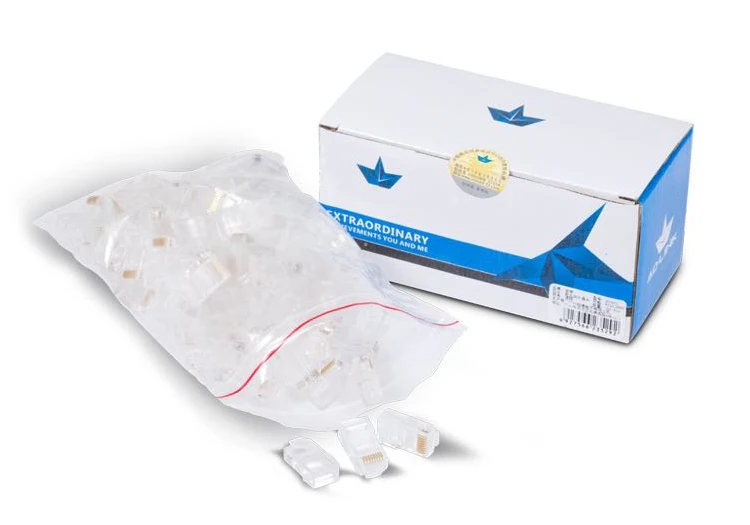

Packing | 100pcs one bag, one bag into one small box, 100boxes in one carton | ||||||
Application | Long distance/LAN communication/indooor communication |
