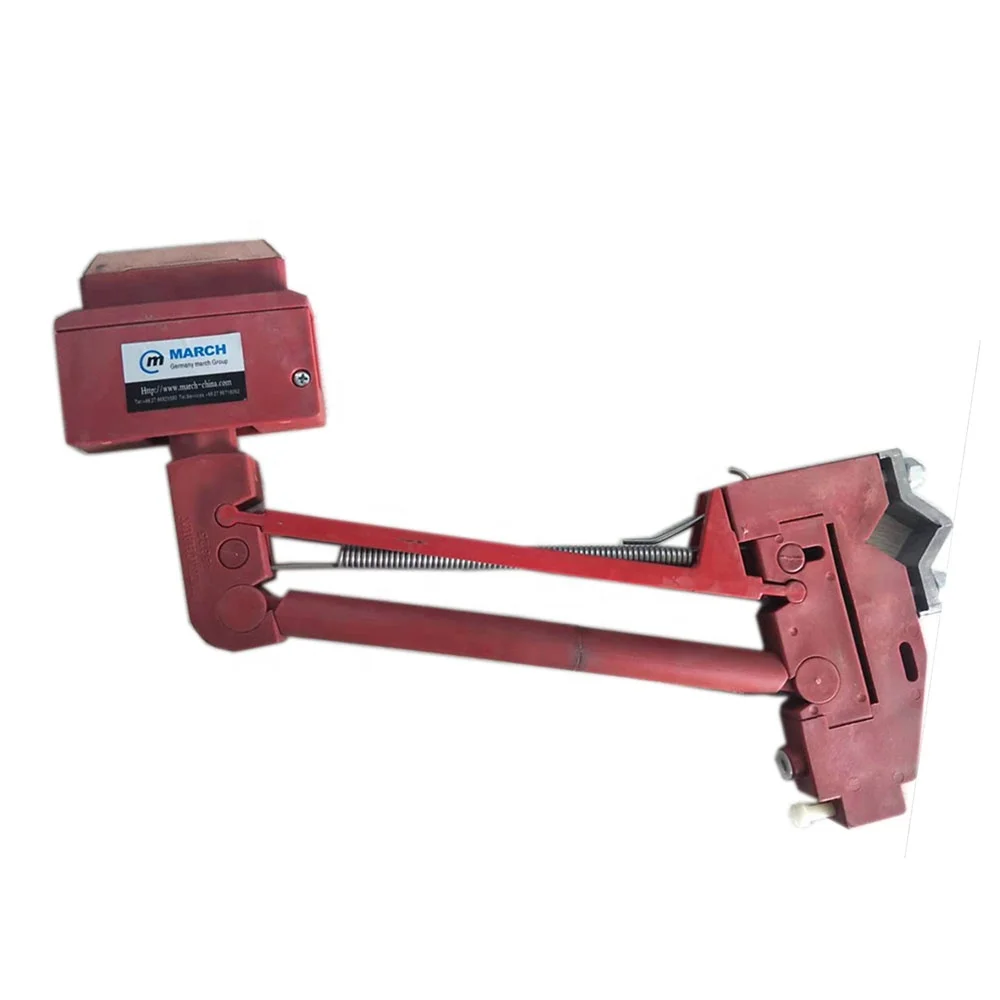

crane power supply current collector 100A for crane 10t
Quick details
- Place of Origin: wuhan, China (Mainland) Brand Name:March
- Model number:MCCBII Certificate:ISO,CCC,CE
Rated voltage:550V-770V Rated current:50A-500A
- Material:Copper/graphite Color:Green/Orange
Product Description

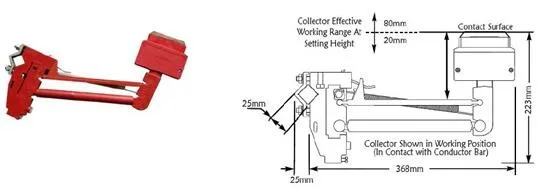

50A-500A current collector
| Rated current (A) | Head | Vertical movement (mm) | Horizontal movement (mm) | Setting height (mm) | Weight (kg) | Shoe material |
| 50 | 1 | - | - | - | 0.4 | Copper/Graphite |
| 100 | 1 | +80/-20 | -63/+63 | 102 | 0.8 | Copper/Graphite |
| 200 | 2 | +80/-20 | 63/+63 | 102 | 1.6 | Copper/Graphite |
| 250 | 1 | -50/+50 | -50/+50 | 230 | 3.5 | Copper /Graphite |
| 500 | 2 | -50/+50 | -50/+50 | 230 | 7 | Copper /Graphite |
Contact Shoe and Holders specification
Item | Weight(KG) | Material | Part No. |
100A Contact Shoe and Holder | 0.062 | Copper/Graphite | 21993 |
250A Contact Shoe and Holder | 0.311 | Copper/Graphite | 45823 |

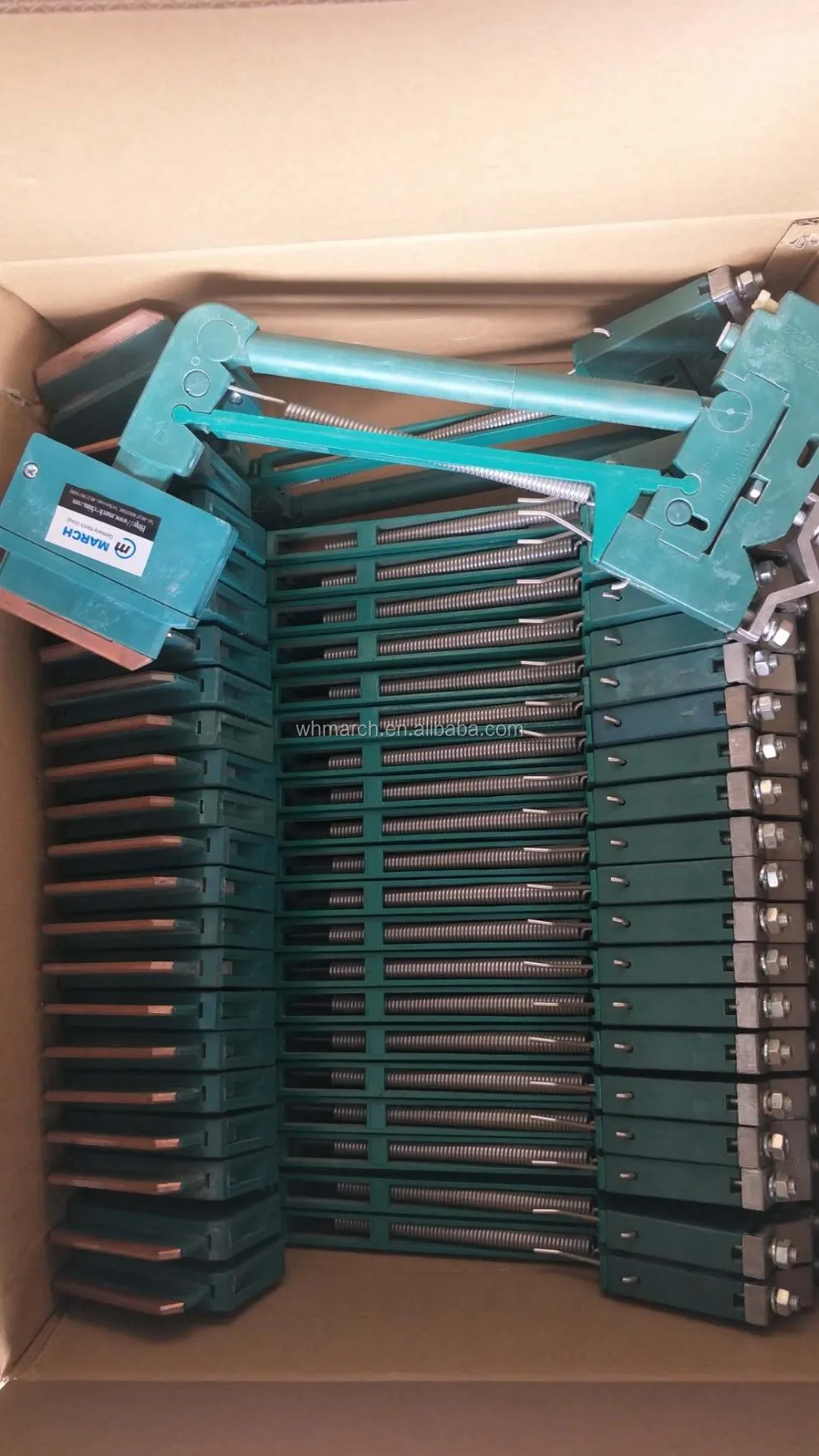

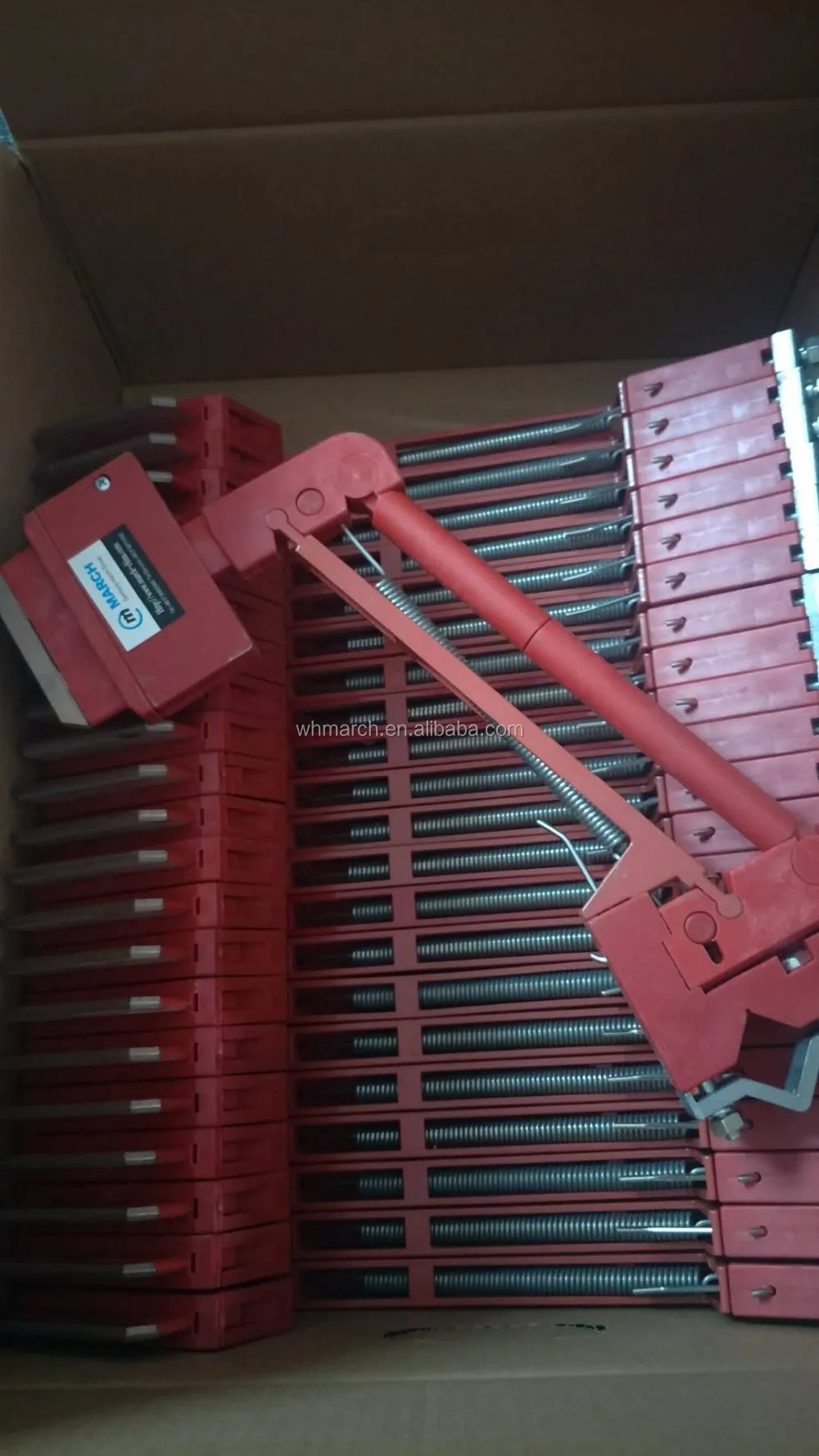

Packaging & Shipping
Payment : T/T, L/C, paypal
Packing :Wooden case or carton
Delivery time: 7-15 days after confirm the order

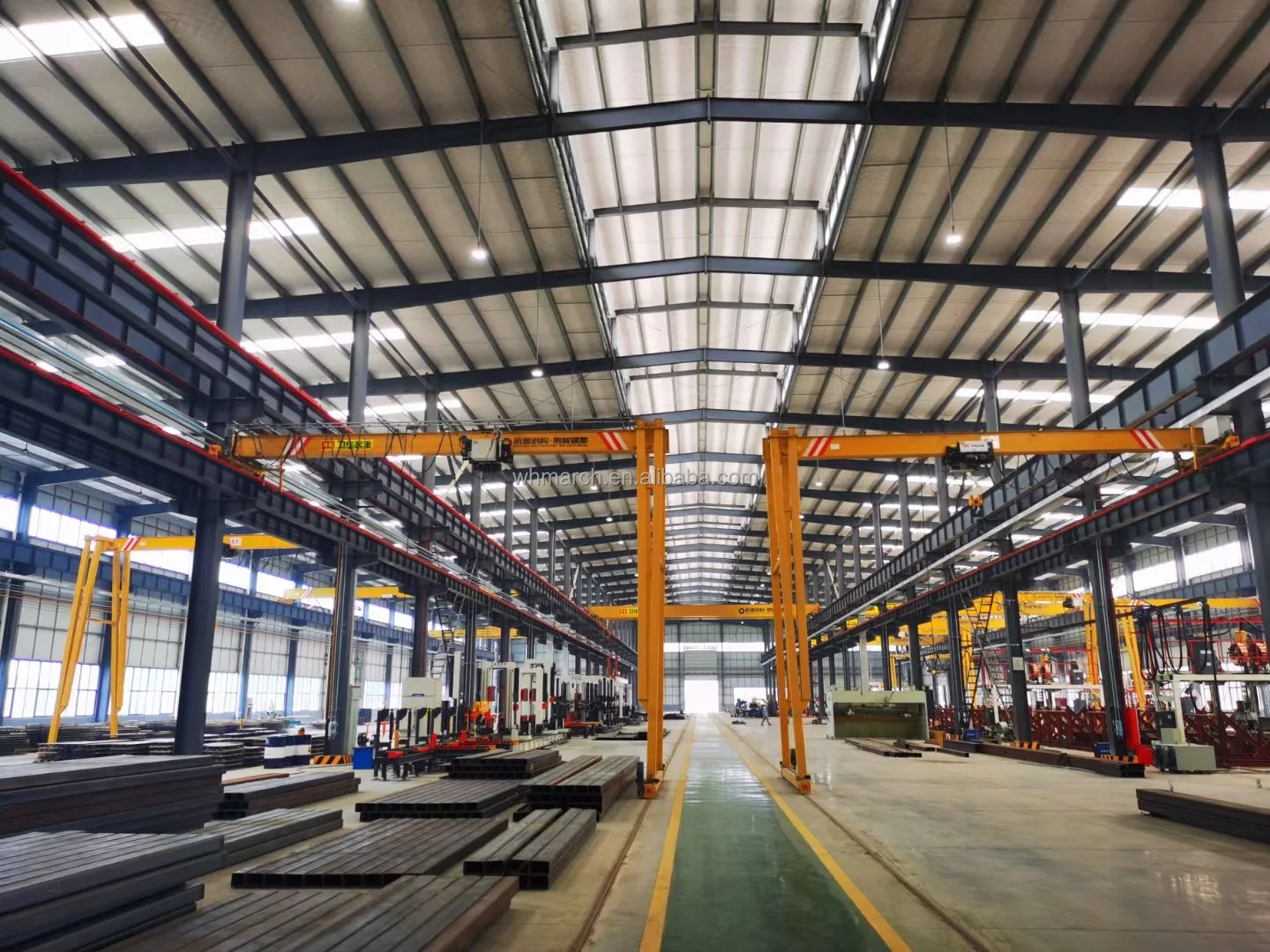

Company Information
Wuhan March Industrial Electric Co.,Ltd ,
which founded in 2003, is a professional factory for mobile power , Insulated conductor bar power range from 60A to 2500A.Always keep provide Chinese factory price and Germany technical and quality gurantee is our advantage . !
Company currently has 120 professional and technical personnel, 20 advanced mechanical and electrical engineers , 30 senior technicians . A port machinery and after-sales personnel 50, crane installation and maintenance workers 30.

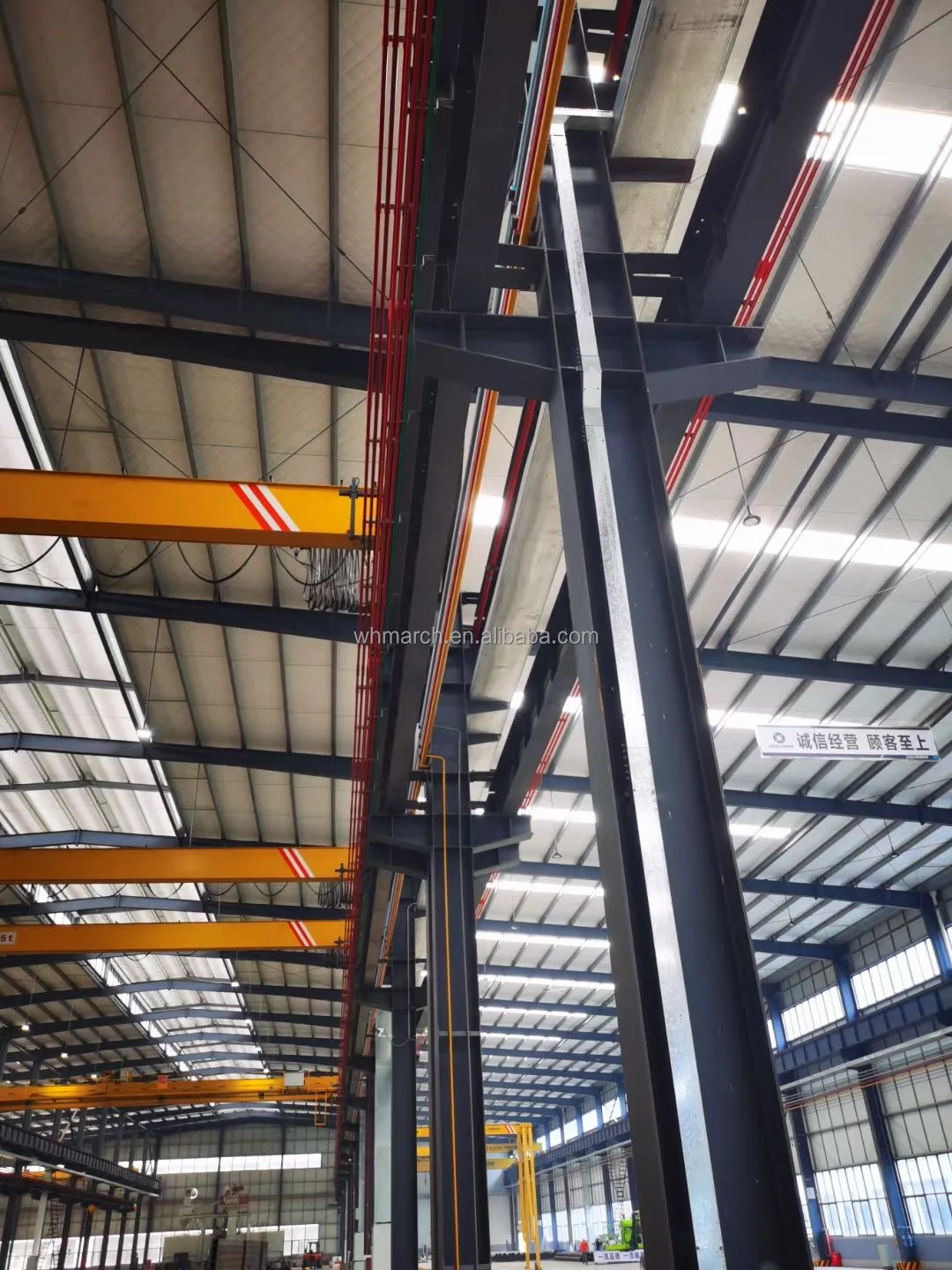

Application project
Application project ---Feedback from Customer
