Шестеренчатый Планетарный редуктор скорости Sew

Описание и отзывы

Характеристики

Sew eurodrive speed reducer worm gear planetary gearbox





YK precision planetary gearbox reducer characteristics:

Low noise: <65db

Low backlash: Min 3arcs for Single stage, Min 5 arcs for Double stage.

High torque: Higher torque compared to same level standard planetary gearbox reducer.

High stability: High-strength alloy steel as material, hardening treatment for the whole gear parts but not only surface hardening.

High reduction ratio: Modular design to ensure the high precision connection.





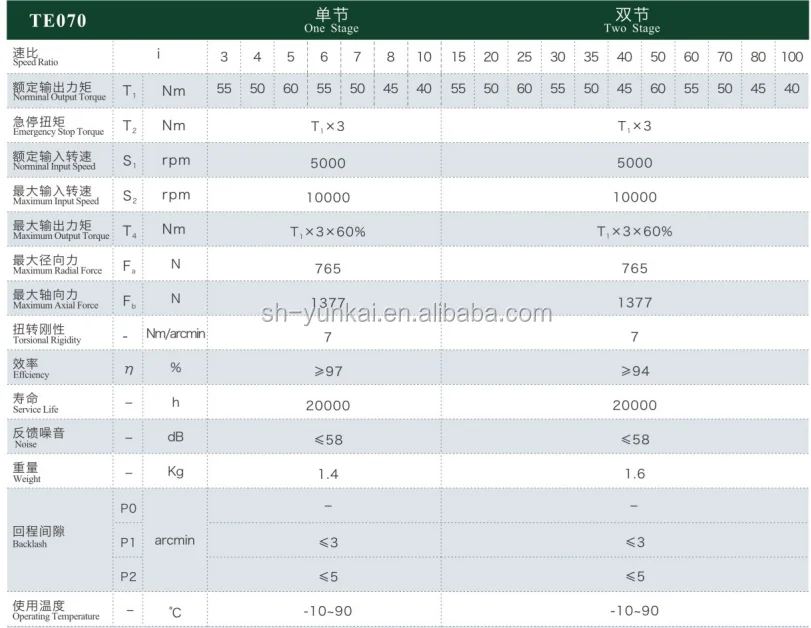

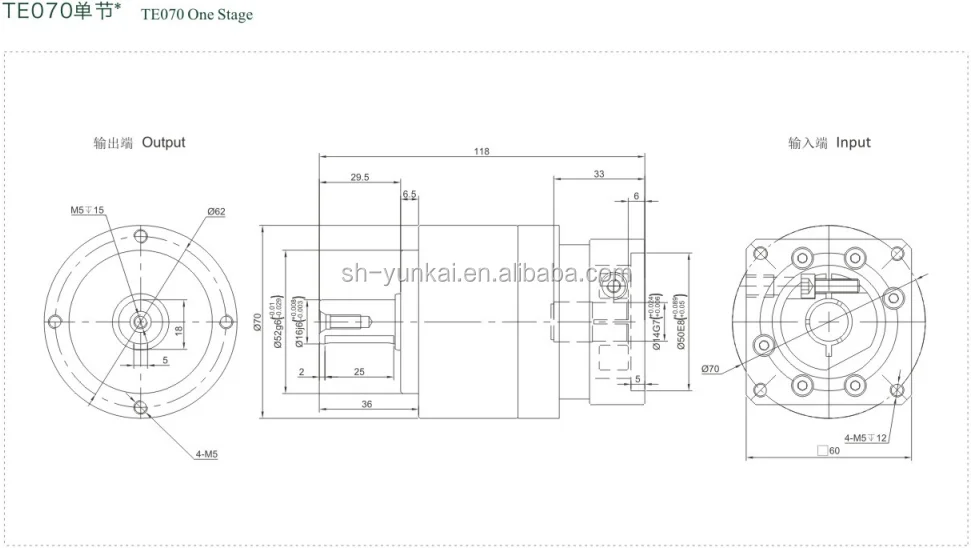

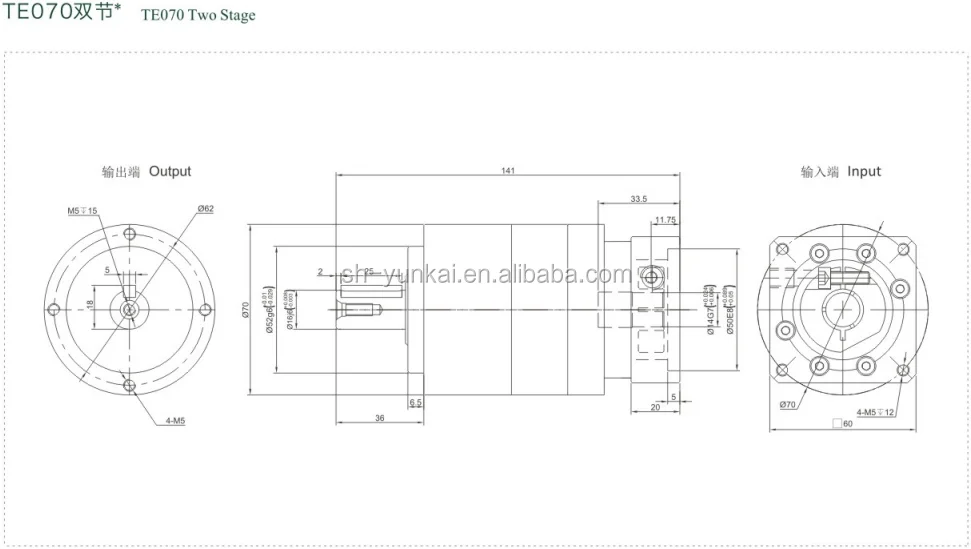

Technical Parameters of TE070

Stage	Unit	One Stage	Two Stage
Ratio	i	3, 4, 5, 6, 7, 8, 9, 10	15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100
Nominal Output Torque T 2N	Nm	130, 140, 160, 150, 140, 120, 100, 100	130, 140, 160, 150, 140, 120, 100, 160, 150, 140, 120, 100, 100
Emergency Stop Torque T 2NOT1	Nm	3 Times of Nominal Output Torque	3 Times of Nominal Output Torque
Nominal Input Speed n 1N	rpm	4000	4000
Max Input Speed n 1B	rpm	8000	8000
Micro Backlash P0	arcmin	≤1	≤1
Micro Backlash P1	arcmin	≤3	≤5
Micro Backlash P2	arcmin	≤5	≤7
Torsional Rigidity	Nm/arcmin	7	7
Max Radial Load F 2rB2	N	3250	3250
Max Axial Load F 2aB2	N	1625	1625
Service Life 3	hr	20000(Continuously 10000)	20000(Continuously 10000)
Efficiency η	%	≥97%	≥94%
Weight	kg	3.7	5.3
Operating Temp	°C	-10°C ~ +90°C	-10°C ~ +90°C
Lubrication		Synthetic Lubrication Oils	Synthetic Lubrication Oils
Mounting Position		All direcstions	All direcstions
Noise (n=3000rpm, i=10, No load)	dB(A)	≤60	≤60
Mass Moments of Inertia J1	kg.cm2	0.61, 0.48, 0.47, 0.45, 0.45, 0.44, 0.44, 0.44, 044	0.47, 0.47, 0.47, 0.47, 0.47, 0.47, 0.47, 0.44, 0.44, 0.44, 0.44, 0.44, 0.44

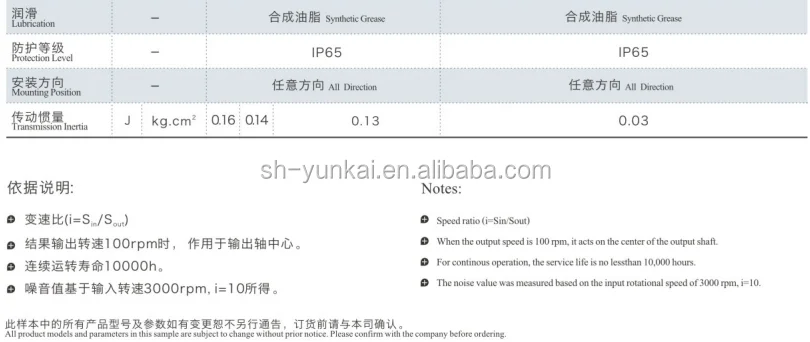

  Notes: 1. Max acceleration torque T=60% of T_2NOT.

              _{2. Applied to the output shaft center at 100rpm.}

              _{3. For continuous operation, the service life time is no less than 10,000hrs.}
