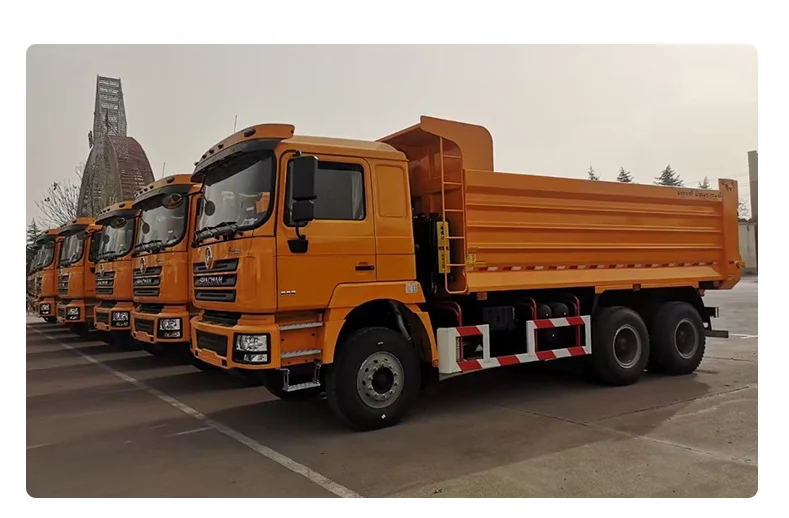

Heavy Duty New Shacman trucks 6X4 8X4 380 hp 420 hp Tipper Truck coal stone Dump Truck


Product Description


Man-machine interior , comfortable and intimate High power and low consumption , cost reduction and efficiency .Introduced in 2009, the F3000 series the one of the best selling product. Reliable, rugged and powerful, the F3000 series can tackle any task its owner ask of it. F3000 is the first choice for overseas engineering projects. This series platform also has the largest volume in the international market, winning the hearts of its operators.




High reliability , high carrying capacity , high trafficability

Super reliability :
1.Rear axle matching reinforced gray-iron brake drum , the oil tank is fixed with three tension straps and equipped with , the long term coarse filter is installed ,so as the filtration efficiency of 3-5um impurities is 99.82% , and the oil-water separation efficiency is 99.65% , dust –proof nut helmet for wheel bolt .
2.Closed alternator for WP10 engine ,mulller , fender and air filter are equipped with casting bracket , tailpipe is designed with alterable direction , LED tail lamp is equipped with reliable integral safety fence .
Super trafficability :
The ground clearance of battery compartment is 910mm, and 660mm for guard gating of oil pan , 590mm for bottom plate of flat iron oil tank , 610mm for air reservoir , 630mm for muffler .
Super carrying capacity
9.5T MAN front axle + 16T MAN rear axle , 12.00R20 radial tire with 18mm rim thickness , bearing capacity of single tire is increased by about 200kg, the diameter of front leaf spring U-boly is 20mm, and the thickness of rear leaf spring is 319.5mm.


Specification


Drive Wheel
8x4
Capacity (Load)
21 - 30T
Horsepower
351 - 450hp
Condition
New
Transmission Type
Manual
Emission Standard
Euro 2
Fuel Type
Diesel
Engine Capacity
> 8L
Wheelbase(mm)
3975+1400
Vehicle Size(mm)
8700x2490x3450
Rate Power(kw/HP)
290(380)
Max Torque/Speed
1400/2200
Product name
Dumper Truck
Color
Customer's Request
Engine
WP10.380E22
Tire
12.00R20
Driving type
LHD RHD Optional
Transmission
10JSD180+QH50
Cab
F3000 Medium length flat top cab
Loading capacity
21-30 TON
Front axle
MAN 9.5T
Rear axle
16T MAN double stage cast bridge -5.92


Packing & Delivery


PACKING
Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
LUYI Brand Rock body 30-40 cbm 3 axle end tipper truck and trailer tractor dump trailers for sale




Company Profile






Shandong Luyi Vehicle Co., Ltd. Is a designated automobile manufacturer approved by the ministry of industry and information technology of the People's Republic of China to manufacture various semi-trailers and commercial vehicles.Main product are Lowbed ,flatbed ,Cement tanker,Tanker,Tipper,Cargo trailer,Port trailer,Gas tanker,etc.
Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine, tank automatic welding turning machine, whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.
