Products Description

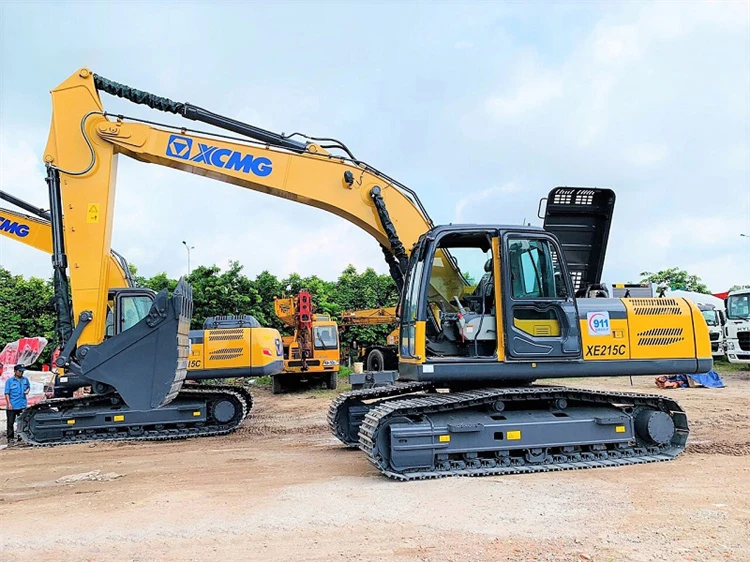

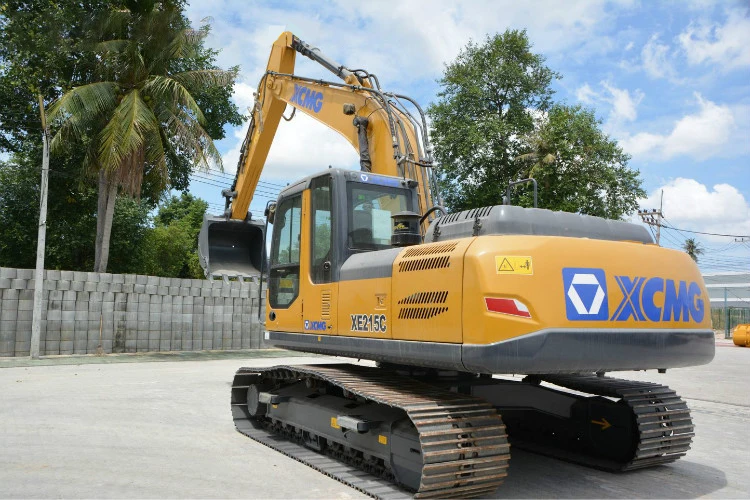

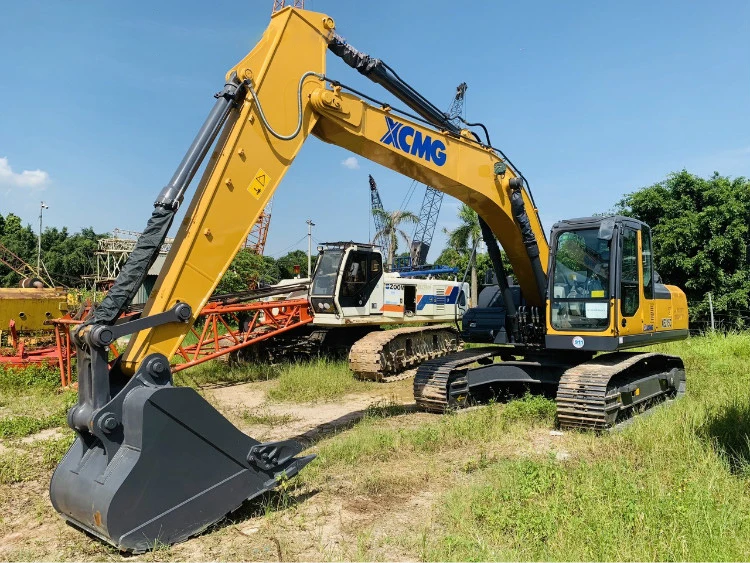

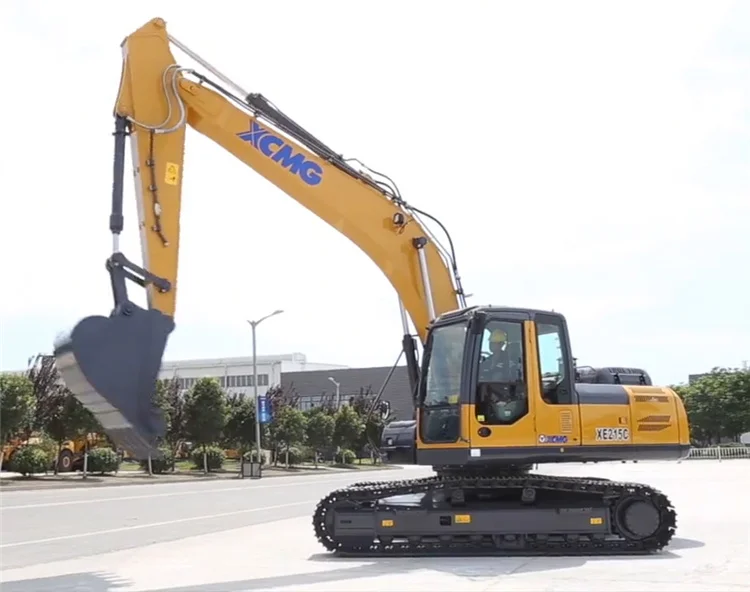

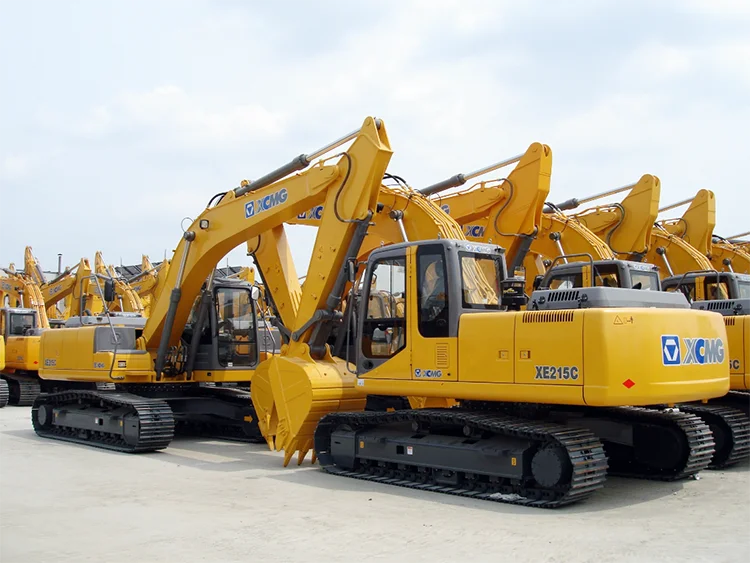

XCMG Official Earth-moving Machinery XE215C Chinese Used 20 Ton Hydraulic Crawler Excavator for Sale
XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on.
It has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.

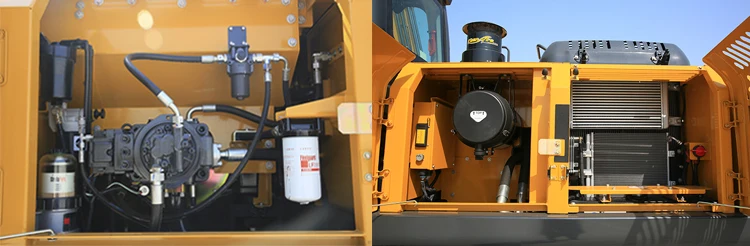

1. Original imported engine
An Imported Isuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
2. Later fuel filter
The later fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
3. Hydraulic system
Original imported high-end hydraulic components are configured to match capabilities for excellent performance.
4. Structure
Finite element analysis is used in the structural design to strengthen key components so that they can withstand greater stress. This ensures that the machine stays durable under different harsh operating conditions.
5. Optional match
Optional tools include a breaker, a cold temperature activation device, and falling object protection, all to increase the
capabilities of the machine.
It has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.
1. Original imported engine
An Imported Isuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
2. Later fuel filter
The later fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
3. Hydraulic system
Original imported high-end hydraulic components are configured to match capabilities for excellent performance.
4. Structure
Finite element analysis is used in the structural design to strengthen key components so that they can withstand greater stress. This ensures that the machine stays durable under different harsh operating conditions.
5. Optional match
Optional tools include a breaker, a cold temperature activation device, and falling object protection, all to increase the
capabilities of the machine.
Specification
Engine | Model | ISUZU CC-6BG1TRP | |
Equipped | Electronic fuel injection | ||
Four strokes | |||
Water cooling | |||
Turbo-charging | |||
Air to air intercooler | |||
No. of cylinders | 6 | ||
Output power | 128.5/2100 kW/rpm | ||
Torque/speed | 637/1800 N.m/rpm | ||
Displacement | 6.494 L | ||
Operation Weight | 21700 kg | ||
Bucket Capacity | 0.9—1.0 m ³ | ||
Main performance | Travel speed(H/L) | 5.5/3.3 km/h | |
Rotating speed | 13.3 r/min | ||
Gradeability | ≤35° | ||
Ground pressure | 47.2 kPa | ||
Bucket digging force | 149 kN | ||
Arm digging force | 111 kN | ||
Maximum traction | 184 kN | ||
Working scope | Max. digging height | 9620 mm | |
Max. dumping height | 6780 mm | ||
Max. digging depth | 6680 mm | ||
Excavation depth of 8 feet level | 6500 mm | ||
Max. vertical wall digging depth | 5715 mm | ||
Max. digging reach | 9940 mm | ||
Min. swing radius | 3530 mm | ||
