Industrial Electric Gas Steam Heating Beef Jerky Dehydrator Ovens Food Fruit Tray Dryer Machine Hot Air Circulating Drying Oven

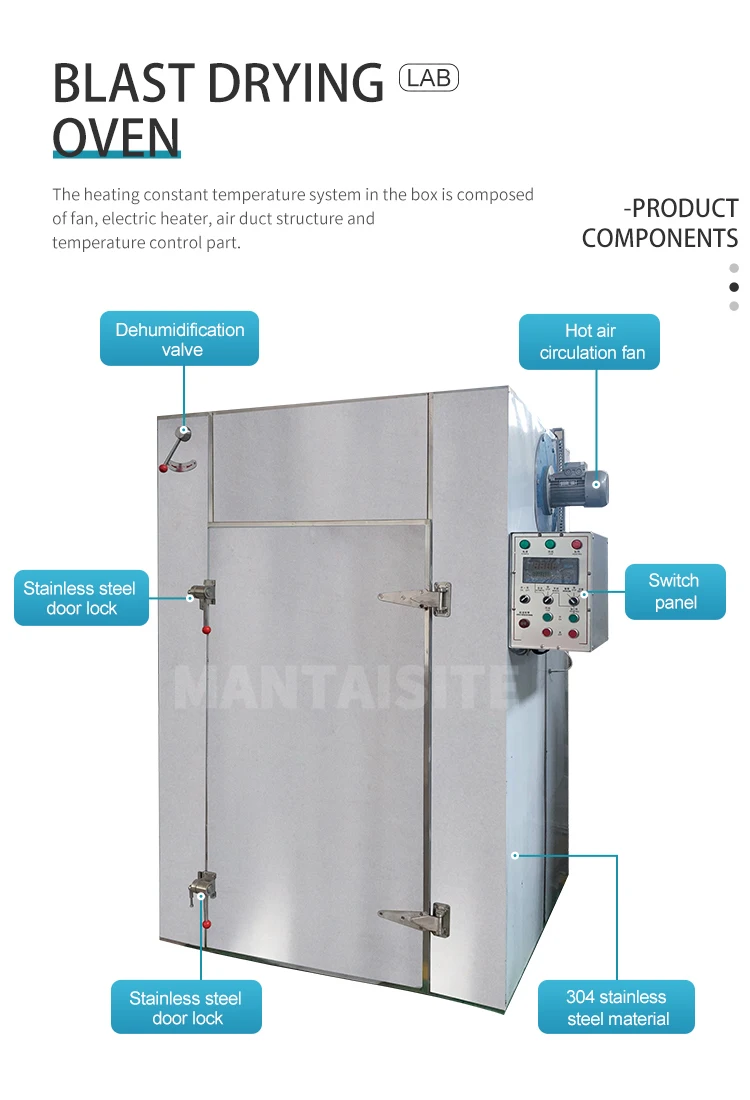

CT-C series hot air circulation blast drying oven adopts noise elimination, thermal stable axial flow fan, and automatic temperature control system. The whole circulation system is fully enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can reach 50%. The successful design of the CT-C hot air circulation drying oven makes that the blast drying oven in our country catches the advanced level both at home and abroad.
CT-C hot air drying oven features are energy-saving, increasing economic benefit, low noise, and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials.
Brief Introduction
1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130 ℃ , Max.140 ℃ .
3. Electricity and far infrared:50-300 ℃ .Automatic control system and computer control system on request.
4. Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).

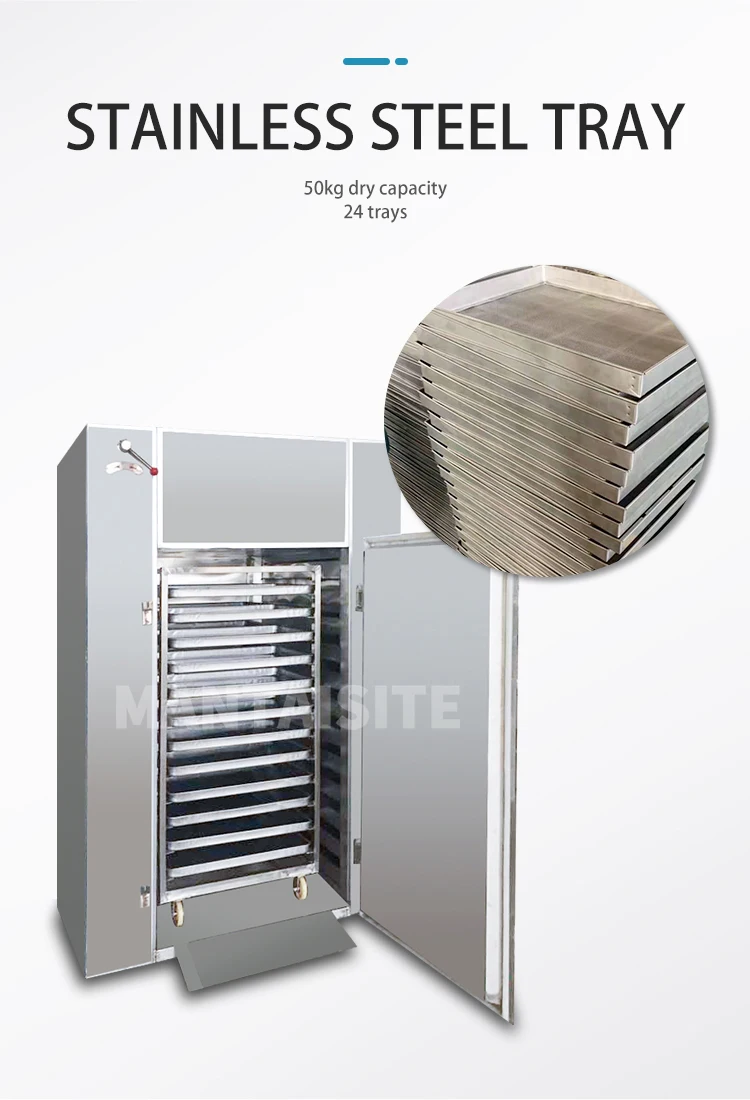

5. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
6. Baking plate dimensions:460*640*45mm.
CT-C hot air drying oven features are energy-saving, increasing economic benefit, low noise, and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials.
Brief Introduction
1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130 ℃ , Max.140 ℃ .
3. Electricity and far infrared:50-300 ℃ .Automatic control system and computer control system on request.
4. Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).
5. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
6. Baking plate dimensions:460*640*45mm.
Products Description
Model | CT- C-0 | CT- C- IA | CT-C-I | CT-C-II | CT- C-III | CT- C-IV |
Drying capacity (kg) | 25 | 50 | 100 | 200 | 300 | 400 |
Heating power (kw) | 9 | 12 | 15 | 30 | 45 | 60 |
Steam heating area（m²） | 10 | 15 | 20 | 40 | 80 | 100 |
Blowing rate （m3/h） | 3400 | 3400 | 3450 | 6900 | 10350 | 13800 |
Drying tray (pcs) | 16 | 24 | 48 | 96 | 144 | 192 |
Length × width × height (m) | 1.4x1.2x1.6 | 1.4x1.2x2.0 | 2.3x1.2x2.0 | 2.3x2.2x2.0 | 2.3x3.22x2.0 | 4.45x2.2x2.0 |
Trolley | 1 | 1 | 2 | 4 | 6 | 8 |
Product Features
1. The hot air circulates in the oven with high thermal efficiency and energy saving.
2. By using the forced ventilation function, the air duct is set in the oven, and the materials are dried evenly.
3. The oven runs smoothly. Automatic temperature control, easy installation and maintenance.
4. It can be used to dry all kinds of materials. It is an ideal general drying equipment.
5. It belongs to static drying and will not damage the material appearance.
2. By using the forced ventilation function, the air duct is set in the oven, and the materials are dried evenly.
3. The oven runs smoothly. Automatic temperature control, easy installation and maintenance.
4. It can be used to dry all kinds of materials. It is an ideal general drying equipment.
5. It belongs to static drying and will not damage the material appearance.
Product Application
This hot air drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
