Автоматическая ОБЖИМНАЯ изогнутая машина для профиля крыши
- Категории: Building Material Machinery >>>
- Поставщик: Tianjin,Ironstar,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Hydraulic roof sheet curving machine | Crimping machine | curving machine | automatic vertical crimp machine | Horizontal curve machine

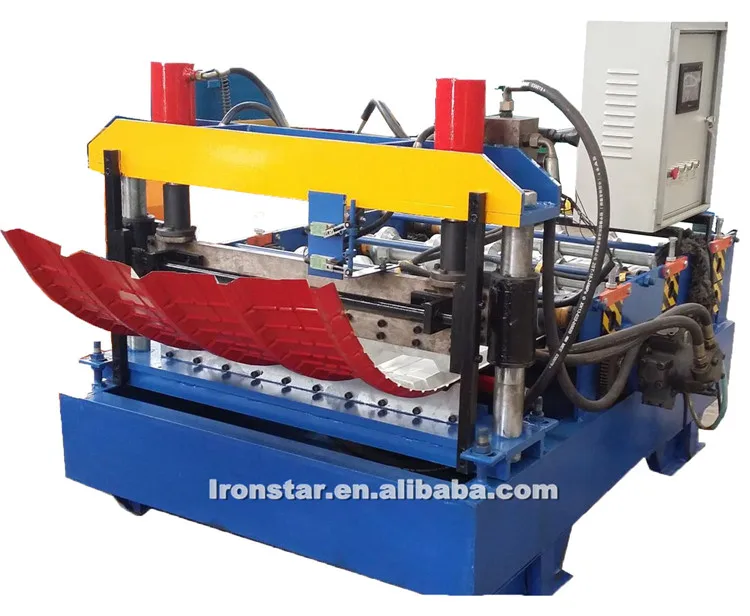

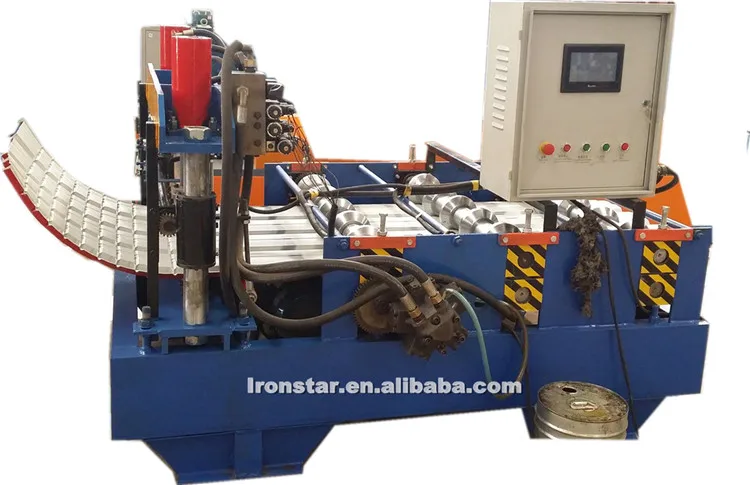

Horizontal automatic crimping machine can curve to your want shape and length automatically. Speed about 3-8 m/min, material use PPGI material thickness between 0.3-0.8 mm, machine details is like up type:
Machine spections
Working flow
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
| Part details | Item Name | Specification |
| Material | Raw material | Color steel |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | 3 |
| Shaft diameter | 70 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | 45# steel with 0.05mm chrome | |
| Machine size | About 1.8×1.4×1.7 m | |
| Machine weight | About 1.2 ton | |
| Machine color | As customer' request | |
| Working speed | 3-8 m/min | |
| Power | Driving way | Chain 1 inch |
| Main power | 3 kw | |
| Voltage | 380v/50HZ,3P or customize as customer' request
|
Details Images
Machine video
If u want to see the machine working video, please contact with Selena with any way below
More for you choose
1. Vertical curve machine
Crimping machine | curving machine | automatic vertical crimp machine | vertical curve machine
Vertical automatic crimping machine can curve to your want shape and length automatically. Speed about 3-8 m/min, material use PPGI material thickness between 0.3-0.8 mm, machine details is like up type:
2. Horizontal curve machine
Hydraulic roof sheet curving machine | Crimping machine | curving machine | automatic vertical crimp machine | Horizontal curve machine
Horizontal automatic crimping machine can curve to your want shape and length automatically. Speed about 3-8 m/min, material use PPGI material thickness between 0.3-0.8 mm, machine details is like up type:
3. Bending machine
Bending machine | metal bender | sheet metal bending machine | 4m foot press bending machine
Hydraulic bending machine control by foot, it can bend many degree, more flexible and easy operate. Price cheap, bending machine width common include 2m, 4m, 6m and 8m, material use PPGI or GI material, thickness between 0.3-0.8 mm, machine details is like up type:
4. Slitting machine
Metal slitting machine | simple slitting machine | steel strips slitting machine | slitting machine
Automatic slitting machine can slit to your want width size automatically. working speed common 10-30 m/min, if you want more higher speed, can make machine with servo motor system. Material use PPGI or GI material, thickness between 0.3-1 mm, machine details is like up type:
Company Information
Tianjin Ironstar Industry Co., ltd is one professional roll forming machine manufacturer, 26 years working experience and 400 worker provide service for you. Products mainly include: Trapezoidal steel roof/wall panel machine, Glazed tile roofing roll forming machine, C U channel, Angle bead, Omega and T bar machine, Shutter slat door, door frame roll forming machine, C&Z shape interchangeable machine, Cap ridge, water gutter roll forming machine, cutting, bending, slitting, curving machine, floor deck and other customized machine etc.
We machine sell
FAQ
1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station(1hour), then we can pick up you to factory(40min).
A:Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 24 months, all technical staff are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 24 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
