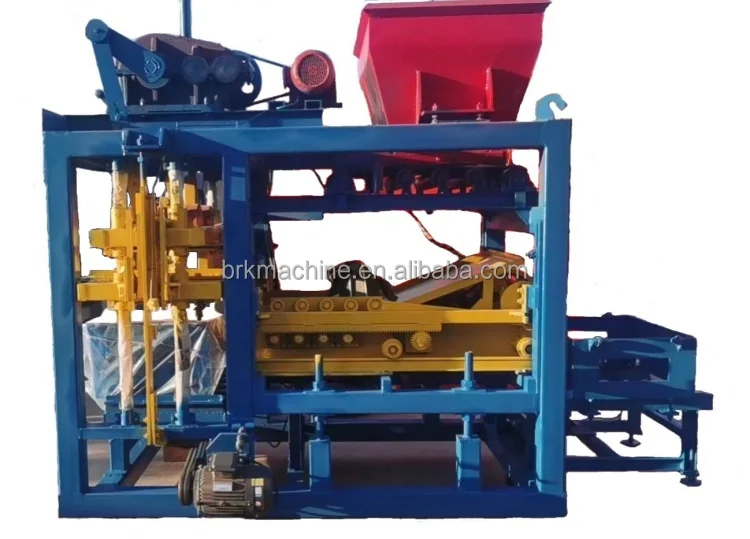

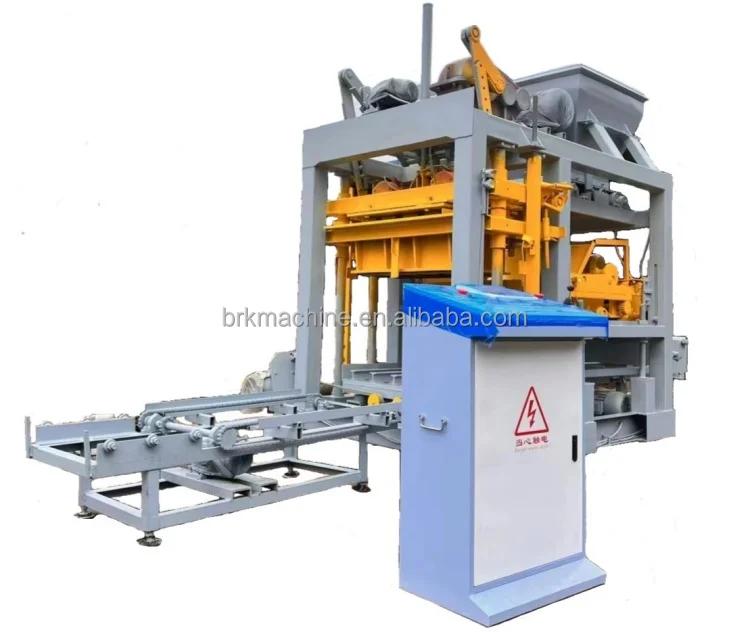

QTJ4-25 Fully automatic brick making machine QT4-25 concrete block making machine



Cement full automatic block making machine QT4-25 machine de fabrication de briques parpaing is one of our sell best machine model, it is automatic block machine, suitable for making all types of hollow blocks, solid block, pavers, curbstones and so on. it is designed for medium scale block project. It's automatic materials feeding, pallet feeding, distributing, brick forming, and finished block pushing out . This model block machine is very economical, popular in developing countries.

QT4-25 block machine is one of our newly designed block making machines. With less power, it achieves super strong vibration. It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.





Main technical parameters:

Model	QT4-25 ,QTJ4-25
Rated pressure	21Mpa
Dimension	3500*1800*2300mm
Forming Cycle	25-30s
Vibration form	Platform vibration
Weight	3200kg
Motors Power	19KW
Vibrating Frequency	2800-4500 rolls/minute
Pallet size	850*550mm
Raw Materials	Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Block Types	Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields	Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

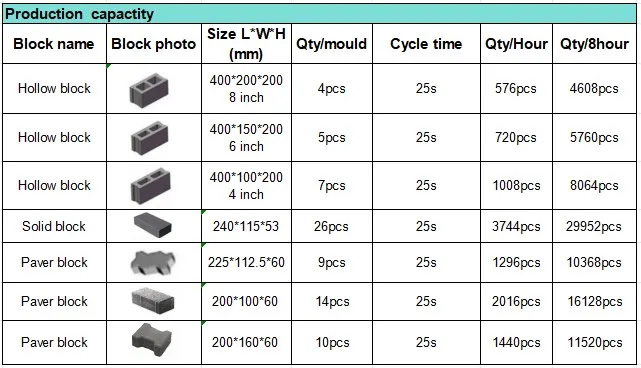

Production capacity:







Main Features:
Fully automatic,

Raw materials are generally cement, sand, gravels, crushed stone powder, slags, fly ash, ect, depending on customers' choice.

A. 8-10% cement, 30-40% sand, 50-60% crushed stone

B. 8-10% cement, 30% flyash, 60% sand or stone powder The diameter of sand and stones need to be less than 15mm, if produce paver interlocking brick, need color iron.

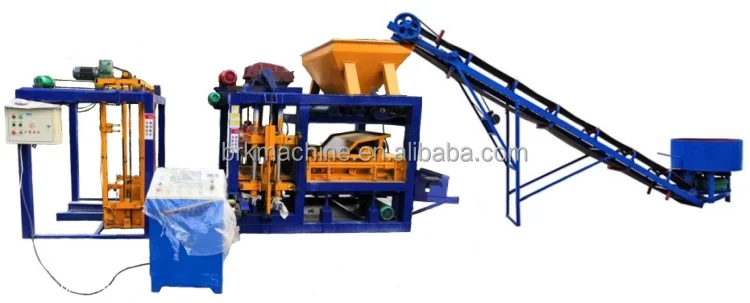

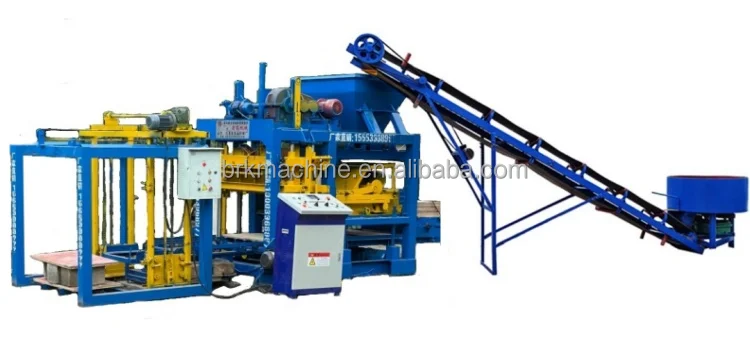

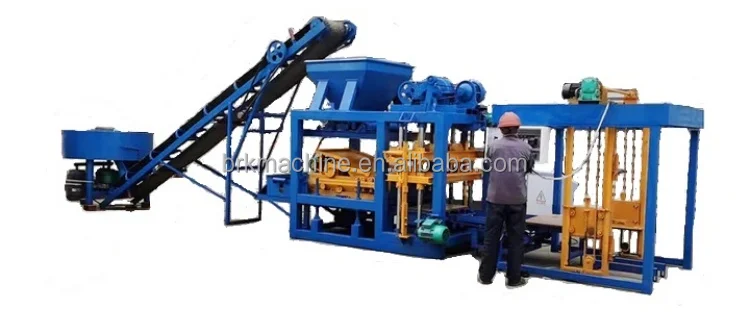

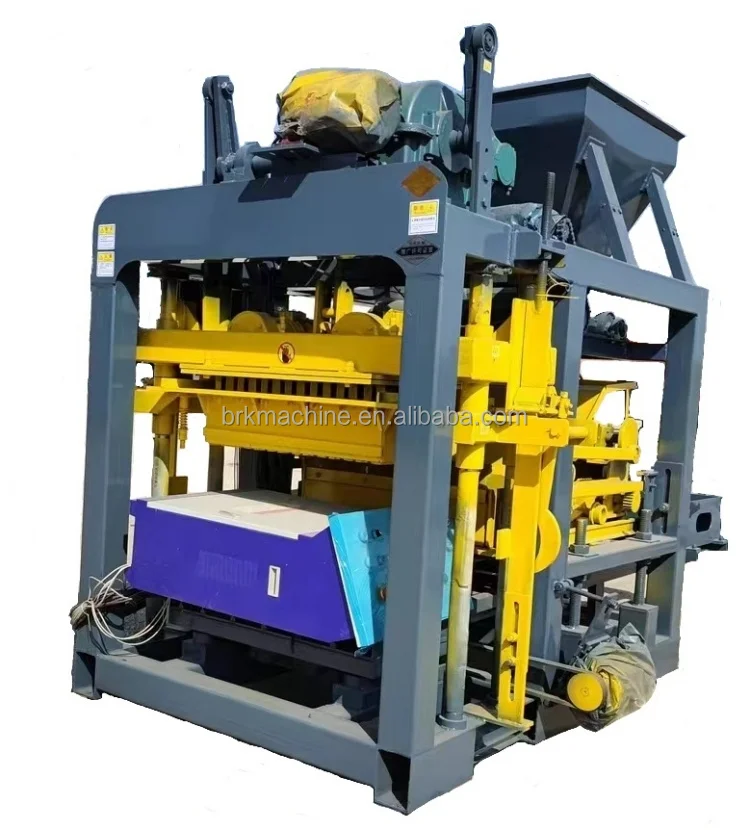

QTJ4-25 Fully automatic brick making machine QT4-25 concrete block making machine



Customer Site:

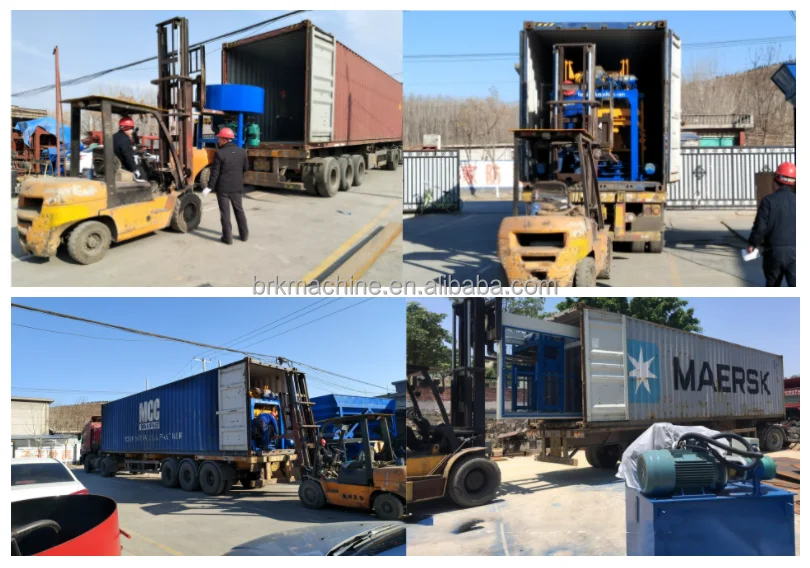

Packing and deliver :

Packing shall be wrapped with plastic film or according to the customer's require.

1. The whole brick machine production line is mainly full container shipping,

2. Wrap the whole brick machine with plastic film before shipment to prevent water or moisture,

3. Then load the brick machine into the container with a forklift,

4. During loading, tighten the machine with the reinforcing ring in the container to avoid damage caused by transportation bumps on the brick machine.
