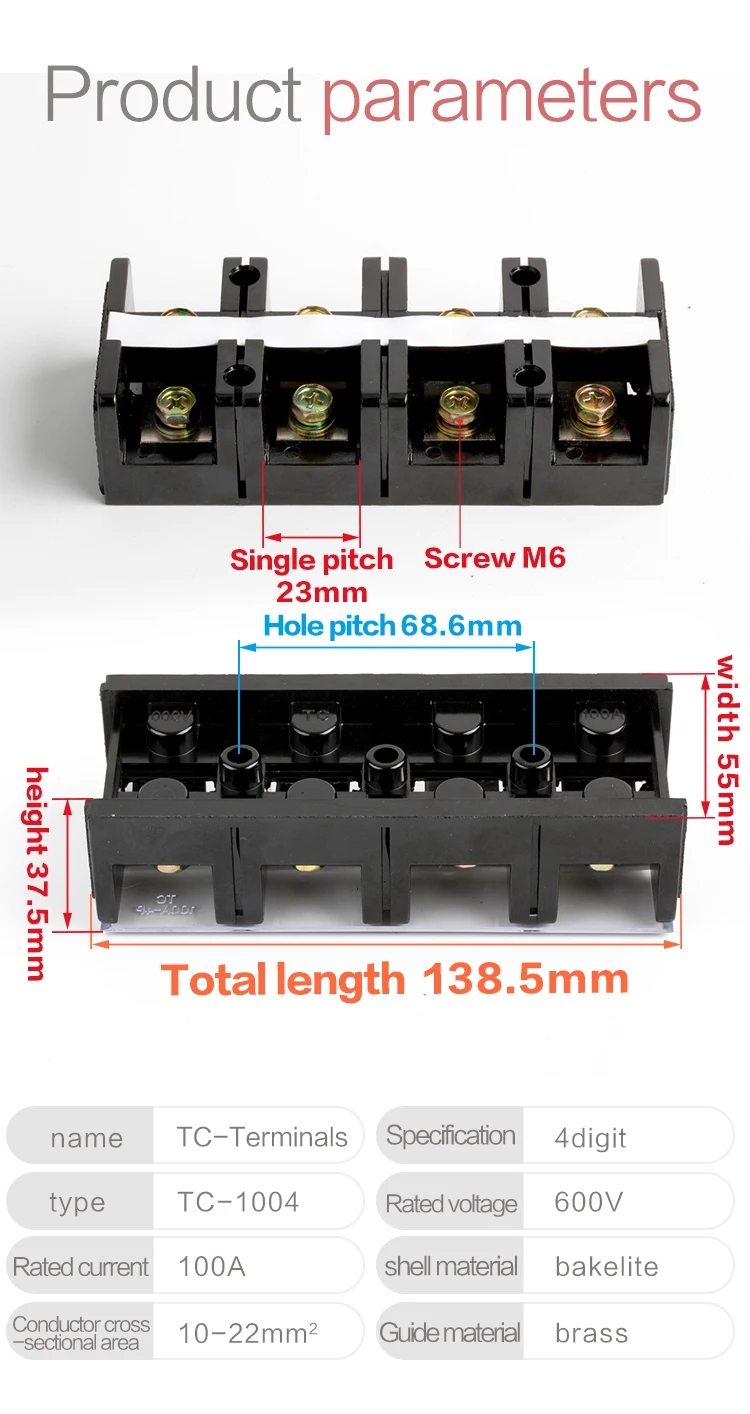

Двухрядная Винтовая клемма TC1004 постоянного тока 100A 4P 600 В фиксированного
- Категории: Other Connectors & Terminals >>>
- Поставщик: Wenzhou,Puzhu,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
| Model | Applicable cable (mm²) | Rated current | Rated voltage | Size (mm) | Screws | |||||
| L | H | W | D | S | d | |||||
TC602 | 6-14 | 60 | 600 | 58 | 33 | 43 | 27 | 17.5 | 29.5 | M6 |
TC603 | 87 | 33 | 43 | 29 | ||||||
TC604 | 116 | 33 | 43 | 58 | ||||||
TC605 | 145 | 33 | 43 | 87 | ||||||
TC1002 | 10-22 | 100 | 600 | 69 | 37.5 | 55 | 39 | 23 | 36 | M6 |
TC1003 | 103.6 | 37.5 | 55 | 34.5 | ||||||
TC1004 | 138.5 | 37.5 | 55 | 68.6 | ||||||
TC1005 | 173 | 37.5 | 55 | 103.6 | ||||||
TC1503 | 40-60 | 150 | 600 | 115 | 41 | 66 | 38.7 | 27 | 39.7 | M8 |
TC1504 | 153 | 41 | 66 | 77 | ||||||
TC1505 | 192 | 41 | 66 | 116 | ||||||
TC2003 | 60-100 | 200 | 600 | 133 | 47 | 72 | 44.7 | 29 | 46.4 | M8 |
TC2004 | 178 | 47 | 72 | 89 | ||||||
TC2005 | 222 | 47 | 72 | 133.5 | ||||||
TC3003 | 100-150 | 300 | 600 | 164 | 53 | 90 | 56 | 37 | 56 | M10 |
TC3004 | 219.6 | 53 | 90 | 110.7 | ||||||
TC4003 | 100-150 | 400 | 600 | 164 | 53 | 90 | 55.5 | 37 | 56 | M10 |
TC4004 | 220 | 53 | 90 | 110.7 | ||||||
TC6003 | 200-400 | 600 | 600 | 206 | 74.6 | 101 | 68.7 | 45 | 68 | M12 |
TC6004 | 274 | 74.6 | 101 | 137 | ||||||
