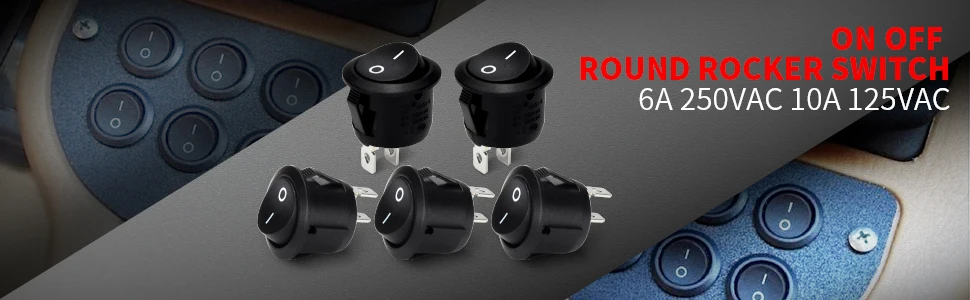

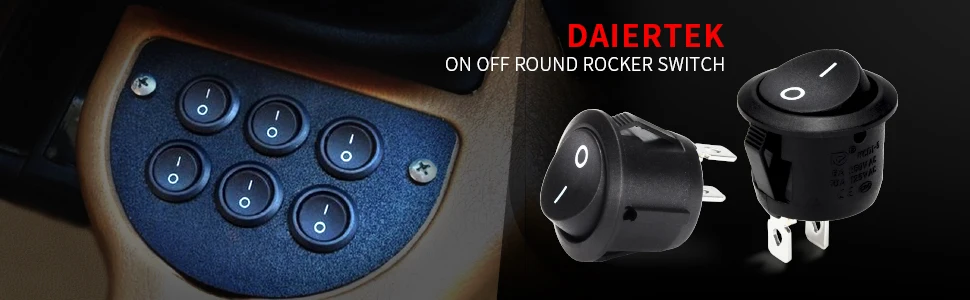

Daiertek T85 CQC круглый Кулисный Переключатель 250V KCD1 SPST кулисный переключатель 2 Pin латунная двойная функция
- Категории: >>>
- Поставщик: Wenzhou,Daiertek,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCT DESCRIPTION
Item | KCD1-5-101 2Pin ON-OFF Round Rocker Switch |
Whether the smart | No |
Place of Origin | China |
Brand Name | DAIER |
Max. Current | 6A |
Max. Voltage | 250VAC |
Mechanical Life | 10000 Cycles |
Material | PA66/PC |
Main Function | ON-OFF SPST |
Color | B/R Button |
Mechanical Life | 10000 Cycles |
Scope | Household appliances, electric force ect |
Authenticate | CE,Rohs,CQC |
OEM | YES |
PRODUCT DETAILS

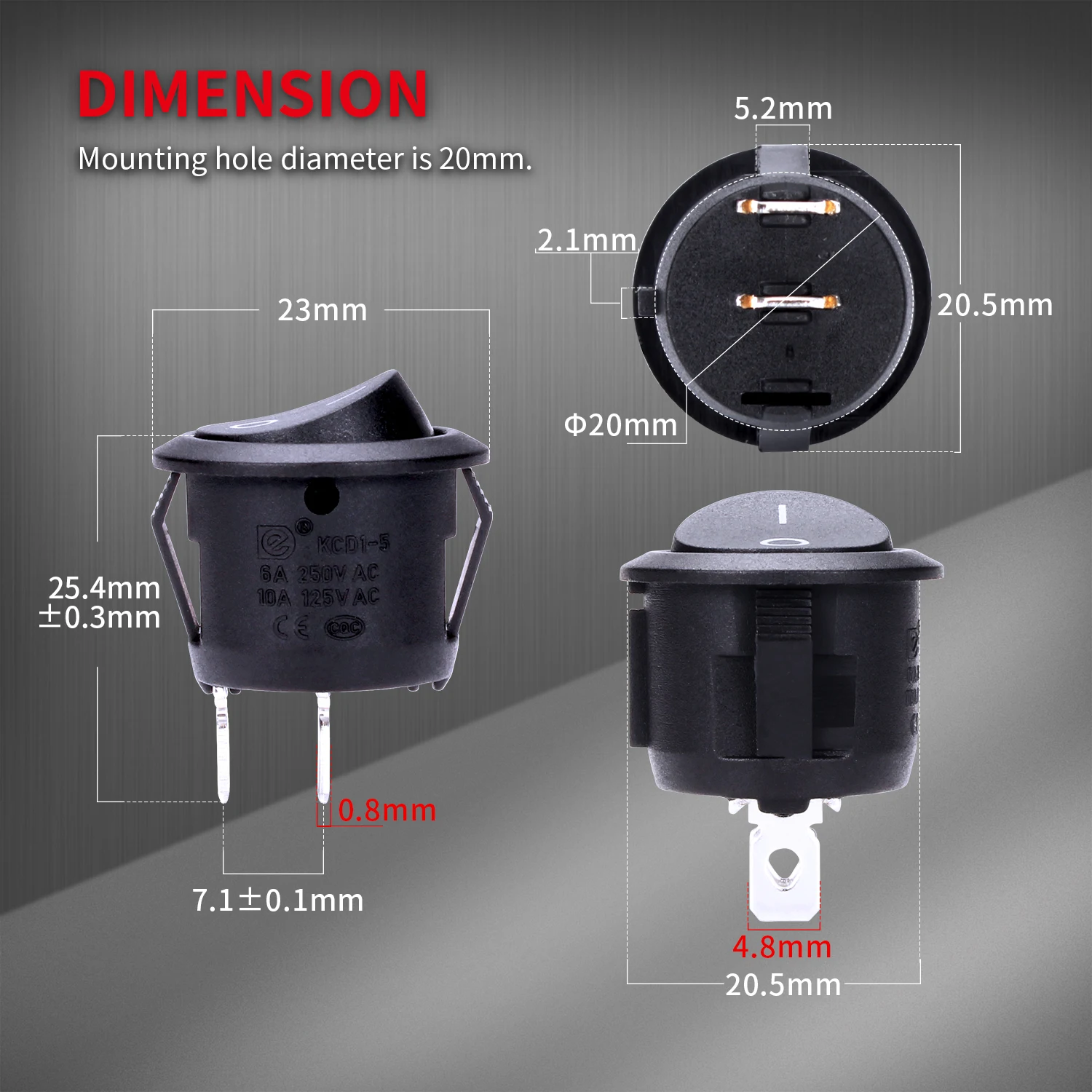

KCD1 Series Rocker Switch
Rating: 10A 125VAC;6A 250VAC
Contact Resistance: 35mΩ max
Insulation Resistance :500VDC 100MΩ min
Dielectric Strength: 1500VAC,1 Minute
Operating Temperature: -25℃~+85℃
Electrical Life: >=10000 Cycles
Contact Resistance: 35mΩ max
Insulation Resistance :500VDC 100MΩ min
Dielectric Strength: 1500VAC,1 Minute
Operating Temperature: -25℃~+85℃
Electrical Life: >=10000 Cycles
Product function
We have single pass, double pass, single pass spacing ≥ 3mm, double pass ≥ 3mm, double pass without pause, double pass with pause
and single pass with reset,choose our products you like~
and single pass with reset,choose our products you like~
SPST Rocker Switch
It's a SPST 2 Pin ON/OFF Rocker Switch, Single Pole Single Throw design, and T85 Temperature Degree(-25C to +85C).
Lighted Rocker Switch
If the switch has light.The input voltage for the lamp of the switch should be 3V to 220V. The Switch Lamp will light up to indicate the operating status of the device when the switch is turned ON.
WORKSHOP
Daiertek T85 CQC Round Rocker Switch 250V KCD1 T85 SPST Rocker Switch 2 Pin Brass Dual Function Blue Rocker Switch Round
EXHIBITION
OUR TEAM
CERTIFICATION
TRANSPORTATION
FAQ
1.Q: Could I put my own logo on the products?
8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
A: Sure, your logo can be put on every product, either by laser, or by moulds.
2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.
4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.
4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
CONTACT US
