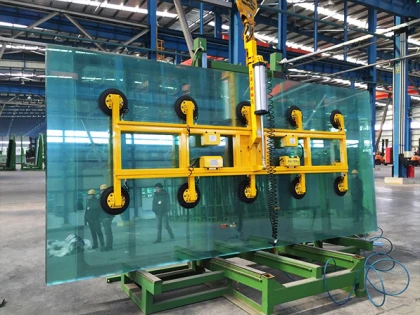

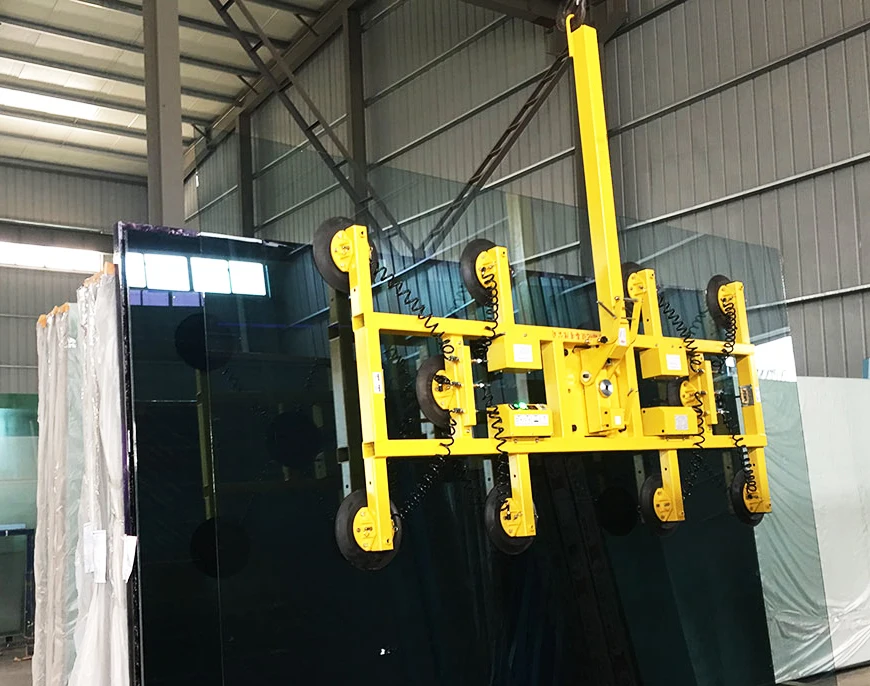

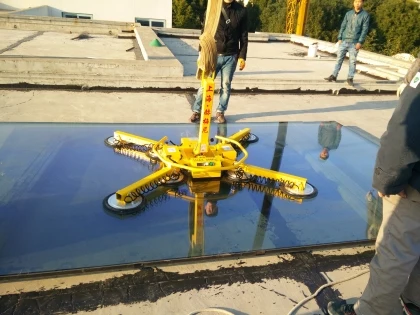

Hot Sale Electric Suction Cup Glass Lifter Vacuum Glass Lifting Equipment Moving Machine

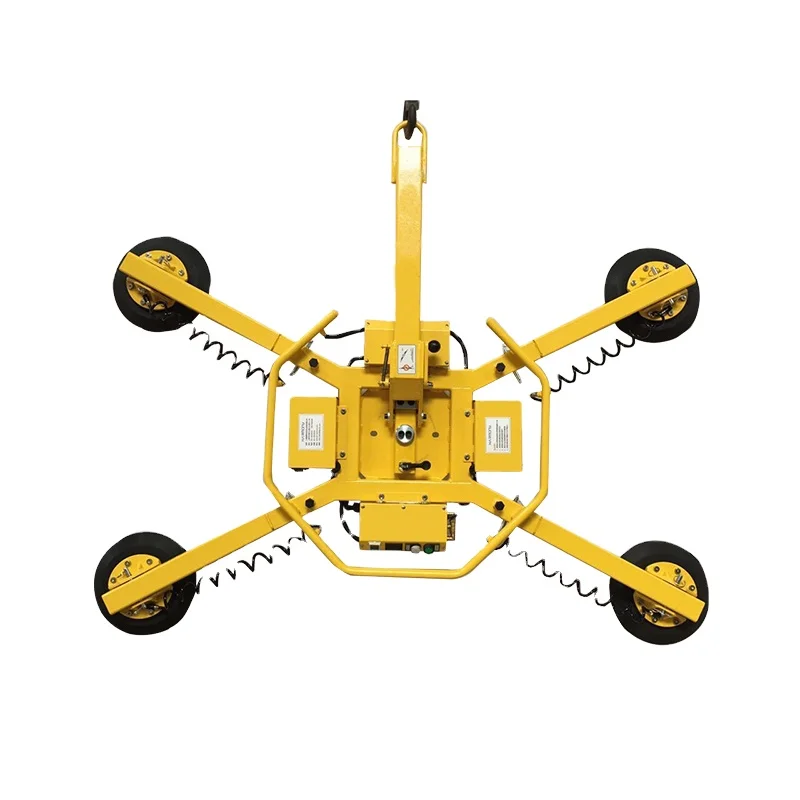

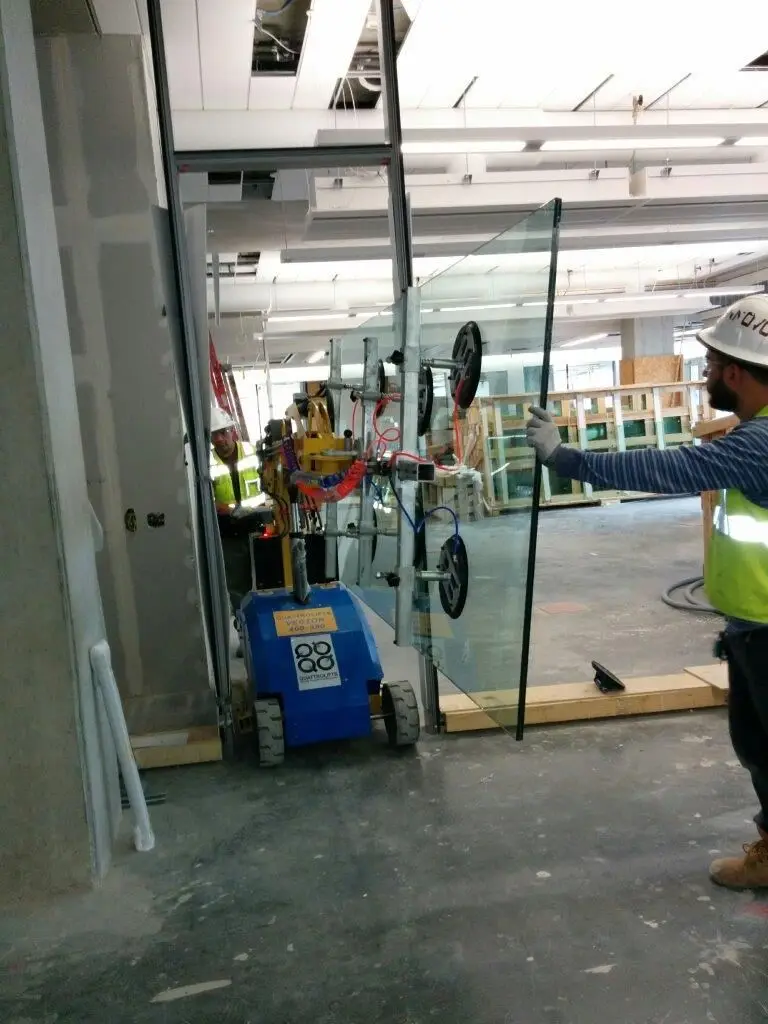

Battery Glass Lifter


Product Description
* DC charging vacuum pump with a battery unit for use on site
* Max. load 2000kg
* Glass length of up to 15m, width 4m

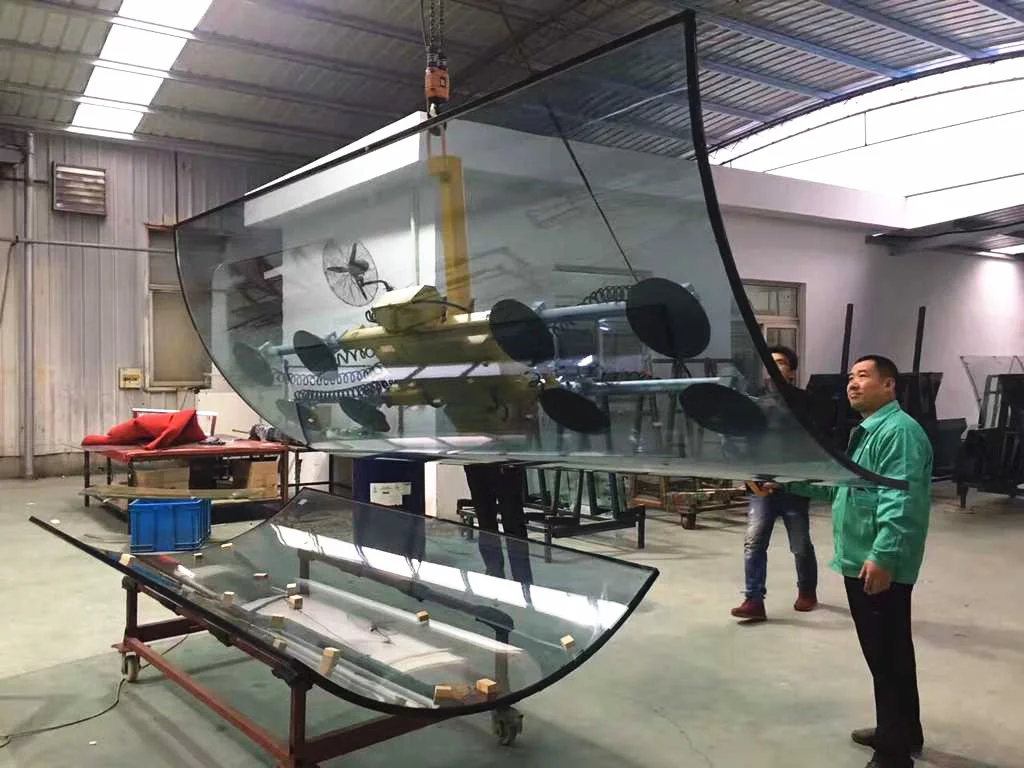

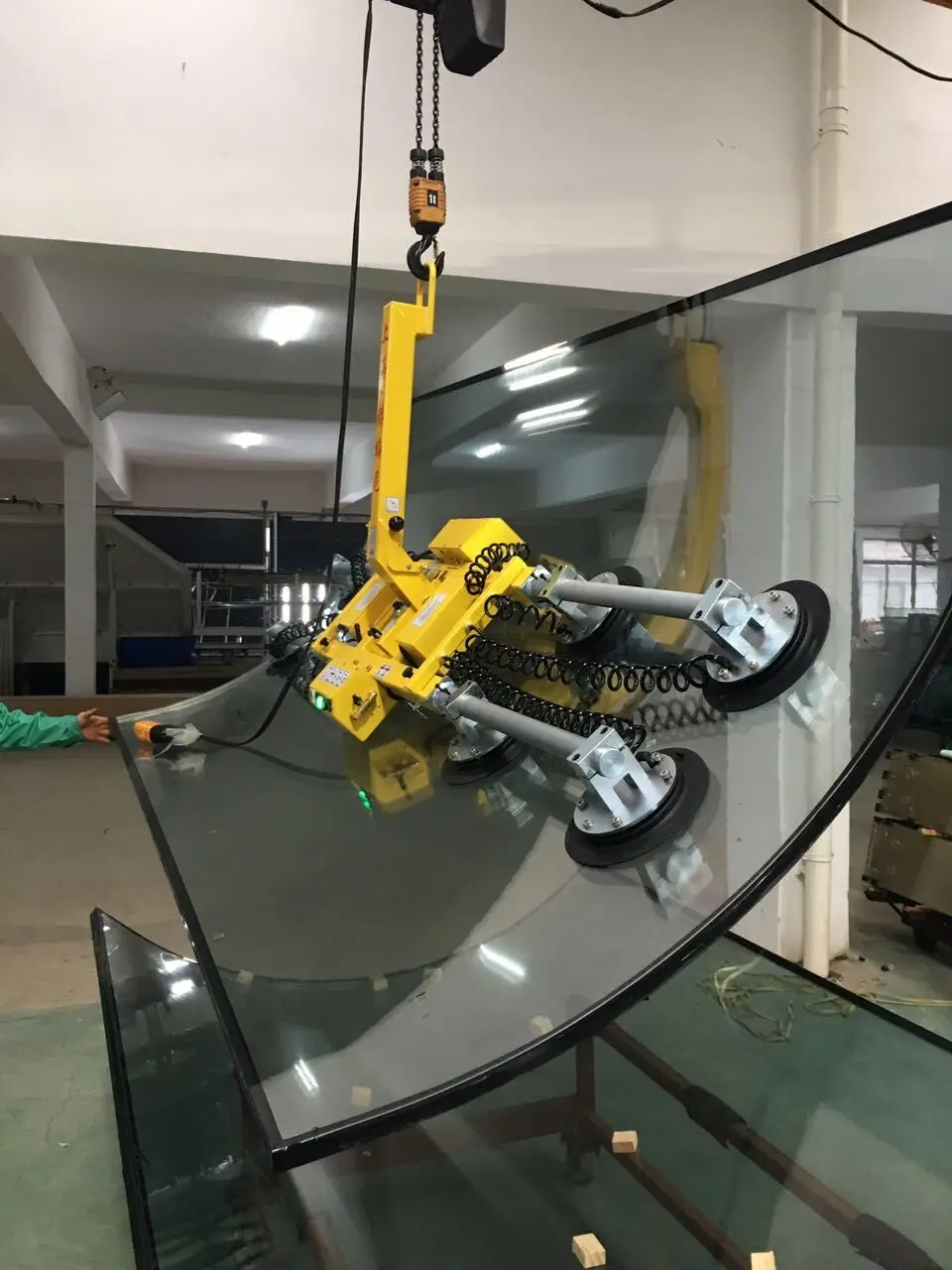

* Applicable up to 300 degree glass
* 0-90 degree flip moving
* 0-360 degree rotation moving
* Avariety of structures and suction cups available for configurations
* Sound and light alarm display
* Integrated accumulator on main beam
* Imported oil-free pump and valve
* Adjustable suction cups, individual switch-off
* Safety tank and pressure gauge
* CE standard design






Technical Data of the battery glass lifter
Model
Size
(mm)
Sucker diameter (mm)
Sucker quantity (pics)
Power system
Control mode
Safety loading (kg)
Function

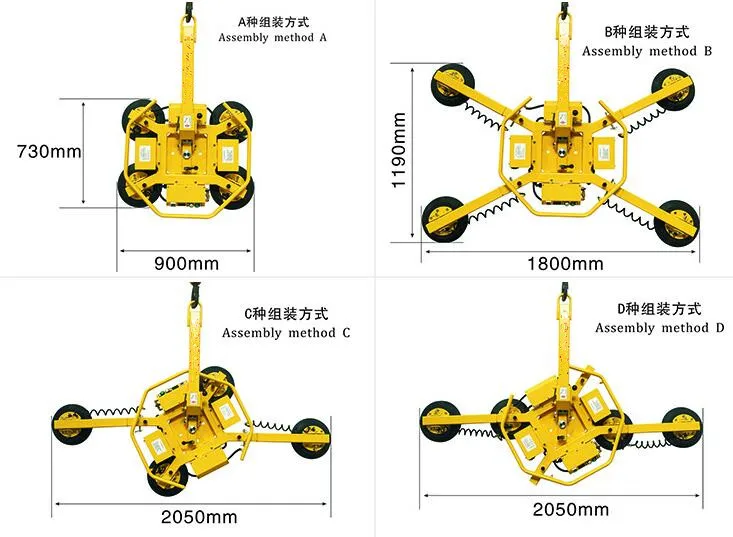

HP-GX-4S
900*730*240
300
4
DC12V
Manual/
Remote
400
Flip 90 degree (manual), rotate 360 degree (rotate)
HP-GX-6S
1800*1190*240
300
6
DC12V
Manual/
Remote
500
Flip 90 degree (manual), rotate 360 degree (rotate)
HP-GH800-8S
2800*1400*220
300
8
DC12V
Manual/
Remote
800
Flip 90 degree (manual), rotate 360 degree (rotate)
HP-GH1000-10S
2800*1400*220
300
10
DC12V
Manual/
Remote
1000
Flip 90 degree (manual), rotate 360 degree (rotate)
HP-GH1200-12S
(1000+2800+1000)*1400*220
300
12
DC12V
Manual/Remote
1200
Flip 90 degree (manual), rotate 360 degree (rotate)
HP-GH1500-16S
(1000+3000+1000)*1400*400
300
16
DC12V
Manual/Remote
1500
Flip 90 degree (manual), rotate 360 degree (rotate)
HP-GH2000-20S
(1500+3600+1500)*1400*400
300
20
DC12V
Manual/Remote
2000
Flip 90 degree (manual), rotate 360 degree (rotate)

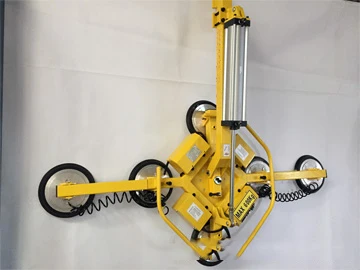

Pneumatic Glass Vacuum Lifter


1.Suitable for moving insulating glass, tempered glass, glass curtain wall, on-site construction of glass deep processing and
solar photovoltaic glass.
2.Maximum bearing capacity is 300Kg, Max. glass size can reach to 8m (Length)×4m(width).
3.It can turn the glass with various degree.
4.Equipped with gas storage function, the machine can continue working 20 minutes without gas.




Technical Data of the battery glass lifter
Model
Size
(mm)
Sucker diameter (mm)
Sucker quantity (pics)
Power system
Control mode
Safety loading (kg)
Function
HP-GFX150-2S
800*300
300
2
Compressed air
0.6-0.8MPa
Manual/
Remote
150
Flip 90 degree (pneumatic), rotate 90 degree (pneumatic)
HP-GFX250-4S
860*720
300
4
250
HP-GFQ400-6S
1800*1200
300
6
400
Flip 90 degree (pneumatic)
HP-GFD400-6S
2000*800
300
6
400
HP-GHQ800-8S
2800*1400
300
8
DC12V
800
Flip 90 degree (pneumatic)
HP-GHQ1000-10S
2800*1400
300
10
DC12V
1000
HP-GQ1200-12S
2800*1400
300
12
DC12V
1200
HP-GHQ1500-16S
(1000+3000+1000)*1400
300
16
DC12V
1500

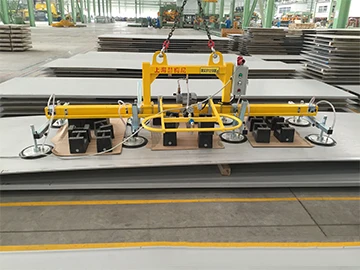

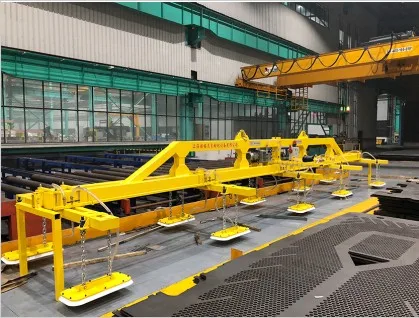

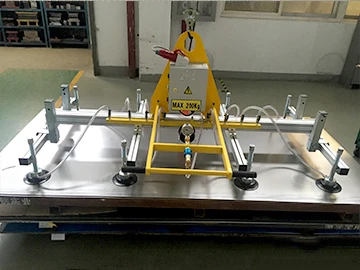

Sheet Panel Vacuum Lifter


1, HP-BS series of equipment are widely used for non-destructive handling of various plates, including corrosion resistant plates, aluminium plates, titanium plates, composite panels, etc.
2, They are also widely used for laser cutting machine, plasma cutting machine, water-jet cutting machine, numerical control press, etc.
3, Brand-new pure pneumatic system, no need to connect electricity, no charge, pneumatic lifting, pneumatic adsorption, economical and applicable.
4, Sucker position can be adjusted to meet dimensional change of different plates.




Technical Data of Sheet Panel lifter
Model
Size
(mm)
Sucker diameter (mm)
Sucker quantity (pics)
Power system
Control mode
Safety loading (kg)
Weight
(kg)
HP-BSJ500-6S
2000*800
Φ 230
6
380V
Manual/Romote
500
100
HP-BSZ500-6S
2000*800
Φ 230
6
DC12V
Manual/Romote
500
100
HP-BSQ500-6S
2000*800
Φ 230
6
Pneumatic
500
100
HP-BSJ800-8S
2800*800
Φ 230
8
380V
800
120
HP-BSZ800-8S
2800*800
Φ 230
8
DC12V
800
120
HP-BSJ1500-8S
2800*800
Φ300
8
380V
1500
150
HP-BSZ1500-8S
2800*800
Φ300
8
DC12V
1500
150
HP-BSJ1000-10S
(1000+300+1000)*1000
Φ230
10
380V
1000
210
HP-BSZ1000-10S
(1000+3000+1000)*1000
Φ 230
10
DC12V
1000
210
HP-BSJ2000-10S
(1000+3000+1000)*1000
Φ 300
10
380V
1000
250
HP-BSJ2500-12S
(1000+3000+1000)*1000
Φ 300
12
380V
2500
280

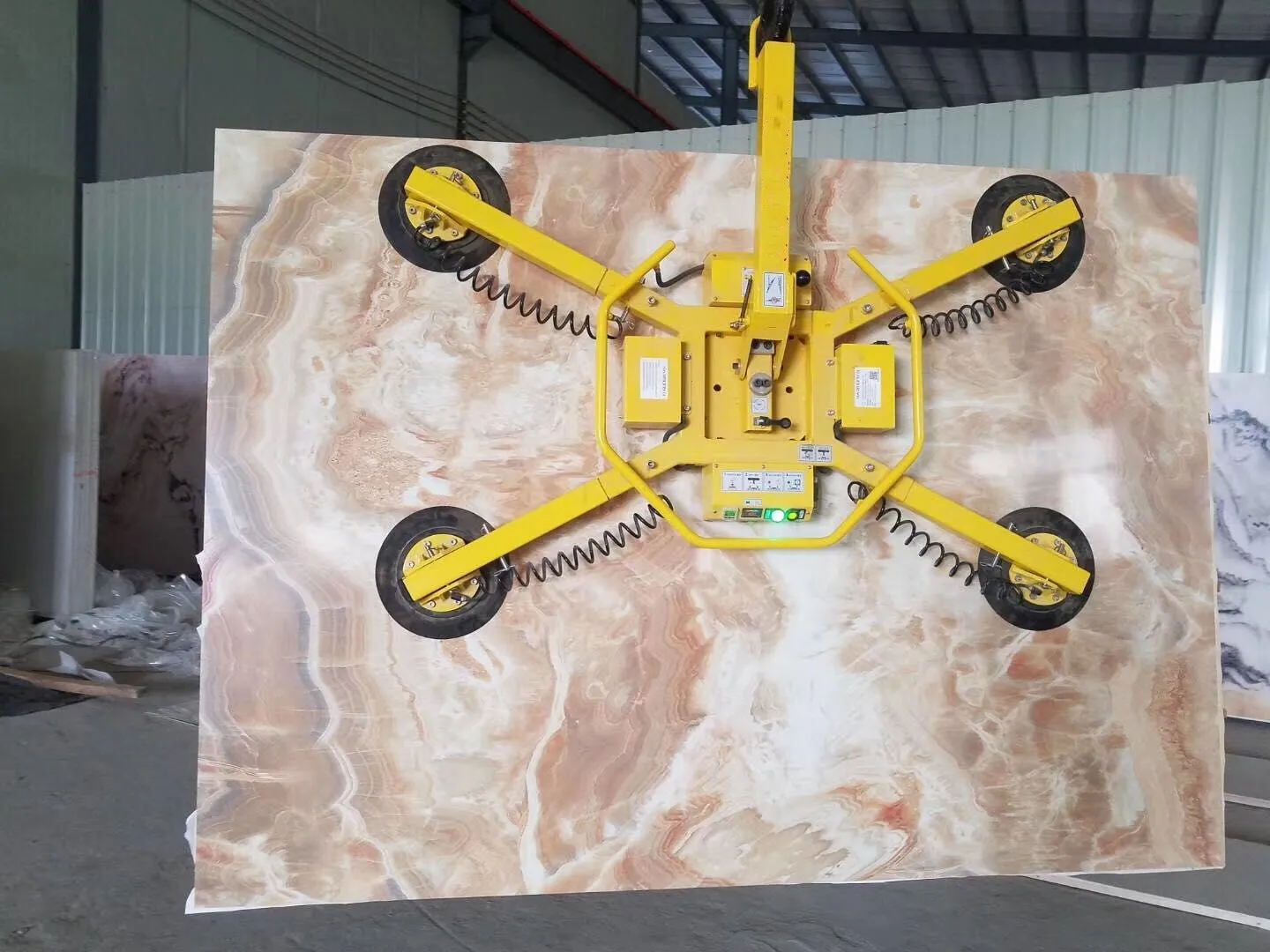

Other Vacuum Lifter












Packing Details :
1.Simple stretch film packaging;
2.Professional export wooden packing.
Delivery Details : 15-20 Days after receive the first deposit.




Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass making machines, glass edging and beveling machines, glass cutting machines, tempered glass furnace, etc, with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.
We believe that "IT'S THE BEST THAT FITS MOST".
Every machines can be customized to meet your special requirements.
Hope we can cooperate with you.




Pre-sales Service
1. Fastly and professional reply to you about your questions for our napkin folding paper production machine.
2. Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines.
3. Detailed and clearly explain to you when you come to our factory for visiting before contract.

In-sales service
1. One-stop and customize service for you, all napkin paper processing related machines are available from us.
2. 24 Hours online service, 7 Days one week support for you if any technical questions or problems about toilet tissue paper making machine.

After sales service
1.Engineers overseas installation and training, all our engineers are rich experience for overseas working
2.Guarantee you steady supply for the spare parts with the lower prices










1. What will be the process after i make the payment?
Answer: After we confirm the receipt of the deposit, we will arrange the production asap. When we finish the production and the test of the machine, we will take a video for you to show the performance of the machine and wait for your feedback. And after the confirmation of the finished products we will start to pack the machine and wait for customer’s requirement for shipment.
2.How will you install our machine after we receive the machine?
Answer:We used to send technician to install machine for customer before. But now due to the COVID-19 virus, it’s very difficult for us to go abroad. However, for all our machines, we have specific manuals and explanation videos to follow and install the machine.Every customer we also have one special wechat/ whatsapp group chat with technician inside to offer all necessary help on line.
3.What will happen if the machine does not work?
Answer: If the machine does not work, you can send us an email or call us.We will form a group and our engineers will be inside to guide how to solve the problem. Video call or video conference will all be available 7*24.
4.Can the machine change to our voltage?
Answer: YES! We can customize our machine to your local voltage.
5. Can you help us to arrange the shipment?
Answer: YES! We have our cooperated shipping partner who can provide fast delivery and good price. We can arrange the shipment for our clients based on customer’s requirement.
