8KW single phase output 220V servo motor 230v voltage regulators for wind generator
Hot Products

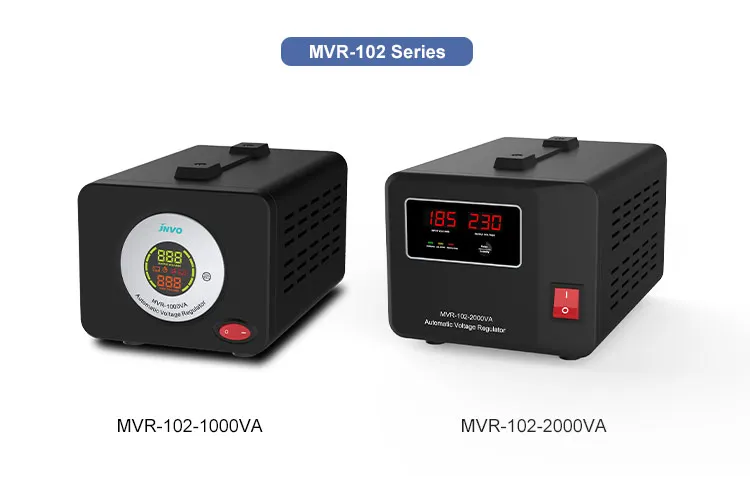

| Model NO | MVR-500VA | MVR-I000VA | MVR-1500VA | MVR-2000VA | MVR-3000VA | MVR-5000VA |
| Capacity | 500VA/300W | 1000VA/600W | 1500VA/900W | 2000VA/1200W | 3000VA/1800W | 5000VA/3000W |
| Machine Size | 190x150x260mm | 190x 150x270mm | 240x205x335mm | |||
| Ciftbox size | 320x225x200mm | 320x225x200mm | 375x280x270mm | |||
| Carton Size | 465x330x410mm | 465x330x215mm | 385x290x290mm | |||
| Qty/Ctn | 4pcs | 2pcs | 1pcs | |||
| Technology | ||||||
| Technology | Precision servo motor Technology | |||||

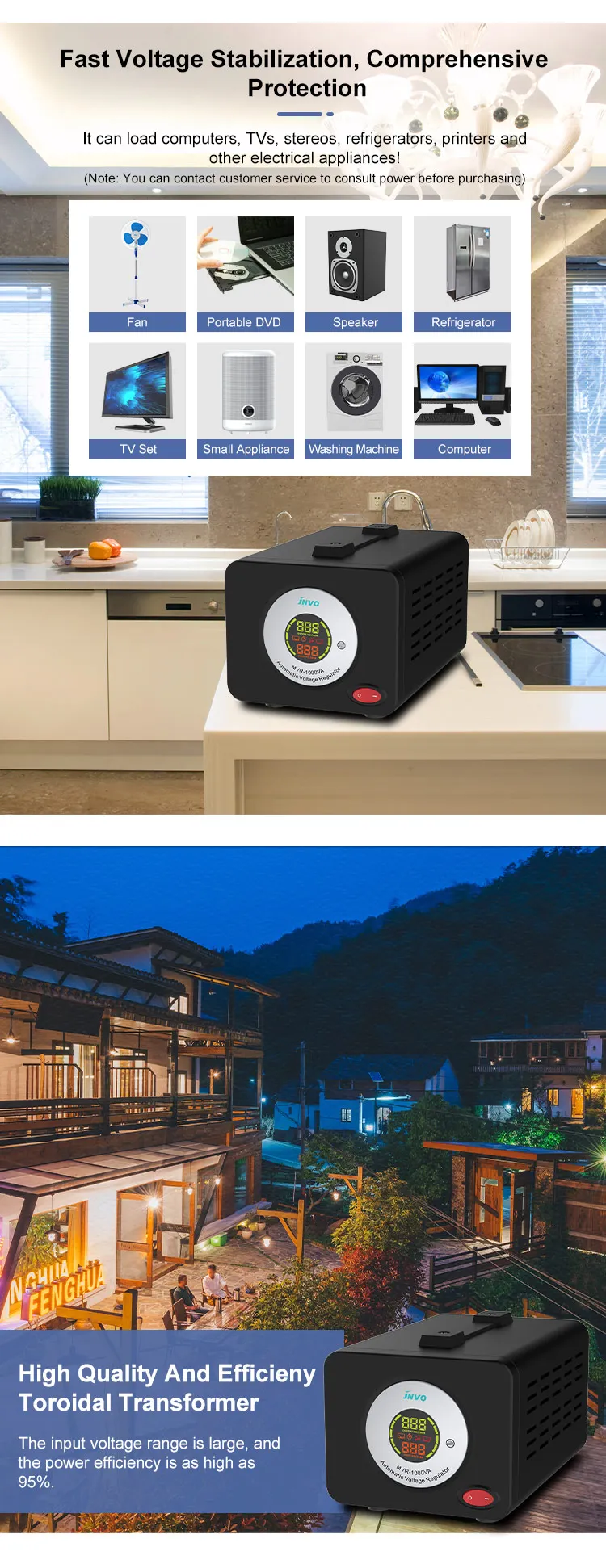

| Transformer | Toroidal servo transformer | |||||
| Certification | CE.SON.CB. SASO | |||||
| Efficiency | >95% | |||||
| Material | ||||||
| Front Panel | Metal | |||||
| Cabinet | Metal | |||||
| Input Voltage & Output Voyage | ||||||
| Option A | 230V: Input 150-260V, Output 230V ±3%; or | |||||
| 220V: Input 140-260V, Output 220V ±3% | ||||||
| Option B | 220V: Input 100-260V, Output 220V ±3% | |||||
| Input Frequency | 45~65Hz | |||||
| Displays Indication | ||||||
| Dtgltel Display | input voltage and output voltage (switching through -"I/O" button) | |||||
| Green LED | Power on | |||||
| Yellow LEO | Delaying (output is beirvfl suppressed) | |||||
| Red LED | Protecting (output is cut off) | |||||

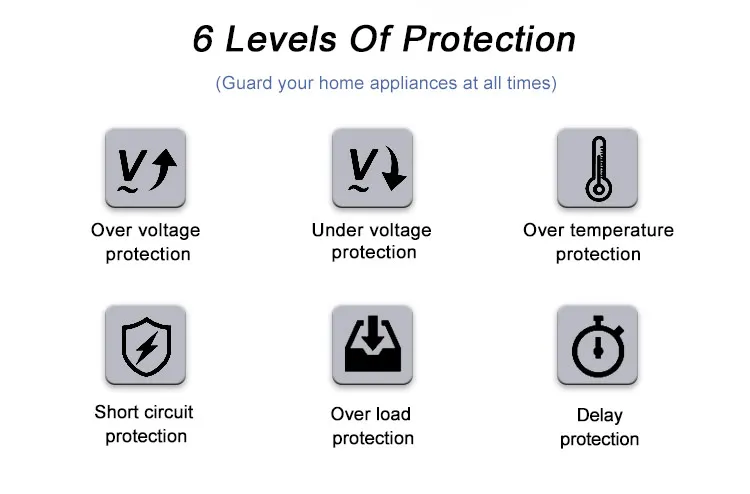

| Protection | ||||||
| Over Voltape | Output cutoff +red LED +"H"shown in digital display | |||||
| Under Voltage | Output cutoff +red LED +"L"shown in digital display | |||||
| Coil Over Temperature | Output cutoff +red LEO +"C"shown in digital display | |||||
| Short Circuit | Circuit breaker trip off | |||||
| Overload(Optionai) | Output cutoff + red LED +"F"shown in digital display | |||||
| Surgef(Optional) | 1 x MOV (L-N) or 3 x MOV (L-N, L-E. N E) | |||||
| Delay Time | 6s /180s selectable | |||||
| Optional Peipheral | ||||||
| USB Charging Port | 5VDC. 1000mA | |||||
| Smart Cooling Fan | Standard for 8000VA-10000VA. optional for 2000VA-5000VA | |||||
| 110V Output | Only available for 500VA-5000VA | |||||
| Manual Bypass Switch | Only available for 3000VA-10000VA | |||||
| Color | White, black, grey, red, silver, blue | |||||
| Ambiennt | ||||||
| Operating Temperature | 0°C-40°C | |||||
| Storage Temperature | -15°C-45-°C | |||||
| Operating Humidity | 10%-90%, Non-condensing | |||||

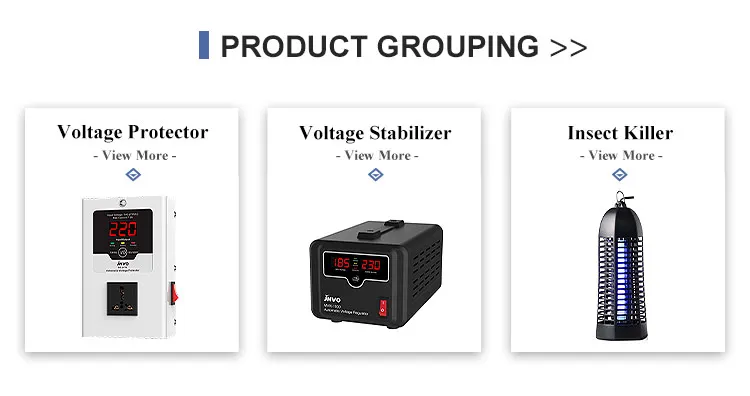

product grouping
Company Information

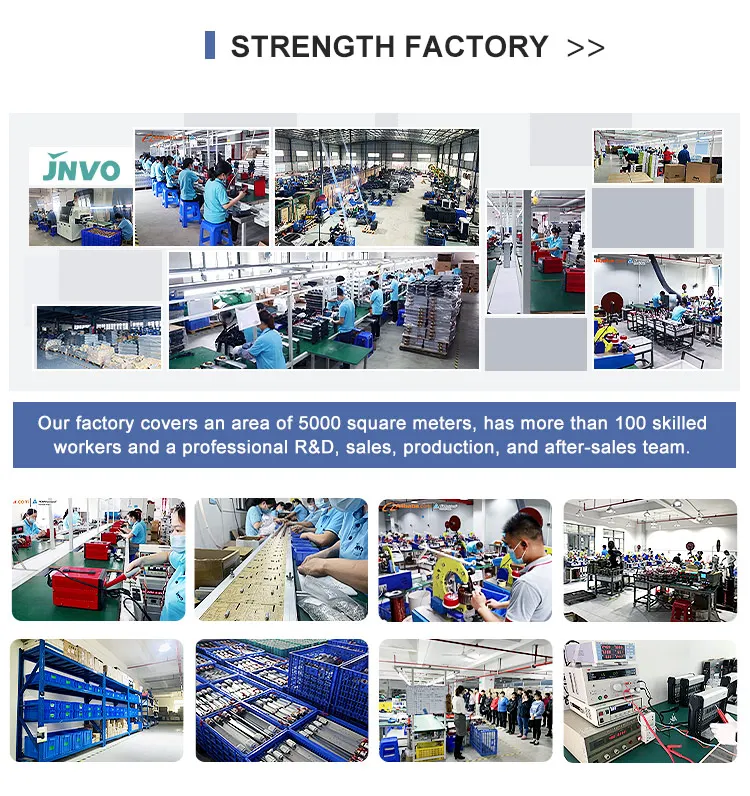

Factory strength
