Products Description
90MM 315MM Siphon Butt Welder Maxi 315AC Butt Fusion Machine

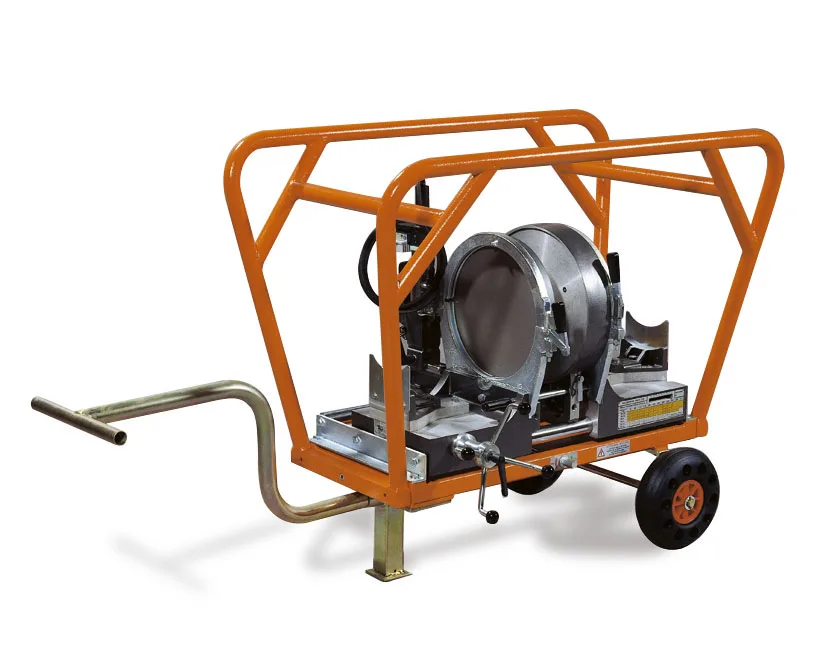

Butt Welder Maxi 315AC
AC model welding machine is mainly used for the welding of thin-walled pipes, and is widely used in siphon drainage construction. and has the following characteristics:
1. The whole machine has an integrated design, which is easy to operate and has high welding efficiency, which is conducive to storage management.
2. Digital display electronic temperature control system, accurate temperature control.
3. The iron plate clamp is thin, which is convenient for welding short-neck flanges, tees and elbows and other pipe fittings.

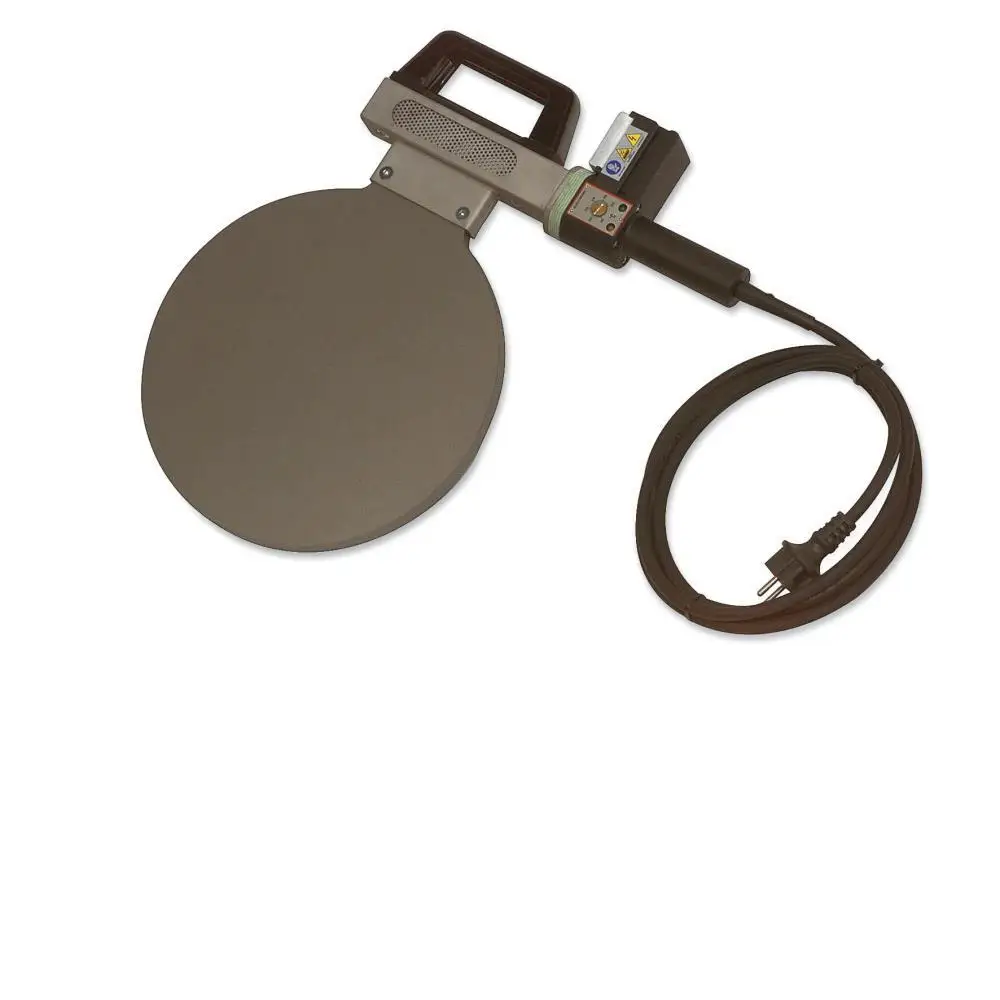

* The whole machine consists of two sets of metal fixtures, an electric milling cutter, a hot plate and a cart-type worktable and internal fixture slips.
* Standard configuration of inner clamp slips: ￠90, 110, 125, 160, 200, 225, 250, 280, 315mm (optional for 140 and 180)
* Power requirements: 230V/single phase/50-60Hz/4200W
* Welding material: PE, PP, PVDF, PVC
1. The whole machine has an integrated design, which is easy to operate and has high welding efficiency, which is conducive to storage management.
2. Digital display electronic temperature control system, accurate temperature control.
3. The iron plate clamp is thin, which is convenient for welding short-neck flanges, tees and elbows and other pipe fittings.
* The whole machine consists of two sets of metal fixtures, an electric milling cutter, a hot plate and a cart-type worktable and internal fixture slips.
* Standard configuration of inner clamp slips: ￠90, 110, 125, 160, 200, 225, 250, 280, 315mm (optional for 140 and 180)
* Power requirements: 230V/single phase/50-60Hz/4200W
* Welding material: PE, PP, PVDF, PVC
Technical parameters
Technical Features | ||
Model | Maxi 315 | |
Materials | HDPE/PE/PP/PVDF | |
Working range | 90/110/125/140/160/180/200/225/250/280/315 | |
Heating plate temp. | 180°~280°（±5°) | |
Voltage/Power | 230VAC 50/60Hz 4.2kw | |
Machine size | 1200×680×1045mm | |
Total weight | 183kg | |

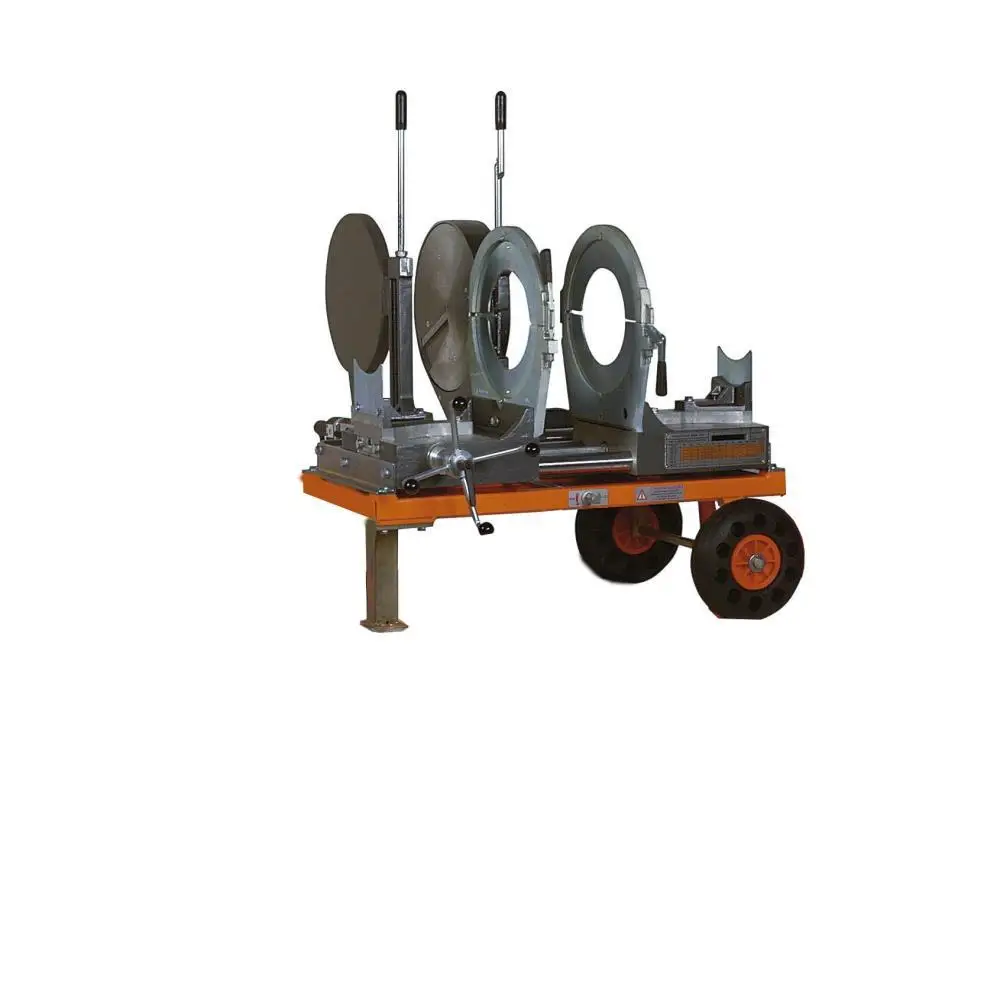

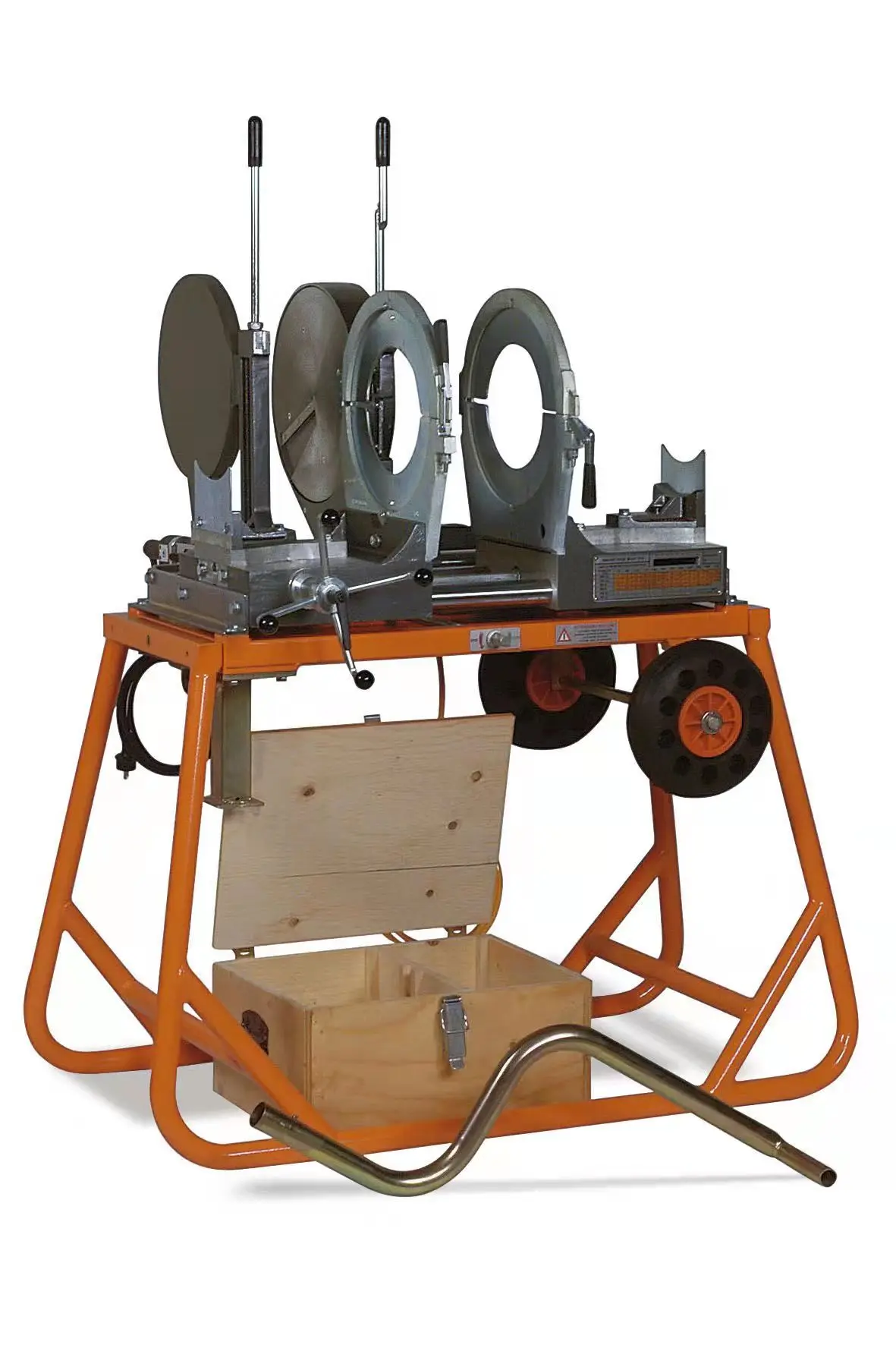

Hand-cranked butt fusion welding machine
This is a portable and detachable hot-melt butt welding machine, which is light and suitable for various construction environments. Suitable for 40-160mm, the advantage is that it can be properly welded to make elbows.
Standard configuration: body, 90-315mmAC fixture, milling cutter, hot plate, crank handle, tools.

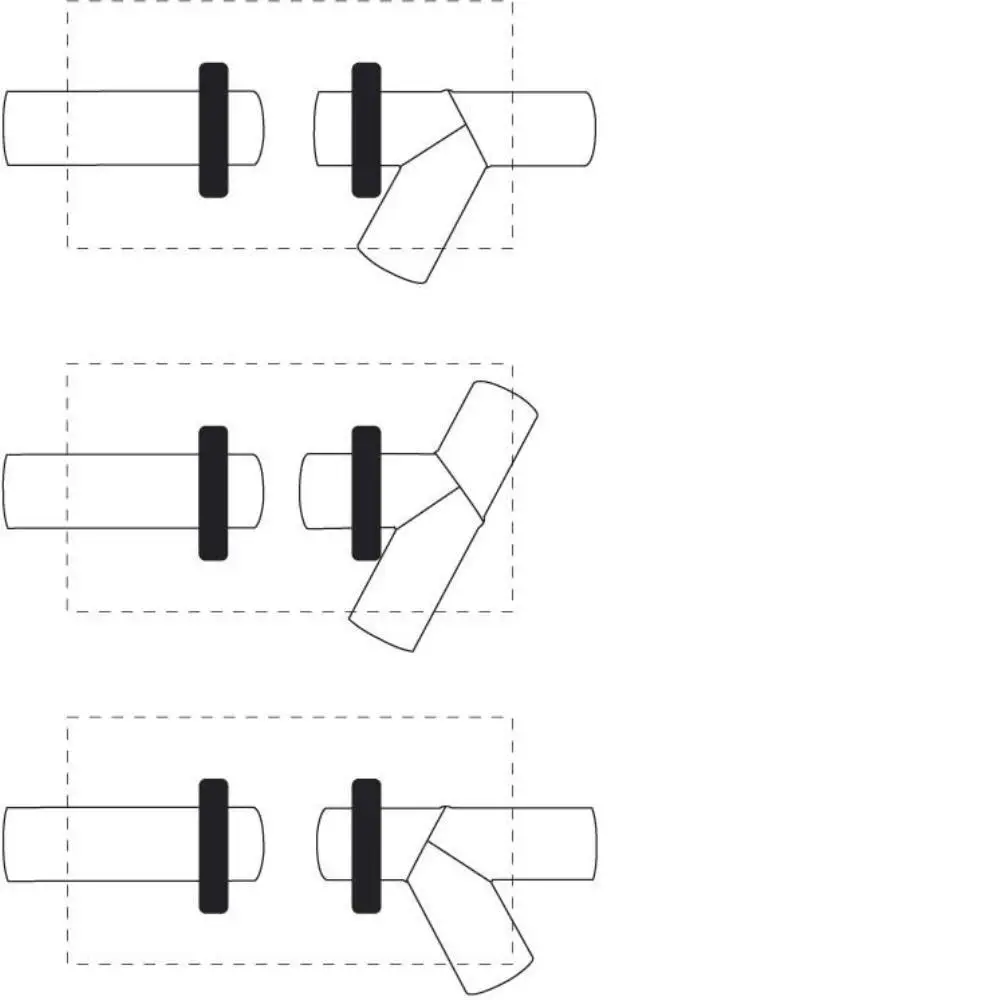

Optional: supra clamps 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm are convenient for fixing Y-shaped tee.
Optional: supra clamps 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm are convenient for fixing Y-shaped tee.
Related Products
Electrofusion Machine
Pipe Welding Tool
Pipe and Fittings
About Us
CHUANGRONG is a share enterprise that specializes in the R&D, production, sale and engineering installation of new-type plastic
pipes and fittings since 2005. We have exported our products more than 50 countries and area.
Main products:
1.Plastic pipe
2.HDPE fittings
3.PP compression fittings
4.pipe welding machine and tools
5.pipe repair clamp
Our aim is to provide customer with the best solutions of plastic pipe connection.
Our Certifications
Inspection:

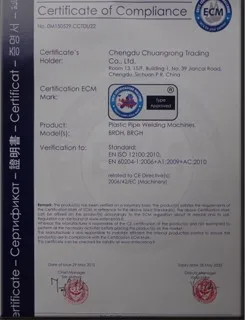

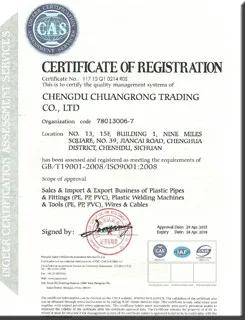

We can supply ISO9001-2008, BV ,SGS, CE etc certification.

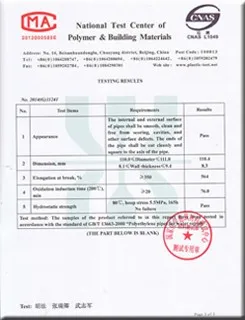

All kinds of products are regularly conducted pressure-tight blastingtest,
longitudinal shrinkage rate test, quick stress crack resistance test,tensile test and melt index test,
so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products
FAQ
Q: Are you trading company or manufacturer ?
A: We are a well-known solution provider for plastic piping system in the world with 15 years professional experience. Welcome to visit and investigate us, you would find the difference with others.
Q: How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock,which depends on your order quantities and can be negotiated.
Q: Do you provide samples ? is it free or extra ?
A: Yes,we can.Free samples can be supplied for small quantities,freight need to be collected.
Q: What is your terms of payment ?
A: L/C,PAYPAL,Western Union,MoneyGram,T/T(Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment) and so on.
Q:What is your MOQ?
A:As customer's request
