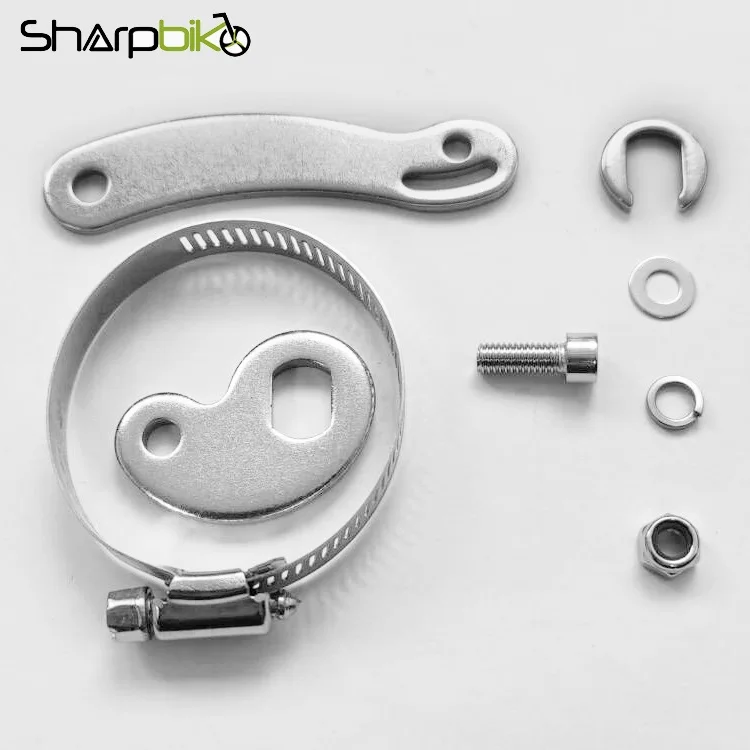

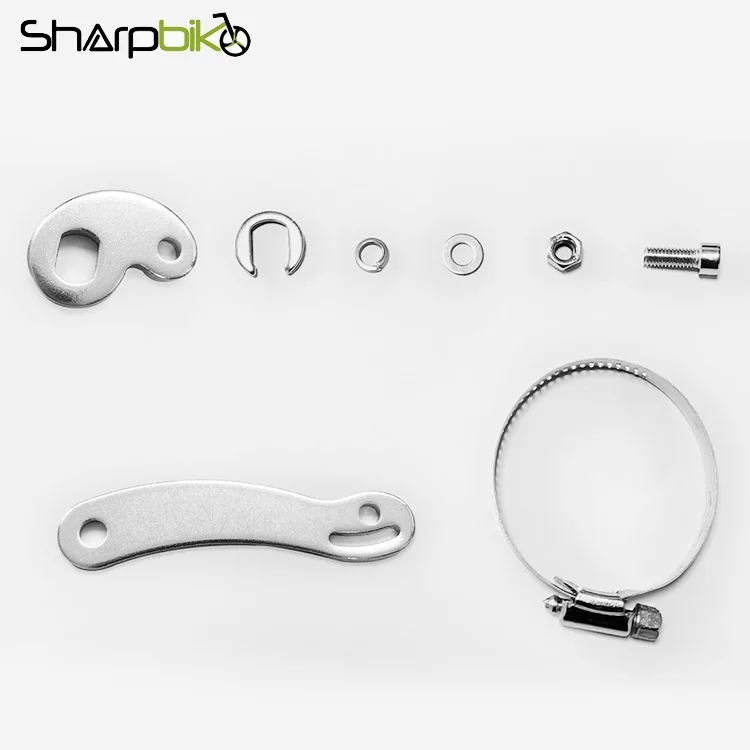

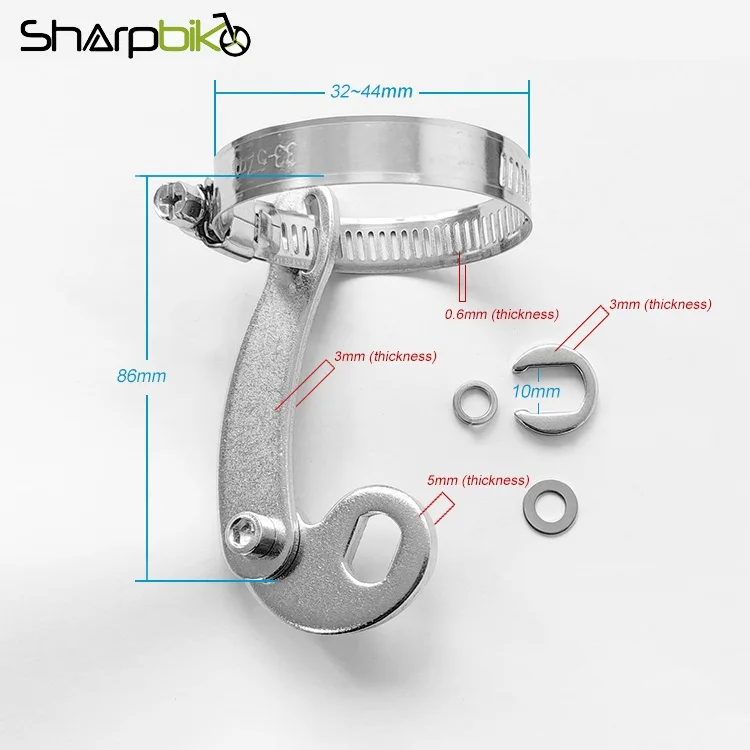

Universal E-bike Hub Motor Torque Arm for Electric Bicycle Motor Kit
Product Description
Product View
Torque arms are used to prevent axle rotation in hub motors. When a hub motor is powered up running, for all the torque that the motor generates spinning a wheel forwards, there is an equal and opposite torque on the axle causing it to rotate backwards.
In most electric bicycle hub motors, the axle is machined with flats on either side which key into the dropout slot and provide some measure of support against rotation. In many cases this is sufficient.
However, in high power systems that generate a lot of torque, or in setups with weak dropouts, the forces present can exceed the material strength and pry the dropout open. When that happens, the axle will spin freely, wrapping and severing off the motor cables and potentially causing the wheel to fall right out of the bike. A torque arm is a separate piece of metal attached to the axle which can take this axle torque and transfer it further up the frame, thus relieving the dropout itself from taking all of the stresses.
This torque arm will help prevent the motor from coming loose from the fork (front) or frame (rear) and also prevent the slotted axle from bending or breaking your dropouts.
Additionally, these versatile torque arms can be installed inside the frame/fork or outside.
In most electric bicycle hub motors, the axle is machined with flats on either side which key into the dropout slot and provide some measure of support against rotation. In many cases this is sufficient.
However, in high power systems that generate a lot of torque, or in setups with weak dropouts, the forces present can exceed the material strength and pry the dropout open. When that happens, the axle will spin freely, wrapping and severing off the motor cables and potentially causing the wheel to fall right out of the bike. A torque arm is a separate piece of metal attached to the axle which can take this axle torque and transfer it further up the frame, thus relieving the dropout itself from taking all of the stresses.
This torque arm will help prevent the motor from coming loose from the fork (front) or frame (rear) and also prevent the slotted axle from bending or breaking your dropouts.
Additionally, these versatile torque arms can be installed inside the frame/fork or outside.
Company Information
ABOUT US
Sharpbike Intelligent Technology Co., Ltd (Sharpbike Electric Bicycle Co., Ltd.) is a specialized supplier of various electric bicycles, electric scooters and conversion kits with a wide selection of colors and designs. Based on nearly 7 years’ experience in the industry we have many high-quality staffs at design, development and production fields. All of our products comply with the concept of energy saving and environmental protection, we aim to promote an eco-friendly and greener lifestyle for people all over the world.
With our strong developing and sourcing capacities, we provide professional services and solutions to match with our customers' wholesale, retail, and corporate needs. Besides, we have excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching North America, Europe, Australia, Middle East, South East Asia and well appreciated by their purchasers.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Why Choose Us
Our Services:
- 24 hours online service
- OEM & ODM are welcome
- Trial orders are available
- Sample can be supplied in 7days
Packaging & Shipping
PACKING & SHIPPING | |
Description | Torque Arm |
Model | TA01 |
Minimum Order | 30 Pieces |
Payment Terms | T/T, L/C, Western Union |
Lead Time / Delivery Time | 15-25 Days |
Sample Available | 7 Days |
Trade Terms | EXW, FOB, CIF, DDU |
FOB Port | Shanghai, Ningbo |
Loading Info. | By sea /air / train /express |
Packaging | Carton or pallet |
FAQ
Q: When can I get the price? A: We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority. | FAQ | |
