Winvall быстродействующий моторизованный латунный клапан управления потоком BSP/NPT электрический привод шаровой
- Категории: >>>
- Поставщик: Winner,Ball,Valves,Company,Limited
Поделиться:
Описание и отзывы
Характеристики
Description

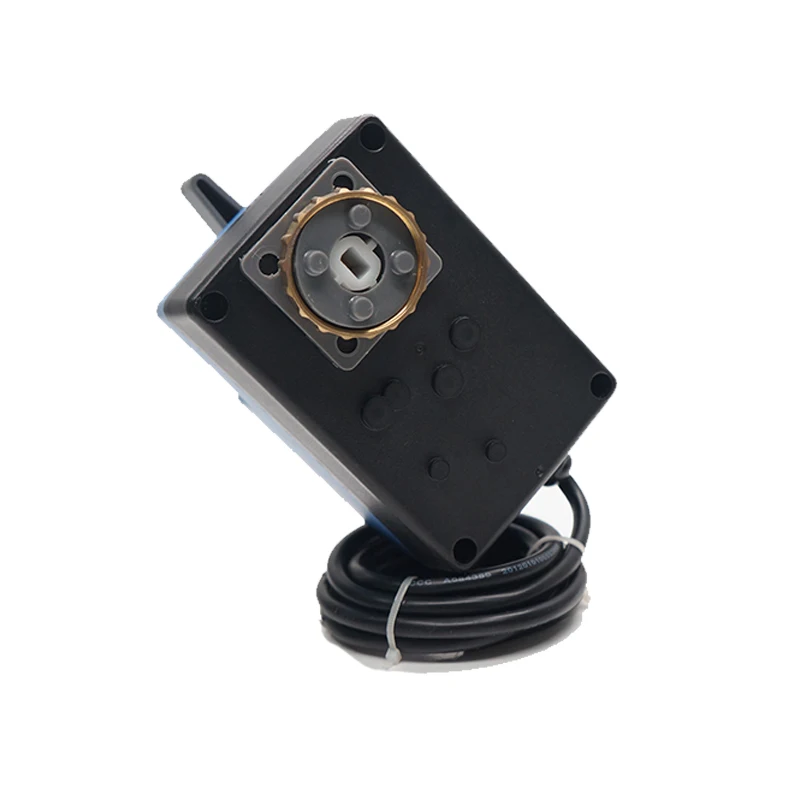

Fast running control ball valve consists of WRA3-...S series stepping motor actuator and W8BV... series ball valve. Equal percentage flow characteristic guarantees the valve performances of stability. Stepping motor control ball valve.

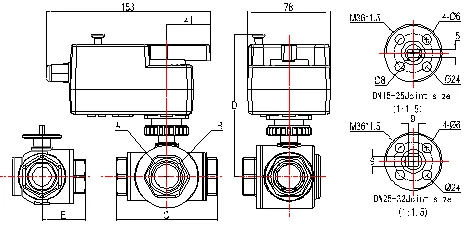

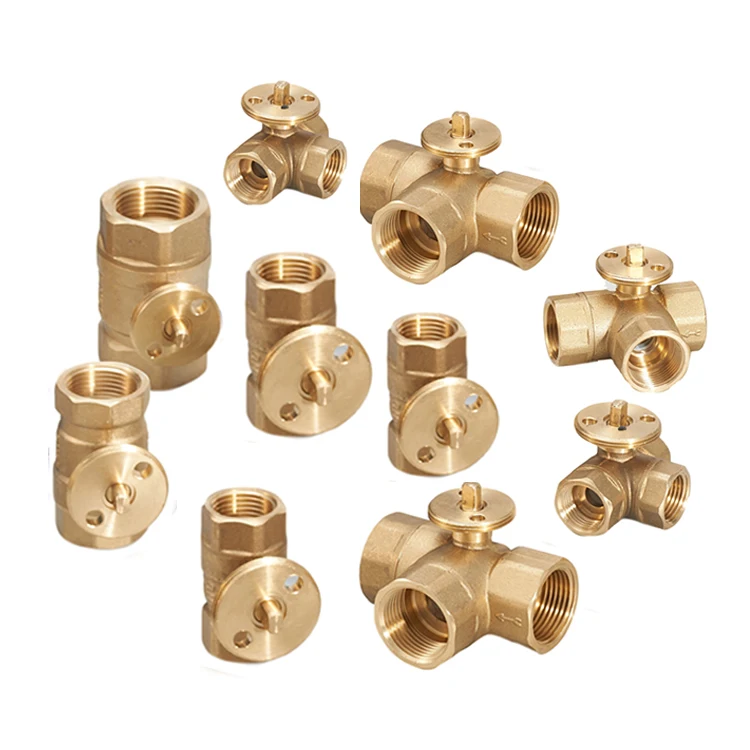

Matching Valve body parameters:
Model No. | Description | DN(mm) | Inch | Kvs(m3/h) | Pvmax(MPa) | Ps(KPa) |
W8BV215 | 2-way | DN15 | 1/2” | 6.15 | 2.5Mpa | 1400 |
W8BV220 | 2-way | DN20 | 3/4” | 10.5 | 2.5Mpa | 1400 |
W8BV225 | 2-way | DN25 | 1” | 16.1 | 2.5Mpa | 1400 |
W8BV232 | 2-way | DN32 | 11/4” | 16 | 2.5Mpa | 1400 |
W8BV240 | 2-way | DN40 | 11/2” | 25 | 2.5Mpa | 1400 |
W8BV315 | 3-way | DN15 | 1/2” | 3.95 | 2.5Mpa | 1400 |
W8BV320 | 3-way | DN20 | 3/4” | 6.8 | 2.5Mpa | 1400 |
W8BV325 | 3-way | DN25 | 1” | 15.8 | 2.5Mpa | 1400 |
W8BV332 | 3-way | DN32 | 11/4” | 16 | 2.5Mpa | 1400 |
W8BV340 | 3-way | DN40 | 11/2” | 25 | 2.5Mpa | 600 |
| W8BV350 | 3-way | DN50 | 2” | 40 | 2.5Mpa | 600 |
Actuator technical parameters:
Model | Control | Power | Torque (N.m) | On/off Time (s) |
WRA3-110 | 3-point | 220VAC | 10 | 42 |
 | ||
24V/12V/3V, ON/OFF, Proportional |
contact:email/skype:Yuri.winner#winner-hvac.com
whatsapp/wechat:0086 18711199805
