Хит продаж; Женская Популярная Новая модель Мода Пользовательский Дизайн CSPT-10 углеродистая сталь передатчик

Описание и отзывы

Характеристики

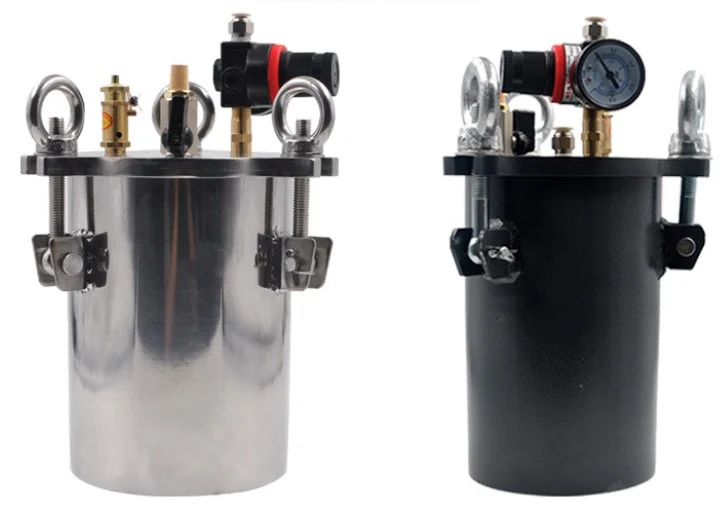

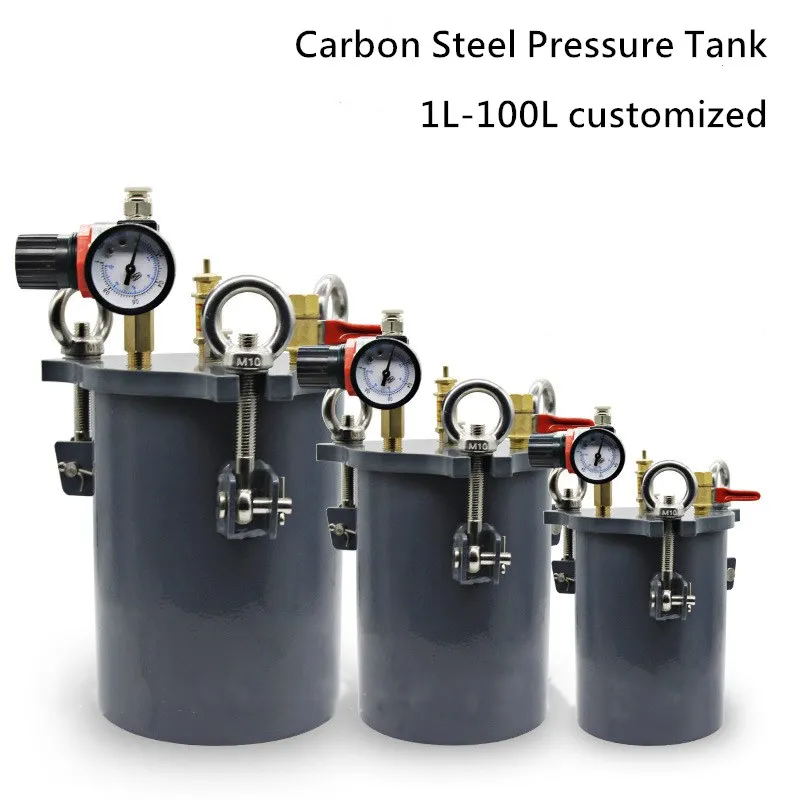

10L Carbon Steel High Quality Glue Dispenser Pressure Tank for Liquid Fluid dispensing

Volume	Weight (Kg)	OD (mm)	ID (mm)	Outer Depth (mm)	Inner Depth (mm)	Tank Thickness (mm)	Lid Thickness (mm)	Max Pressure (mm)	Material
1L	3.5	108	102	140	125	3	12	7	Stainless steel/Carbon steel
2L	4.5	133	125	180	165	4	12	8	Stainless steel/Carbon steel
3L	6	133	125	260	245	4	12	8	Stainless steel/Carbon steel
4L	7.5	159	151	250	230	4	12	8	Stainless steel/Carbon steel
5L	8	159	152	300	285	4	12	8	Stainless steel/Carbon steel
8L	14	219	210	280	265	4.5	14	8	Stainless steel/Carbon steel
10L	15	219	210	300	290	4.5	14	8	Stainless steel/Carbon steel
15L	17	219	210	450	435	4.5	14	8	Stainless steel/Carbon steel
20L	30	273	263	400	385	5	14	8	Stainless steel/Carbon steel
25L	33	273	262	490	470	5.5	14	8	Stainless steel/Carbon steel
30L	43	325	313	420	400	5.5	14	8	Stainless steel/Carbon steel
40L	46	325	313	540	520	5.5	14	8	Stainless steel/Carbon steel
50L	55	376	365	510	490	5.5	14	8	Stainless steel/Carbon steel
60L	60	376	365	600	580	6	14	8	Stainless steel/Carbon steel
80L	75	425	410	620	600	8	14	8	Stainless steel/Carbon steel
100L	85	425	410	790	770	8	14	8	Stainless steel/Carbon steel

Features:

Pressure barrels are suitable for electronics factories, chemical factories, toy factories, laboratories, etc.

The product structure is reasonable, welded firmly, pressure-bearing, air-tight, corrosion-resistant, easy to clean, and quality assurance.

There are glue on the top cover, glue on the side, glue on the bottom, heat preservation and heating type, high viscosity piston type, electric stirring type, and pneumatic stirring type.

The carbon steel pressure barrel is equipped with a stainless steel inner liner. The storage pressure barrel body is made of seamless stainless steel tube. It is not easy to react with chemical substances, has a long service life, strong wear resistance and corrosion resistance, sturdy and durable, and the material of the lid and barrel Consistent, the surface of the stainless steel pressure barrel is polished and hardened, with high strength, good airtightness, non-sticky, and strong safety. The glue can be placed in the pressure barrel in its original packaging when used, and it does not need to be cleaned. It is easy to maintain. You can also pour the glue directly. Work in a pressure tank. There are many types of pressure barrels, including 1 liter, 2 liters, 3 liters, 4 liters, 5 liters, 8 liters, 10 liters, 15 liters, 20 liters, 30 liters, 40 liters, 50 liters and other different materials, and there are simple types , Manual stirring type, pneumatic automatic stirring type.

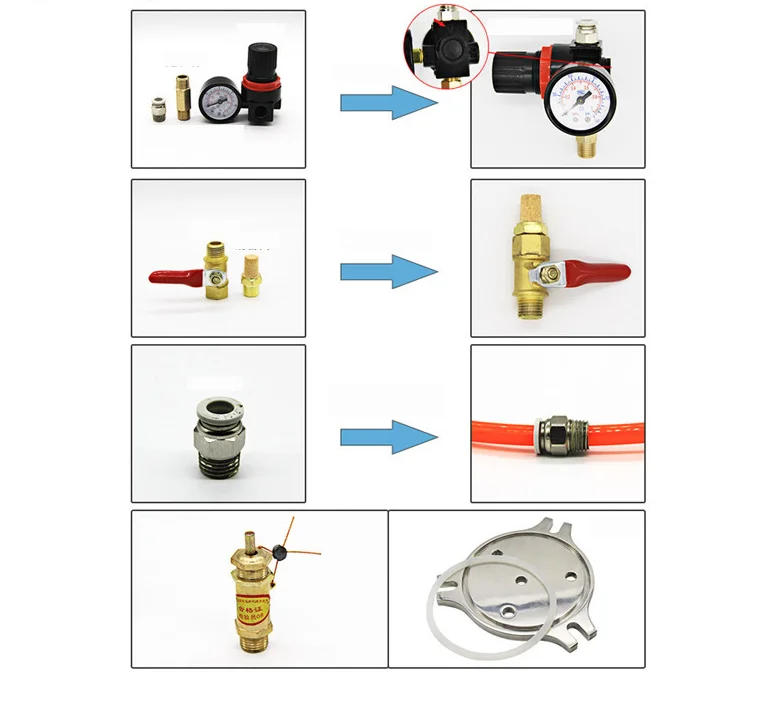

Accessories installation process
