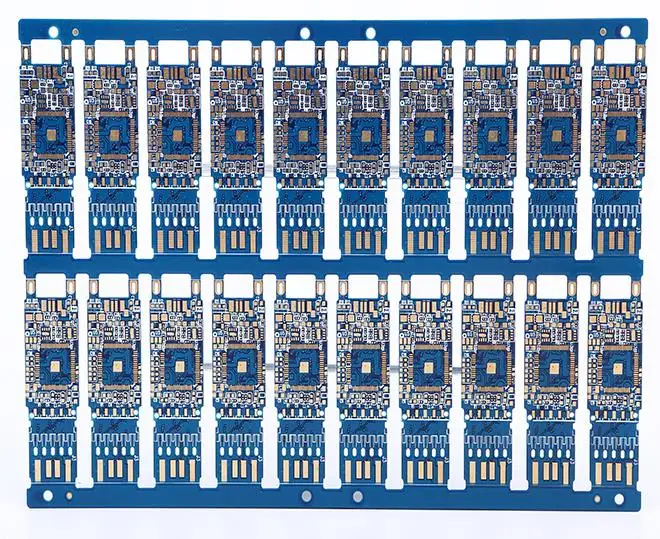

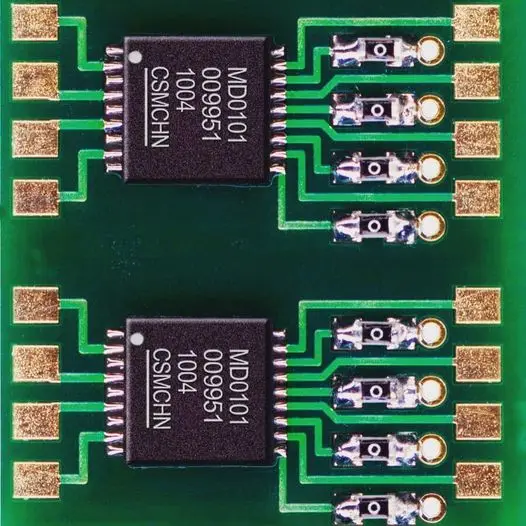

2 слоя двусторонняя Pcb Многослойная печатная плата Enig доска золочение краевого разъёма Pcba


Поделиться:

Цена:0,80 $ - 1,50 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description










PCB Capacity


Base material
 FR4,High-TG FR4,CEM3,aluminum, High Frequency frequency(Rogers,Taconic,Aron,PTFE,F4B)
Layers
1-4 Layers(Aluminum), 1-32 layers(FR4)
Max Panel
1550mm*800mm
Copper Thickness
0.5oz, 1oz, 2oz, 3oz,4oz
Dielectric Thickness
0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
board Core Thickness
0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,
1.5mm, 2.0mm, 3.0mm and 3.2mm
Board Thickness
0.4mm - 4.0mm
Thickness Tolerance
+/-10%
Aluminum Machining
Drilling, Tapping, Milling, Routing, Die-Punching,
Break-off tab available
Min Hole
0.2 mm
Max Working Voltage
2.5kVDC(0.075mm Dielectric),
3.75kVDC (0.15mm Dielectric)
Min Track Width
 0.2mm (8mil)
Min Track Gap
0.2mm (8mil)
Min SMD Pad Pitch
0.2mm (8mil)
Surface Finishing
 HASL lead-free, ENIG, Plated Gold, Immersion Gold, OSP
Solder Mask Color
Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
Legend Color
 Black, White, etc
E-test
Yes
Rohs, UL
Yes
Reference Standard
 IPC-A-600G Class 2


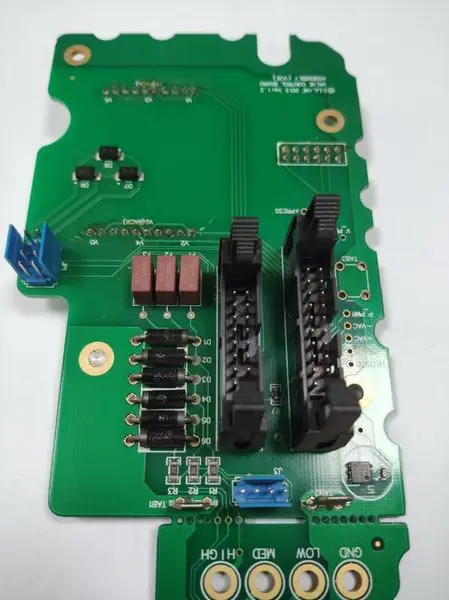

PCBA Capacity


SMT
Position accuracy:20 um
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
Max. component height::25mm Max. PCB
size:680×500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
Max. PCB width:450mm
Wave-Solder
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
Metal type :part, whole, inlay, sidestep
Metal material:Copper ,
Aluminum
Sweat-Solder
Surface Finish:plating Au, plating sliver , plating Sn
Air bladder rate:less than 20%
Press-fit
Press range:0-50KN
Max. PCB size:800X600mm
Testing
 ICT,Probe flying,burn-in,function test,temperature cycling

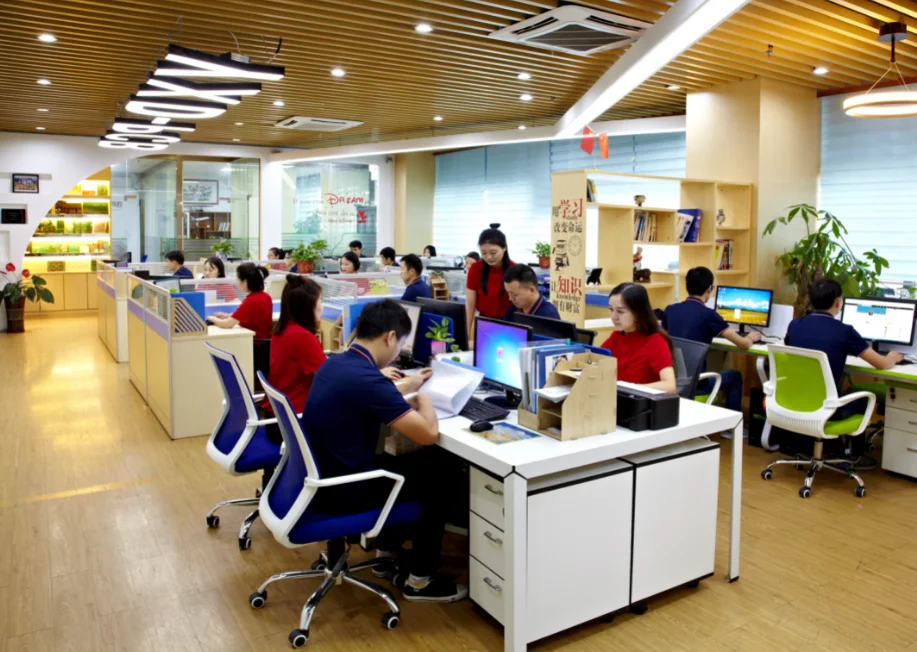

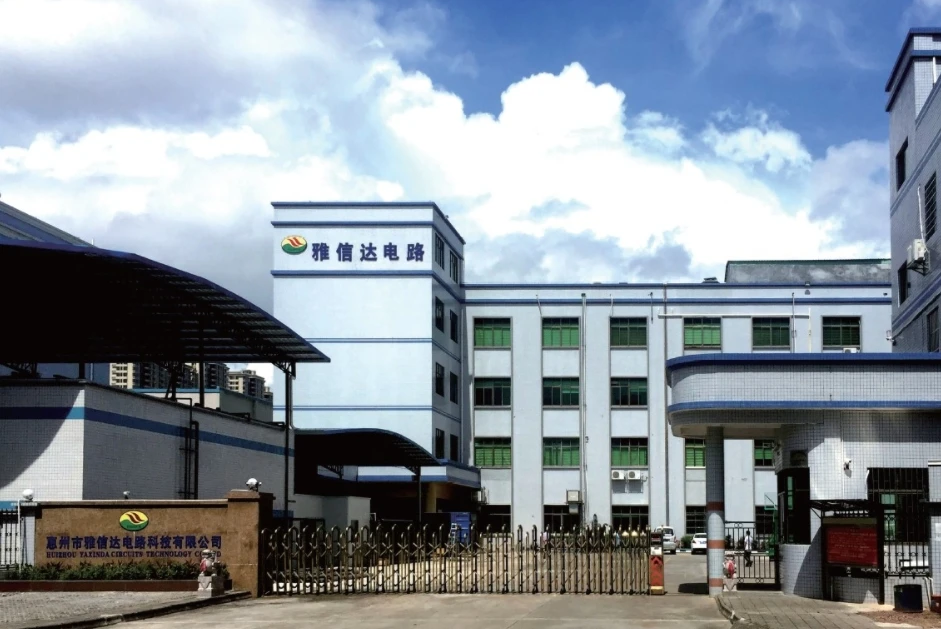

Company Profile




Established in Huizhou Guangdong province In 2007, Yaxinda Technology has accumulated rich experience in PCB fabrication and Phototype. In 2018, we started our PCBA factory in Shenzhen and regiestered the mother company Meline Group, providing PCB, PCBA and components sourcing turnkey service. Besides, we have another two offices in Chengdu and Chongqing. And the third factory is under construction in Jiangxi Province to improve our annaul capacity.




Photos












Our Advantages

1. Enquires and consultation responded within 2 hours.

2. Regular orders on time delivery over 90%,urgent orders on time delivery over 99%

3. Experienced PCB manufacturing services team

4. Complete materials in stock, including special materials such as Rogers, Nanya, Teflon

3. We provide urgent service for prototype projects. The lead time is 24-hour  for double-sided boards, 48-hour for 4-Layers, and 72-hour for 6-10 Layers at the soonest.

5. We have our own factory ,can provide extremely competitive price.

6. We offer flexible payment terms: prepayment, payment after delivery; monthly payment. We will try best to meet you payment terms.

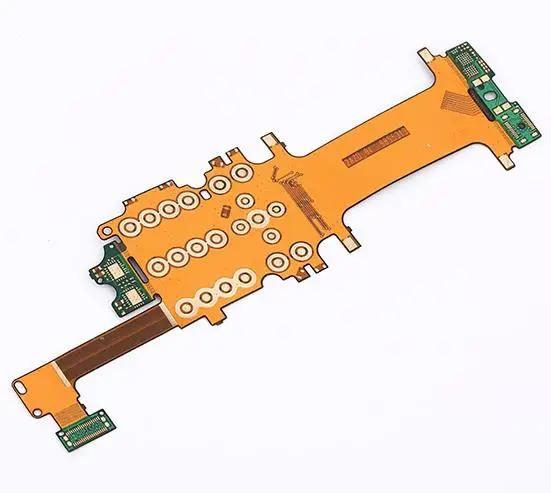

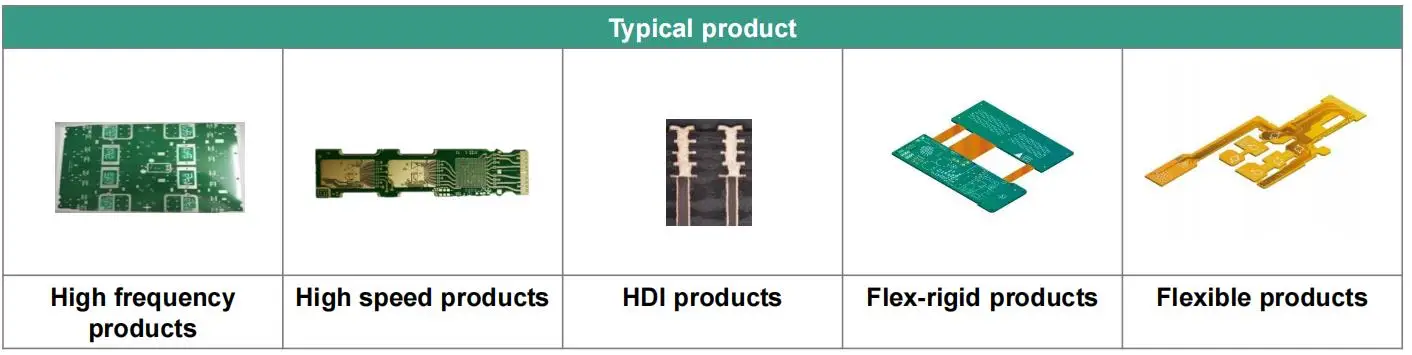

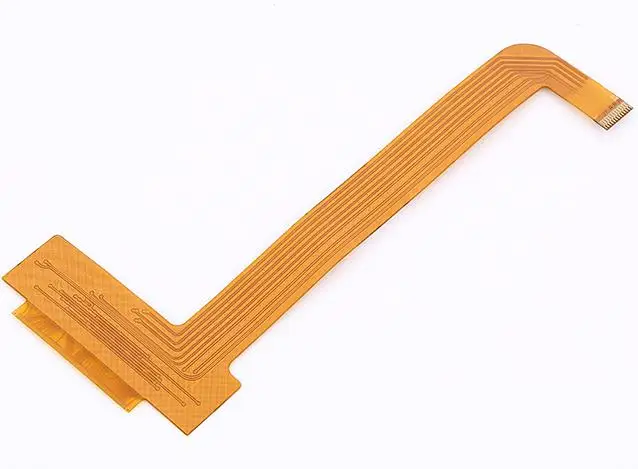

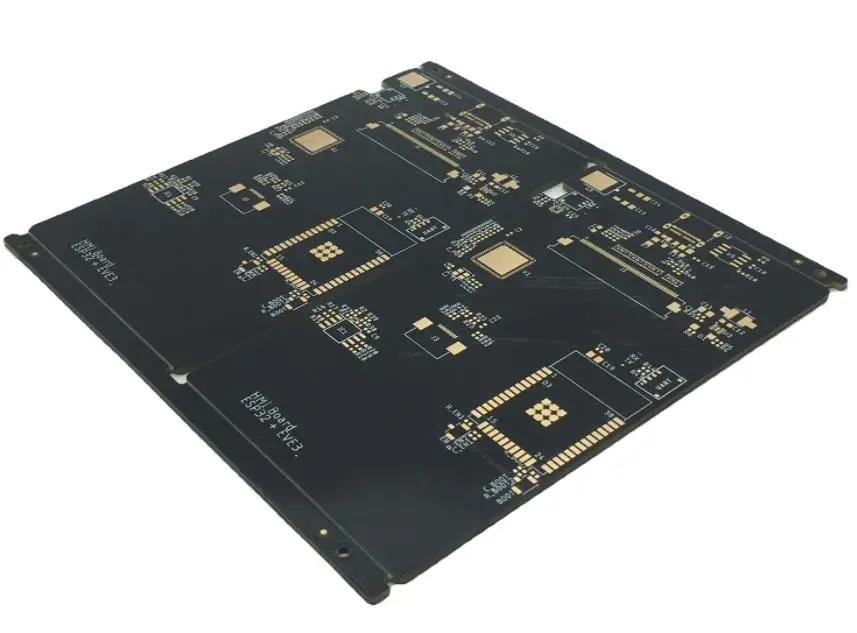

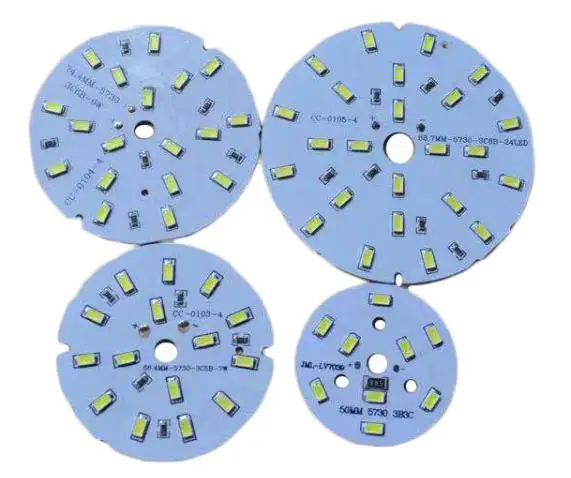

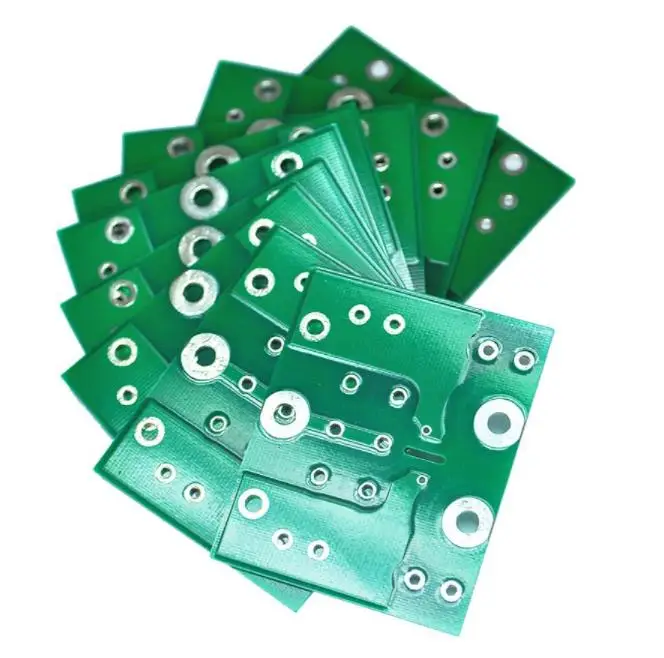

7. We can do all types highly difficult board such as: HDI、Multilayer PCB(1-32)、impedance board、blind-bury board, flexible board、flex-rigid board、heavy copper、Half hole and Ceramic .

9. We are the VIP customer of UPS,1 day shipping time to America, 2 -3days shipping time to Europe (working day).

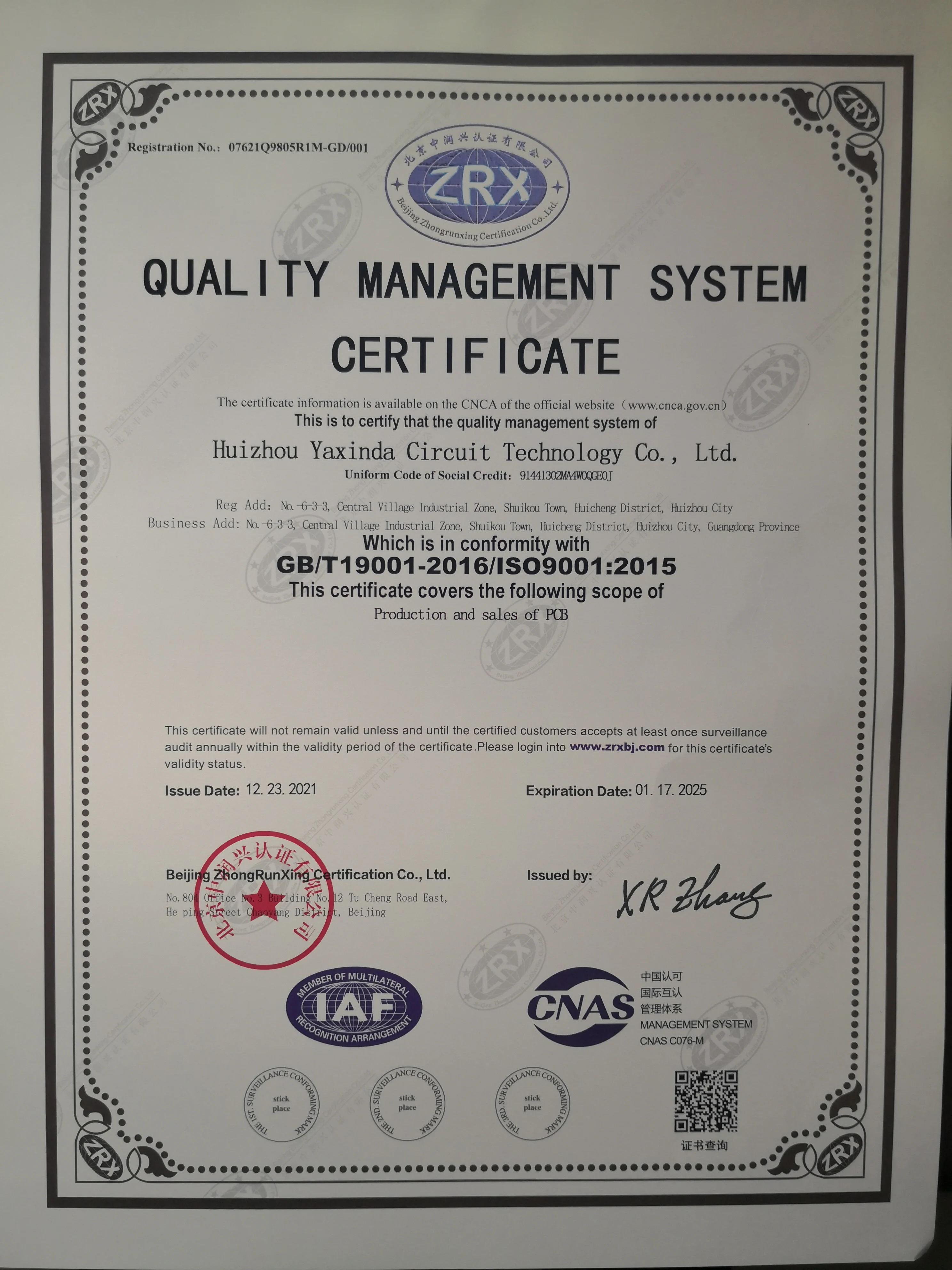

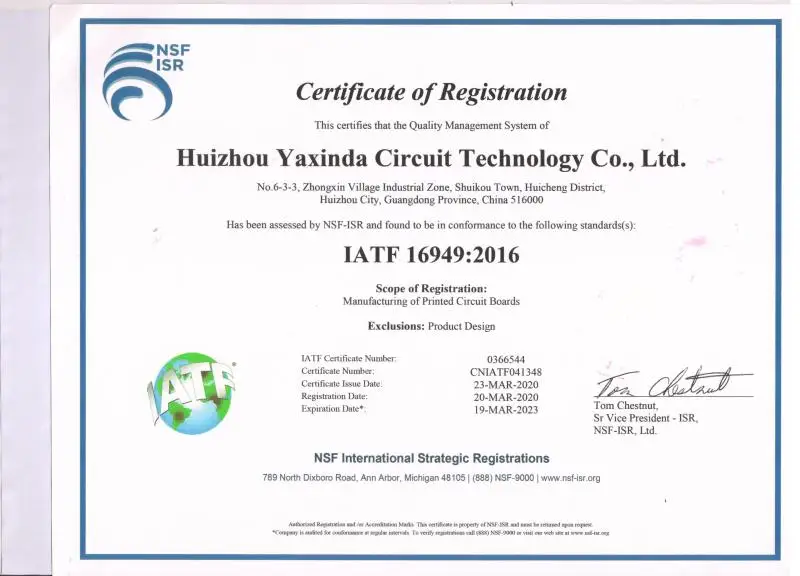

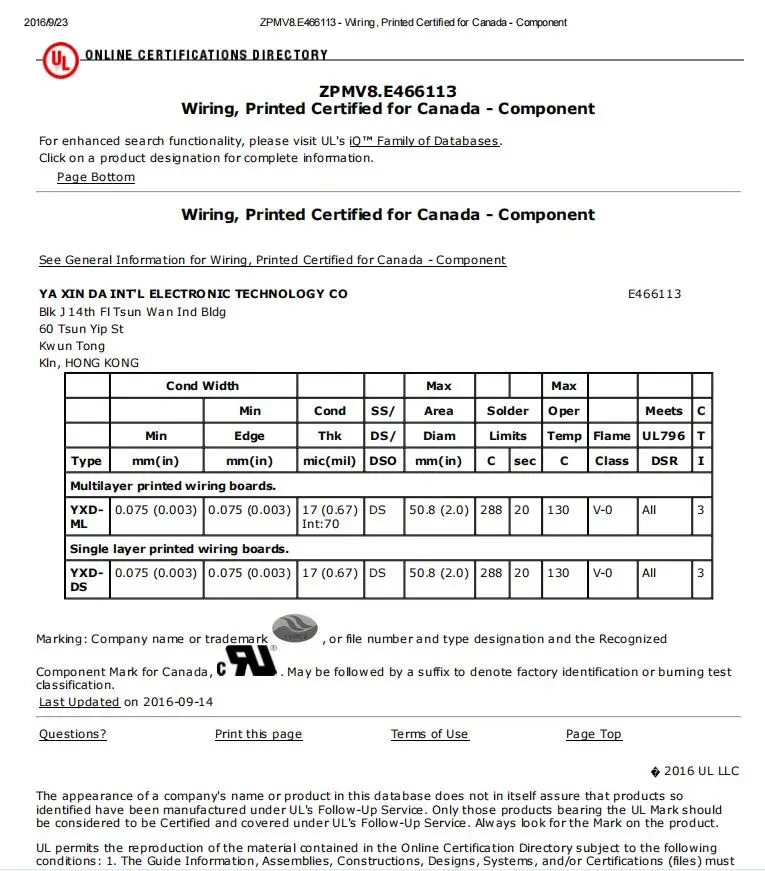

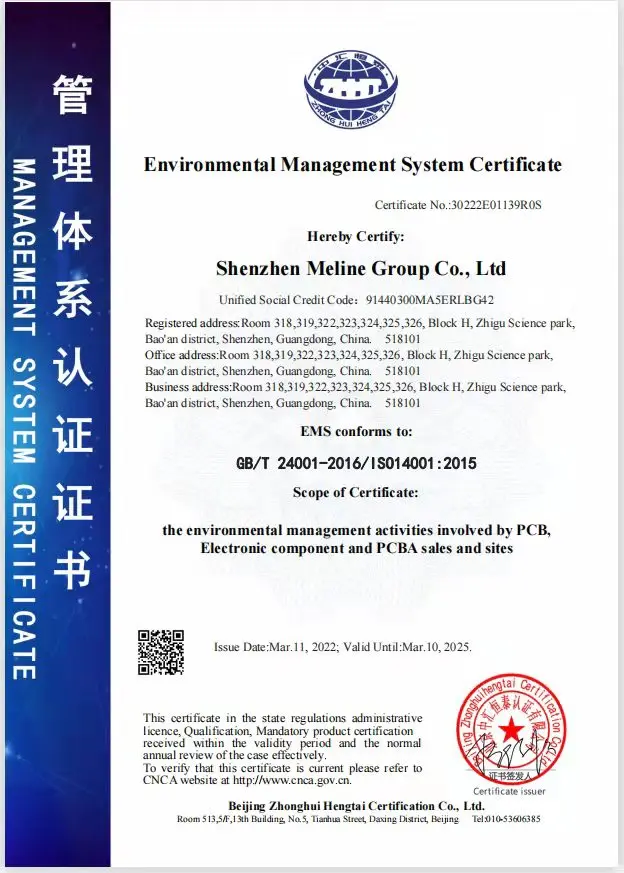

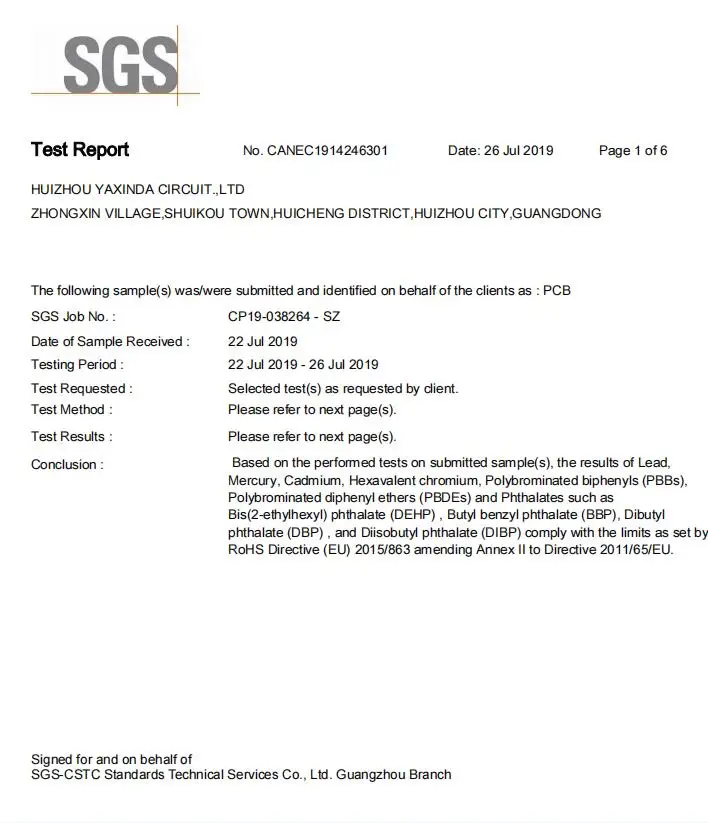

10. We got all related Certification:  UL, ISO 9001,SGS, RoHS, IATF16949.










What information we need to quote and produce for your project?


board layers
like 2 layers, 4 layers, 6layers, we check according to gerber
Material
FR4,tg135,tg150; if no requirement, we usually choose tg135 or tg150
Board Thickness
like 1.2mm, 1.6mm, default tolerance +10%,-10%
Surface finish
e.g. Immersion Gold(AU:2u"), HASL Lead Free
Single Size
e.g. 66*65mm
Panel size length
e.g. 132mm
Panel size width
e.g. 140mm
copper thickness
if no requirement, in default 1oz
soldermask color
if no requirement, in default green
soldermask sides
in default both sides
silkscreen color
in default white
silkscreen sides
According to the gerber
min drill hole
According to the gerber
hole wall thickness
According to the gerber
min line width
According to the gerber
min line space
According to the gerber
cross board
if no requirement,in default 10% x-out/cross board
manufaturer's logo
if no requirement we decide, we may add logo, may not
UL Logo
if no requirement, we decide, we may add yaxinda UL, may not add UL if not convenient.
week year format
like:WWYY or YYWW, if no requirement, we decide by ourself
E-Test Stamp
We do e-test for all products; if no special requirement, we may not add the stamp or silkscreen print on the board;
Package requirment
if no requirement, we choose normal package.
shipment report
if no requirement, we decide, usually Sliced solder sheet plus full set of report, COC material certificate
Inspection standard
IPC Class II in default
Lead Time
check quotation sheet;  usually 7-30 working days for most orders after confirmed EQ; For urgent orders, 3-5 days
Complex boards
If flexible,rigid-flex,alumminum,ceramics,multi-layer over 10, HDI,min line width/spacing smaller than 4mil, board thickness too
thick or thin, special techniques, it takes longer time and higher price.

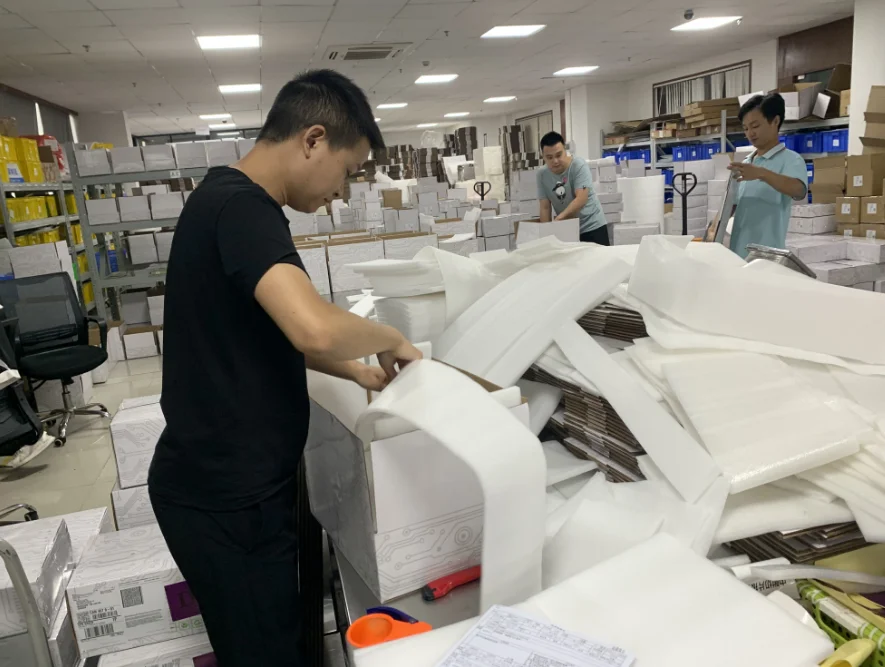

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ


1, What service could you provide?
We could provide PCB prototype,PCB fabrication, PCBA design, PCB assembly,Components procurement.
2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technical requirements(material,size, surface finish treatment, copper thickness,board
thickness etc.)
For PCBA: PCB information, BOM,Testing documents.
3, How to keep our product information and design file secret ?
We could sign NDA associate by customers side local law for protecting customers confidential business
4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control, IOT, Smart Home, security equipment,Military, Aerospace.
5, What is your minimum order quantity (MOQ)?
Our MOQ is 1 PCS, we welcome samples, small orders as well as mass production.
6, Are you a factory?
Yes, our PCB factory is located in Huizhou, and PCBA factory in Shenzhen, China.Both cities are neibours next to Hong Kong.
7.How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
8.What payment terms do we accept?
Prepayment, down payment and montly payment available.
