Product Description
China high air pressure mining button 152mm hard rock dth hammer water well drill bits
Our company mainly deals in various types of high, medium and low wind pressure down-the-hole impactors, drill bits, drill pipes, follow-up pipes, eccentric concentric drill tools, pipe extubation, reverse impact impactors and reverse circulation impactors. Various types of water well drilling rigs, blasting drilling rigs and their accessories. Products are widely used in mines, hydropower, transportation, slope anchoring, ground source heat pumps, etc. The drill tools produced have the characteristics of high drilling efficiency, low failure rate, and long service life.China high air pressure mining button 152mm hard rock dth hammer water well drill bits Down the hole bits advantage
1. The longer life of the drill : longer using life
2. High Drilling Efficiency : the drill button is wear -resistant ,so that the drill can always
keep sharp ,thus greatly improving the speed of the drilling
3.The drilling speed is stable : the bit is scraped and cut to break the rock
4. Good perforemance
5.The use of a wide range : 9-grade drillability of rock,hard rock drilling
1. The longer life of the drill : longer using life
2. High Drilling Efficiency : the drill button is wear -resistant ,so that the drill can always
keep sharp ,thus greatly improving the speed of the drilling
3.The drilling speed is stable : the bit is scraped and cut to break the rock
4. Good perforemance
5.The use of a wide range : 9-grade drillability of rock,hard rock drilling

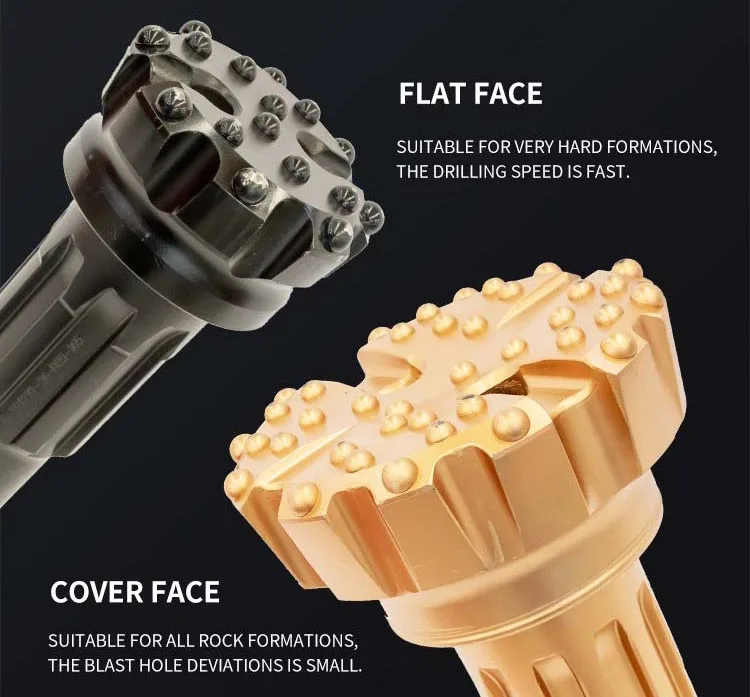

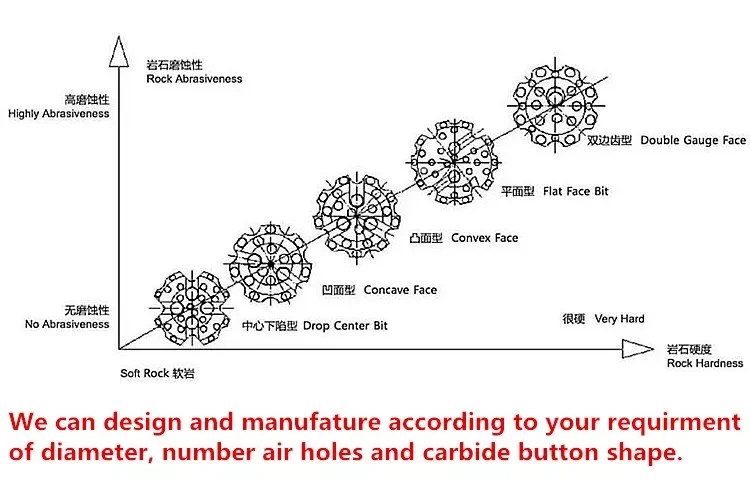

Bit face shape selection:China high air pressure mining button 152mm hard rock dth hammer water well drill bits
1. Drop Center Bit For high penetration rates in soft to medium hard and corrosive rock formations. Low to medium air pressures.Maximum hole deviation control.
2. Concave Face
The all-round application bit face specifically for medium hard and homo generous rock formations. Good hole deviation control and good flushing capacity.

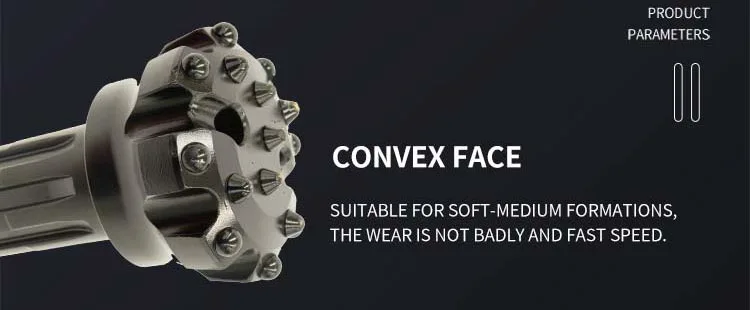

3. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
5. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures.Good penetration rates an resistance to steel wash.
1. Drop Center Bit For high penetration rates in soft to medium hard and corrosive rock formations. Low to medium air pressures.Maximum hole deviation control.
2. Concave Face
The all-round application bit face specifically for medium hard and homo generous rock formations. Good hole deviation control and good flushing capacity.
3. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
5. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures.Good penetration rates an resistance to steel wash.

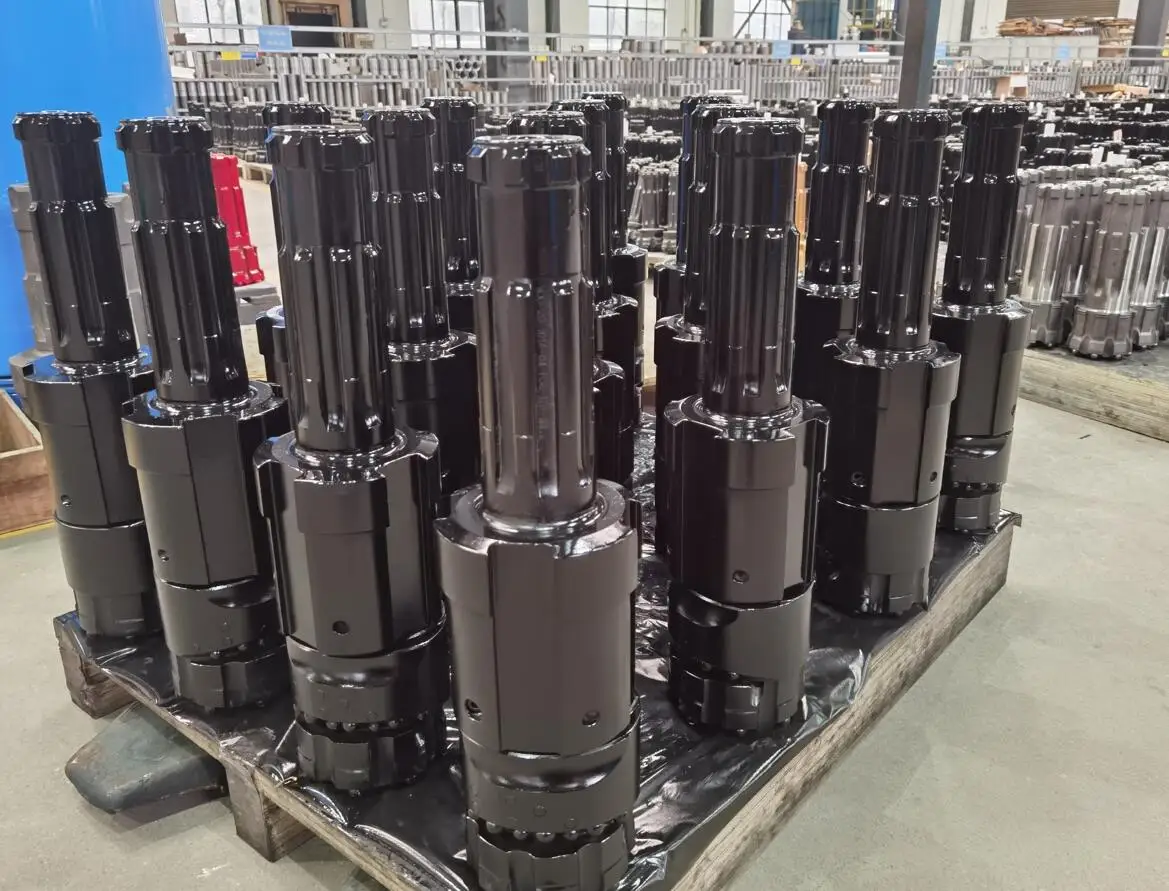

we also have Eccentric bit,following is its pictures , this drill bit can protect your hole
Specification
6 inch High wind pressure down-the-hole drill bit | ||||||||||||
Drill head diameter(mm) | Number of spline keys | Number of exhaust holes | Side teeth | Middle tooth | Weight(KG) | |||||||
ND65(DHD360、COP64) | 152 | - | 2 | 8XØ18 | 7XØ16 | |||||||
165 | - | 2 | 8XØ18 | 8XØ16 | ||||||||
175 | - | 2 | 8XØ18 | 10XØ16 | ||||||||
190 | - | 2 | 10XØ18 | 12XØ16 | ||||||||
203 | - | 2 | 10XØ18 | 13XØ16 | ||||||||
NSD6 | 152 | - | 2 | 8XØ16 | 7XØ16 | |||||||
165 | - | 2 | 8XØ18 | 8XØ16 | ||||||||
175 | - | 2 | 8XØ18 | 10XØ16 | ||||||||
190 | - | 2 | 10XØ18 | 12XØ16 | ||||||||
203 | - | 2 | 10XØ18 | 14XØ16 | ||||||||
NQL60 | 152 | - | 2 | 8XØ18 | 7XØ16 | |||||||
165 | - | 2 | 8XØ18 | 8XØ16 | ||||||||
175 | - | 2 | 8XØ18 | 8XØ16 | ||||||||
190 | - | 2 | 10XØ18 | 12XØ16 | ||||||||
203 | - | 3 | 10XØ18 | 13XØ16 | ||||||||
NM6 | 152 | - | 2 | 8XØ18 | 8XØ16 | |||||||
165 | - | 2 | 8XØ18 | 10XØ16 | ||||||||
171 | - | 2 | 8XØ18 | 10XØ16 | ||||||||
190 | - | 2 | 10XØ18 | 12XØ16 | ||||||||
203 | - | 2 | 10XØ18 | 14XØ16 | ||||||||

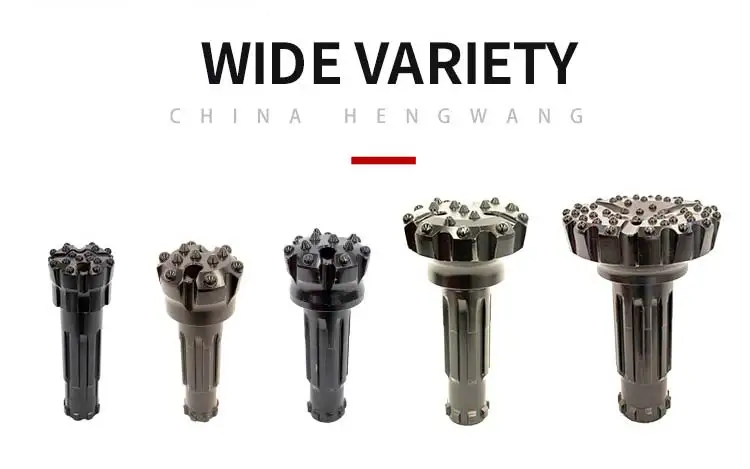

Our factory manufactures drill bits of various sizes, and also produces impactors and drill rods, please contact us if you need anything.China high air pressure mining button 152mm hard rock dth hammer water well drill bits

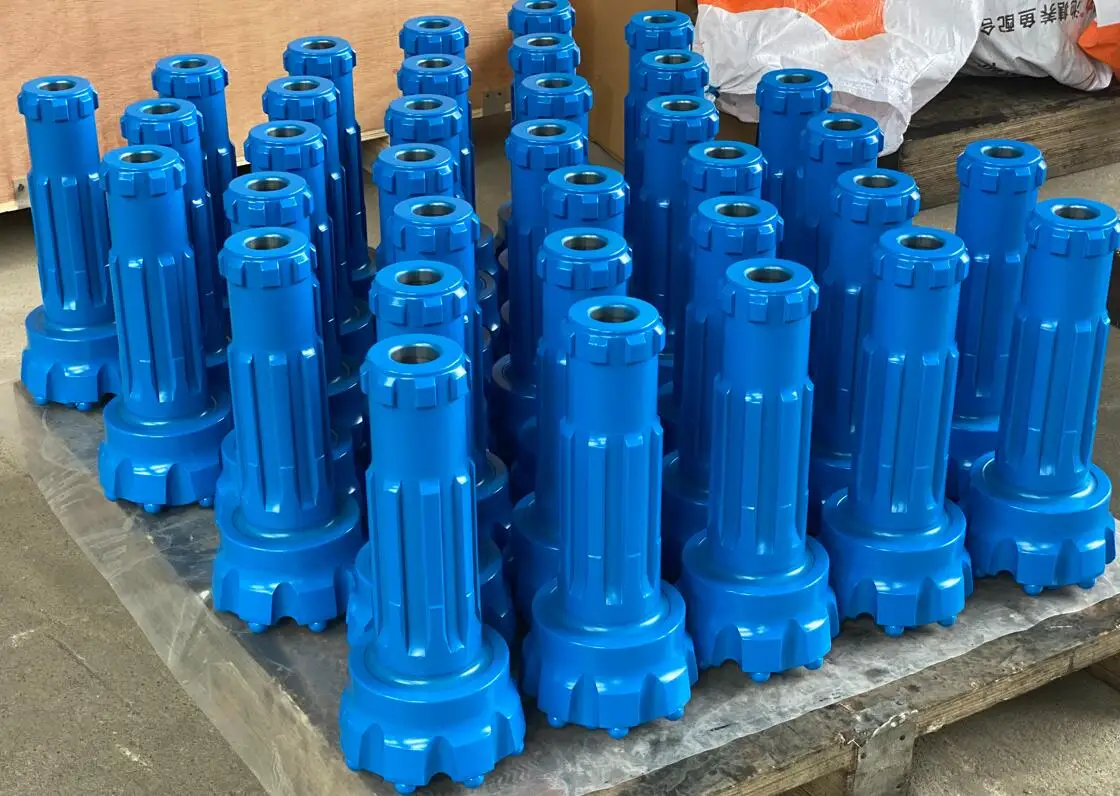

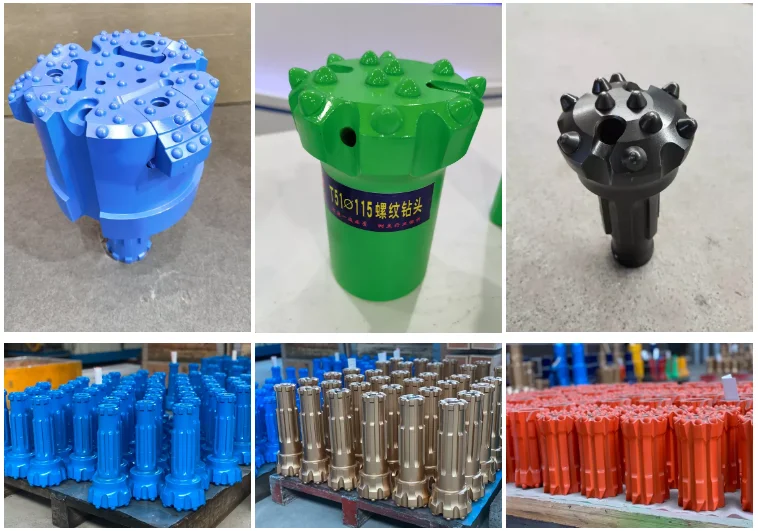

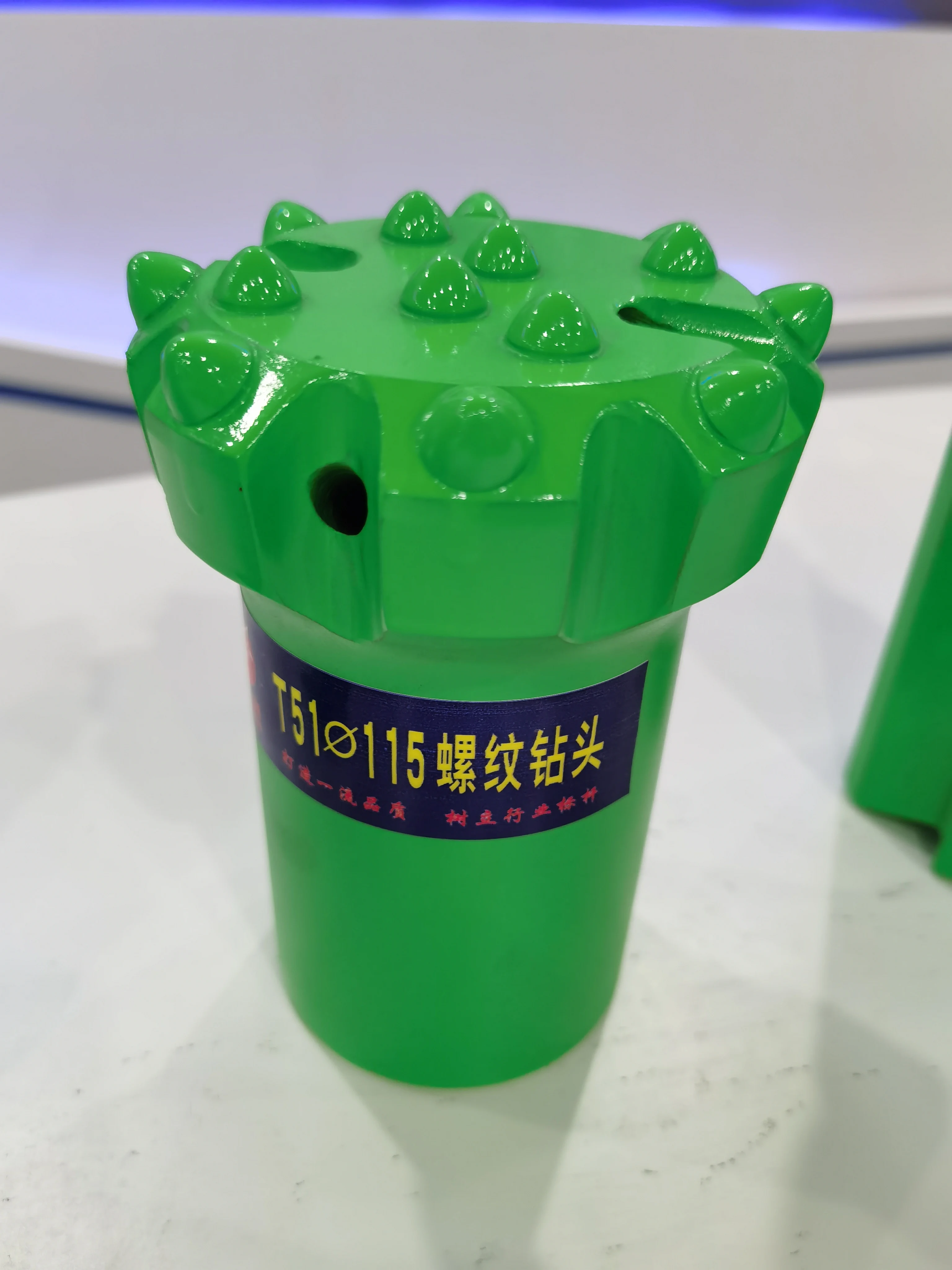

Details Images
General application, any special requirements, please consult us.

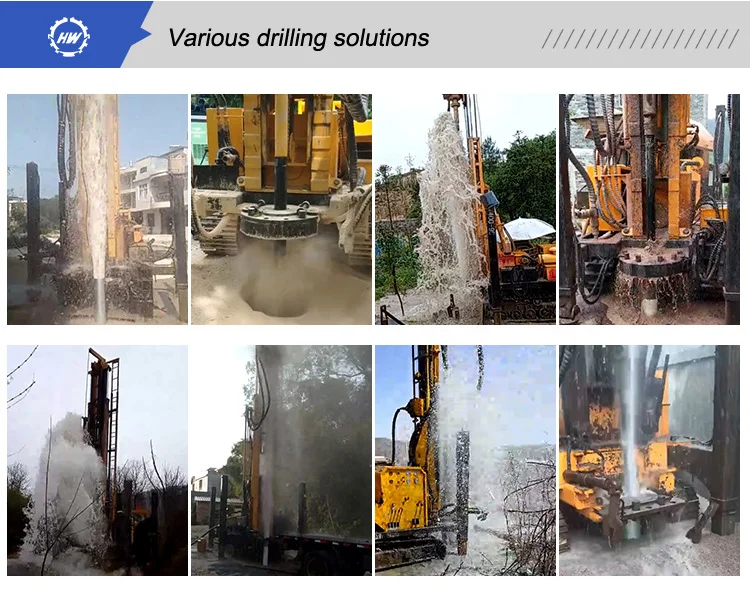

Application
The application of DTH hammer
There are four types of end face design for high wind pressure DTH bits: end face convex type
,End face plane type, end face concave type and end face deep concave center type. Cemented carbide
mostly adopts ball teeth, spring teeth or tooth distribution mode shared by ball teeth and spring teeth.
The DTH drill bit mainly used in geological exploration,coal mine,water conservancy and hydropower
,highway ,bridge,construction etc. China high air pressure mining button 152mm hard rock dth hammer water well drill bits

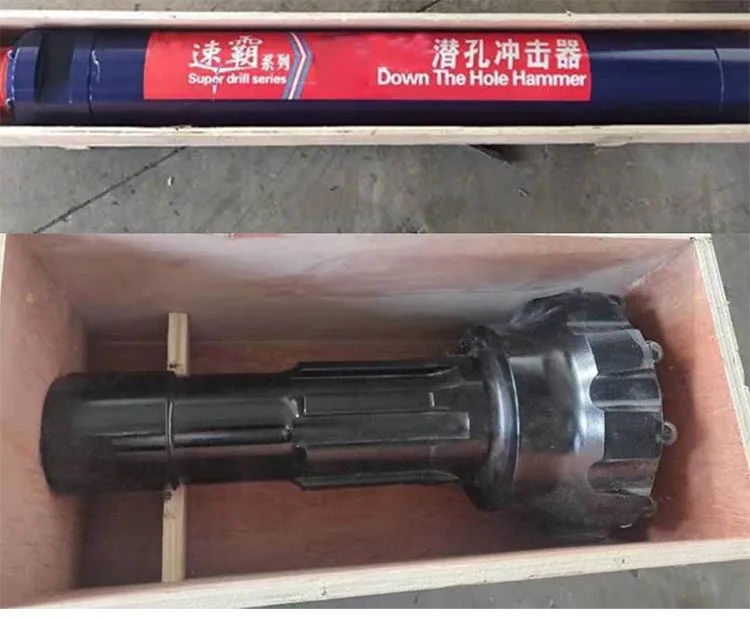

Packing & Delivery
this dth hammer drill bit should be packed by wooden box,if your quantity is large ,we should send by sea,so please let us know the quantity you want.
Related Products

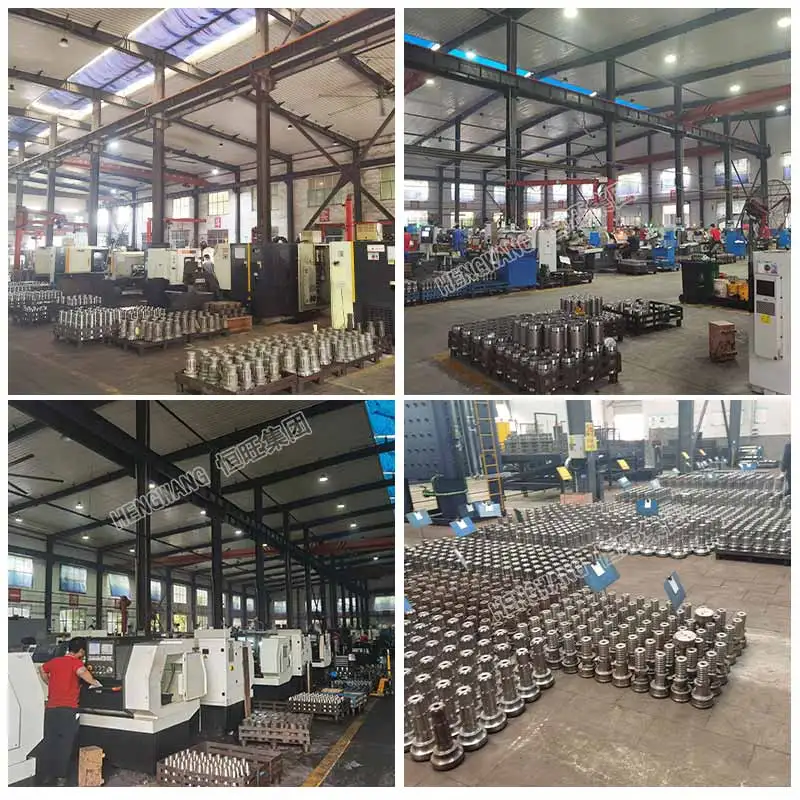

Company Profile
Shandong Hengwang Group Co., Ltd. is located in Shiqiao Industrial Park, Jining City, Shandong Province, China. Our Group occupies an area of about 40,000 square meters.It is a comprehensive enterprise integrating piling and drilling rig design, manufacture and installation.also produce all kinds of drilling tools.
Our group has over 300 workers, 35 senior engineers and 260 salesmen. The main processing equipment quantity reaches
100sets,including of CNC lathe machines, advanced guide way grinder, and TK611-1A CNC milling & boring machine.
Our group has over 300 workers, 35 senior engineers and 260 salesmen. The main processing equipment quantity reaches
100sets,including of CNC lathe machines, advanced guide way grinder, and TK611-1A CNC milling & boring machine.
If you have any questions for this dth hammer drill bit,please contact me as below,i will stand by 24 hours.Thanks
