Product Description

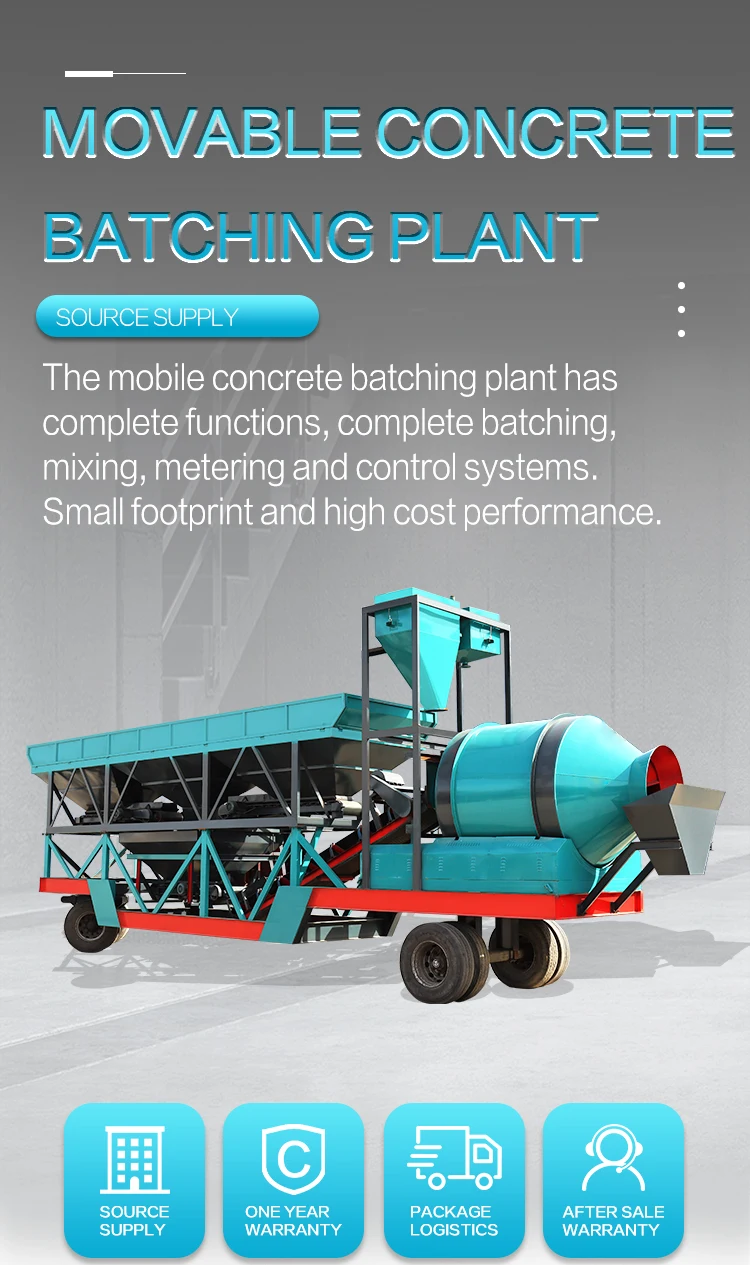

Mobile Concrete Batching Plant
Mobile concrete batching plant is a mobile concrete batching plant. Through ingenious design, the batching system, weighing system, mixing host, storage, unloading and automatic control system of the batching plant are concentrated in one trailer unit, and the movement of the batching plant is realized through the trailer. It also has the advantages of flexible movement, simple and quick disassembly and assembly, and stable performance. For on-site engineering such as railways, highways, ports, bridges, hydro power projects, etc.
FEATURES:
1. It is convenient and flexible to move. The structure is simple, the disassembly and assembly are convenient, and the construction site can be quickly replaced.
2. Small footprint. The one-piece body design is adopted, and the floor area is much smaller than that of the fixed concrete batching plant.
1. It is convenient and flexible to move. The structure is simple, the disassembly and assembly are convenient, and the construction site can be quickly replaced.
2. Small footprint. The one-piece body design is adopted, and the floor area is much smaller than that of the fixed concrete batching plant.
3. The concrete is evenly mixed and the mixing time is short. It can achieve good mixing effect for dry-hard, semi-dry-hard and plastic ratio concrete.

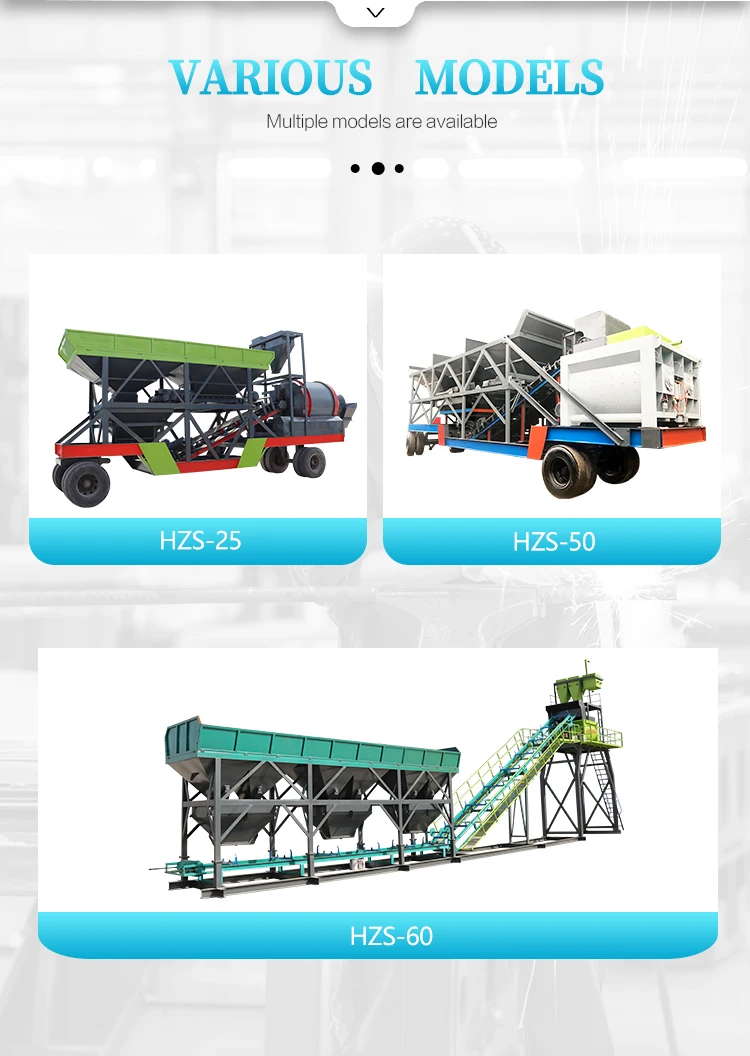

Various Models
Specification
Model | HZS20 | HZS30 | HZS60 | HZS100 |
Production capacity (m3/h) | 20 | 30 | 60 | 100 |
Concrete mixer | JZM500 | JZM750 | JZM1500 | JZM2000 |
Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 |
Discharging height(m) | 4.2 | 4.2 | 4.2 | 4.2 |
Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 |
Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
Control system | Panel | Computer | Computer | Computer |
Total power (kw) | 42 | 46 | 67 | 77.5 |
Total weight(tons) | 12 | 13 | 14.5 | 26 |

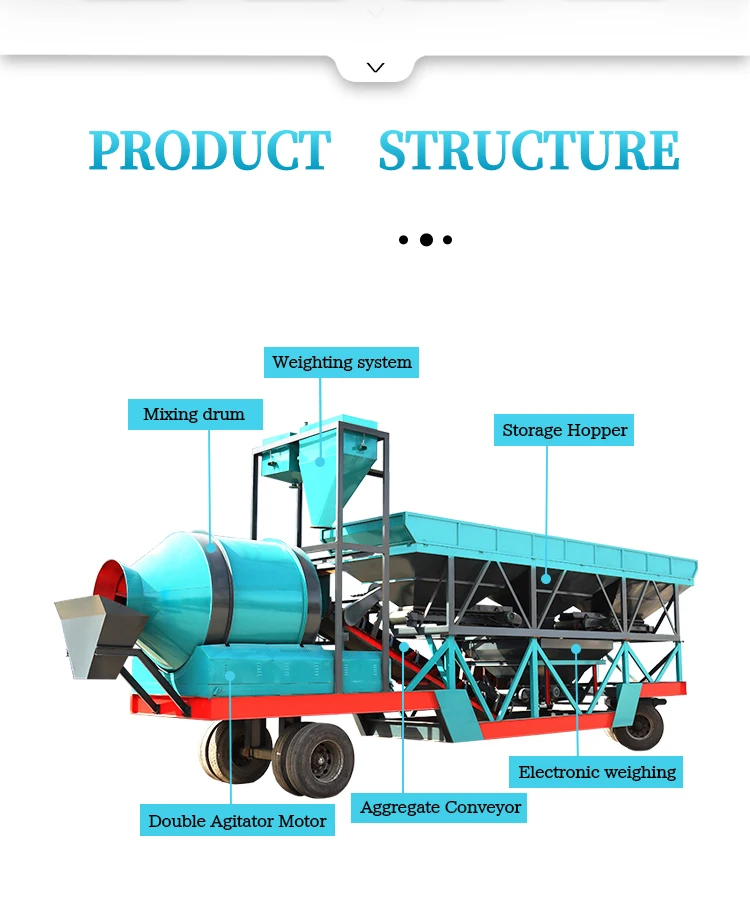

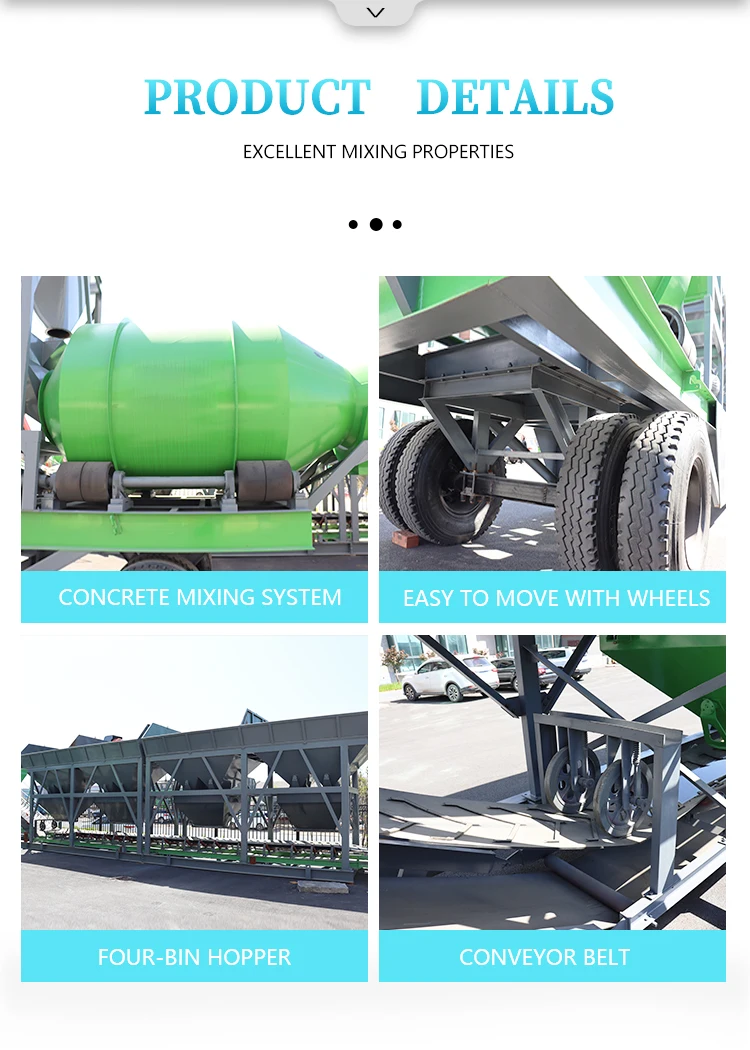

Product Details

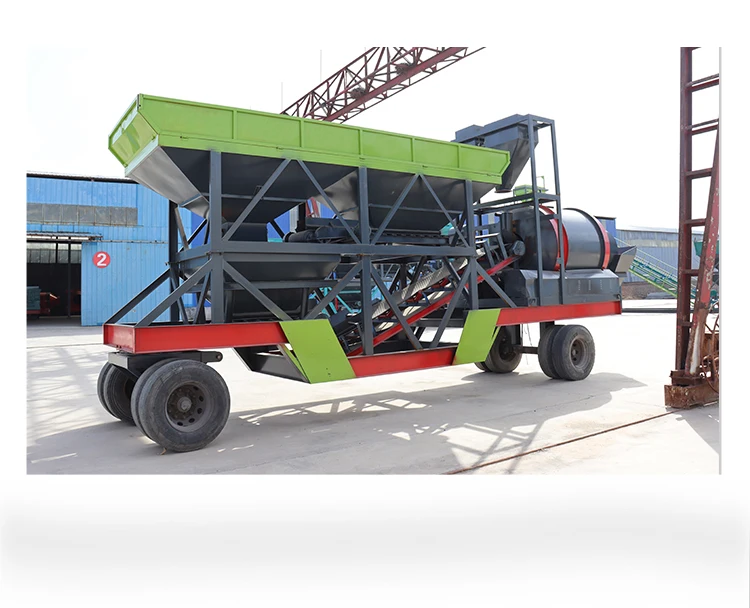

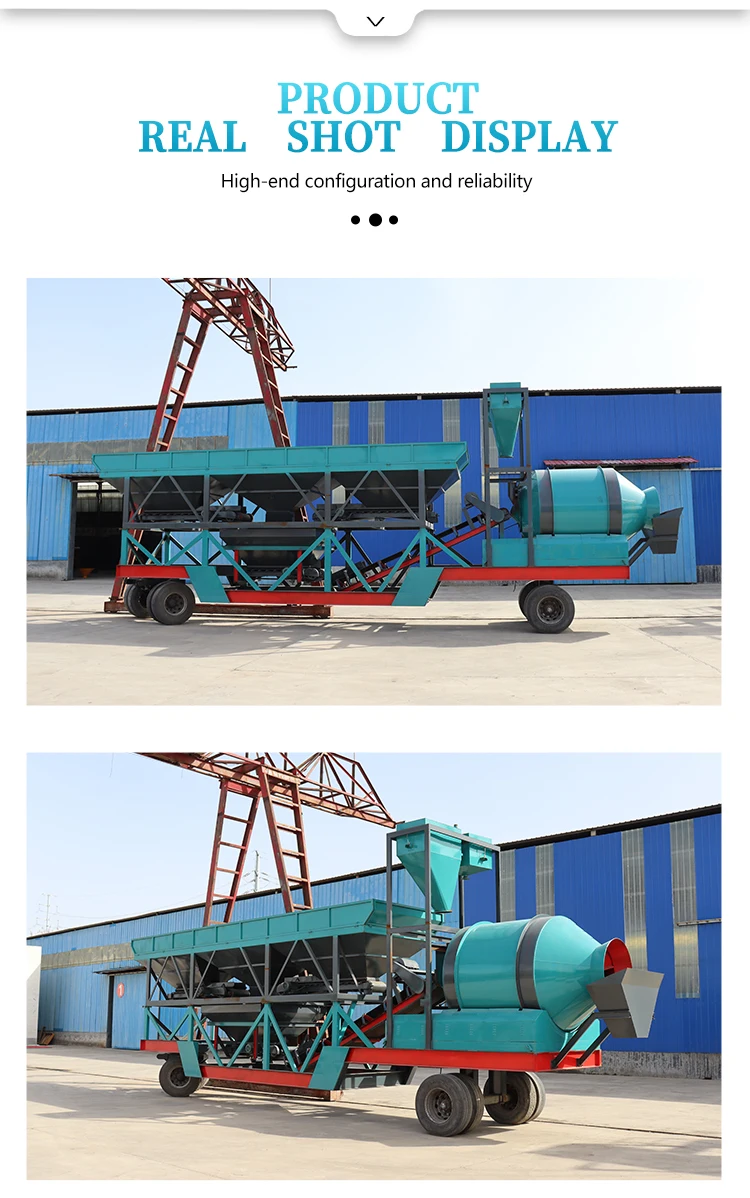

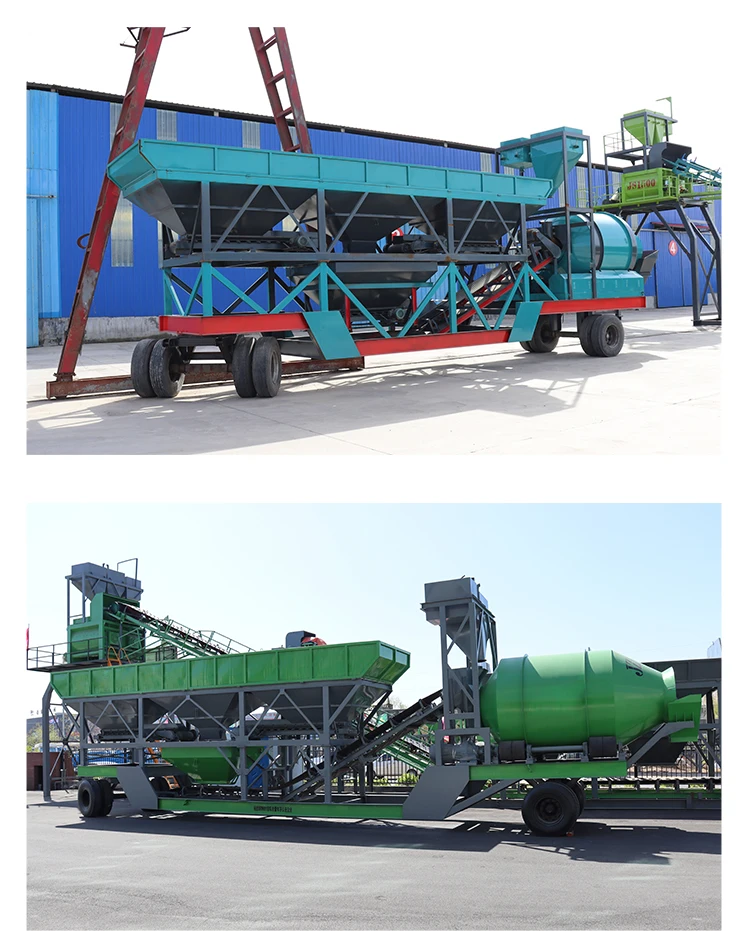

Product Display
Applications
Packing & Delivery

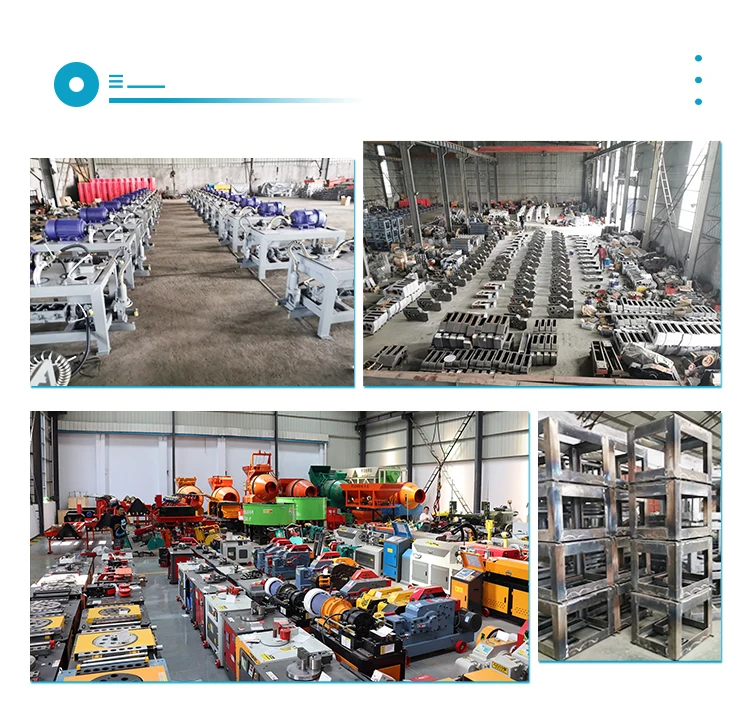

Company Profile
