Электрическая лебедка 4wd 12000 фунтов 12 В электрическая с матовым покрытием заводская цена
- Категории: Hoists >>>
- Поставщик: Hebei,Kailituo,Hoisting,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

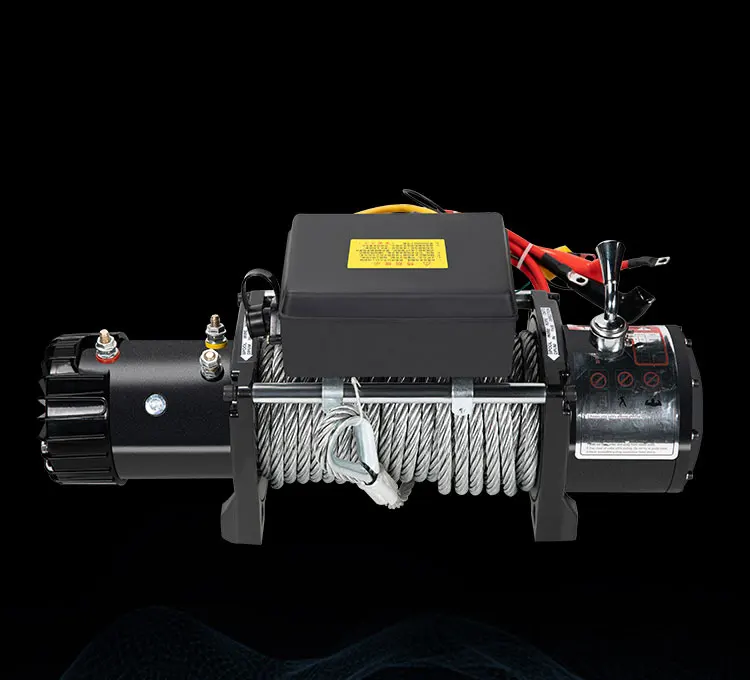

Electric car winch
The car winch is a tool that uses its own power engine to rotate, and pulls out the car in trouble through the fixed or pulling
steel rope or special rope at the other end. It is one of the necessary tools for off-road vehicles.
steel rope or special rope at the other end. It is one of the necessary tools for off-road vehicles.

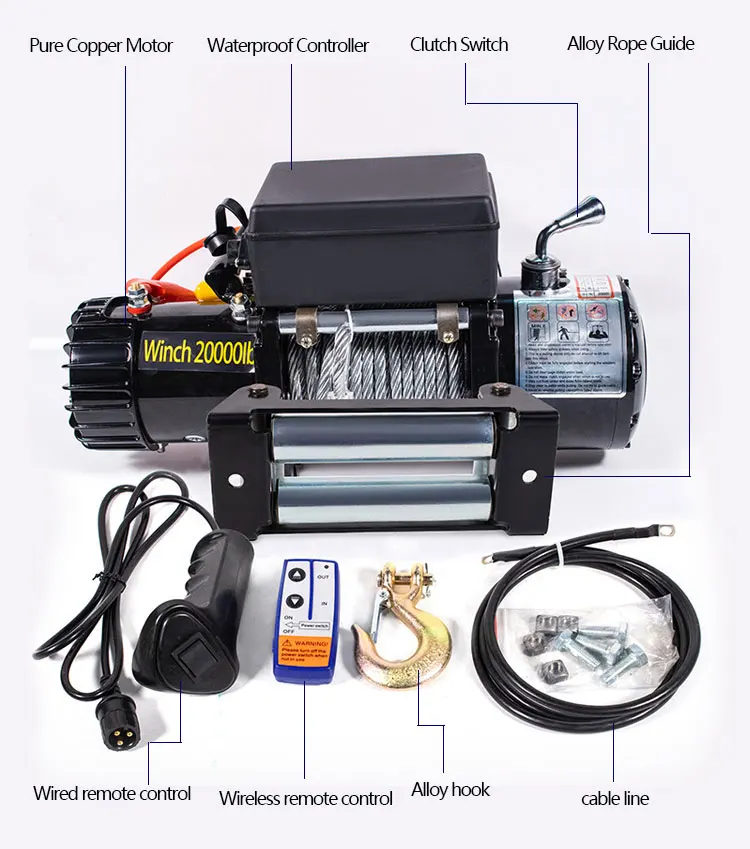

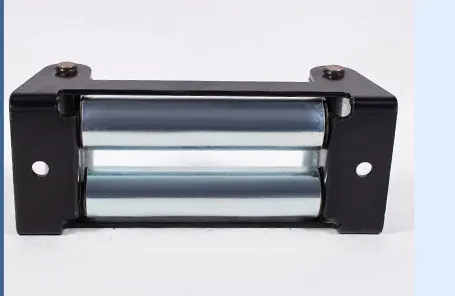

Rope guide
The alloy forged steel cable arrangement is used to make the wire rope go in and out of the coil regularly.

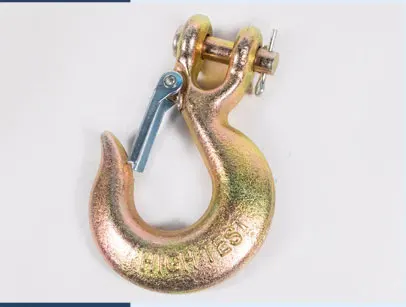

Alloy steel hook
One-piece forging,thickened alloy steel hook,safer to use

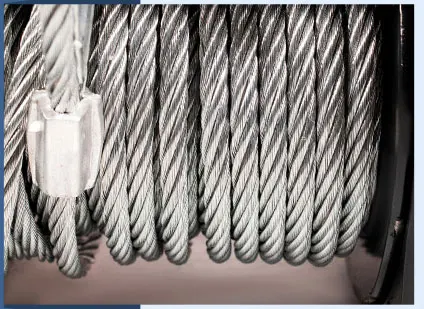

Anti-rotation wire rope
Bold anti-rotation wire rope Wear-resistant and durable for longer use.

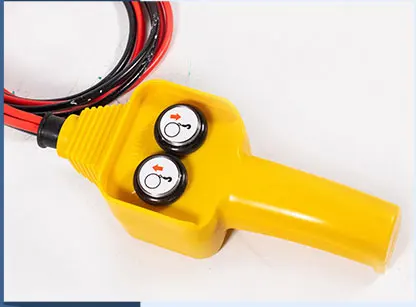

Handle swith
Ergonomically designed handle switch,more comfortable to use.

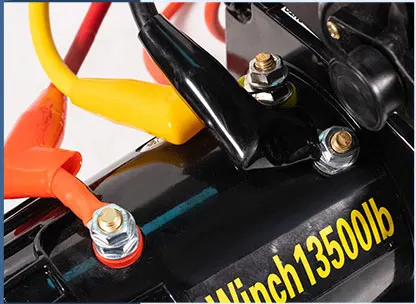

Pure copper binding post
pure copper terminal,stainless steel nut,the current is nore stable.
Specification
Mondel number | 2000lbs | 3000lbs | 3500lbs | 4000lbs |
The output voltage | 12v/24v | 12v/24v | 12v/24v | 12v/24v |
Horizontal traction | 700kg | 1350kg | 1575kg | 1800kg |
Vertical lifting weight | 200kg | 300kg | 350kg | 400kg |
Way to control | Wire/Wireless | Wire/Wireless | Wire/Wireless | Wire/Wireless |
No-load speed | 6m/min | 6m/min | 6m/min | 6m/min |
Wire rope | 4mm*6m | 5mm*6m | 5mm*8m | 5mm*10m |
Motor material | All copper motor | All copper motor | All copper motor | All copper motor |
Product gross weight | 6kg | 7kg | 8kg | 9kg |
Dimensions/min | 286*100*105 | 399*100*105 | 340*110*112 | 353*110*112 |
Mondel number | 4500lbs | 6000lbs | 9500lbs | 12000lbs |
The output voltage | 12v/24v | 12v/24v | 12v/24v | 12v/24v |
Horizontal traction | 2025kg | 2700kg | 4275kg | 5400kg |
Vertical lifting weight | 450kg | 600kg | 800kg | 1000kg |
Way to control | Wire/Wireless | Wire/Wireless | Wire/Wireless | Wire/Wireless |
No-load speed | 6m/min | 6m/min | 6m/min | 6m/min |
Wire rope | 5mm*10m | 7.7mm*14m | 10mm*24m | 10mm*24m |
Motor material | All copper motor | All copper motor | All copper motor | All copper motor |
Product gross weight | 10kg | 24kg | 36kg | 38kg |
Dimensions/min | 332*117*115 | 399*100*105 | 529*160*217 | 575*160*217 |

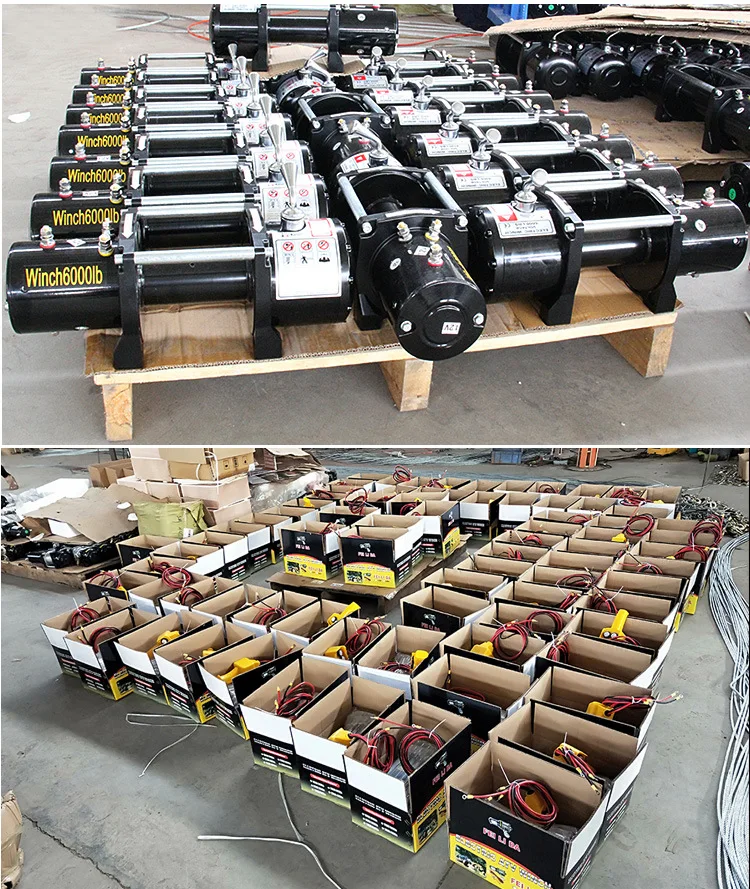

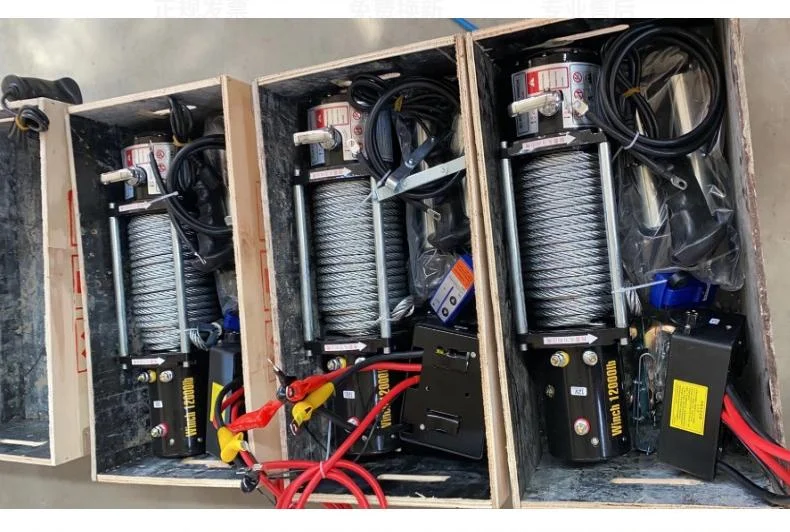

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

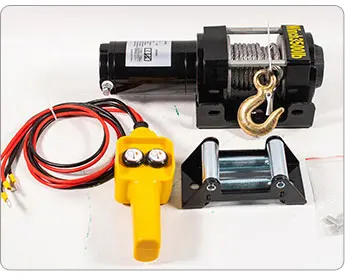

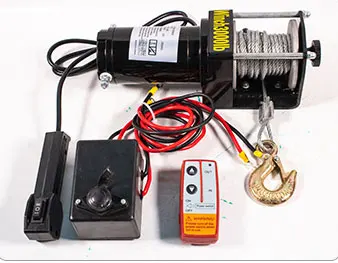

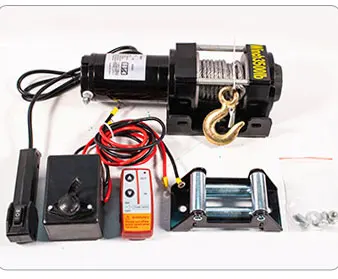

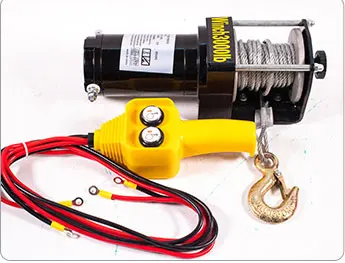

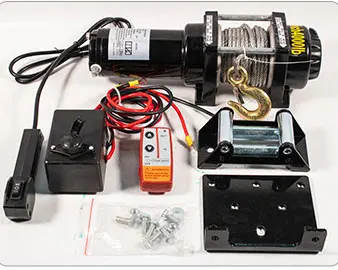

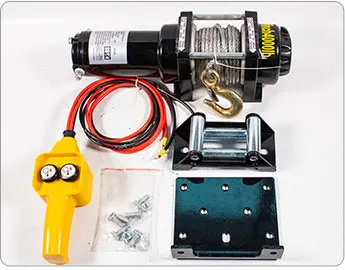

Products real shot
Application
The car winch is mainly used for off-road vehicles, agricultural vehicles, ATV sports vehicles, yachts, and other special
vehicles. It is a device for self-protection and traction of vehicles and boats. It can carry out self-rescue of vehicles in harsh
environments such as snow, swamps, deserts, beaches, and muddy mountain roads, and may perform operations such as clearing
obstacles, hauling items, and installing facilities under other conditions. It is an indispensable safety device for forestry,
transportation, public security, border defense, fire fighting and other field sports.
vehicles. It is a device for self-protection and traction of vehicles and boats. It can carry out self-rescue of vehicles in harsh
environments such as snow, swamps, deserts, beaches, and muddy mountain roads, and may perform operations such as clearing
obstacles, hauling items, and installing facilities under other conditions. It is an indispensable safety device for forestry,
transportation, public security, border defense, fire fighting and other field sports.

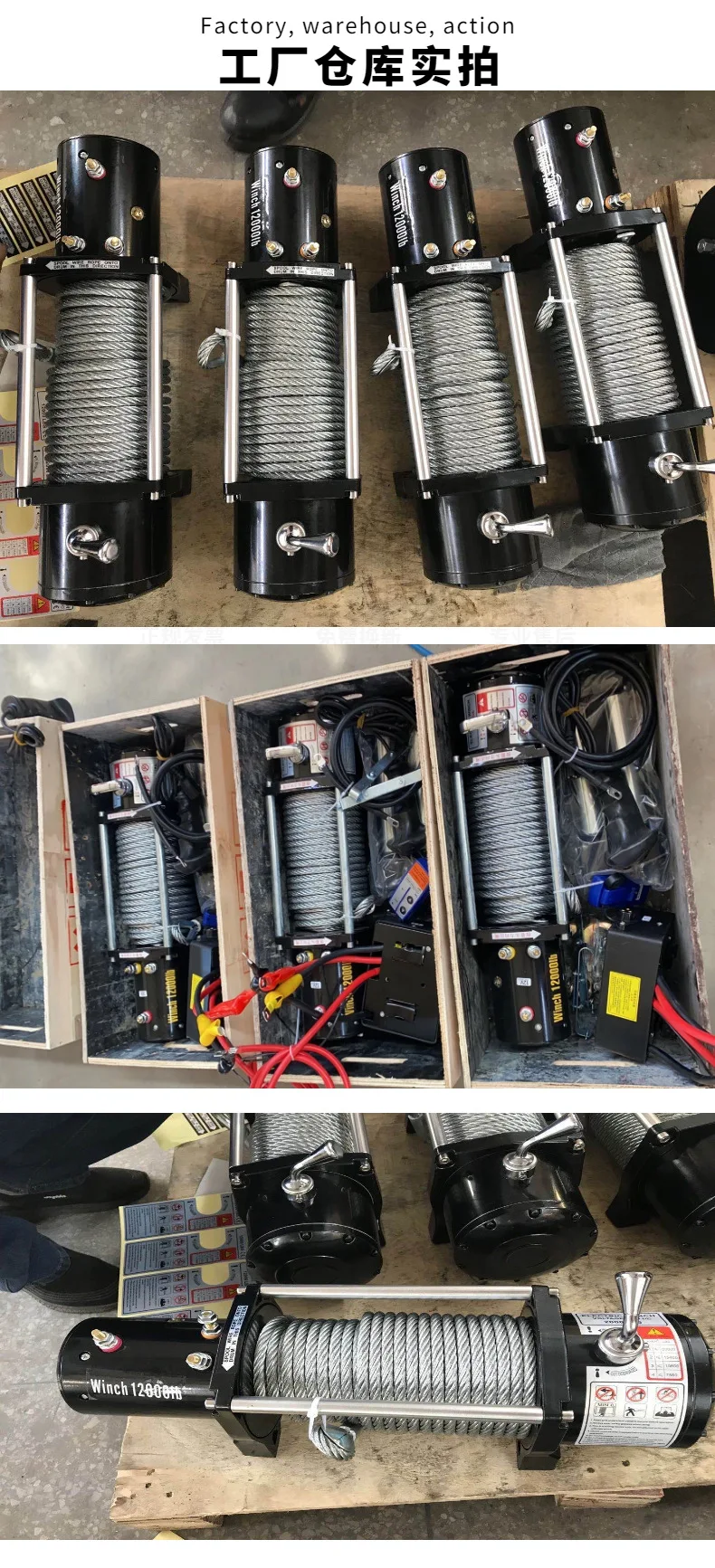

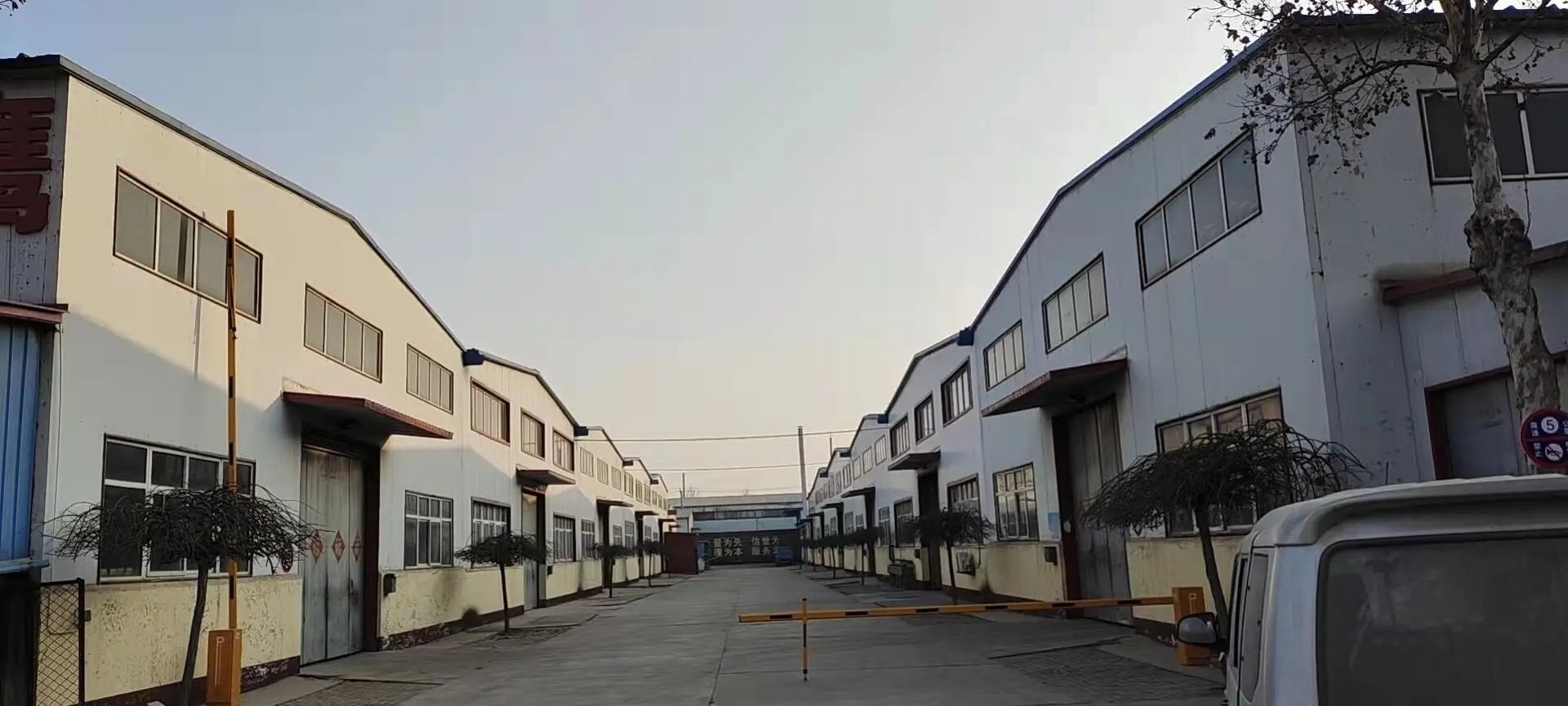

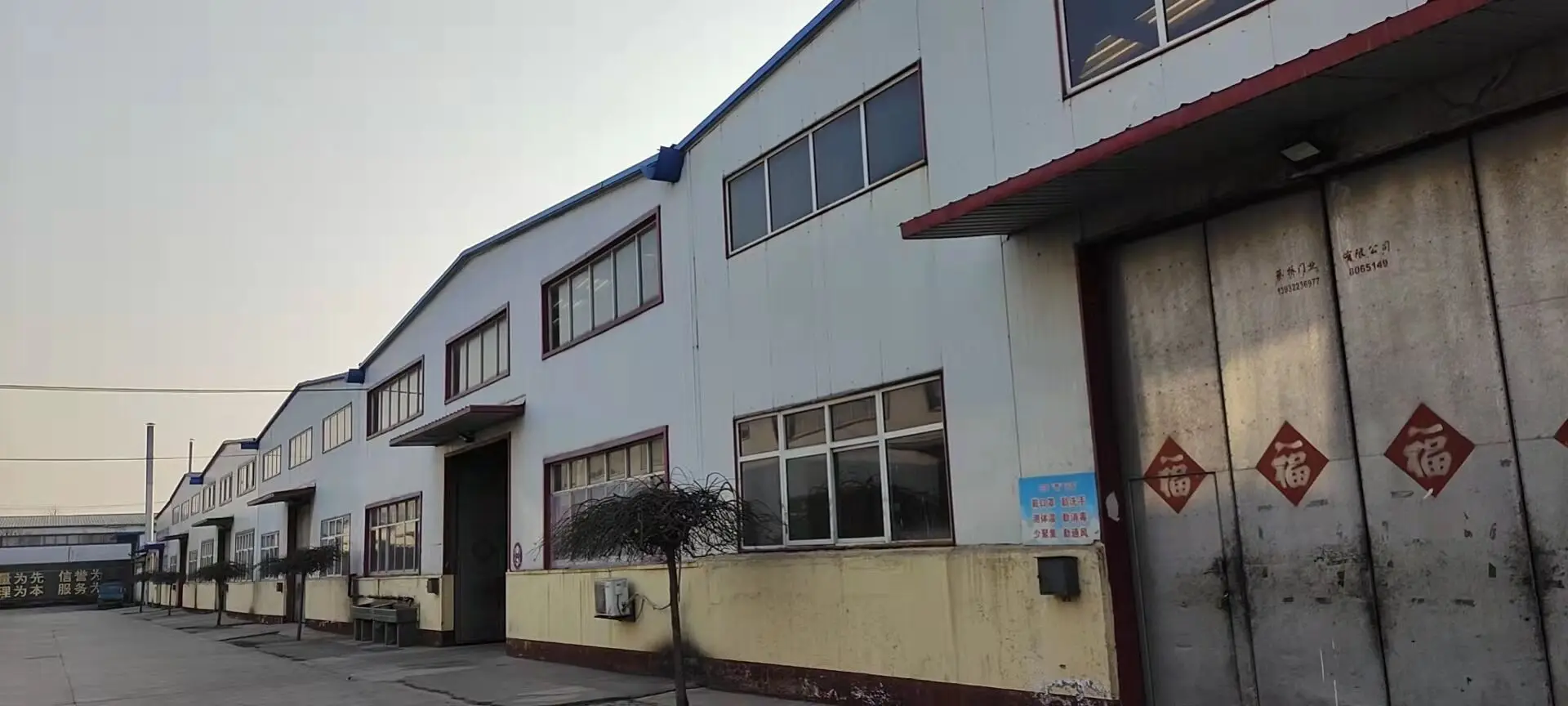

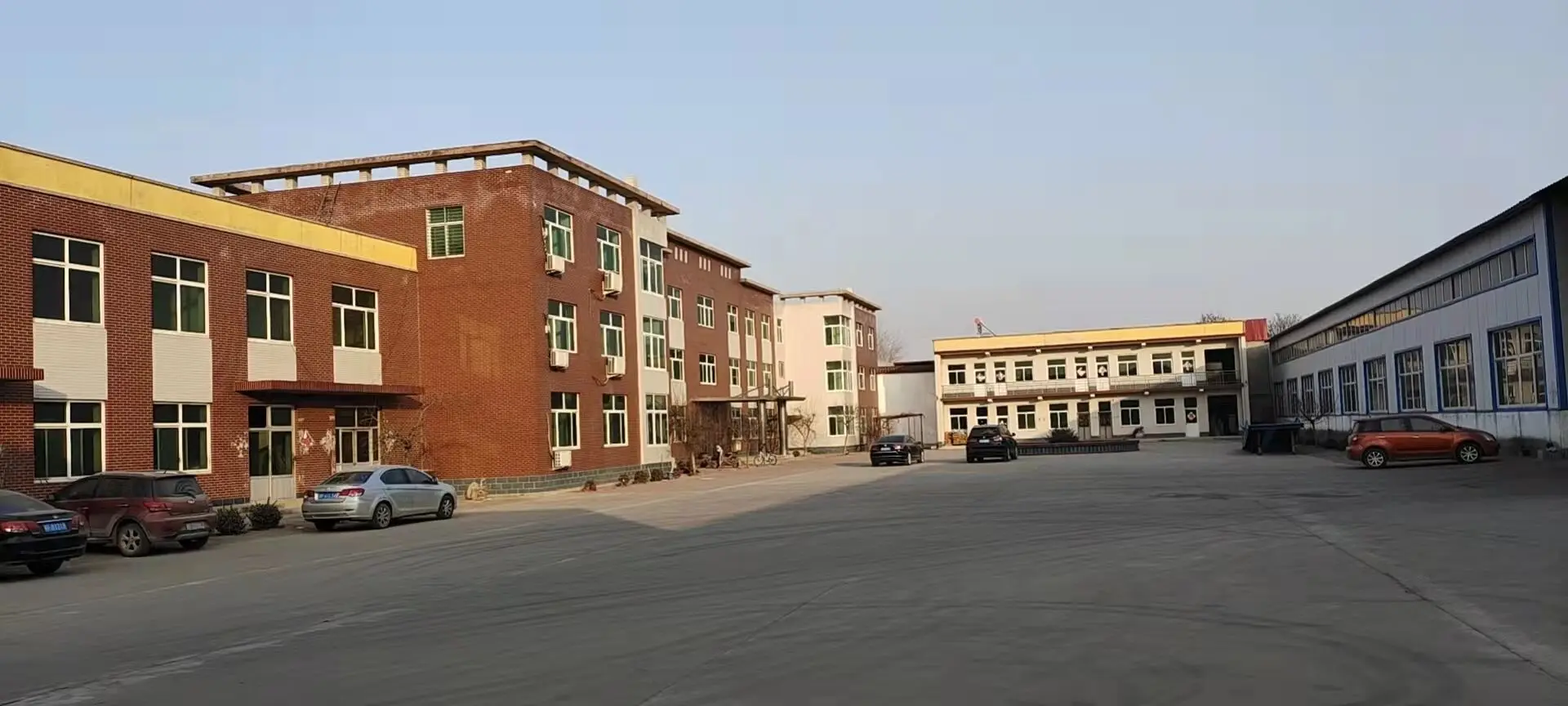

Factory real shooting
FAQ
1.Are you Trading or Factory ?
We are factory, Big quantity order is avaiable to us and the delivery time can be guaranteed
2.How Can I get contact with you about quotation?
We usually quote within 24 hours after we get your inquiry online because of the time difference.
For urgent condition, please call email us so that we will regard your inquiry priority.
3.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you need the
samples, you need pay the express fee, but it will be refundable after order confirmation
when your products amount is more than USD10,000.
4.What information you need to provide for a accurate quotation?
1. Lifting capacity.
2. Lifting height.( hook center to ground)
3. Power supply (Voltage)
4. Span (rail center to rail center)
5. Working condition: which material to lift? temprature?
6. Would be better if you have drawings of your plant.
5.What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order.
About 15-20 days will be finished. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country .
6.What is your terms of delivery ?
We accept EXW,FOB,CFR,CIF,etc. you can choose the one which is the most convenient or cost
effective for you .
7.Which payment terms will you receive ?
T/T, Western Union
8.How long is the warranty ?
The whole machine of all our products have 12 months warranty, and we supply free maintenance within warranty period.
Low charge for continue maintenance when warranty is expired
We are factory, Big quantity order is avaiable to us and the delivery time can be guaranteed
2.How Can I get contact with you about quotation?
We usually quote within 24 hours after we get your inquiry online because of the time difference.
For urgent condition, please call email us so that we will regard your inquiry priority.
3.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you need the
samples, you need pay the express fee, but it will be refundable after order confirmation
when your products amount is more than USD10,000.
4.What information you need to provide for a accurate quotation?
1. Lifting capacity.
2. Lifting height.( hook center to ground)
3. Power supply (Voltage)
4. Span (rail center to rail center)
5. Working condition: which material to lift? temprature?
6. Would be better if you have drawings of your plant.
5.What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order.
About 15-20 days will be finished. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country .
6.What is your terms of delivery ?
We accept EXW,FOB,CFR,CIF,etc. you can choose the one which is the most convenient or cost
effective for you .
7.Which payment terms will you receive ?
T/T, Western Union
8.How long is the warranty ?
The whole machine of all our products have 12 months warranty, and we supply free maintenance within warranty period.
Low charge for continue maintenance when warranty is expired
