Product Paramenters
Product Paramenters

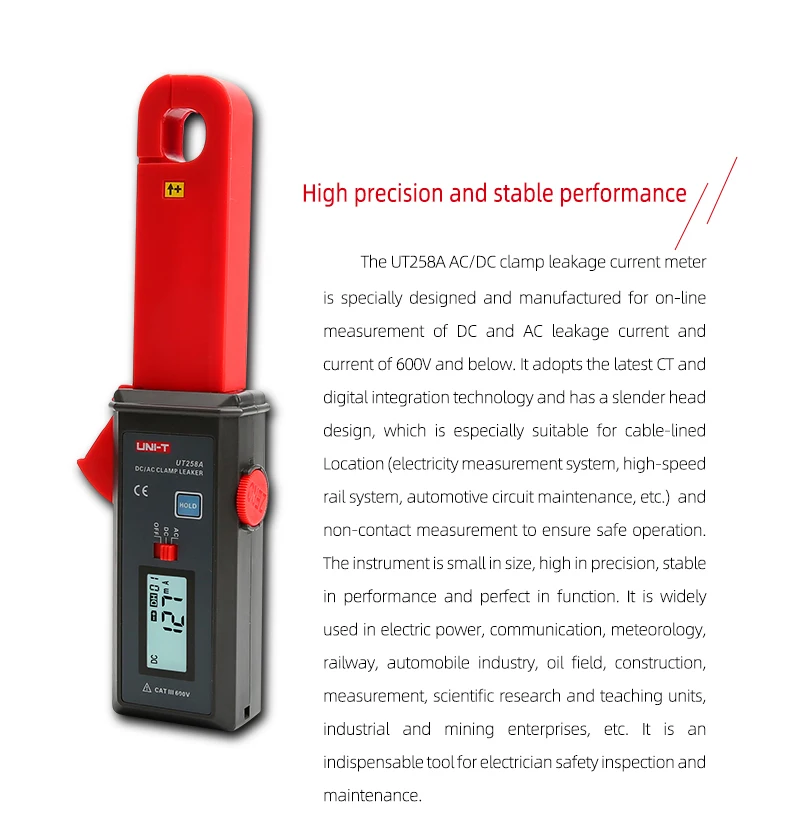

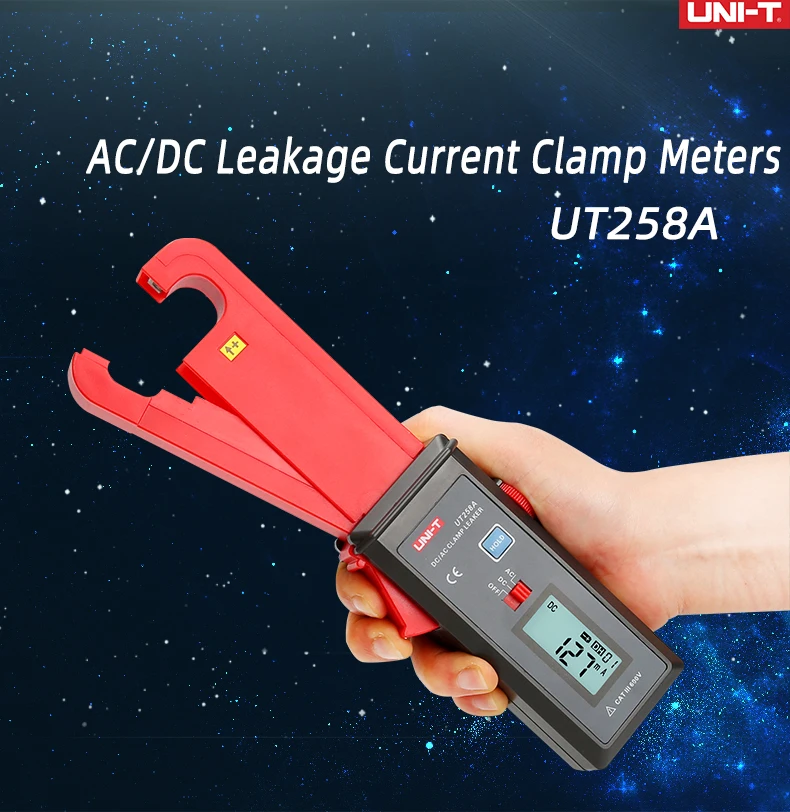

UT258A AC/DC Leakage Clamp Meter

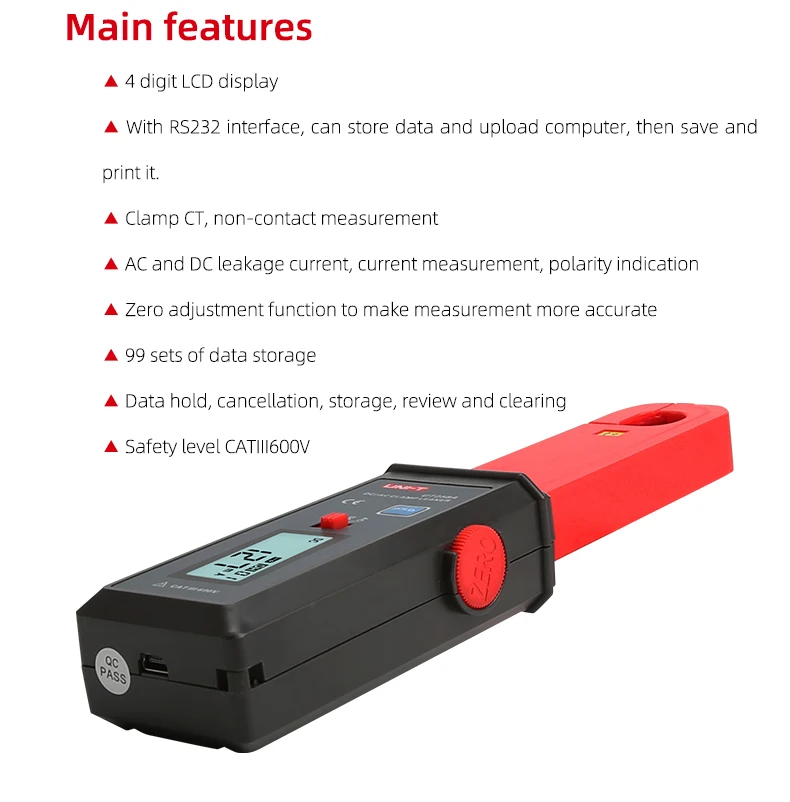

UNI-T’s UT258A is a 10000-count auto range clamp meter. It measures 0mA~60A AC/DC leakage current with zero mode, φ7mm jaw and RS-232 interface.

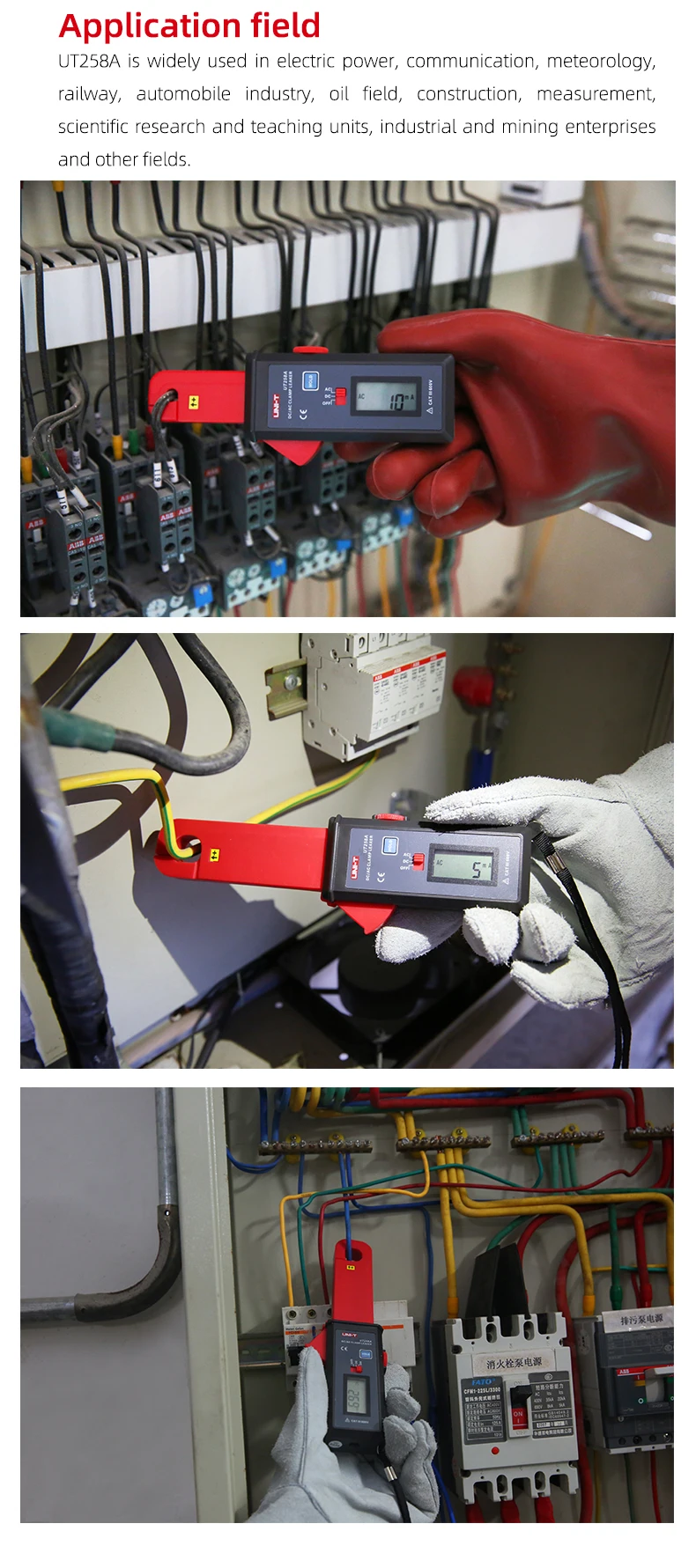

Applications:
It could be widely applied in electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.
Applications:
It could be widely applied in electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.

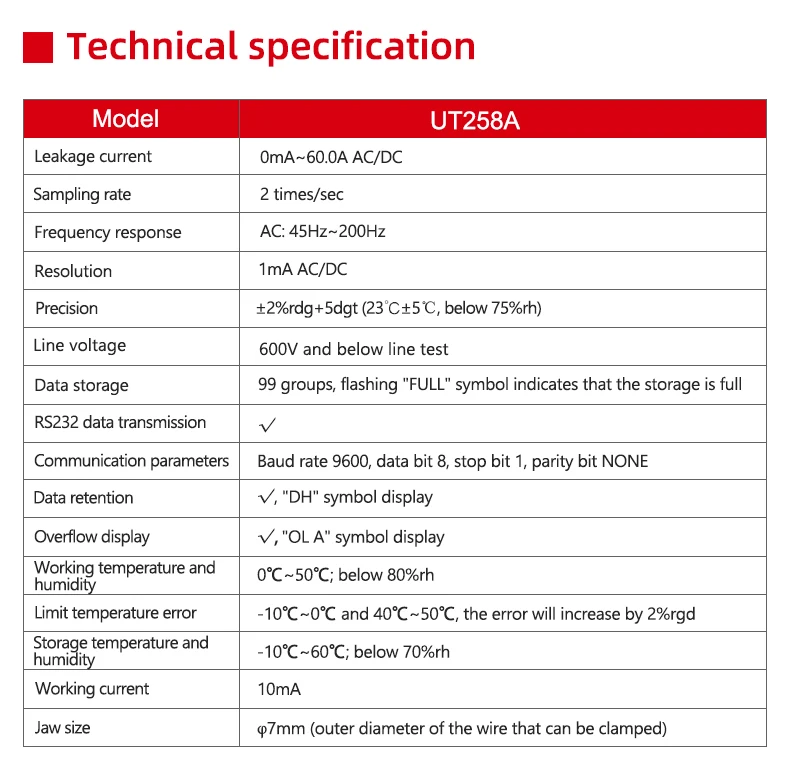

General Functions | Range | Accuracy | ||
Type | UT258A | |||
Current (A) | 0mA~60.0A AC/DC | ±(2%+5) | ||
Resolution | 1mA AC/DC | |||
Frequency Response | AC: 45HZ~200HZ | |||
Special Functions | ||||
Display Mode | 4-bit LCD display | √ | ||
Jaw Size | φ7mm (max wires O.D.) | √ | ||
Auto Range | √ | |||
RS-232 Data Transmission | √ | |||
Data Storage | 99 groups | |||
Zero Adjustment | Press ZERO to return to zero, remove residual magnetism induction, and then clamp the wires to be tested. | √ | ||
Data Hold | √ | |||
Line Voltage | not beyond 600V | √ | ||
Auto Power Off | 5 min | √ | ||
Low Battery Indication | Indicates low battery when the voltage is 7.2 | √ | ||
Sampling Rate | About 2 sec per time | √ | ||
Working Current | 10mA | √ | ||
General Characteristics | ||||
Power Supply | Zinc-manganese battery 6F22 9V | |||
Product Color | Red and grey | |||
Product Weight | 180g (with batteries) | |||

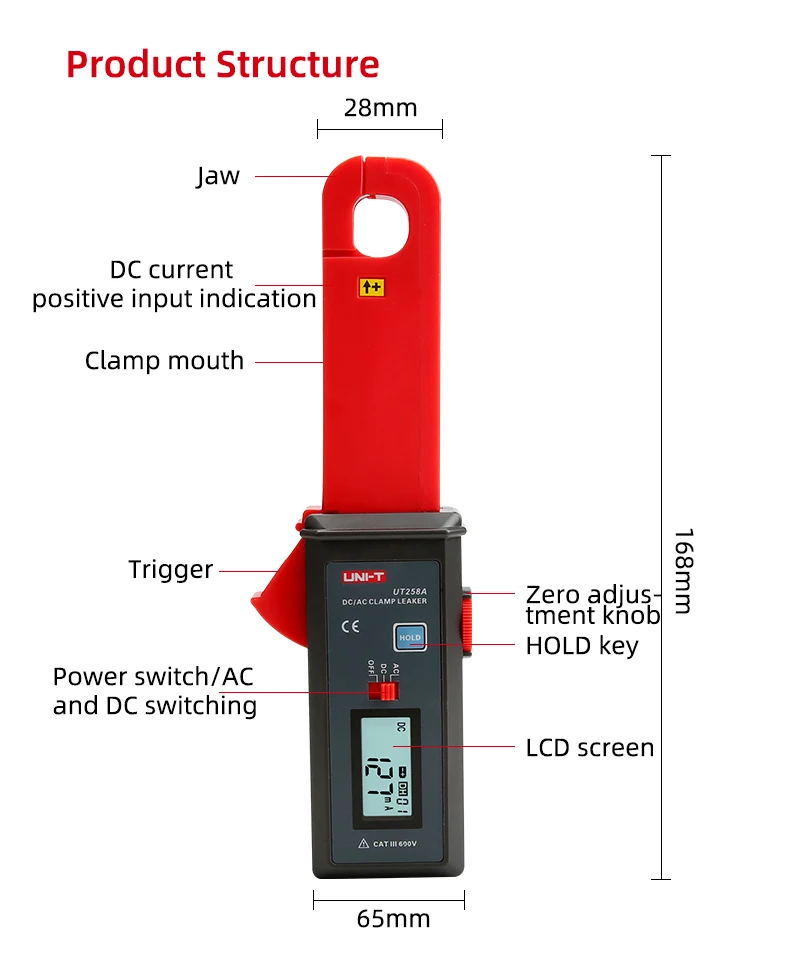

Product Size | 168mm×65mm×34mm | |||

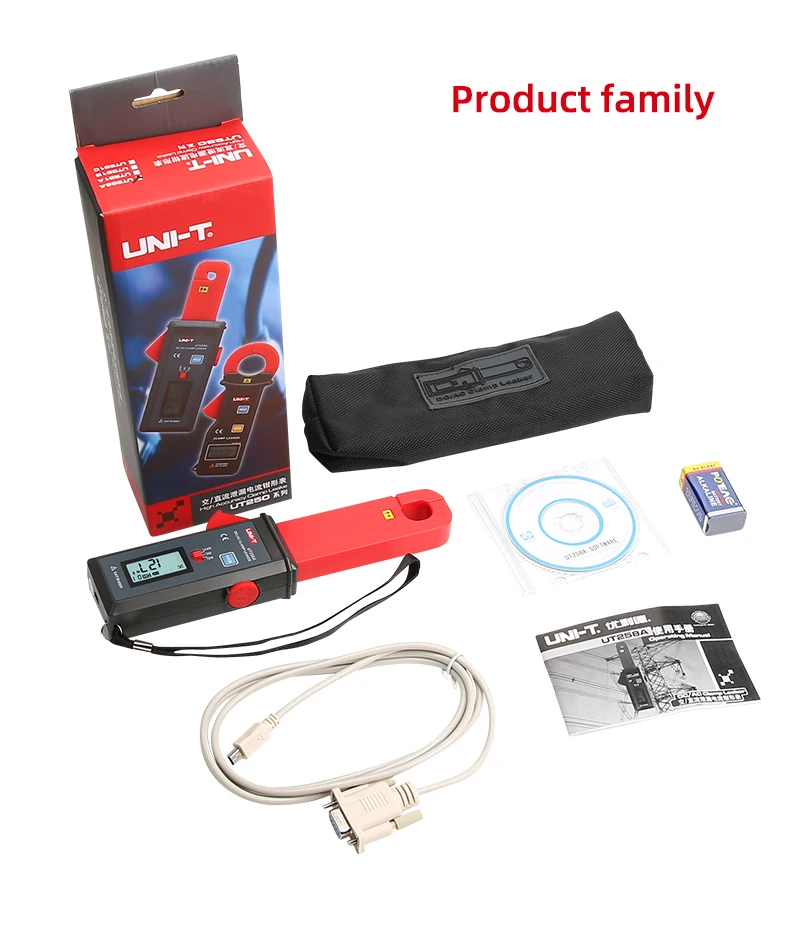

Standard Accessories | Batteries, monitoring software, RS232 cable | |||
Standard Package | Gift box, user manual, toolbox | |||
Standard Package Quantity | 40pcs | |||
Standard Package Size | 540X365X290mm | |||
Standard Package Gross Weight | 20kg | |||

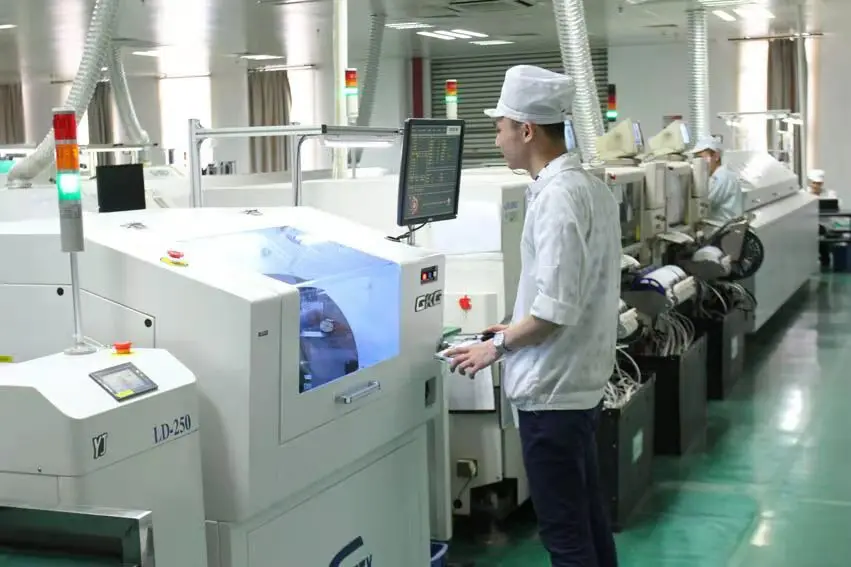

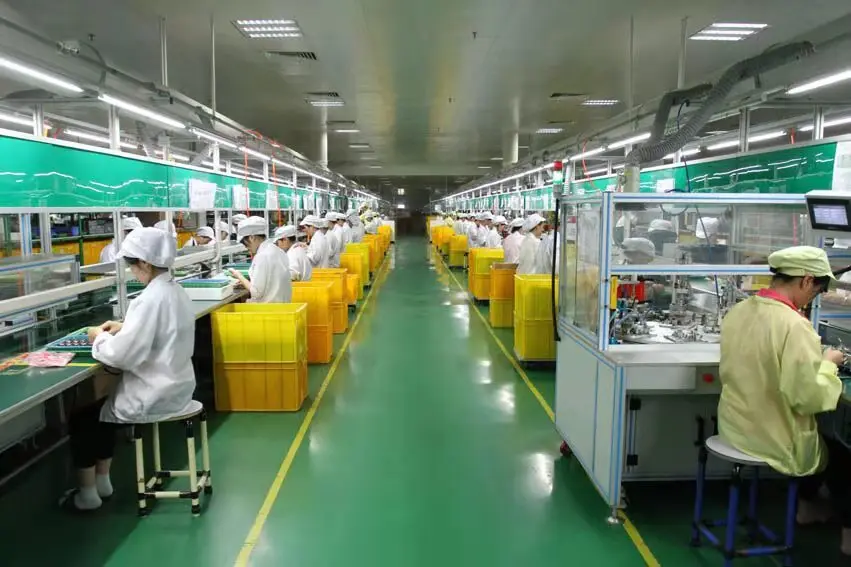

Company Profile
Company Profile
FAQ
Q1:Are you trading company or manufacturer ? A1: We are the manufacturer. Q2: How long is your delivery time? A2:Usually estimated arrival time is 7-9 working days.Different channels and Countries, the transportation time limit is different, please contact us for separate inquiries. Q3:Do you provide samples and how much is it? A3:Yes, samples are available. Samples need to be paid first, it will be refunded extra price after test and confirm the order for mass production. Q4:Can we pay via Paypal? What other payment methods are also available? A4:Yes, PayPal payment is available. We can also accept T/T and Western Union payment whichever is easier for you. Q5:Can we brand with our logo and do our own packaging? A5:Yes,we support OEM,we can print your logo and do your packaging based on quantity of 1000pcs. Q6:What is your MOQ? A6:We do not have moq for our standard items, one piece is acceptable,but for OEM items(logo printing or customized packaging), our moq is 1000pcs each item.
