Product Description
Separation principle:
Palm oil decanter centrifuge is a horizontal separating decanter with a cylindrical-conical solid wall bowl for the continuous separation of solid and liquid.
The solid-wall bowl has a cylindrical section for efficient separation and clarification of the liquid. The product enters the
decanter through the feed tube and passes through the distributor into the centrifuge space. The liquid level in the bowl is adjustable via regulating plates. Due to the centrifugal forces, the solid particles are forced to the bowl wall and are transported by the decanter scroll to the solids outlet.The liquids are separated in the separation zone and discharge
Competitive Advantage:
High rotation speed,high G force,big length -diameter ratio.
Big capacity
Low vibration,low noises strong afford capacity
Multiple protecting apparatus,reliable running
Reliable gear box system
Corrosion resistant an resistant key parts
Flexible drive and speed adjust mode
Famous and reliable electrical components
Palm oil decanter centrifuge is a horizontal separating decanter with a cylindrical-conical solid wall bowl for the continuous separation of solid and liquid.
The solid-wall bowl has a cylindrical section for efficient separation and clarification of the liquid. The product enters the
decanter through the feed tube and passes through the distributor into the centrifuge space. The liquid level in the bowl is adjustable via regulating plates. Due to the centrifugal forces, the solid particles are forced to the bowl wall and are transported by the decanter scroll to the solids outlet.The liquids are separated in the separation zone and discharge
Competitive Advantage:
High rotation speed,high G force,big length -diameter ratio.
Big capacity
Low vibration,low noises strong afford capacity
Multiple protecting apparatus,reliable running
Reliable gear box system
Corrosion resistant an resistant key parts
Flexible drive and speed adjust mode
Famous and reliable electrical components
Size Information
Model | Diameter(mm) | Speed(RPM) | G-force | Capacity(m3/h) | Main power(Kw) | Weight(Kgs) |
PDCS-17 | 420 | 3300 | 2550 | 5~20 | 30/11 | 3610 |
PDCS-18 | 450 | 3300 | 2739 | 4~50 | 30/11 | 3655 |
PDCS-20 | 500 | 3200 | 2860 | 5~45 | 55/11 | 4213 |
PDCS-21 | 540 | 2800 | 2366 | 5~50 | 45/15 | 5290 |

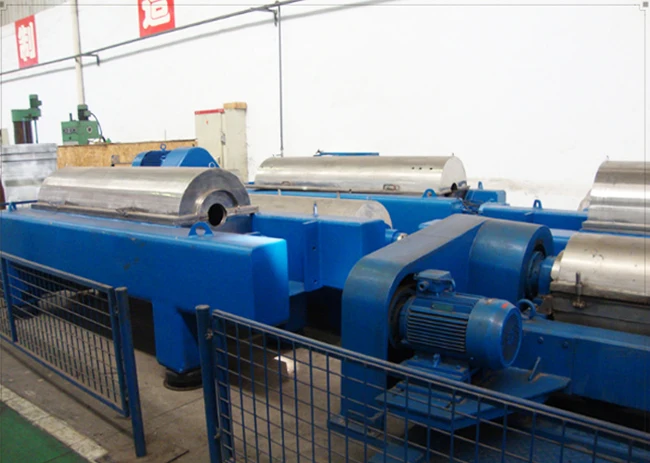

Detailed Images

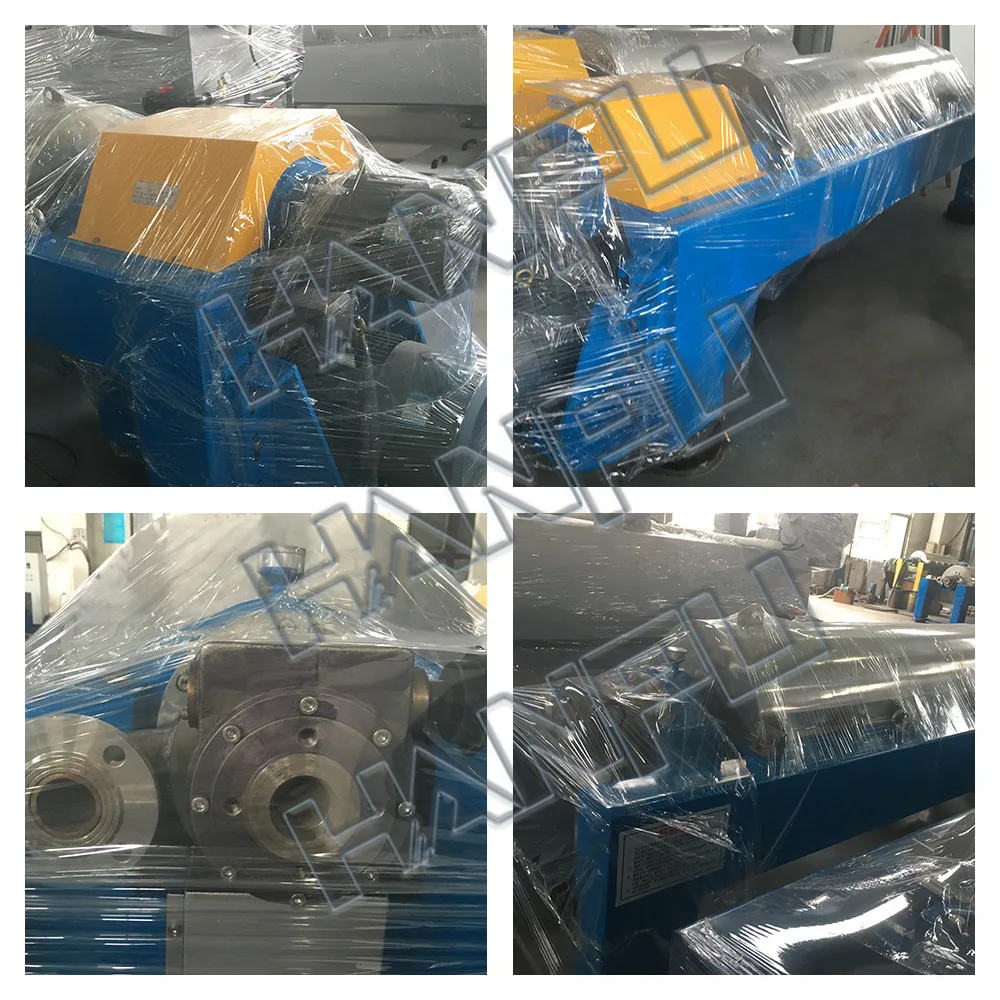

Packing&Shipping
Film wrapping+Wooden case fumigated
Company Introduction
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli
Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
